Lathe - cycle-controlled

Weiler E 35

Condition: excellent (used), Swing over bed 410 mm Distance between centers 1'000 mm Spindle speeds 4-3'000 rpm Control: WEILER Misc. accessories Codpfsk D S Rqox Abwjhc MARCELS MASCHINEN CH

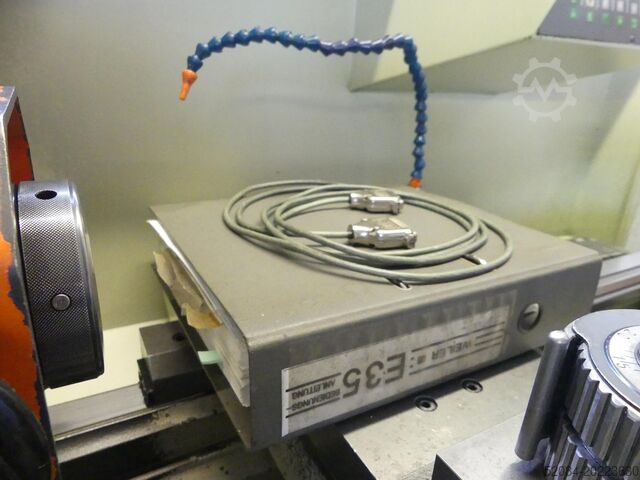

Condition: reconditioned (used), Year of construction: 1995, CYCLE LATHE WEILER " E 35" With 2 axes Siemens Sinumerik 805 Year of construction: 1995 Spindle bore: 54 mm Center distance: 950 mm Rotation O over bed: 410 mm Speed range: 4 - 3000 rpm Chsdpfxeuzyw Ds Abwjc With the following accessories: PARAT tool holder with 8 pcs. inserts Chuck guard 3 Jaw chuck 0 200 mm 4 jaw chucks 0 200 mm Fixed lynette 12 - 150 mm Chip collection tray Chip guard with lighting Coolant device 4 pcs. Height-adjustable machine shoes Operating instructions

Condition: used, Year of construction: 1997, - Drive system: Teach-in - Centre height [mm]: 210 - Swing over bed [mm]: 420 - Distance between centres [mm]: 900 - Spindle bore [mm]: 55 Cjdpfx Abswnh I Sowjhc - Min. spindle speed [rpm]: 4 - Max. spindle speed [rpm]: 3000 - Options: Digital readout - Type of digital readout: Weiler - Year: 1997 - Documentation available: Yes - CE marking present: Yes - Serial number: 270 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

Condition: excellent (used), Year of construction: 2004, Control: with Weiler D2 cycle control Centre distance: 950 mm Centre height: 200 mm Swing diameter over bed: 410 mm Swing diameter over cross slide: 200 mm Bed width: 330 mm Cross slide travel: 230 mm Top slide travel: 120 mm Cross slide length: 630 mm Cross slide width: 195 mm Bed carriage guide length: 480 mm Tool cross-section (height/width): 25 x 25 mm Spindle Spindle nose according to DIN 55027: Size 6 Front bearing spindle diameter: 90 mm Spindle bore: 54 mm Main spindle taper: 6 MT Main drive Drive power 60% / 100% duty cycle: 9 / 7.5 kW Max. spindle torque: 700 Nm Total speed range: 1 – 3000 rpm Speed range gear stage I: 1 – 750 rpm Speed range gear stage II: 4 – 3000 rpm Feed drive Three-phase servo drives Feed range longitudinal and facing: 0 – 20 mm/rev Feed force longitudinal: 8000 N Feed force facing: 5000 N Rapid traverse speed longitudinal/facing: 10 / 5 m/min Tailstock Quill diameter: 65 mm Quill stroke: 120 mm Cedpfxjw Ufg Ro Abwjhc Quill taper: 4 MT Thread cutting range Metric threads: 0.1 – 400 mm Inch threads: 1/4 - 56 TPI / 1" Module threads: 0.125 – 28 mm pitch DP threads: 1 – 224 TPI Machine dimensions Total length: 2300 mm Total width: 1400 mm Total height: 1700 mm Machine weight: 2100 kg Fixed steady rest (option) Clamping range: 12 – 150 mm Travelling steady rest (option) Clamping range: 10 – 160 mm
