High-performance planer Weinig Hydromat 23

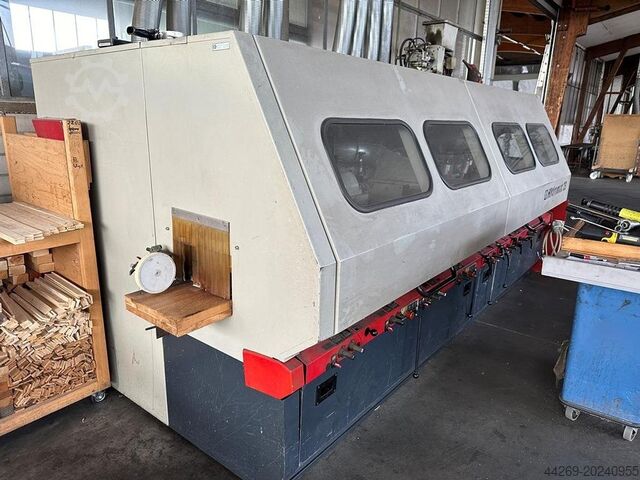

Weinig Hydromat 23

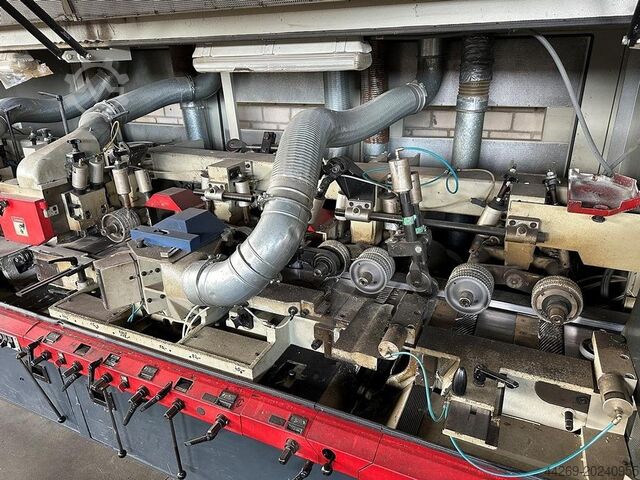

Condition: excellent (used), Four-side planer Weinig Hydromat 23C Working width: 230 mm Working height: 160 mm Number of spindles: 7 Spindle arrangement: 1. Bottom 15 kW 2. Right 7.5 kW 3. Left 7.5 kW 4. Top 15 kW 5. Bottom 30 kW (multi-blade saw) 6. Bottom 7.5 kW (hydro support) 7. Top 7.5 kW (hydro support) Dcsdpfx Acjxlcufowsn Spindle speed: 6000 rpm Spindle diameter: 50 mm 4 feed rollers in the worktable Feed speed adjustable via frequency inverter up to 36 m/min Feed drive powered by cardan shaft Pneumatic pressure elements Technical documentation

Condition: excellent (used), Year of construction: 2003, Weinig Hydromat 23C with 6 Spindles. Separate electrical panel. Dsdpfxoxgq Rde Acwocn Automatic lubrication system for bedplates Maximum dimensions 140mm x 230mm No 1.  11kw - Bottom 6000rpm + Outboard bearing - straight jointer prepared No 2. 11kw - Right 6000rpm - straight and profile jointer prepared No 3. 11kw - Left 6000rpm - straight and profile jointer prepared No 4 . 15kw - Top 6000rpm + Outboard bearing - jointer prepared No 5 . 11kw - Top 6000rpm + Outboard bearing - straight jointer No 6 . 18.5kw - Bottom 6000rpm + Outboard bearing - straight jointer 7.5 kw feed. 6-60m/min (Possible to increase speed as needed). 50mm spindles Beam 0.55kW Full documentation included. Possible to supply with hydro tooling if needed. Possible to supply with infeed and outfeed if needed.

Condition: reconditioned (used), Year of construction: 2001, Selling out sawmill factory! Dsdevb I Nkspfx Acwecn Weinig Hydromat 23 c moulder line: Package chains 6 meter Lifting tilt Infeed conveyor Weinig Hydromat 23 c - 80 m/min - all moving parts renovated, changed - new axis. Outfeed conveyor 15 m Side conveyor Cross cut saw 6 meter - 3 heads. Planner 5 heads. 1. - 15 kw 2. - 15 kw 3. - 15 kw 4. - 18.5 kw 5. - 30 kw Possible to see in operation. For more info please call.

Condition: excellent (used), Year of construction: 1998, functionality: fully functional, working width: 230 mm, planing height: 160 mm, spindle diameter: 50 mm, planing width: 230 mm, working height: 160 mm, power of feed motor: 7,500 W, spindle speed (max.): 6,000 rpm, spindle speed (min.): 6,000 rpm, height adjustment type: electric, type of input current: three-phase, number of spindles: 8, power: 97,000 kW (131,883.14 HP), frequency: 50 Hz, Equipment: cabin, motor brake, Four-sided planing machine Weinig Hydromat 23 laminating machine 8 spindles, Working width: 230 mm, working height: 160 mm, spindle diameter: 50 mm, feed: 7.5 kW / 6 - 36 m/min, Spindle arrangement: 1-bottom (7.5 kW) Dsdpfsug Hwrox Acwscn 2- Right (7.5 kW) 3- Left (7.5 kW) with profile jointer 4- Right (7.5 kW) with profile jointer 5-Top (7.5 kW) with hydraulic clamping 6-Bottom (30 kW) with hydraulic clamping 7-Top (7.5 kW) with hydraulic clamping and straight jointer 8- Bottom (7.5 kW) with hydraulic clamping and straight jointer. Hard coating. Two driven rollers in the table.

Condition: excellent (used), Year of construction: 2000, planing width: 230 mm, Weinig Hydromat 23 year 2000 Dodpew Ryu Ijfx Acwjcn Installed power: 71 kW Working width: max 230 mm, min 20 mm Spindle diameter: 50 mm

Condition: excellent (used), working width 230mm working height 120mm 6 heads feeding speed max 60m/min heads set: bottom/right/left/top/top/bottom Dcedew Ad H Topfx Acwon all motors 7,5kW automatic table lubrication Memory system automatic controller two side spindle holder two last heads with manual jointer

Condition: used, Year of construction: 1996, Weinig Hydromat 23 Technical data Working width 30 - 230 mm Working height 19 - 200 mm Spindle down, right, left, up, down u- re-li-o-u.o without infeed machine only Machine is dismantled, immediately available Transport can be organized Dsdpfx Acjqrt Ekowecn

Condition: excellent (used), Weinig Hydromat 23C with 6 Spindles. Dedpforn Snmox Acwecn Max width 245mm Max Thickness 160mm Separate electrical panel. Separate remote control panel Automatic lubrication system for bedplates Full heavy duty sound enclosure. 15kW feed motor 100m/min No 1.  7.5kw - Bottom 6000rpm straight jointer prepared No 2. 11kw - Right 6000rpm straight and profile jointer prepared No 3. 15kw - Left 6000rpm straight and profile jointer prepared No 4 . 15kw - Top 6000rpm + Outboard bearing + straight and profile jointer prepared No 5 . 30kw - Top 6000rpm + Outboard bearing + straight and profile jointer prepared No 6 . 15kw - Bottom 6000rpm + Outboard bearing + straight and profile jointer prepared 50mm spindles Beam 0.55kW Full documentation included. Heavy duty sound enclosure. Possible to supply with hydro tooling if needed. Possible to supply with full mechanisation if needed.

Condition: excellent (used), WEINIG Hydromat H23 Line, S/N 87321, year 1999, Ref-No. 103437 WEINIG Cross Conveyor HighMech E-1, equipped with 6 flat chains approx. 2000 x 3500 mm Hydraulic WEINIG Accelerator Model 814 Short infeed table with heavy-duty 4-roller feed unit Planer/moulder with reinforced KASCHWIG three-sided soundproof enclosure • Max. working width: 230 mm • Max. working height: 160 mm • Electronic feed, frequency-controlled, 8–80 m/min • Feed motor 18.5 kW • 1st spindle bottom 11.0 kW • 2nd spindle right 11.0 kW • 3rd spindle left 11.0 kW • 4th spindle right 11.0 kW • 5th spindle left 11.0 kW • 6th spindle top 15.0 kW • 7th spindle bottom 11.0 kW • 8th spindle top 15.0 kW • 9th spindle bottom 15.0 kW • 10th universal spindle 11.0 kW (four-sided) • Spindle speed 6,000 rpm • Spindle diameter ø 50 mm • All spindle motors equipped with NEW motor start/stop brake units Dcedswvqklepfx Acwen • Pneumatically supported top pressure rollers • Feed rollers D=140 mm • 6 driven rollers in the table • Spindles 1 + 6 + 7 + 8 + 9 with counter bearings • Spindles 8 + 9 with straight jointer • Spindles 8 + 9 with profile jointer • Spindles 6 + 8 with pneumatic pressure • Reduced spacing between feed rollers • Hard-chromed table plates • Hard-chromed fences • Pneumatically supported side pressure rollers • Automatic table lubrication • Centralized lubrication points • Free-standing control panel • Connected load approx. 145 kW / approx. 400 A • Free-standing electrical cabinet • Operating instructions, spare parts list and wiring diagram included • Machine sold without cutterheads Machine dimensions approx.: • Length: 6,000 mm • Width: 2,250 mm • Height: 1,800 mm • Weight: approx. 8,500 kg Factory-new WEINIG components installed: NEW horizontal/vertical spindle NEW counter bearings All spindles with HL bearings All motors newly fitted NEW electronic motor soft start/brake devices NEW hard-chromed table plates NEW hard-chromed fences Many other new parts fitted in the machine Condition: see attached photos – technically in excellent condition Infeed mechanization unrefurbished – complete – fully functional Payment: Net cash before loading Delivery time: By arrangement Delivery: EXW Inspection: Anytime by appointment Errors and prior sale excepted.

Condition: excellent (used), Year of construction: 2003, Weinig Hydromat 23C with 6 Spindles. Separate electrical panel. Automatic lubrication system for bedplates Maximum dimensions 140mm x 230mm No 1.  11kw - Bottom 6000rpm + Outboard bearing - straight jointer prepared No 2. 11kw - Right 6000rpm - straight and profile jointer prepared No 3. 11kw - Left 6000rpm - straight and profile jointer prepared No 4 . 15kw - Top 6000rpm + Outboard bearing - jointer prepared No 5 . 11kw - Top 6000rpm + Outboard bearing - straight jointer No 6 . 18.5kw - Bottom 6000rpm + Outboard bearing - straight jointer Dcodpfx Asw Irdijcwon 7.5 kw feed. 6-60m/min (Possible to increase speed as needed). 50mm spindles Beam 0.55kW Full documentation included. Possible to supply with hydro tooling if needed. Possible to supply with infeed and outfeed if needed.
