Weinig jointing rebate cutter

Weinig

Condition: good (used), functionality: fully functional, working width: 255 mm, planing height: 160 mm, spindle diameter: 40 mm, planing width: 255 mm, working height: 160 mm, power of feed motor: 3,000 W, spindle speed (max.): 6,000 rpm, spindle speed (min.): 6,000 rpm, height adjustment type: electric, planer shaft diameter: 40 mm, type of input current: three-phase, number of spindles: 5, input frequency: 50 Hz, Equipment: cabin, motor brake, Weinig Unimat 23 E with 5 spindles, Working width: 255 mm, Working height: 160 mm, Spindle diameter: 40 mm, Feed: 3 kW / 6 – 36 m/min, Spindle arrangement: 1-Bottom (5.5 kW) 2-Right (5.5 kW) 3-Left (7.5 kW) Gjdpfx Aoxg Sa Hohvjuc 4-Top (5.5 kW) 5-Bottom (4.0 kW) One driven roller at the outfeed table.

Condition: excellent (used), Year of construction: 2011, functionality: fully functional, Unicontrol 12 Consisting of: Cut-off unit (item A), Tenon and slotted spindle (item C), Transfer belt (Pos. I), profiling spindle (Pos L), profiling spindle (Pos. N), Profile shaving unit vertical right (Pos. P) For the production of individual parts and elements in frame-by-frame or serial production. Consisting of a cross processing unit and a longitudinal processing unit connected to a transfer belt. Working width 40-140mm (See pressure ruler left 40 - 140 mm) Working height 40-120mm Workpiece length min. approx. 275 mm + 1 x end profile length Long machining: approx. 220 mm + 2 x end profile length Workpiece length max. 3500 mm Godpfx Aheumci Sjvsuc The part dimensions depend on the machine equipment, production type and tool assignment. A final definition of the part dimensions is only possible after receipt, inspection and approval of the complete and final layout drawings. Cross machining: Table feed Motor power 0.3 kW (0.4 HP) Pre-set feed speed for cutting, profiling and return 3-25 m/min Vario table with (studio window production possible) The clamping length of all tenoning and slotting spindles can be used without a tool blank. Workpiece clamping by means of a clamping bridge. Operated by a clamping cylinder installed under the table. NC-controlled long fence mounted on the slotting table. Studio window device Swivel angle max. +/- 75° The minimum workpiece length for slanted windows depends on the angle and the width of the wood. Possible part dimensions for slanted window production Angle Max. Min. Working width Workpiece length +/-75° 80 mm 800 mm +/-70° 120 mm 490 mm +/-60° 240 mm 360 mm +/-90° 350 mm 185 mm For angles greater than 60° only counter processing Commission not documented 1)NC automatic angle adjustment for machining angled parts Splinter protection by means of overtravel counter Over the entire spindle length of the tenoning and slotting spindle for 90° machining Manually trackable counter-rail for angled part machining 2) Additional counter-rails

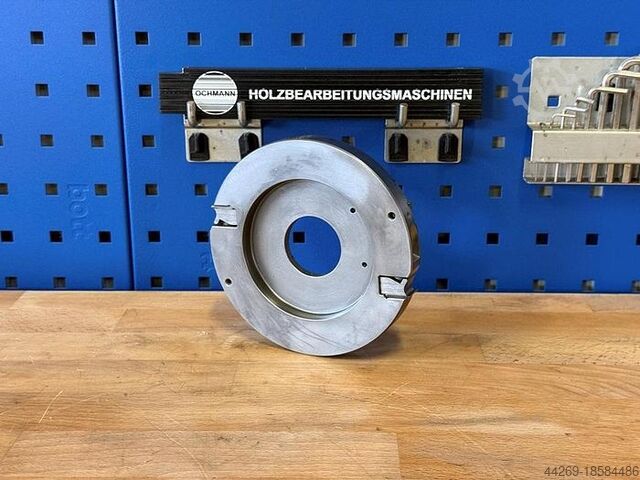

Condition: used, bore 50 mm length 150 mm knife system RVZ Gjdpfx Ahjzc Rx Usvouc circle diameter 150 mm number of blades 4 Z material Stahl Unused stock. Set of 2.

Condition: excellent (used), Year of construction: 1989, functionality: fully functional, WEINIG Unicontrol UC 10-5 Window Production Machine 1. Electronically controlled crosscut saw with laser switching between saw cutting and zero-point wheel, 3 kW motor 2. Grooving spindle 50 x 630 mm for tools 6 x 80 mm, 15 kW motor 3. Longitudinal/synchronous profiling spindle 50 x 320 mm for tools 4 x 80 mm, 11 kW motor 4. Grooving spindle (between 1st and 2nd lifting spindle), D = 40 x 40 mm, axially indexed, 3 kW motor 5. Longitudinal profiling spindle 50 x 320 mm for tools 4 x 80 mm, 11 kW motor 6. Longitudinal profiling spindle 50 x 320 mm for tools 4 x 80 mm, 11 kW motor 7. Clamping spindle 40 x 150 mm, 3-position axial cycle, 2-position radial cycle, 3 kW motor Saw and grooving spindle on the right side, 3 kW motor Hardware spindle 40 x 150 mm, 3 kW motor Adjustable feed speed 6-12 m/min, 1.1 kW motor 4-position counter changer Electronic length stop, 3600 mm Workpiece return system with automatic rotating mechanism Gedexmr N Ijpfx Ahvjuc Automation package Interval-controlled sash support Double parts package Laminated fabric tables (for sanded surfaces) Pressure guide on the left, max. wood width difference 100 mm Machine in very good technical and visual condition

Condition: good (used), Year of construction: 2003, functionality: fully functional, 1.High-Speed Planer/Moulder WACO MAXI 8 spindles for horizontal splitting, feed speed 20-150 m/min Working width planing: 30-300 mm Working height planing: 10-150 mm Cutting circle- 180-260 mm Operating voltage: - 400 Volts, 50 Cycles Main feed motor - 37 kW Frequency concerter - 45 kW 1.Bottom head - 24,5 kW 2.Top head - 30 kW 3.Right side head - 18,5 kW 4.Left side head - 30 kW 5.Right side head -18,5 kW Gsdpfx Ahozc I Dbevsuc 6.Left side head - 24,5 kW Horizontal splitting: 7.Right side head - 53 kW 8.Left side head - 53 kW Max working width 200 mm Max working height 63 mm Max saw blade diameter 300 - 400 mm Spindle diameter 50 mm Vertical adjustability 10 mm Spindle speed 5.500 v/min Exhaust connection 2 x Æ 160 mm Unit lenght 1300 mm 2. High-Speed Planer/Moulder WACO MAXI 3 spindles for finishing, feed speed 30-300 m/min Main feed motor - 37 kW Frequency converter - 45 kW Feed speed, variable: 30-300 m/min 1.Beading head: 24,5 kW 2.Top head 24,5 kW 3.Rotaplan head 30 kW

Condition: like new (used), WEINIG SPARE PARTS FOR HYDROMAT POWERMAT UNIMAT USED AND NEW PARTS SPINDLES GEARBOXES CASTINGS MOTORS VARIATORS BED PLATES OUTBOARD BEARINGS JOINTERS PCS LOGOCOM ETC BRIVE BELTS POSITION INDICATORS PRESSURE SHOES CHIP BREAKERS HOODS PENDULUMS SHORT BOARD FEEDING PARTS TOOLING Gusdpszc H Irefx Ahvjc ETC

Condition: excellent (used), Year of construction: 1992, functionality: fully functional, machine/vehicle number: 936-193, working width: 240 mm, grinding wheel diameter: 225 mm, input voltage: 380 V, type of input current: three-phase, height adjustment type: mechanical, grinding wheel speed: 3,000 rpm, input frequency: 50 Hz, Grinding of knives in knife head or fixed profile cutter Grinding disc diameter 150 - 225 mm, speed 0 - 300 O/min Gedpfx Aozc Hm Iehvouc Tool diameter: 100 to 300 mm Tool width: up to 240 mm Electrical cabinet - fully reconditioned. Without O.M.A. measuring system.

Condition: excellent (used), functionality: fully functional, 5-spindles automatic planer with grooved table WEINIG PROFIMAT P 23 E with grooved plane ( removable ) Gedpfx Ahezcx A Ijvsuc second hand machine n.5 spindles working condition : Excellent CE mark : Yes volt. 380/50 grooved plane ( removable ) with tools : Yes , as in photos Composed by 5 spindles , 4 motors : 1° spindle : planer . motor power Hp 5,5 ( Kw 4 ) 2° and 3° spindles : right and left vertical . motor power Hp 10 ( Kw 7,5 ) 4° spindle : thickness planer . motor power Hp 7,5 ( Kw 5,5 ) 5° spindle : planer . motor power Hp 5,5 ( Kw 4 ) grooved plane ( removable ) Technical details : forward motor power Hp 4 ( Kw 3 ) spindle rotation speed rpm 6000 feed speed : from 5 to 24 mt./min max. useful working width mm. 230 max. useful working height mm. 120 shaft diameter mm.40 inlet length mm. 2000 lubrication system electric height adjustment set of service keys / documentation

Condition: excellent (used), Deburring machine, 1 upper head, 3 kW motor 2 lower head, 3 kW motor 3 right head, 3 kW motor 4 left head, 3 kW motor 5 universal head, 0.37 kW motor 6 feed mechanism, 1.5 kW motor, 18 m/min Working height: 11 cm Gusdpfx Aoy Andcohvsc Working width: 14 cm

Condition: excellent (used), CATALOGUE NUMBER 8017 TECHNICAL DATA - track width 335mm - arbor width 400mm - max. blade diameter 350mm - blade arbor diameter 80mm - max. cutting height 120mm - table width with clearance 700mm - table length 1720mm Guedpfxozcwzpj Ahvoc from above: - guides/pawls - roller, sliding pressure, metal - guides/pawls - roller, sliding pressure, metal - arbor with saw blades - sliding pressure arbor, metal 2 pcs from below: - pneumatic guide rail - sliding metal roller - guides/pawls - track - sliding metal roller, output - electric body lifting 0.35kW - manual arbor lifting with saw blades - central lubrication - stepless feed rate adjustment 1.5kW - main motor 30kW - laser 3 pcs - floating blade - additional sleeve for multi-blade saw - blade cleaning - diameter of dust extraction nozzle 260mm - overall dimensions L/W/H 2300x2000x2150mm - weight approx. 3000kg ADVANTAGES – German made – Floating blade – Laser 3 pcs – Blade cleaning – Additional sleeve for multi-blade saw – Pneumatically adjustable guide rail – Stepless speed adjustment – Used multi-blade saw, very good condition Net price: 136900 PLN Net price: 32595 EUR, depending on the exchange rate of 4.20 EUR (Prices are subject to change due to fluctuations)
