Plane heads

Weinig

Condition: ready for operation (used), Year of construction: 2003, functionality: fully functional, machine/vehicle number: 1.490,14, saw blade diameter: 500 mm, cutting height (max.): 140 mm, cutting width (max.): 350 mm, power: 8 kW (10.88 HP), overall weight: 2,000 kg, TECHNICAL DETAILS Max. saw blade length: 6,100 mm Max. saw blade diameter: 500 mm Saw blade arbor diameter: 35 mm Max. cutting height: 140 mm Gedpjy Nyd Iefx Almobl Max. cutting width: 350 mm Infeed table length: 7,850 mm Outfeed table length: 2,400 mm MACHINE DETAILS Main motor power: 5.5 kW Total power: 8.0 kW Voltage: 400 V Fuse: 25 A Dimensions & Weight Dimensions (L x W x H): 11,250 x 800 x 1,600 mm Weight: 2,000 kg EQUIPMENT Automatic feed system

Condition: ready for operation (used), Year of construction: 2004, machine/vehicle number: 102848, functionality: fully functional, operating hours: 3,142 h, empty load weight: 5,000 kg, feed rate X-axis: 33 m/min, number of spindles: 7, TECHNICAL DETAILS Number of spindles: 7 Spindle 1 - Spindle type: Bottom - Motor power: 15 kW - Tooling: Yes Spindle 2 - Spindle type: Right - Motor power: 11 kW - Tooling: Yes Spindle 3 - Spindle type: Left - Motor power: 11 kW - Tooling: Yes Gbsdpfxjy Nyb Hs Almjl Spindle 4 - Spindle type: Top - Motor power: 22 kW - Tooling: Yes Spindle 5 - Spindle type: Bottom - Motor power: 15 kW - Tooling: Yes Spindle 6 - Spindle type: Top - Motor power: 30 kW - Tooling: Yes Spindle 7 - Spindle type: Bottom - Motor power: 15 kW Minimum planing width: 20 mm Maximum planing width: 300 mm Minimum planing height: 3 mm Maximum planing height: 160 mm Infeed table length: 1,000 mm Feed roller diameter: 140 mm Extraction nozzle diameter: 160 mm Feed speed: Manual Minimum feed speed: 5 m/min Maximum feed speed: 33 m/min Feed speed regulation: Infinitely variable MACHINE DETAILS Voltage: 400 V Current consumption: 278 A Circuit breaker: 400 A Power: 128 kW Dimensions & weight Dimensions (L x W x H): 5,500 x 2,400 x 2,100 mm Net weight: 5,000 kg Operating hours: 3,142 h EQUIPMENT Driven rollers in the table Powerlock Cutterhead drive: Cardan shaft drive Lubrication system: Automatic

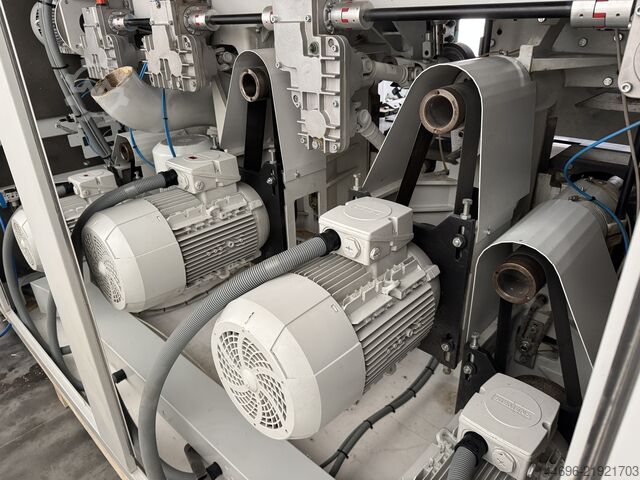

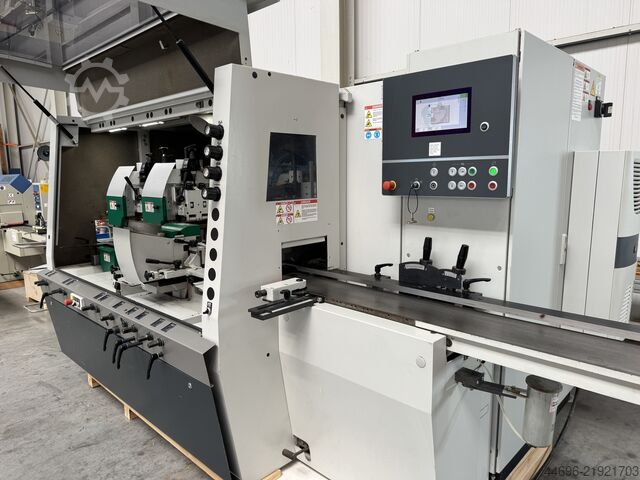

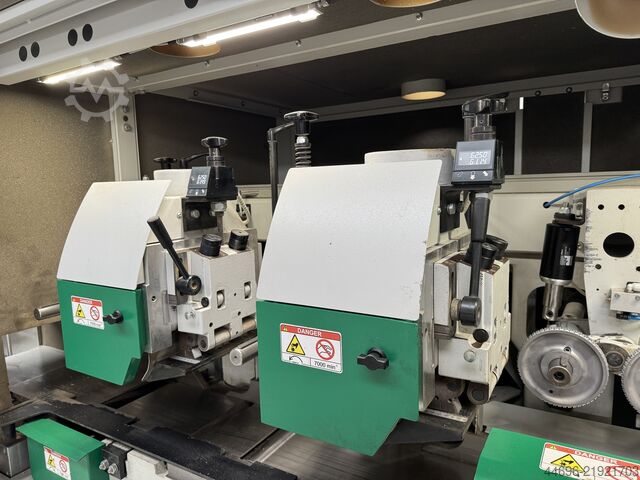

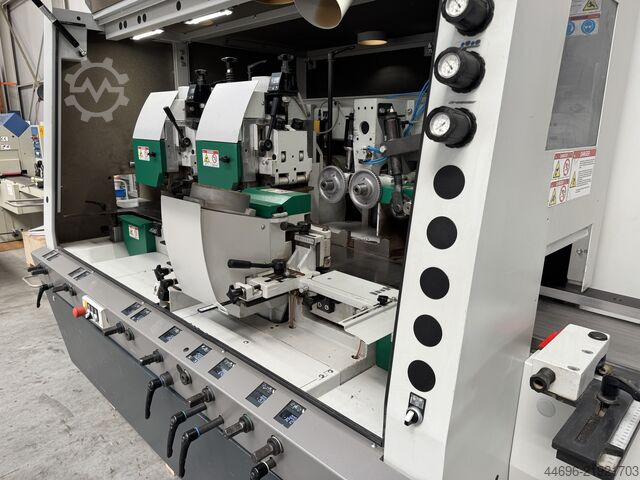

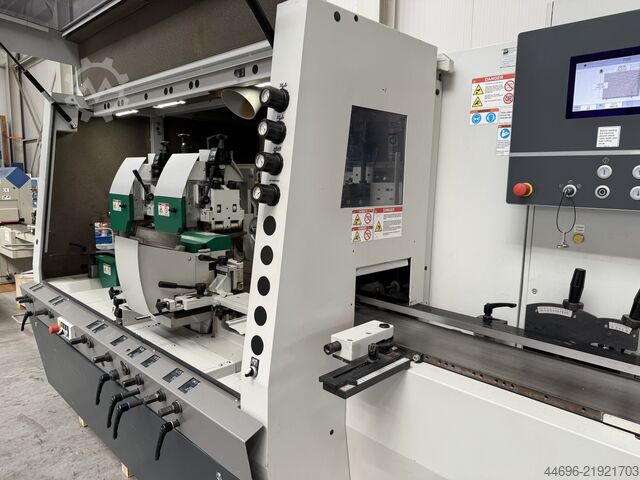

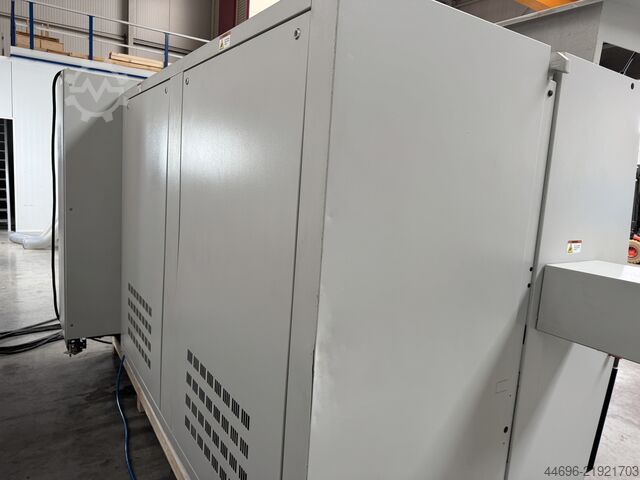

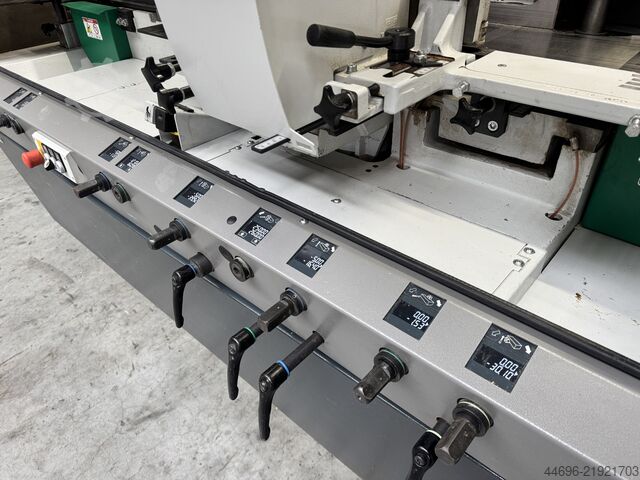

Condition: excellent (used), Year of construction: 2020, functionality: fully functional, spindle diameter: 40 mm, planing width: 260 mm, working height: 160 mm, spindle speed (min.): 7,000 rpm, Weinig Powermat 700 6 spindles 260 mm wide Gbjdey R U Sispfx Almel 160 mm high 40 mm spindles 7.000 rpm Feed speed 5-40 m/min Bottom 11.0 KW Right + left motor joint motor 11.0 KW Top 11.0 KW Top 7.5 KW Bottom 7.5 KW Radial CNC controlled adjustment and positioning left + top spindles Marathon coating for machine tables and fences (excl. infeed table) 2.5 Meter infeed table Memory Plus operating system

Condition: good (used), functionality: fully functional, working width: 240 mm, planing height: 160 mm, spindle diameter: 50 mm, planing width: 240 mm, working height: 160 mm, power of feed motor: 4,000 W, spindle speed (max.): 7,000 rpm, spindle speed (min.): 7,000 rpm, height adjustment type: electric, type of input current: three-phase, number of spindles: 5, power: 39 kW (53.03 HP), Equipment: cabin, motor brake, Weinig Unimat 1000 with grooved bed Working width: 240 mm, Working height: 160 mm, 5 spindles Spindle diameter: 50 mm Spindle arrangement: Gjdpjx Dzc Sefx Almjbl 1-Bottom (7.5 kW) 7000 rpm 2-Right (7.5 kW) 7000 rpm 3-Left (7.5 kW) 7000 rpm 4-Top (7.5 kW) 7000 rpm 5-Bottom (5.5 kW) 7000 rpm Feed: 4 kW / 6 – 36 m/min, One powered roller in the table at the outfeed.

Condition: excellent (used), Year of construction: 1989, functionality: fully functional, WEINIG Unicontrol UC 10-5 Window Production Machine 1. Electronically controlled crosscut saw with laser switching between saw cutting and zero-point wheel, 3 kW motor 2. Grooving spindle 50 x 630 mm for tools 6 x 80 mm, 15 kW motor 3. Longitudinal/synchronous profiling spindle 50 x 320 mm for tools 4 x 80 mm, 11 kW motor 4. Grooving spindle (between 1st and 2nd lifting spindle), D = 40 x 40 mm, axially indexed, 3 kW motor 5. Longitudinal profiling spindle 50 x 320 mm for tools 4 x 80 mm, 11 kW motor 6. Longitudinal profiling spindle 50 x 320 mm for tools 4 x 80 mm, 11 kW motor 7. Clamping spindle 40 x 150 mm, 3-position axial cycle, 2-position radial cycle, 3 kW motor Saw and grooving spindle on the right side, 3 kW motor Hardware spindle 40 x 150 mm, 3 kW motor Adjustable feed speed 6-12 m/min, 1.1 kW motor 4-position counter changer Electronic length stop, 3600 mm Workpiece return system with automatic rotating mechanism Automation package Interval-controlled sash support Double parts package Laminated fabric tables (for sanded surfaces) Pressure guide on the left, max. wood width difference 100 mm Godpjxmr N Iofx Almsbl Machine in very good technical and visual condition

Condition: excellent (used), Year of construction: 2003, functionality: fully functional, Four-side planer WEINIG UNIMAT SUPER 4 Year of manufacture: 2003 TECHNICAL DATA: Gbedpfx Asyivilolmjl - min / max width of workpiece: 45 / 150 mm - min / max height of workpiece: 15 / 50 mm 3 spindles: 1) lower horizontal 11 kW 2) upper horizontal 18.5 kW 3) lower horizontal 5.5 kW spindle diameter: 40 mm

Condition: used, Year of construction: 2000, machine/vehicle number: 90816, Technical specifications: 1st shaft: lower horizontal, 2nd shaft: right spindle moulder, 3rd shaft: left spindle moulder, 4th shaft: upper horizontal, 5th shaft: lower horizontal, 6th shaft: universal, ATS control, any width, maximum width: 230, maximum height: 120. Gedjxp U R Hopfx Almobl

Condition: excellent (used), CATALOG NUMBER 6575 TECHNICAL DATA - Max. workpiece width: 230 mm - Max. workpiece height: 170 mm - 7 spindles: 1) Lower horizontal, 230 mm, 11 kW 2) Right vertical, 170 mm 3) Left vertical (spindle 2 & 3), 170 mm, 11 kW 4) Right horizontal, 170 mm, 5.5 kW 5) Upper horizontal, 230 mm, 11 kW 6) Lower horizontal, 230 mm, 7.5 kW 7) Universal, 230 mm, rotatable 360°, 7.5 kW - All spindles adjustable up/down, left/right - Spindles 3 and 5 electrically adjustable - ATS system - Spindle diameter: 40 mm - Electric brakes - From above: 4 driven infeed rollers, toothed, including 1 double roller - From above: 1 double rubber driven infeed roller - From above: 1 double rubber driven outfeed roller - From below: 2 metal driven feed rollers, smooth - From below: 1 double rubber driven feed roller - Feed via Cardan shafts - Pneumatically loaded feed rollers - Infinitely variable feed speed: 6-24 m/min - Feed drive motor: 5.5 kW Gbsdpfxey Rzamo Almol - Electric thickness adjustment - Body lifting motor: 0.55 kW - Central table lubrication - Extraction port diameter: 7 x 140 mm - Dimensions (L/W/H): 5800 x 2050 x 1850 mm - Weight approx.: 4500 kg FEATURES – German-made, WEINIG brand – 7-head planer – Universal spindle – Equipped with ATS – For wet and dry timber – Used planer, in very good condition Net price: 159,900 PLN Net price: 38,070 EUR Net price calculated at exchange rate of 4.2 PLN/EUR (Price may change in case of significant exchange rate fluctuations)

Condition: excellent (used), Catalogue number: 7715 TECHNICAL SPECIFICATIONS - Maximum workpiece width: 220 mm - Maximum workpiece height: 130 mm - 8 spindles: 1) Bottom horizontal 220 mm 5.5 kW 2) Right vertical 130 mm 7.5 kW 3) Left vertical 130 mm 7.5 kW 4) Right vertical 130 mm 5.5 kW 5) Top horizontal 220 mm 11 kW – 5th spindle electrically adjustable up/down 6) Bottom horizontal 220 mm 5.5 kW 7) Bottom horizontal 220 mm 5.5 kW – 7th spindle with support + Jointer system (cutterhead sharpening) 8) Universal 220 mm, 360° adjustable, 7.5 kW - All spindles adjustable vertically and laterally - Spindle diameter: 40 mm Feed system (top): - 6 double-toothed infeed rollers, driven, + 1 single roller - 3 double smooth rubber outfeed rollers, driven + 3 single rollers - Digital length counter Feed system (bottom): - Swivelling toothed steel infeed roller integrated into lower table - 3 smooth steel feed rollers - Feed drive via Cardan rollers - Pneumatic pressure rollers - Stepless feed speed adjustment + 2-speed gearbox: 10–60 m/min - Feed motor: 10 kW - Electric thickness adjustment Gedpfx Aoy Ry Uiolmsbl - Body lifting motor: 0.75 kW - Centralised table lubrication - Extraction connection diameters: 5x140 mm, 3x120 mm - Machine dimensions (LxWxH): 4680x1780x1850 mm - Control cabinet dimensions (on pallet): 1020x1000x2230 mm - Weight: approx. 5000 kg ADVANTAGES - Equipped with 8 cutterheads - Universal spindle - Ideal for wet and dry timber - Made in Germany, WEINIG brand - Unpainted (original finish) - Very low operating hours - Used thickness planer, like new Net price: 165,900 PLN Net price: 39,500 EUR (based on exchange rate 4.2 EUR) (Prices may change with significant exchange rate fluctuations)

Year of construction: 1995, condition: excellent (used), The line consists of the following components: 1) Weinig Profimat 23 milling machine 2) Band Feeder KOCH -T-100-B (250x4550) 3) Weinig Uniplan milling machine 4) Band Feeder KOCH T-100-B (250x7050) 5) Tenoning machine KOCH SF -3 5a) Bottom feeding belt for waste (at tenoning machine 300x6050) 5b) Side feeding belt for wastes (at tenoning machine 300x1800) 6) Belt feeder KOCH T-100-B (250x5020) 7) Belt feeder KOCH T-100-A (300x3050) 8) Belt feeder KOCH T-100-B (300x3500) 9) Band feeder KOCH T-100-B (300x4530) 10) Weinig U2G milling machine 11) Feeding belt KOCH (250x4050) Line worked very few hours, is like new. Gjdpfxshm Exds Almebl Year of production machines included in the line is 1995. In addition, for each machine I add a set of Leitz cutters for the window with a profile of euro 68. The cost of a new line is currently more than 1 million euros.
