Angled system

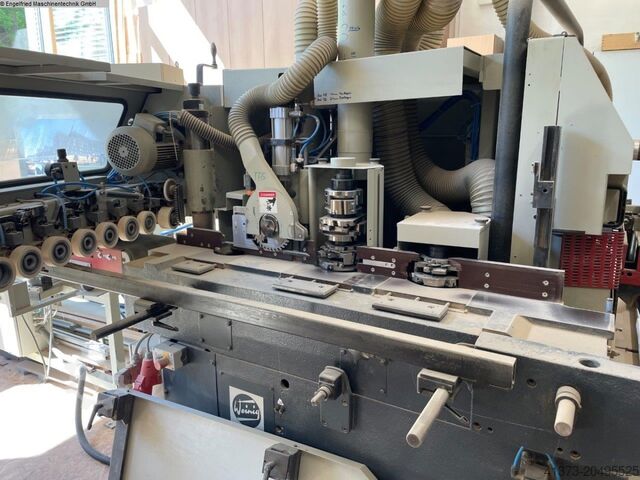

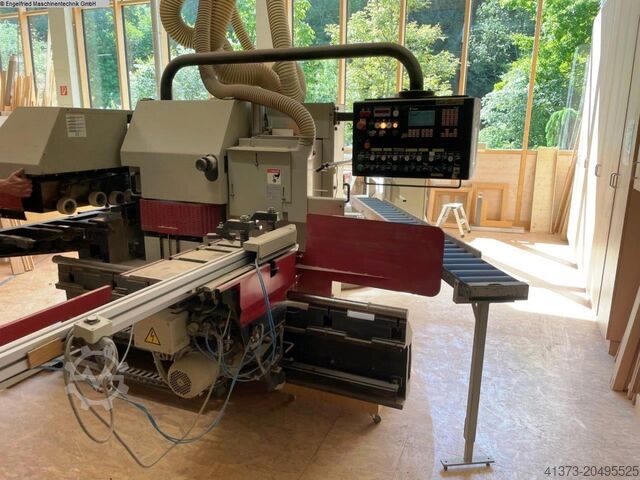

WEINIG Unicontrol 6

Condition: used, Tenoning spindle 1 St. Number of milling agregates 4 St. Spindle diameter 50 mm 1 used Weinig Unicontrol 6 ----- Technical Specifications Summary ----- 1. Crosscut saw ----- Pneumatic crosscut saw, against 8-way turret stop Spindle speed: 2800 rpm Spindle diameter: 40 mm Max. tool diameter: 350 mm Motor power: 3 kW Laser alignment light for detecting the saw cut: Manual length stop 4100 mm 1. Tenon and slotting spindle ----- Number of tools: 3 / 4 Tool clamping length: 320 mm Vertical pneumatic spindle stroke: 240 mm for wood thicknesses IV 68-92 Spindle speed: 3500 rpm Spindle diameter: 50 mm Max. tool diameter: 320 mm Motor power: 11 kW 1. Profiling spindle - synchronous and counter-rotating spindle ----- Position: vertical right Number of tools: 1 Tool clamping length: 120 mm Spindle speed: 6000 rpm Spindle diameter: 50 mm Maximum tool radius: 232 mm Motor power: 7.5 kW 2. Profiling spindle ----- Position: vertical right Number of tools: 3 / 4 Tool clamping length: 320 mm Vertical pneumatic spindle stroke: 240 mm for wood thicknesses IV 68-92 Spindle speed: 6000 rpm Spindle diameter: 50 mm Maximum tool radius: 232 mm Motor power: 11 kW 3. Profiling spindle (fitting spindle) ----- Position: vertical right Number of tools: 3 Spindle speed: 6000 rpm Spindle diameter: 40 mm Maximum tool radius: 180 mm Motor power: 3 kW Clamping length: 150 mm 4. Glazing bead saw (horizontal-vertical) Cycled ----- Position: horizontal, top Number of tools: 1 Tool clamping length: 40 mm Spindle diameter: 40 mm Motor power: 3 kW Axial cycle, 2 positions Radial cycle, 2 positions Other features ----- Flanging device for tear-free flanging Iedpoxvtggofx Ad Detp Double parts package Return device for 1-person operation at working height: Swivel bath Screen control, 99 programs Sloped window device Electronic angle display for sloped windows INCLUDING window tools OPPOLD, year of manufacture 2013: Oppold IV 68/78/92 Wood Oppold IV 68/78 Wood-Aluminum Sale of tools in the condition, scope and with accessories as available in our warehouse. Note on window cuts, tool drawings, tool system listings: Engelfried does not guarantee that the tools actually available correspond to the systems mentioned and drawn. (Technical specifications according to the manufacturer - without guarantee!)

Condition: used, Used control cabinet of a Weinig type Unicontrol 6 as a spare parts carrier or for the new construction of a control cabinet. Contents include: * Brake device Hilger and Kern Iodpfet Na Drox Ad Djtp * Transformer Rathgeber type ET 1000.

Condition: used, Tenoning spindle 1 St. Number of milling agregates 4 St. Spindle diameter 50 mm # 2809 Weinig Unicontrol 6 ----- Technical Specifications Summary (Please inquire about any additional accessories included) Item 1: Crosscut Saw ----- > Number of tools: 1 pc. > Spindle speed: 2,800 rpm > Spindle diameter: 40 mm > Maximum tool diameter: 400 mm > Motor power: 3.7 kW > Laser alignment light for detecting the saw cut CNC-controlled length stop ----- > Length 3,500 mm > Electronic length stop including positioned crosscut saw Item 2: Tenon and slotting spindle ----- > Number of tools: 3 (stroke 2 x 100) mm) or 4 (stroke 3 x 80 mm) > Tool clamping length: 320 mm > Vertical pneumatic spindle stroke: 240 mm for wood thicknesses 68 - 92 mm > Spindle speed: 3000 rpm > Max. tool travel circle: 320 mm > Spindle diameter: 50 mm > Max. tool diameter: 360 mm > Motor power: 11 kW Item 3: 1st profiling spindle (straight and counter-rotating) ----- > Position: vertical right > Number of tools: 1 > Tool clamping length: 120 mm > Spindle speed: 6000 rpm > Spindle diameter: 50 mm > Max. tool travel circle: 232 mm > Motor power: 7.5 kW Item 4: 2nd profiling spindle ----- > Position: vertical right > Number of tools: 3 (stroke 2 x 100 mm) or 4 (stroke 3 x 80 mm) > Tool clamping length: 320 mm > Vertical pneumatic spindle stroke: 240 mm for wood thicknesses 68 - 92 mm > Spindle speed: 6000 rpm > Spindle diameter: 50 mm > Maximum tool travel: 232 mm > Motor power: 11 kW 2 axially indexed feed rollers opposite the profiling spindle, for the production of narrow, short parts (e.g., glass-parted muntins) Muntin guide consisting of: Muntin support bar from above in the area of ??the profile milling unit vertically on the right and the profiling spindle. Item 5: Profile milling unit, horizontal, top ----- > Clamping length: 40 mm > Spindle diameter: 40 mm > Motor power: 3.0 kW > Speed: 5,850 rpm > Tool travel radius max. 130 mm > Axial adjustment range: 30 mm, 2 positions > Radial adjustment range: 125 mm, 4 positions, manual Item 6: 3rd profiling spindle (fitting spindle) ----- > Position: vertical right > Tool clamping length: 160 mm > Axial adjustment range: 115 mm, 8 positions via pneumatic turret > Radial adjustment range: 110 mm, 8 positions via pneumatic turret > Spindle speed: 5,850 rpm > Spindle diameter: 40 mm > Tool travel radius Max.: 210 mm > Motor power: 3.8 kW Other features ----- > Electric feed height adjustment including mechanical digital display and manual feed bar clamp > Rebating device for tear-free rebating > Double parts package > Return conveyor for one-person operation: swivel belt > Screen control > Sloped window device > Electronic angle display for sloped windows > Industrial PC, with Windows PC control/NEXUS Extraction nozzle diameter: ----- Crosscut saw 80 mm Slotting spindle 140 mm Profile spindle 1 140 mm Profile spindle 2 140 mm Top grooving device 80 mm Fitting spindle 120 mm ----- P... Itedoxtvgkspfx Ad Dop

Condition: used, Tenoning spindle 1 St. Number of milling agregates 5 St. Spindle diameter 50 mm Control Weinig, PC-Nexus # 2774 Weinig Unicontrol 6 with NC spindles Machine will be cleaned and completely checked before delivery ----- Technical data summary (please enquire about any additional accessories included) Item 1: Cross-cut saw ----- > Number of tools: 1 pc. > Spindle speed: 2,800 rpm > Spindle diameter: 40 mm > Max. tool diameter: 400 mm > Motor power: 3 kW > Radial adjustment path pneumatically controlled to 8 positions, e.g. for edge rounding from above > Laser aiming light for detecting the saw section Item 2: Rounding unit horizontal below ----- > Position: horizontal below > Motor power: 1.5 kW > Spindle diameter: 20 mm > Clamping length 25 mm > Spindle speed: 9,000 rpm > Max. tool flight circle: 130 mm > Axial adjustment path mechanically coupled with Crosscut saw > Adjustment path radial pneumatically controlled on/off Length stop NC controlled ----- > Length 3500 mm > Electronic length stop Item 3: Tenon and slot spindle ----- > Number of tools: variable, stepless adjustment, NC > Tool clamping length: 320 mm > Vertical spindle stroke: variable 254 mm, stepless adjustment, NC-controlled > Spindle speed: 3500 rpm > Tool flight circle max. 320 mm > Spindle diameter: 50 mm > Tool diameter max.: 320 mm > Motor power: 11 kW Item 4: 1. Profiling spindle (same and opposite rotation) ----- > Position: vertical right > Number of tools: 1 pc. > Tool clamping length: 120 mm > Spindle speed: 6000 rpm > Spindle diameter: 50 mm > Tool flight circle max.: 232 mm > Motor power: 7.5 kW Item 5: 2nd profiling spindle ----- > Position: vertical right > Number of tools: variable, stepless adjustment, NC > Tool clamping length: 320 mm > Vertical spindle stroke: variable 254 mm, stepless adjustment, NC-controlled > Spindle speed: 6000 rpm > Spindle diameter: 50 mm > Tool flight circle max.: 232 mm > Motor power: 11 kW 2 feed rollers axially pneumatic opposite the spindle controlled, 2 positions Iedpfx Asvu Hghod Dstp Rung guide consisting of: Guide ruler in the stop (area of ??the synchronous spindle), Rung support bar from above in the area of ??the profile milling unit vertically on the right and profiling spindle. Pos. 6: Profile milling unit horizontal top ----- > Clamping length: 40 mm > Spindle diameter: 40 mm > Motor power: 3.0 kW > Speed ??9,000 rpm > Tool flight circle max. 130 mm > Axial adjustment range 30 mm, 8 positions > Radial adjustment range 125 mm, 8 positions Pos. 7: 3rd profiling spindle (fitting spindle) ----- > Position: vertical right > Tool clamping length: 160 mm > Axial adjustment range 115 mm, 8 positions > Radial adjustment range 110 mm, 8-way turret > Spindle speed: 5850 rpm > Spindle diameter: 40 mm > Tool flight circle max.: 210 mm > Motor power: 3.0 kW Item 8: Profile milling unit/grooving unit from below ----- > Motor power: 3.0 kW > Tool clamping length: 125 mm > Axial adjustment range 100 mm, 8 positions > Radial adjustment range 1...

Condition: used, Tenoning spindle 1 St. Number of milling agregates 4 St. Spindle diameter 50 mm control Weinig, PC-Nexus # 2764 Weinig Unicontrol 6 with NC spindles ----- Machine will be cleaned and completely checked before delivery Technical data summary (please enquire about any additional accessories included) Item 1: Cross-cut saw ----- > Electronic cross-cut saw, infinitely adjustable horizontally > Number of tools: 1 piece > Spindle speed: 2,800 rpm > Spindle diameter: 40 mm > Max. tool diameter: 400 mm > Motor power: 3.0 kW > Laser aiming light for detecting the saw section > NC length stop, mounted on slot table included Positioning of the cross-cut saw integrated in the control system. > Length 3500 mm Item 2: tenoning spindle ----- > Number of tools: variable, infinitely variable adjustment NC axis > Tool clamping length: 320 mm > Vertical spindle stroke: variable, infinitely variable adjustment 254 mm NC axis > Spindle speed: 3500 rpm > Spindle diameter: 50 mm > Max. tool diameter: 320 mm > Motor power: 11 kW Item 3: 1st profiling spindle (synchronous spindle and counter-rotation) > Position: vertical right > Number of tools: 1 pc. > Tool clamping length: 120 mm > Spindle speed: 6000 rpm > Spindle diameter: 50 mm > Max. tool flight circle: 232 mm > Motor power: 7.5 kW Item 4: 2nd profiling spindle ----- > Position: vertical right > Number of tools: variable, infinitely variable adjustment NC axis Ijdpfovu Hfqsx Ad Detp > Tool clamping length: 320 mm > Vertical spindle stroke: variable, infinitely variable adjustment 254 mm NC axis > Spindle speed: 6000 rpm > Spindle diameter: 50 mm > Tool flight circle max.: 232 mm > Motor power: 11 kW 2 feed rollers opposite the spindle, axially pneumatically controlled, 2 positions Rung guide consisting of: Guide ruler in the stop (area of ??synchronous spindle), Rung support bar from above in the area of ??profile milling unit vertical right and profiling spindle. Pos. 5: Profile milling unit horizontal top ----- > Clamping length: 40 mm > Spindle diameter: 40 mm > Motor power: 3.0 kW > Speed ??5,850 rpm > Tool flight circle max. 130 mm > Axial adjustment range 30 mm, 8 positions using pneumatic turret > Radial adjustment range 125 mm, 8 positions using pneumatic turret Pos. 6: 3rd profiling spindle (fitting spindle) ----- > Position: vertical right > Tool clamping length: 160 mm > Axial adjustment range 115 mm, 8 positions using pneumatic turret > Radial adjustment range 100 mm, 8 positions using pneumatic turret > Spindle speed: 5,850 rpm > Spindle diameter: 40 mm > Max. tool flight circle: 210 mm > Motor power: 3.0 kW Other features ----- > online-capable > rebating device for tear-free rebating > double parts package > return conveyor for 1-man operation: tilting belt > screen control > inclined window device > electronic angle display for inclined windows > industrial PC, PC control/NEXUS > Weinig type production program > without processing tools No original images available yet. Images show identical machines from our archive. ----- Price of the above-mentioned machine upon request! ----- Optional with additional charge: EUR 6.500,00 Note on used tools: We currently ha...
