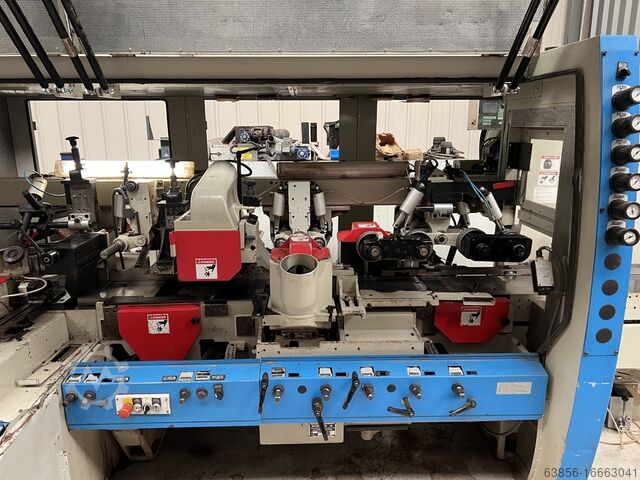

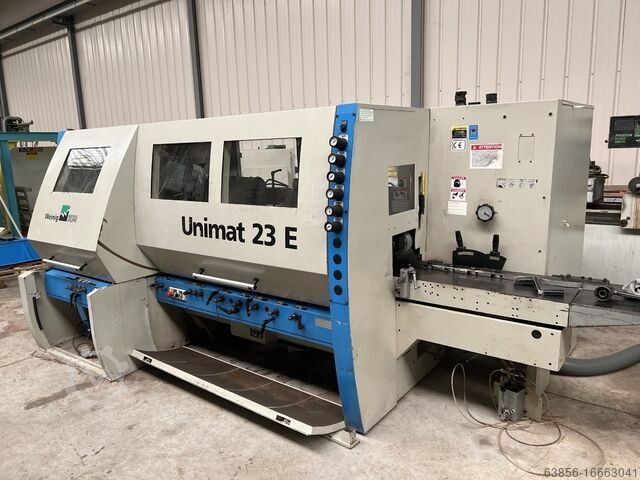

Moulder slice cutting

WEINIG UNIMAT 23E

Condition: used, Year of construction: 2000, Number of spindles 6 St. Working width 230 mm Working height 120 mm Length of the planing table 2500 + 500 mm Feed motor 3 kW Feed speed 6-36 m/min. 1 WEINIG Unimat 23 E 4-side Planer and Moulder ----- 6 spindles (2 on the right), powerful motors, EM 11 feed magazine available Working width 20 - 230 mm Working height 8 - 120 mm 1st spindle, bottom 7.5 kW ----- Diameter 40 mm Speed ??6000 rpm Tool travel radius 125 - 180 mm Folding device including tool Hardened table insert in front of 1st lower spindle Gjdowqr Rvepfx Adreui 2nd spindle, right 11.0 kW ----- Shared motor with left vertical spindle Diameter 40 mm Speed ??6000 rpm Tool travel radius 112-250 mm Max. tool diameter behind stop plane 203 mm Max. groove depth 35 mm Axis adjustment range 80 mm 3rd spindle, left ----- Shared motor with 2nd spindle Diameter 40 mm Speed ??6000 rpm Tool cutting radius 112-200 mm Max. groove depth 35 mm Axis adjustment range 80 mm Pressure shoe in front of left spindle, including lateral roller pressure, spring-loaded 4th spindle, right 7.5 kW ----- Diameter 40 mm Speed ??6000 rpm Tool cutting radius 112-250 mm Max. tool diameter behind stop plane 203 mm Max. groove depth 35 mm Axis adjustment range 80 mm 5th spindle, top 11.0 kW ----- Diameter 40 mm Speed ??6000 rpm Tool cutting radius 112-200 mm Max. throat depth 35 mm Axis adjustment range 45 mm Split pressure shoe in front of the upper spindle, adjustable to the tool travel circle and pivoting away from the tool, spring-loaded. 6. Lower spindle 7.5 kW ----- Diameter 40 mm Speed ??6000 rpm Tool travel circle 112-250 mm Max. throat depth 15 mm Axis adjustment range 45 mm Spindles in general ----- All throat spindles with high concentricity. Lubrication points for the axial spindle movement. Spindle length of vertical spindles 170 mm Feed system ----- Motor with mechanical brake, 3 kW Mechanical feed continuously adjustable 6 - 36 m/min. Feed roller in front of the first lower tool pneumatically controlled up-down, Durofer pointed tooth rollers (Weinig patent) with depth gauge and self-cleaning Adjustment range of the feed rollers relative to the left spindle, axial: 35 mm Extension of the oscillating axis relative to the left spindles to 150 mm Machine electrical system ----- Operating voltage: 380-400-415 volts, 50 Hz. Machine stands, tables, and stops ----- Surface table 2.5 m long (including jointing ruler) Aluminum extension 0.5 m for surface table, including extension of the jointing ruler Manual Waxilit pump for resin removal from the table One driven rubber roller (spring-mounted in the outfeed table) Pressure elements and Guides ----- Pneumatic pressure rollers from above Pneumatic pressure rollers pivot away from above, opposite the right-hand spindles for easy tool changes Machine Operation ----- Pressure shoe in front of the upper spindle with mechanical digital display. Discharge after the upper spindle with mechanical digital display. ATS/E system, automatic 2-axis positioning for spindles 3 and 4 Min. working height 12 mm Electric height adjustment of the upper spindles and the feed Central p...

Condition: excellent (used), WEINIG Unimat 23 E four-side planer Maximum planing width: 230mm, Maximum planing height: 130mm, 5 spindles, Manual adjustment of planing dimensions, Spindle arrangement: bottom 7.5kW; left and right 11kW; top 11kW; bottom 7.5kW, Guodpjxvc Uasfx Adrsi Motors with brakes, Spindle diameter: 40mm, Fully adjustable spindles, Machine equipped with 4 feed rollers on the table, suitable for wet timber, Feed via cardan shafts with stepless regulation, Machine supplied with the heads shown on the spindles, Cardan shafts not worn, tables unworn, runs smoothly without vibrations or oscillations, Robust planer in original condition, weight approx. 5t. Very good condition, everything works.

Year of construction: 1997, condition: excellent (used), max width of the workpiece 23cm max height of the workpiece 18cm 1 lower horizontal spindle 2 right vertical spindle 3 left vertical spindle 4 top horizontal spindle heads adjustable up / down, right / left spindle diameter 40mm Hydraulic side feed on the feeding table Gusdpfsk Dxrasx Adrei

Year of construction: 1999, condition: ready for operation (used), General Data Machine weight 3200kg This WEINIG Unimat 23 E was manufactured in 1999, designed for efficient wood planing. Ideal for woodworking professionals looking to enhance their production capabilities. Contact us for more information. Application Types Guedpjxn U Amefx Adrji Planing

Condition: used, Year of construction: 1999, Four-sided planer Little Unimat 23 E Year of construction 1999 Serial number 88103 Feed speed 5/24 m/min Workpiece width min/max 20/230mm Workpiece height min/max 8/160mm Spindle diameter 40mm Input table length 1950mm Groove bed 1st spindle bottom: 5.5kW 2nd & 3rd spindle right & left: 11kW 4th spindle above: 15kW 5. Spindle top: 11kW 6. Spindle bottom: 5.5kW Total power 54kW Total 117Amp. Fuse 125Amp. Transport dimensions: 4200x2000x2100 (LxWxH) weight +/- 4500kg Gsdownh Sqjpfx Adrjui - Year: 1999 - Documentation available: No - Serial number: 88103 - Number of spindles [pcs.]: 5 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Yorick Diebels

Year of construction: 1999, condition: ready for operation (used), A four-side planer Weinig is available. Working width: 230mm, working height: 120mm, feed rate: 24m/min, machine dimensions X/Y/Z: approx. 3500mm/2000mm/2000mm, weight: approx. 3500kg. An on-site inspection is possible. Guedpfexpw Uhsx Adrei

Condition: good (used), functionality: fully functional, working width: 255 mm, planing height: 160 mm, spindle diameter: 40 mm, planing width: 255 mm, working height: 160 mm, power of feed motor: 3,000 W, spindle speed (max.): 6,000 rpm, spindle speed (min.): 6,000 rpm, height adjustment type: electric, planer shaft diameter: 40 mm, type of input current: three-phase, number of spindles: 5, input frequency: 50 Hz, Equipment: cabin, motor brake, Weinig Unimat 23 E with 5 spindles, Working width: 255 mm, Working height: 160 mm, Spindle diameter: 40 mm, Feed: 3 kW / 6 – 36 m/min, Guodexg Sa Hspfx Adroi Spindle arrangement: 1-Bottom (5.5 kW) 2-Right (5.5 kW) 3-Left (7.5 kW) 4-Top (5.5 kW) 5-Bottom (4.0 kW) One driven roller at the outfeed table.

Condition: used, Year of construction: 2001, functionality: fully functional, planing height: 170 mm, spindle diameter: 40 mm, planing width: 230 mm, – German-made – Year of manufacture: 2001 – Total power: 42 kW – Driven rollers in the table TECHNICAL SPECIFICATIONS: – Planing width: 230 mm – Planing height: 170 mm Guedpjw H Smhofx Adrji – Electric height adjustment – Spindle diameter: 40 mm – 1st (bottom) spindle: 7.5 kW – 2nd (left) spindle: 11 kW – 3rd (right) spindle – 4th (top) spindle: 11 kW – 5th (bottom) spindle: 5.5 kW – Continuously variable feed speed: 6–38 m/min – Feed motor power: 4 kW – Infeed table length: 1000 mm – Electric brakes – 5 driven top steel rollers – 1 driven top rubber roller – 2 driven table rollers: one is toothed – Air cushion in the table – Pneumatic pressure system – Feed via cardan shafts – Outlet diameter: 5 x 140 mm – Centralized table lubrication system – Machine dimensions (L/W/H): 390 / 210 / 230 cm – Weight approx. 4000 kg

Year of construction: 1999, condition: ready for operation (used), Working width: 230mm, working height: 160mm, number of spindles: 5, spindle diameter: 50mm, spindle power: 4x 5.5kW/2x 11kW, feed rate: 24m/min, input table length: 3000mm, vertical spindle axial stroke: 80mm, horizontal spindle axial stroke: 45mm. Connected load: 126kW, air requirement: 8400-9600m³/h, machine dimensions X/Y/Z: approx. 3500mm/2000mm/1800mm, weight: approx. 3500kg. Including Weinig EM-11 slide-in unit and suitable distributor for the extraction system. Documentation available. On-site inspection is possible. Gusdpfxou Damds Adrji

Condition: ready for operation (used), functionality: fully functional, working width: 260 mm, planing height: 160 mm, spindle diameter: 40 mm, planing width: 260 mm, working height: 160 mm, power of feed motor: 5,500 W, spindle speed (max.): 6,000 rpm, spindle speed (min.): 6,000 rpm, height adjustment type: electric, type of input current: three-phase, number of spindles: 6, power: 65 kW (88.38 HP), input frequency: 50 Hz, Equipment: cabin, motor brake, Weinig Unimat 23 E with 6 spindles, with hard coating. Working width: 260 mm, working height: 160 mm, spindle diameter: 40 mm, Feed rate: 5.5 kW / 6 - 36 m/min, Spindle arrangement: 1-bottom (11 kW ) 2-right + 3-left (15 kW) 4-Top (11 kW) Gedpfxovbi Rve Adrjui 5-top ( 11 kW ) 6-bottom ( 11 kW ) Air cushion in the table. Short parts package Four powered rollers in the table.
