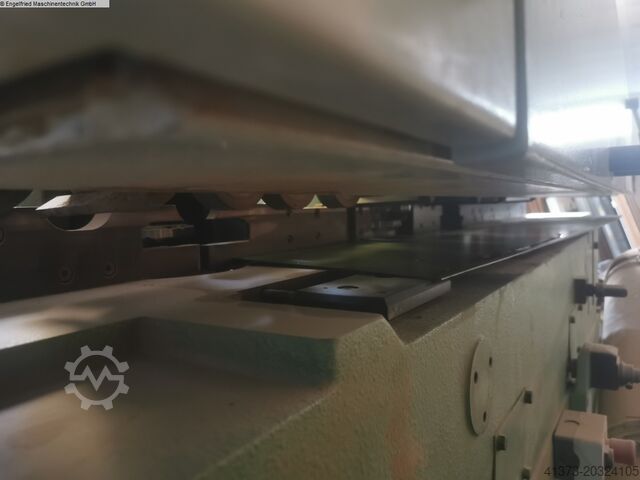

Outside profiling machine

WEINIG Univar 6 P

Number of boring spindles 3 St.
Number of tools 1.3/4.1. St.
Spindle diameter 50,40 mm
Spindle length 120,320,125 mm
weight 2500 kg
loading dimensions L x W x H 3800x1400x2000 mm
table length 3470 mm
Weinig Univar 6 P
to be sold on behalf of our customer
-----
Operating voltage: 380 volts, 50 periods.

For milling around windows, doors and similar with uneven edges
Profiles.

Arrangement of the aggregates:
1. Synchronous spindle on the right, pneumatically clocked.
2. Profiling spindle on the right
3. Fitting spindle

Profiling spindle suitable for holding several tools one on top of the other.
Spindle movement pneumatic.

The 1 spindle works in synchronization for tear-free milling. Respectively
This spindle plunges the last 100 mm of a frame end with the
Insert the appropriate tool into the wood to prevent tearing at the frame
corners
avoid.

Machine stands, tables, stops:
Machine body made of heavy, torsion-free and vibration-damping
elements. Stops on the right in the profiling area made of Pertinax. Before
Profiling spindle a split stop with sliding bar for short parts.
Additional opening rail for large format frames.

Feed system:
Continuous, chainless feed equipped with rubber rollers. Blow-off device
for feed rollers and table.

Spindles, hood:
Spindles with high concentricity and dynamically balanced. Extraction hoods
designed for the cheapest chip flow. Easiest tool change
Quick-opening hood lid.

Machine operation, setting aids:
Operating the machine from the front. Setting the stops for
Tool diameter using mechanical number display.

Machine electrics, motors, controls:
Electrical design according to DIN VDE 0113 - Electrical equipment from
Industrial machines EN 60204 IEC 204-1.
Further electrical regulations are not taken into account.

Engines dynamically balanced.

Control of tool positions via selector switch on the control panel.

Tools:
Machine equipped with operating tools, but without
Editing tools.

SPINDLE 1

Synchronous spindle
Number of tools: 1
Spindle speed: 6000 rpm
Spindle diameter: 50mm
Tool clamping length: 120 mm
Tool diameter max. (milling): 232 mm
Tool zero flight circle: 112-140 mm
Basic position under table: 10 mm
Motor strength: 4 KW (5.5 KW)

SPINDLE 2

Number of tools: 4
Spindle stroke vertical: 3 x 80 mm = 4 tools
Can be switched to 2 x 95 mm = 3 tools
Spindle speed: 6000 rpm
Spindle diameter: 50mm
Tool clamping length: 320 mm

Feed profiling unit: 8 m/min
Feed roller width: 50mm/35mm
Feed roller diameter: 95 mm
Stop height: 70 mm
Working width: min. 30 mm; max. 220 mm
Working height: min. 30 mm; max. 100mm
Workpiece length without tenon: min. 245 mm


Tool diameter max.
For zero diameter 112 mm: 210 mm
For zero diameter 140 mm: 232 mm

Ibedpfxjxpi Els Afpoc
Tool diameter max. (milling): 232 mm
Tool zero flight circle: 112-140 mm
Basic position under table: 10/5 mm
Motor strength: Spindle: 11 KW Feed: 1.1 KW
Feed profiling unit: continuously 6-12 m/min
Feed roller width: 50 mm
Feed roller diameter: 95 mm
Stop height: 70 mm
Working width: min. 30 mm; max. 220 mm
Working height: min. 30 mm; max. 100mm
Workpiece length without tenon: min. 245 mm

Special equipment:

3 Mechanical spindle brake for synchronous spindle, profiling spindle and
Additional aggregates

SPINDLE 3

1 fitting milling unit, right: for milling the fitting groove in the
Milling pass or for groovi...
