Profile Grinder

WICKMAN OPG

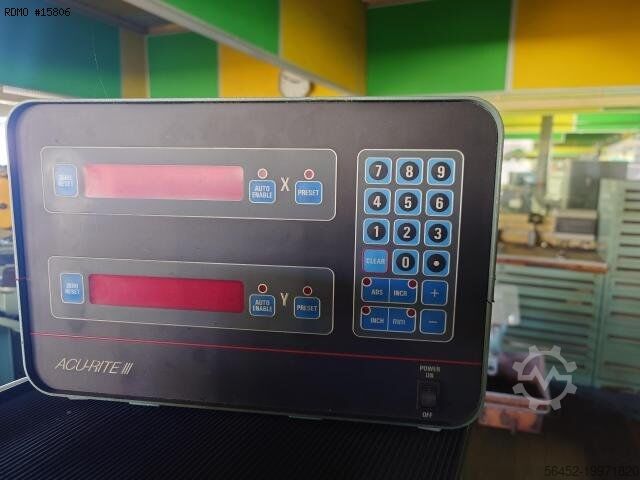

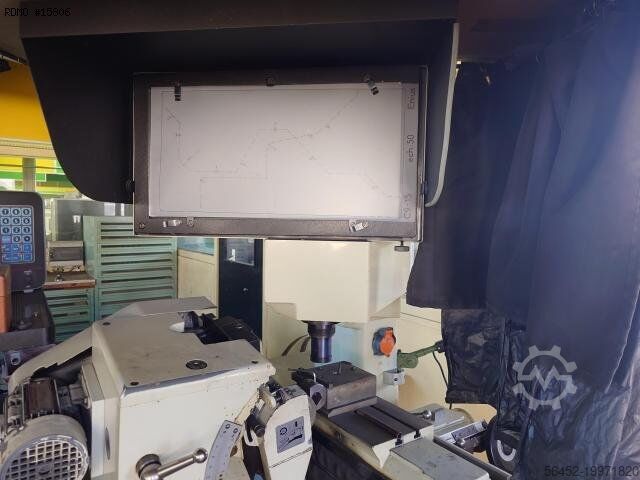

Condition: ready for operation (used), The machine is in very good condition and can be tested on site. Technical Data – Grinding Machine Machining area (mm) Height x Length x Depth: 80 x 110 x 55 Motor power (kW): 0.5 Speed (min-1): 5000 Feed rate (hod/min): 150 Table load (kg): 20 Control: BOSCH Hodpfjwvgidex Al Sol Accuracy: 0.005 mm, reading via CNC, template grinding 1:10, 1:20, or 1:50, suitable for rough grinding. If you have further questions, I am at your disposal.

Condition: excellent (used), Year of construction: 2004, table length 175 mm table width 110 mm grinding wheel diameter 500 mm Hjdpjxvdr Tsfx Al Sol total power requirement 1 kW weight of the machine ca. 1,5 t

Condition: excellent (used), Year of construction: 2016, operating hours: 200 h, functionality: fully functional, total height: 1,760 mm, total length: 1,100 mm, total width: 850 mm, workpiece weight (max.): 12 kg, spindle speed (max.): 10,000 rpm, spindle speed (min.): 500 rpm, feed length X-axis: 100 mm, feed length Y-axis: 190 mm, feed length Z-axis: 325 mm, type of input current: three-phase, grinding wheel diameter: 125 mm, overall weight: 520 kg, grinding length: 270 mm, rotational speed (min.): 500 rpm, rotational speed (max.): 10,000 rpm, center height in crank: 220 mm, center height: 300 mm, collet bore: 25 mm, grinding spindle speed: 10,000 rpm, feed rate X-axis: 1 m/min, feed rate Y-axis: 1 m/min, feed rate Z-axis: 1 m/min, pivoting range: 360 °, travel distance X-axis: 100 mm, travel distance Y-axis: 190 mm, travel distance Z-axis: 325 mm, center width: 620 mm, grinding spindle motor power: 1,100 W, table length: 190 mm, table width: 200 mm, table height: 1,020 mm, power: 1.1 kW (1.50 HP), height adjustment type: electric, workpiece diameter (max.): 400 mm, input current: 20 A, grinding diameter: 300 mm, input frequency: 50 Hz, disc diameter: 125 mm, input voltage: 280 V, space requirement width: 2,000 mm, space requirement length: 1,800 mm, space requirement height: 1,800 mm, grinding wheel speed: 10,000 rpm, year of last overhaul: 2022, distance table to spindle center: 325 mm, tool diameter: 300 mm, workpiece length between centers: 270 mm, distance between centers: 270 mm, number of spindles: 1, Equipment: rotational speed infinitely variable, max. grinding diameter 238 - 620 mm grinding length 190 mm workpiece length 380 - 940 mm spindle turning speed - stepless 2 - 12000 U/min current capacity 380 kVA power capacity - grinding motor 1,1 kW total power requirement 2,2 kW weight of the machine ca. 0,6 t !!! We have almost all spare parts for the Deckel S 11 machines in stock !!! !!! Accessories can be varied as desired !!! We would be happy to trade in your used Deckel S 11 - contact us! 2016 S25 003004 V, 50/60 Hz, with CEE plug and cable Color: light gray motorized height adjustment, axial grinding spindle adjustment Equipment: * Opto-electronic measuring device with measuring electronics Image processing, PC (Original ISOG) * CCD camera and monitor * Dividing head Sk 40 with dividing disk 24 R * 1 dividing disk each 14, 16, 18 * Tightening screw M 16 * Counter bearing complete with 4 center punch points * Center point Sk 40 with driver * Twist-u. Relief grinding device with rack housing * Dust extraction completely without vacuum cleaner * LED machine light * Tooth support complete with support and sliding blades * Setting gauge * Universal setting gauge * Handwheel facility * Dressing device with 3 diamonds * 1 set of collets 1.0 - 17.5 mm by 0.5 mm rising * Pliers sleeve and extraction nut and key * 10 pieces of direct collets Sk 40 6 - 25 mm Hedpfxjw U Ehbe Al Ssl * 4 cone reducing sleeves Sk 40 x Mk 1, 2, 3, 4 * Clamping nut * 12 grinding wheel chucks * Tool cabinet with shelves * 2 protective hoods * various diamond / borazon discs * Operating instructions and key, spare parts list, circuit diagram * Set of technical grinding instructions ##### Machine is partially overhauled and has an electrical acceptance report!#####

Condition: good (used), Year of construction: 2005, travel distance X-axis: 560 mm, travel distance Y-axis: 320 mm, travel distance Z-axis: 400 mm, feed rate X-axis: 2,400 m/min, feed rate Y-axis: 2,400 m/min, feed rate Z-axis: 2,400 m/min, table width: 450 mm, table length: 950 mm, Fixed table 950 x 450 mm Feeds all direction ISO-40 and 3kW 3 Axis Digital Read Out Systsem CE-Safety  Coolant system with semi closed lower base  X-Axis: 560mm Y-Axis: 320mm Z-Axis: 400mm Table Length: 950mm Table Width: 450mm Table load: 350 Spindle speeds: 2240Rpm Hsdpfxjxdltbo Al Sjl Feed rate X-Axis:2400mm/min. Feed rate Y-Axis:2400mm/min. Feed rate Z-Axis:2400mm/min. Stroke pinole: 0 - 95mm Length: 1800mm Width: 1600mm Height: 1900mm Weight: 1700kg Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Condition: excellent (used), Year of construction: 2012, functionality: fully functional, Control: Numroto incl. software Center height: 155 mm Maximum tool length: 270 mm Working area X/Y/Z: 530/400/320 mm Grinding wheel interface: HSK-E50 Spindle power: 16 kW Max. speed: 12,000 rpm Power: 16 kW 4-position automatic grinding wheel changer Hsdpfxoy Eg Rys Al Sol including pallet loader with pallets

Condition: excellent (used), Year of construction: 2017, operating hours: 8,500 h, functionality: fully functional, Available from Q2 / 2026, equipment can still be configured as needed. Universal 5-axis retrofit grinding machine direct from the manufacturer Current Horizon grinding software tailored to the requirements of your tools and components Working area: X-axis 630 mm Y-axis 345 mm Z-axis 430 mm C-axis swivel range 300° X3 auxiliary axis: Working area 400 mm Grinding spindle: HSK 80 E interface Continuous power 28.8 kW Standard speed 12,000 rpm Measuring system and feed: Linear axis resolution 0.0001 mm Linear axis rapid traverse 30,000 mm/min Rotary axis resolution 0.001° C-axis speed 150 rpm Rotary axis: (A-axis SK50) Standard center height 175 mm Spindle speed 1,000 rpm Optionally 2,600 rpm Control system: Siemens 840 DSL Tool changer: Simple wheel Coolant system: Turbo Separator Extraction: LTA Extinguishing system: Kraft & Bauer Dressing unit on request Further accessories and clamping devices available from the extensive A.Haas clamping device catalog. Customized, client-specific training Including pre-acceptance at the manufacturer’s facility, commissioning, training, and final acceptance at the customer site. Financing available upon request. Hodpfeyzqwcex Al Sol

Condition: like new (used), Year of construction: 2025, functionality: fully functional, Grinding wheel dressing machine for dressing grinding wheels up to a diameter of 450 mm Hjdpfey Anykox Al Sjl Easy to operate, robust, and precise Our grinding wheel dressing machine offers an unbeatable combination of ease of use and exceptional stability. The solid granite base ensures maximum precision and durability, while the user-friendly operation maximizes efficiency in your production. While you continue production on your tool grinding machine, our dressing machine saves you time – and therefore reduces costs.
