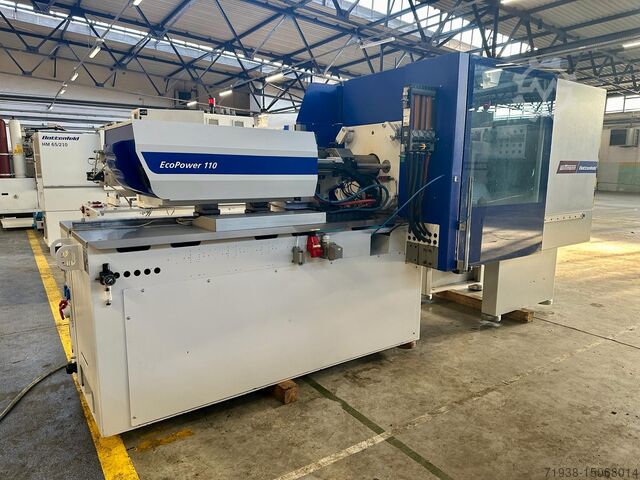

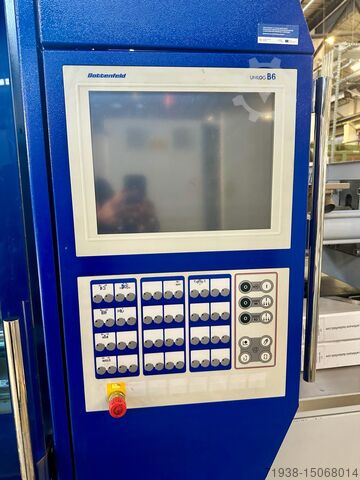

Injection molding machine

Wittmann Battenfeld EcoPower 110/130

Condition: excellent (used), C.N.C. WORKING CENTER 3 axes (X-Y-Z) Movable panel (workpiece), movable working head. Vertical position of the panel (workpiece) Numerical Control TPA - Software Albatros Safety cabin (enclosure) of the working head Panels feeding by motorized chain/track Rubber-coated vertical rollers as fence and feeders during workpieces process In-feeding table (with motorized belts) - Out-feeding table (with motorized belts) With workpiece return system to the operator (180°) Min. useful working area (X - Y - Z) mm 260 x 40 x 10 (ca.) Hodsihfiiepfx Agijg Max. useful working area (X - Y - Z) mm infinite x 1300 x 80 (ca.) Separate electric and command cabinet Total installed power (Kw) 35 WORKING GROUPS: Drilling heads with vertical spindles (No.) 1 Independent vertical boring spindles (No.) 24 (7 in X + 17 in Y) Drilling heads with horizontal spindles (No.) 2 Independent horizontal boring spindles (No.) 36 (9 LEFT + 9 RIGHT = 18 x 2) Drilling head motor-power (Kw) 3 x 3 (ca.) Vertical electro-spindle (No.) 1. Vertical electro-spindle motor power (Kw) 7,5 (ca.) Automatic Tools Changing System Revolver, with Tools storage plate (No. of folds-positions) 10

Condition: excellent (used), Year of construction: 2007, BOGE S90 65KW SCREW COMPRESSOR !!! Hjdpfspr Uldjx Agisg BOGE S90-2 screw compressor Technical specifications: capacity: 10.80 m3/min (10800 L/min); 65 KW motor; max pressure: 8 bar; mileage 2690 hrs; 2007 net price: 21900zł gross price: 26937 zł Compressor fully operational; we provide service.

Year of construction: 2023, condition: ready for operation (used), A fully automatic SPEA bed-of-nails in-circuit tester for SMEMA production lines is available. Type: inline ICT tester, slots: 2x768/Core, conveyor width range: 50mm-380mm, conveyor length: 450mm, resistance measurement range: 1mΩ-1GΩ, capacitance measurement range: 0.5pF-1F, inductance measurement range: 1µH-1H, dimensions X/Y/Z: approx. 900mm/1000mm/1750mm. Including various feeders (8x2-56). Documentation available. An on-site inspection is possible. Hjdpfx Asxghn Hegiog

Condition: good (used), Year of construction: 2009, functionality: fully functional, - Patented LIST Lina Scan technology for substrate alignment and inspection - Simplest program creation by full-surface substrate scanning - Processing of large substrates – 550 x 500 mm - Detection of synthetic fiducial marks or any geometries - Diffuse and direct camera illumination for optimal substrate recognition and alignment - Two independent, pendulum-mounted print heads - Programmable print head with closed-loop control - Pneumatic squeegee clamping prevents loosening during production - Substrate fixation via Ovar-Top and Y-clamping, secure clamping even for interwoven substrates - Motorized transport width adjustment, programmable via software - Transport direction freely selectable - Flexible stencil holder for various sizes, no adapter needed; substrate support via magnetic pins and blocks - Desktop PC with Windows operating system, 17" TFT monitor. Machine programs and SPC data can be managed over the network - SPC data is graphically displayed to the operator and stored on the hard drive - AOI Automated Optical Inspection - Integrated print post-inspection with LIST - Very simple programming of the inspection area via substrate overview image on the monitor - Definition of areas with different sensitivity settings - Post-inspection of PCBs for pad print and bridging between pads - Stencil inspection for blockage of openings - Error display on the monitor for easy operator verification - Automatic cleaning cycle after detected stencil blockage - Inspection speed: 9100 mm (width: 260 mm x 35 mm/s) - SPC data acquisition - 2D inspection - Print format: min.: 80 x 50 mm, max.: 460 x 460 mm - Parallel process max.: 350 x 460 mm - Stencil size: min.: 450 x 450 mm, max.: 737 x 737 mm - PCB thickness: 0.5 – 6 mm - Squeegee pressure: 260 N - Cycle time: 11 s + print - Setup time < 3 min - Product changeover < 2 min - Transport height: 810 – 965 mm - Air supply: 5 – 6 bar - Temperature and humidity sensor - SMEMA inline interface Hjdowtqdgepfx Agisg - ESD kit
