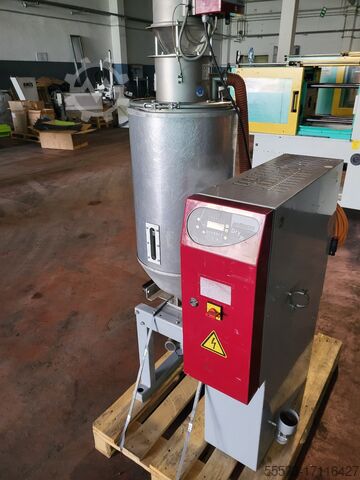

Drymax C30 - 30- P

WITTMANN

Condition: excellent (used), Year of construction: 2017, WITTMANN BATTENFELD Macro Power 900/8800 injection molding machine Year of manufacture: 2017 Serial number: 138337-100 Machine with Wittmann robot Clamping unit • Clamping force: 9,000 kN / 900 t • Opening force: 300 kN • Maximum opening stroke: 2,100 mm • Minimum mold height: 500 mm • Maximum mold height: 1,000 mm • Maximum distance between platens: 3,100 mm (with max. mold height of 1,000 mm) • Dimensions of mounting platens: 1,720 × 1,550 mm • Distance between columns: 1,200 × 1,000 mm • Ejector stroke: 300 mm • Ejector force: 165 kN Injection unit 8800 Kodpfx Anezvwirjdena • Screw diameter: 105 mm • Screw pitch: 525 mm • L/D ratio: 22:1 • Theoretical injection volume: 4,545 cm³ • Maximum injection pressure: 1,931 bar • Maximum screw speed: 167 rpm • Maximum plasticizing rate: 151 g/s • Screw torque: 8,000 Nm • Maximum volumetric flow rate: 725 cm³/s • Injection flow rate with dual pump – option: 906 cm³/s • Nozzle stroke: 950 mm • Nozzle clamping force: 129 kN • Cylinder heating capacity: 53.9 kW • Number of cylinder heating zones: 7 Hydraulic system / drive • Pump power: 90 kW • Oil tank capacity: 1,100 l • Heating power: 53.9 kW Dimensions and weight • Machine length: 10,100 mm • Machine width: 3,400 mm • Machine height: 2,700 mm • Machine weight: 35,200 kg / 35.2 t

Condition: excellent (used), Year of construction: 2015, functionality: fully functional, machine/vehicle number: 8Q00001264, For sale is a powerful and precise Wittmann linear robot W822-1264 for injection molding applications and automation tasks. The unit is packaged and secured on a Euro pallet and comes with the matching handheld device (teach pendant), emergency stop buttons, cabling, and the original technical documentation. Kjdpfx Aszu Rzfondjna The unit is in good condition and fully functional after disassembly. Technical data (according to the nameplate): Manufacturer: Wittmann Kunststoffgeräte GmbH (Vienna, Austria) Model / Type: W822-1264 Article number: 8Q00001264 Year of manufacture: 2015 Payload: 15 kg Travel distances / stroke (X / Y / Z): X-axis (ejection stroke): 550 mm Y-axis (vertical stroke): 1200 mm Z-axis (lateral stroke / main axis): 2500 mm Supply voltage: 360V – 400V (50/60 Hz, 3PH/N/PE) Connected load: 1.9 kVA Weight: 275 kg Scope of supply & components: - Main unit / linear robot Wittmann W822-1264 - Pneumatic / gripper head with C-axis / swivel function and pneumatic valve blocks (SMC). - Including energy chains / drag chains for organized cable and hose routing. - Control system & operating unit - Original Wittmann Teachbox R8 / touch-screen handheld device with protective housing. - Additional handheld unit with emergency stop switch and function buttons. - External button boxes / control elements (including EMERGENCY STOP, quality control part, etc.). - Complete cabling, oil cooler control lines, Harting multi-pin connectors, and pneumatic hoses. - Original folder "Wittmann Technical Documentation" (including circuit diagrams, operating manual, and documentation). Upon request, transport and loading can be arranged for an additional fee, throughout Europe. Prices plus VAT. Inspection possible by appointment. Contact us, our team will be happy to assist you further. Trade-in or exchange possible! Machine purchase / sale PURCHASE / SALE OF PRODUCTION & METALWORKING MACHINES, ETC. Do you need a high-quality but affordable metalworking machine for your production? Or do you want to sell yours? For further information or contact options, visit our website.

Condition: not inspected (used), Year of construction: 2014, Cooling capacity: 10.1 kW Flow rate: 5,000 L/h Weight: 180 kg Knodpfx Aney Nif Iedoa The unit is ready for immediate shipment and is available immediately!

Condition: ready for operation (used), Year of construction: 2010, A modular bucket filling and lidding system Wittmann Robot Systeme is available. Components: bucket stack feeding, bucket stack transfer unit, bucket singulation, rake and filling, stopper, lid feeding, lidding, lid inspection and rotation for the further conveying processes. Number of formats: 6, format distribution round/rectangular, round bucket diameter: 226mm, round bucket height: 194mm, min. rectangular bucket dimensions X/Y/Z: 195mm/299mm/170mm, max. rectangular bucket dimensions X/Y/Z: 302mm/415mm/220mm, bucket volume: 5l/6l/10l/11l/16l. Including the corresponding conveyor units and motors. Documentation available. An on-site inspection is possible. Knsdpfxoy N Ddlj Andsa

Condition: good (used), functionality: fully functional, overall weight: 10 kg, Manufacturer: Wittmann Ksdpfx Aezt Rvmsndjna Series: DFR-101 Type: DF04TA 5 sections

Condition: excellent (used), Year of construction: 2007, functionality: fully functional, 1,0 St. Trockenlufttrockener Hersteller: WITTMANN Typ: DRYMAX S3 Baujahr: 2007 Trockenbehälter: 2 Stück Behälter je 75 Liter Inhalt Trockenlufttemperatur: max. 200° C Ksdpezt Amdefx Andsna

Condition: good (used), functionality: fully functional, The Wittmann temperature control unit is for sale: Medium: Water Knodpfoztwt Eex Andsa Heating capacity: 9 kW Cooling capacity: 30 kW Mobile

Condition: excellent (used), Year of construction: 2013, Control system: UNILOG B6 Closing force: 4500 kN Distance between columns: 950 × 700 mm Minimum mold height: 330 mm Maximum mold height: 780 mm Screw diameter: 65 mm Injection pressure: 2070 bar Maximum injection weight: 980.9 g Injection unit: ServoElectric (Knodler) Injection speed: 400 mm/s Knsdpfx Aneytfqaodja Servo package S0 ServoPower package S1: hydraulic pump speed control for increased energy efficiency Integrated filter unit: Yes Ejector type: Electric Ejector force: 60 kN Ejector stroke: 180 mm Additional equipment: Air valve Cooling water flow regulator Digital interface for temperature controllers (control of up to 6 thermoregulators) Interface for nozzle needle shut-off control in the mould Interface for external hot runner controller Full integration for Wittmann W8xx series robot Quality control button Language: Polish

Condition: refurbished (used), Year of construction: 2010, Wittmann W853 Linear Z=4000mm , payload: 41,5 kg Number of axis: 3 X: 1500 mm Y: 2600 mm Z: 4000 mm Kedpswnfmfsfx Andena \+ C axis pneumatic Reach: 4000 mm Payload: 41 kg Robot has NEW CPU + batteries , fully tested by Wittmann technician in our showroom.

Condition: excellent (used), Year of construction: 2013, Number of axis: 3 Reach: 2000 mm Payload: 8 kg X- 905 mm Y-1200 mm Z-2000 mm with console height 50cm see in pictures Model: Wittmann W828-311 Controller: CNC 8.2 Main Specifications 1. Number of axes: 4 (X, Y, Z + pneumatic C axis) 2. Z stroke: 2000 mm 3. Y stroke: 1200 mm 4. X stroke: 905 mm 5. C axis: 0–90°, 15 Nm, pneumatic 6. B axis: Servo 7. A axis: Not installed Equipment Knjdozhni Tjpfx Andoa 1. Euromap standard mounting bracket (500 mm height) 2. 4 vacuum circuits 3. Venturi vacuum generator with blow-off function 4. 2 additional valves for mold air blow-off 5. Y-axis quick coupling according to LEGO specification 6. VDMA E12 interface (LEGO specification) 7. Conveyor synchronization (Band Takt) 8. Digital I/O No. 1 and No. 3 9. Operator interface in Danish 10. Operating manual in Danish
