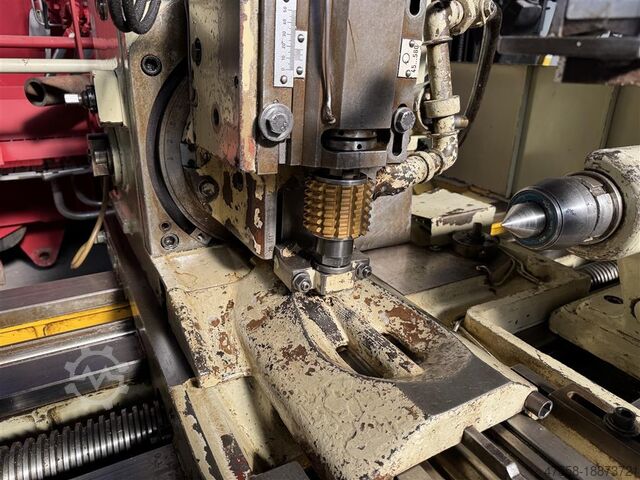

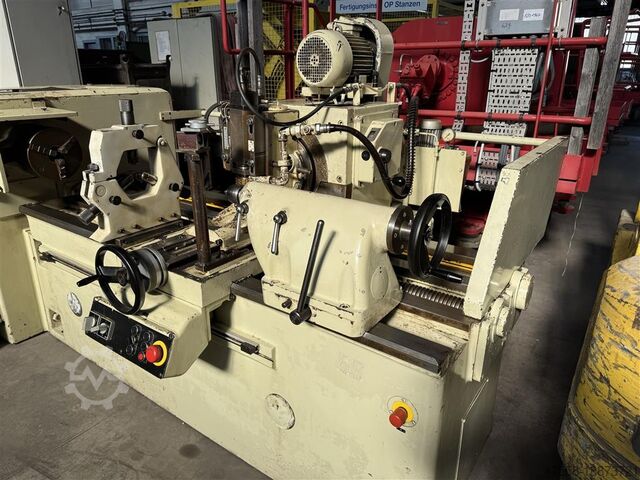

Gear Hobbing Machine - Vertical

WMW HECKERT ZFWVG 250/4x1250

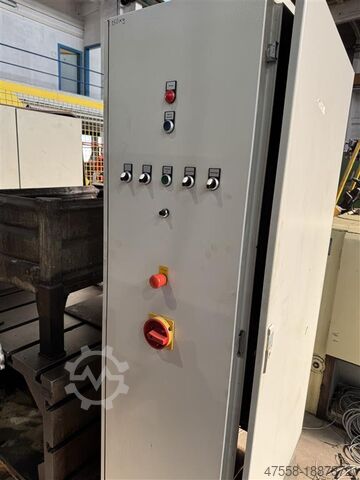

Year of construction: 1971, condition: used, Technical details: max. wheel diameter: 300 mm Bjdpfsvc Apbjx Ad Asdb max. module: 5 module min. : 0,5 max. workpiece weight: 60 kg weight of the machine ca.: 4,0 t dimensions of machine: 1800x1850x2500 mm dimensions electric cabinet: Nr. 1: 1930x400x1920 mm dimensions electric cabinet: Nr. 2: 800x230x1950 mm dimensions:: Abluftanlage: 1400x700x560 mm dimension cooling device LxWxH: 1,2 x 1,0 x 0,45 m Electronically controlled tooth flank grinding machine up to module 5 and a Ø of 240 - 300 mm feed speed per workpiece revolution infinitely variable 0.4 - 3.2 mm max./min. Number of teeth: 130 / 12 max./min. Pressure angle: 30° / 14°30` max./min. Spiral pitch with 24 teeth: 6000 / 200 mm max. tooth helix angle, both sides: 45° Speed of the grinding worm: 1900 rpm without dressing device Equipment: approx. 77x change transmission wheels, pipe extensions and various tools Two of these machines are for sale. Both machines are supplied via two common control cabinets and an exhaust air system. *

Condition: used, Year of construction: 2007, max. wheel diameter 380 mm gear width 540 mm max. module 7 Control SINUMERIK 840 D Axial travel 600 mm table diameter 317 mm table speeds 100 U/min milling head -swivable + / - 35 Grad milling spindle drive 27,00 kW milling spindle speeds (infinitely variable) 1500 U/min diameter of hob 160 mm cutter length max. 330 mm cutter speeds max. 3000 1/min hob dia. - max. 160 mm swarf cutter lenght - max. 330 mm tangential travel max. 300 mm 10.000 mm/min tangential speed max. 3000 mm/min 7.500 mm/min oil volume 100 l coolant capacity 780 l Counterholder movement 540 mm total power requirement 50,00 kW Bdjdpfx Aoyt Rvhsd Aeb weight of the machine ca. 16,00 t dimensions of the machine ca. 6,00 x 4,50 x H3,50 m for the following processes: axial hobbing, individual part milling, Worm wheel milling, roofing, deburring; NC tailstock

Condition: used, WEBSTER & BENNETT EV 36” HIGH SPEED VERTICAL BORER MAKE WEBSTER & BENNETT, MADE IN ENGLAND MODEL EV 36” TABLE DIA 915 mm SWING 1168 mm HEIGHT UNDER RAIL 533 - 1016 mm SPEED 13.5 - 300 rpm FEED RATE 0.005-0.250 inch/min MAIN SPEED 40 HP Bdodpfx Adexp Na No Asb PLUS HIGH SPEED TAABLE EV SERIES MACHINE ELEVATING RAIL SAFETY GAURDING SET OF JAWS FULLY FUNCTIONAL GOOD SLIDES

Condition: ready for operation (used), Year of construction: 2012, functionality: fully functional, 1 used CNC bed type milling machine with Heidenhain control. Bjdpfx Aewxxzqod Aodb Additionally, rotary table The rotary table has a diameter of 1200 mm. €220,000 – in 2012/2013 rebuilt with a new Rexroth rotary table, fully installed as a C axis. Swivel head is available. A wide range of tools as well as a 3D touch probe are included.

Condition: used, TECHNICAL DETAILS - Number of axes : 8 - Number of spindles : 2 MAIN SPINDLE - Max. bar diameter : 25.4 [mm] - Max. machining length : 200 [mm] - Spindle speeds : 10000 [rpm] - C axis indexing precision : 0.1 [°] COUNTER-SPINDLE - Max. bar diameter : 20 [mm] - Spindle speeds : 10000 [rpm] - Spindle power : 3.7 [kW] - C axis indexing precision : 0.1 [°] - Number of guide bush holders : 2 Bdedpfx Ajuhaycod Aob GUIDE BUSH HOLDER 1 - Number of positions : 5 GUIDE BUSH HOLDER 2 - Number of positions : 5 - Number of motorized positions : 4 - Live tools speed : 8000 [rpm] SECONDARY OPERATION - Number of positions : 7 - Number of motorized positions : 3 - Live tools speed : 8000 [rpm] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 14 [kW] WEIGHT & DIMENSIONS - Machine floor space : 2270 x 1650 [mm] - Machine height : 2200 [mm] - Machine weight : 3500 [kg] MACHINE HOURS - Number of hours under power : 46571 [h] EQUIPMENT - CNC : Fanuc - Rotating tool motor on : S2 - Rotating guide bush - Parts catcher - Ejection of workpiece - Chips conveyor : KNOLL - Coolant tank * with high-pressure pump : 100 [bars] - Bar loader : TORNOS ROBOBAR SSF - Oil mist extractor : Elbaron - Fire extinguisher * * NB : working order not guaranteed. To have it checked by a qualified organization of the buyer.

Year of construction: 1997, condition: excellent (used), Universal Turning key drawing machine from Cardinal apply for toolmaker , mold maker, education and Locksmith Slot width 3 - 100 mm max. groove length 1250 mm Pulling force 6000 kg Draw length 1250mm Bjdpsin Dkzofx Ad Ajdb Motor 5,5 KW Weight 1650 kg Dimensions 1000x1650x1000mm

Condition: good (used), Year of construction: 1997, Ref. -No.: 10620 Manufacturer: SKODA Type: W 200 T Year of construction: 1997 Bjdpeyagidofx Ad Aodb Type of control: CNC-Steuerung Control: SIEMENS SINUMERIK 840 Storage location: Halberstadt Country of origin: Germany X-Travel: 16000 mm Y-Travel: 5150 mm Z-Travel: 1600 mm W-Axis: 2100 mm V-axis: 2000 mm B-Axis: 0 - 360 ° Spindle Diameter: 200 mm Table Load: 80.000 kg Tool Taper: SK 60 / SK 50 Turning Speeds: 1000 RPM Rotary table diameter: 3500 x 3000 mm Further information: Including angle head Machine can be inspected under power.

Year of construction: 1965, condition: used, machine/vehicle number: 2112, Color: green Force: 2,5 to Bsdpfxobrclvs Ad Aedb Stroke: 1000mm Weight: 1,2 to 3 KW Area required: appr. 140 x 130 cm

Year of construction: 1990, condition: ready for operation (used), Workpiece diameter range: 2mm-320mm, max. grinding length: 500mm, center distance: 1000mm, max. workpiece weight: 150kg. On-site inspection is possible. Bdodpfxjwmqxwo Ad Ajb

Condition: new, Year of construction: 2025, functionality: fully functional, turning height: 1,600 mm, turning diameter: 2,000 mm, CNC Vertical Turning Center Model: VTC-16/20R with Fanuc 31i-B Table Diameter: Ø1,600 mm Max. Swing Diameter: Ø2,000 mm Max. Turning Height: 1,600 mm Table Speed: Max. 250 rpm Table Load Capacity: 8,000 kg Table Indexing Speed: 720°/min Table Indexing Accuracy: 0.001° X-Axis (Ram horizontal): -100 mm to 1,170 mm Z-Axis (Ram vertical): 900 mm Drive Spindle Speed: Max. 2,000 rpm Ram Size: 240 mm x 240 mm Milling Spindle Taper: ISO 50 Tool Shank Size: 40 mm x 40 mm Crossrail (vertical travel): 250 mm x 3 stages (hydraulic) Table Drive Motor: AC 37/45 kW (continuous/30 min. duty) Milling Spindle Drive Power ISO 50: 15/18.5 kW (continuous/30 min. duty) Control System: Fanuc 31i-B Display Unit: 15-inch TFT-LCD Memory Capacity: 1 MB Automatic Tool Changer: 24 positions (for 7 turning tools + 1 cover + 16 milling tools) Standard Tool Holders: New 240 TCR-01 (2 pcs) Splash Guard: Table version (R-Type standard design) External Coolant System: 3 bar (80 l/min) Chip Conveyor: Hinged belt type Table Bearing Cooling Device 4-Jaw Independent Manual Chuck Foundation Anchor Bolts / Base Plates Maintenance Tools and Toolbox Hydraulic Power Unit Work Area Lighting Signal Lamp: 3 colors (green, red, yellow) Operating Manuals (English): 1 CD with Fanuc manuals and 3 books with mechanical/electrical manuals Power Supply: 220 V, 60 Hz, 3-phase Machine Color: Manufacturer standard OPTIONAL ACCESSORIES (#1) Turning Tool Holder: Type 240TCR, 4x included Rigid Tapping: 1x included OPTIONAL ACCESSORIES (#2) Automatic power-off for N.C. - on request Turning tool holder type 240TCR - on request Through-spindle coolant supply: 30 bar (pump pressure) - on request Transformer 415 V, 50 Hz, 3-phase - on request Linear scales X-, Z-axis (Fagor, Spain) - on request Workpiece measuring device - on request Tool measurement TS27R, Renishaw - on request Other information: INSTALLATION, COMMISSIONING, TEST OPERATION, AND TRAINING - not included in the price INSURANCE AND FREIGHT - not included in the price Image shows machine with pallet changer. The offered machine DOES NOT INCLUDE A PALLET CHANGER! Errors in technical data excepted. The scope of accessories is as described in the text of this article only. There is no entitlement to any other accessories, such as those shown for illustration purposes. The general terms and conditions of JS-Werkzeugmaschinen GmbH apply. Bdjdpexp Nb Tofx Ad Aob
