Rotary Table

WMW 315

Condition: good (used), Year of construction: 1986, Inner diameter: 20…400 mm Grinding depth: 315 mm Hnedpsyky R Nofx Aacjh Internal grinding spindle speeds, stepless: 2,640…16,500 rpm Workpiece spindle speed: 40…400 rpm Table feed rate: 0.1…8 m/min Rapid traverse: 10 m/min Table travel: 630 mm Total power requirement: 16 kW Machine weight approx.: 5.8 t Additional information: Grindable diameter within workpiece guard: internal 20…400 mm; external 500 mm Max. workpiece diameter in workpiece guard: 500 mm Max. grinding depth: 315 mm Grindable taper angle: 60° Internal grinding spindle speeds: 2,640…16,500 rpm Drive power for face grinding attachment: 4 kW Drive power for workpiece motor: 1.5 kW Workpiece spindle speeds: 40…400 rpm Table speed: 0.1…8 m/min Rapid traverse: 10 m/min Table travel: 630 mm Max. distance from workpiece spindle flange to grinding spindle carrier: 1,250 mm

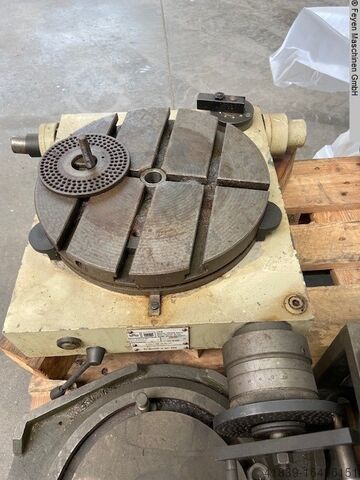

Condition: used, Rotary Table WMW Type D 315 k Rotary table with mechanical drive, crank, and scale Dividing head, indexing table Serial No.: 16508 Table diameter: 315 mm Table height: approx. 135 mm Transmission ratio: 90:1 - Crank with index plate and sector arm - Scale ring for reading at the crank - Readable degree graduation on the rotary table - Pivotable worm gear for direct indexing - Clamping via clamping screw - 14 mm T-slots in the table surface - Cardan drive - Built-in index plate: 17-25-30-39-47-57 - Rotary table drive suitable for console milling machine WMW HECKERT Type FU 315 E, possibly also for FU 400 E - Dividing head (index plate = 20) suitable for console milling machine WMW HECKERT Type FU 315 E, possibly also for FU 400 E Weight: 145 kg Hodsxcbpiopfx Aacenh Good condition

Condition: used, Rotary table, indexing table, dividing head WMW type D 315 k Serial no.: 10930 Table diameter: 315 mm Table height: 135 mm Gear ratio: 90 : 1 - Crank handle with indexing plate and sector arm - Graduated scale ring for reading at the crank - Readable degree graduation on the rotary table - Swing-out worm for direct indexing - Clamping via clamping lever - 14 mm T-slots in the table plate (one place damaged) - Built-in indexing plate: 23-28-33-42-51-61 Hjdpfxjxf Uytj Aacenh Weight: 85 kg

Year of construction: 1981, condition: ready for operation (used), Travel X/Y/Z: 500mm/280mm/330mm, table dimensions X/Y: 710mm/400mm, max. table load: 150kg, speed: 1800rpm, tool holder: SK40, feed rate: 1250mm/min, milling head swivel: +/-90°. Machine dimensions X/Y/Z: approx. 1800mm/2200mm/1800mm, weight: approx. 1800kg. An on-site inspection is possible. Hnedpfx Aajx Ih Dtocoh

Condition: used, Year of construction: 1965, There are two WMW SU 315x3000 available, connected load machine 1/ 2: 12.6/ 12kW, weight machine 1/ 2: 8.2/ 9t, machines need overhauling. Hjdoxg Ihgopfx Aacenh

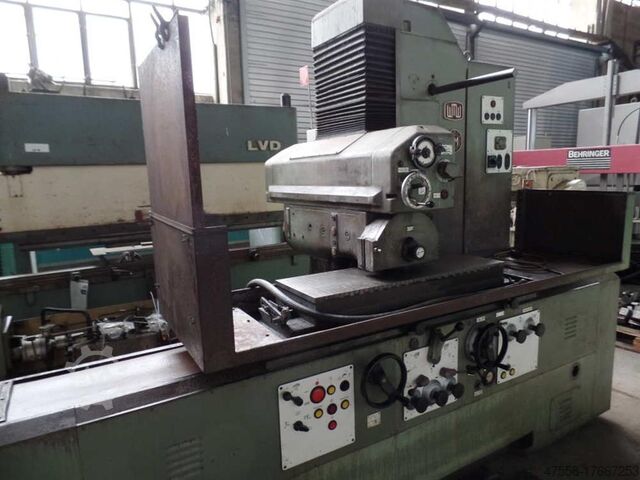

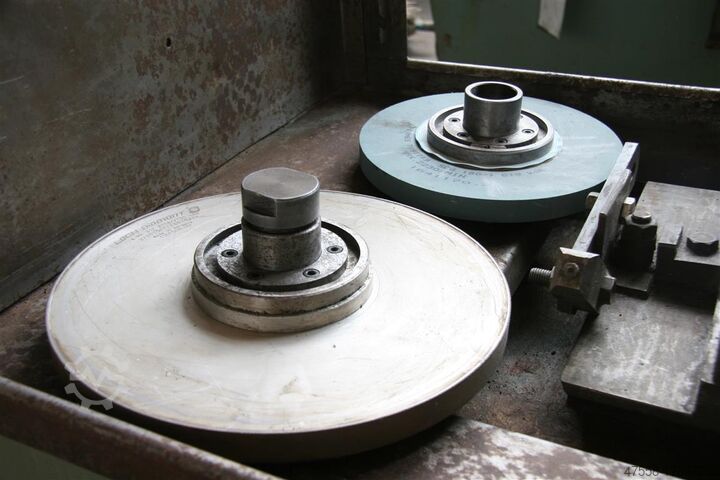

Condition: used, Technical details: grinding length: 1000 mm grinding width: 315 mm workpiece height: 390 mm table speed: 2,5-25 m/min table surface area: 250 x 1000 mm distance table - spindle center: 550 mm dimensions of grinding wheel: Ø max. 315 x 13-63 x Bohrung Ø 75 mm control voltage: 220 / 50Hz V/Hz total power requirement: 10,5 kW weight of the machine ca.: 5,0 t dimension machine xH: 3,35 x 1,5 x 2,10 m Die Maschine befindet sich derzeit in der technischen Abteilung. Hjdpfxsu Ngn Se Aacenh *

Condition: used, Technical details: x-travel: 500 mm y-travel: 380 mm z-travel: 330 mm control: Siemens 840 D / 810 D spindle cone ISO: vertikal/horizontal: 40 table surface area: 400x800 fest mm spindle turning speed - continuous: verikal/horizontal: 35-1800 U/min spindle head swivable left - right: 90 ° rapid traverse X,Y: 3,15 mm/min. rapid traverse Z-axis: 1,6 m/min feed continuous: X/Y/Z: 6,3 - 1250 Total power requirement: 7,4 kW Weight approx.: 1,8 t dimension machine xH: 1,8 x 2,2 x 1,8 m dimensions electric cabinet LxWxH: 0,5 x 0,85 x 2,1 m Machine was rebuilt in 2002, modernized with a modern control Siemens 840D/810D shopmill. - adjustment travel via counter holder slide: 440mm Equipment: - cooling system - control panel with jib arm Accessories: - various collet sleeves - div. SK 40 tapers - various milling arbors i.D. Hjdpsu Nc R Nefx Aacenh *

Condition: used, Technical details: z-travel: 400 mm range of revolution per miute: max. 3.000 / steples U/min feed continuous: keine Angaben Hjdpfov A S Efsx Aacenh quill stroke vertical: 100 mm spindle taper: MK2 table surface area: 445 x 315 mm distance table - lower edge spindle: max. 520 mm table travel: längs: 250 mm table travel: quer: 330 mm table height over floor: 920 mm total power requirement: 1,6 kW weight of the machine ca.: 1500 kg machine dimensions LxWxH: 1,3 x 1,1 x 2,0 m Application: Milling and drilling slotted holes There is a precision dial gauge for depth display on the drill spindle head. 5x T-slots to DIN 650: a=10; h=18; b=18; c=8mm Features: Two-way digital ACU-RIDE display *

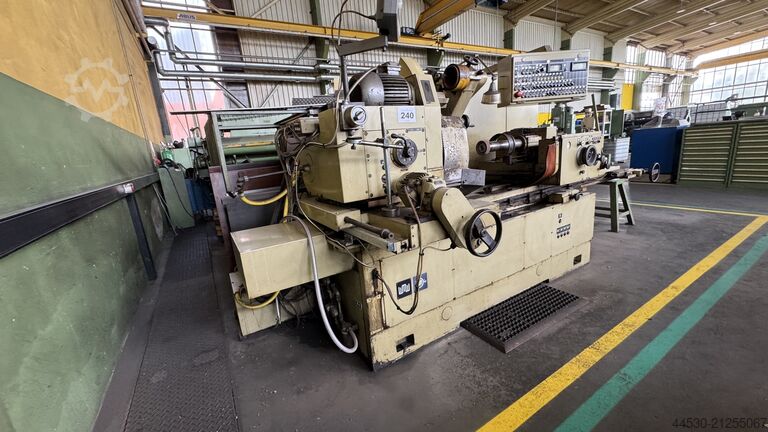

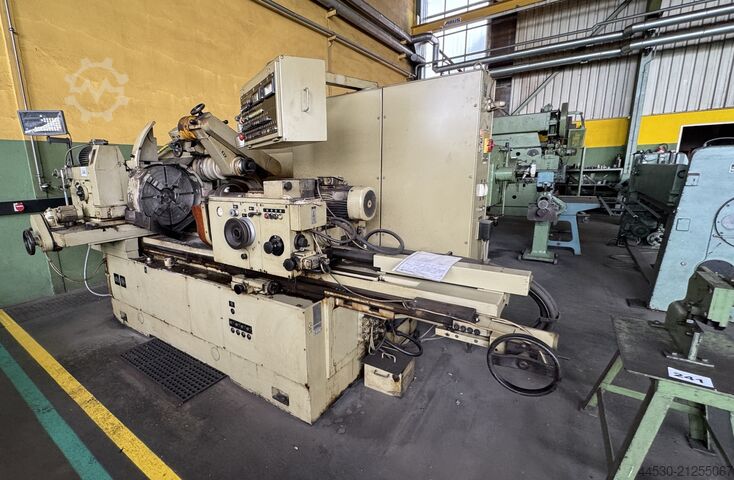

Condition: excellent (used), Year of construction: 1991, swing diameter 400 mm Q U O T A T I O N We are pleased to offer you ex our stock, subject to prior sale, and error in technical data : WMW - GLAUCHAU Hydraulic Internal Grinding Machine with Face Grinding Device model SI 6/1 AS-N x 315 year 1991 Internal grinding diameter 40 - 400 mm Internal Grinding depth, max. 315 mm Max. grindable External dia. 400 mm Weight of workpiece without steady, max. 630 kg Workpiece Swing Ø, with / without safety hood, max. 500 / 600 mm Height of centre above table 360 mm 16 step workpiece spindle speeds 40 – 400 rpm Workpiece spindle bore, approx. 53 mm Hnjdexyllvopfx Aacoh Workpiece headstock swivelling max. 30 ° Adjustment of workpiece headstock position crosswise, max. 400 mm Automatic cross traverse of grinding head 70 mm Adjustment of grinding head position on slide crosswise, approx. 100 mm Feed of grinding head, intemittendly 0.001 – 0.025 mm/stroke Feed of grinding head, continually 0,1 – 1 mm/min Table stroke, max. 630 mm Table speeds infinitely variable 0,1 – 8 m/min (10 m/min) Distance workpiece headstock and grinding slide, max. 1,250 mm Adjustment of Grinding spindel stock on table 520 mm Spindle drive, approx. 7.5 kW Total electrical load, approx. 17 kW - 380 V - 50 Hz Weight, approx. 6,000 kg Accessories / Special Features: • Universal internal grinding spindle head with automatic cycles to grind cylindrical and conical bores with one or multiple diameters, external diameters and grinding of narrow end-faces. • Face grinding device, hydraulic swivel-in, with automatic cycles to grind end-faces, multiple end-faces and two tiered end-faces simultaneously • Electronic cycle control with control tableau to set up all the grinding and dressing cycles including ampere-meters for internal grinding spindle and face grinding spindle • Belt-type grinding spindle drive with mounted grinding spindle and 5 pieces separate interchangeable grinding spindles along with various pulleys with various diameters. • Dressing device for both grinding spindles • HEIDENHAIN Digital Read-Out for the cross adjustment of the Workpiece headstock • A large amount of operating tooling and accessories as : 4-jaw Faceplate Ø approx. 520 mm, 3-jaw chuck Ø approx. 380 mm, 3-jaw-chuck Ø approx. 130 mm, pulleys, spindle sleeves, grinding flanges, foot switch, • Separate hydraulic unit, built on switch cabinet, coolant device with magnetic separator. Condition : very good, universal machine for all sorts of grinding tasks ! Please click here to view a video of the machine running : ! Delivery : immediately available, FCA Metzingen Payment : 100 % Net, after conclusion of contract, before loading

Condition: good (used), Machine number: 2082 Hsdsh Rawfspfx Aacsnh Type / Model: F315 Control: conventional travel x-y-z: 820 x 300 x 440 mm table: 1250 x 335 mm table clamping area: 1100 x 225 mm speed range: 56 to 2800 rpm spindle mounting: SK 40 Feed rate: 10 to 630 m/min rapid traverse: Connection: 6 kW Accessories/equipment: Condition: good weight: 2 t dimensions: 1700 x 2000 x 1900 mm
