Coordinate measuring machine

Zeiss Duramax

Condition: like new (used), Duramax Shopfloor 2015 Measuring range: X=500 mm, Y=500 mm, Z=500 mm Length measurement deviation E0 in µm, E0/E40 in µm, MPE according to ISO 10360-2:2009 2.4 + L/300 at 18°C - 22°C Kdodpfx Adsw N Nfgj Ijw Controller C99 with BP26_SE control panel Basic equipment: Shopfloor base frame VAST XXT sensor Probe change magazine Probe changer tray Calibration sphere with certificate Machine folder, technical documentation, operating manual Various probes HP Workstation Z4 WIN 11 and monitor Additional accessories with different configurations Software: Calypso Basic 2025 Further options available Additional Duramax measuring devices for sale

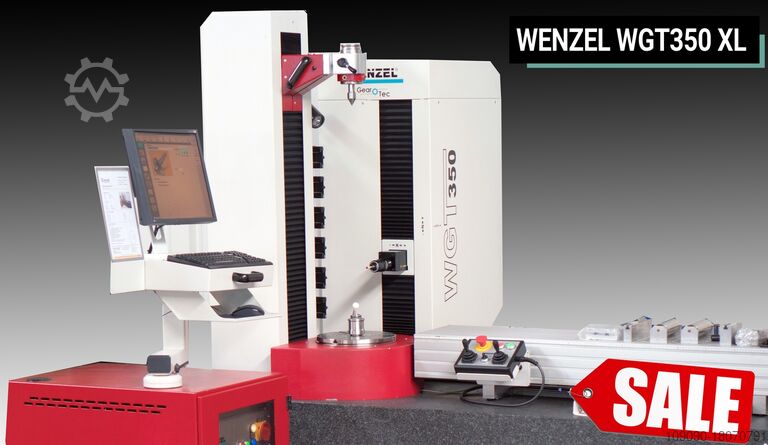

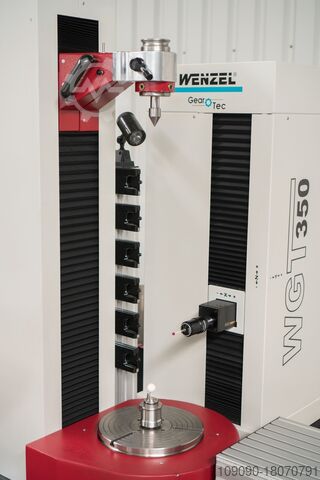

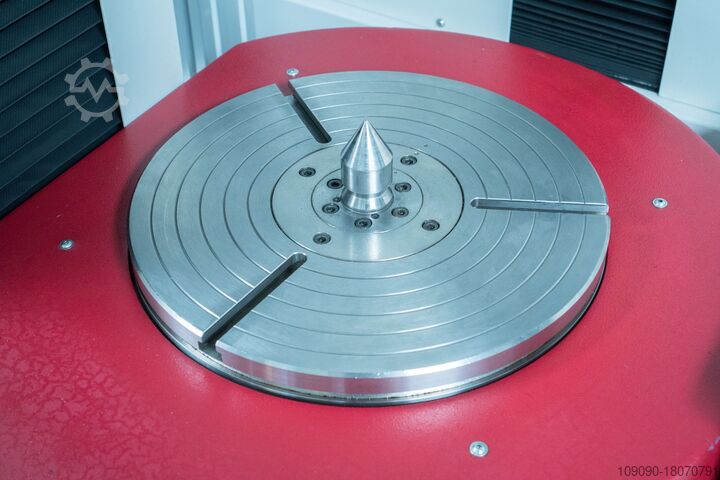

Condition: refurbished (used), Year of construction: 2006, functionality: fully functional, measuring range X-axis: 1,800 mm, measuring range Y-axis: 200 mm, measuring range Z-axis: 650 mm, workpiece weight (max.): 180 kg, We are selling a refurbished Wenzel WGT350 XL rack and pinion measuring machine. The machine can be used to measure gears and racks. - Max. Rotary table workpiece diameter = 5 to 400mm - Max. Rotary table load = 180kg - Travel X= 1800mm Y=200mm Z=650mm - Counterholder measuring range = 20 to 900mm - Module measuring range from 0.5mm - Max. Max. rack length = 1200mm - 6x probe changer incl. 6x SP600M plates - Temperature compensation of the machine - Active air damping of the machine - Year of manufacture 2006 - Accessories such as, driver, reference ball etc. as shown - Jaw chuck D=200mm with inside and outside jaws The following software modules are included: - TMain - program management - TStylus - Probe management - TCali - probe calibration - TAmo - Calculated axis position determination - TGear - Cylindrical gear measuring program - TShaft - Program for dimension, form, position and scanning of unknown contours - contours - TWorm - Worm measuring program - TRack - Rack software - TReverse - The parameters of an unknown gear, module (mn), helix angle (ß) and pressure angle (a), can be determined with TReverse. Kdodpfx Adevitkij Iow can be determined. - Statistical program, statistical evaluation for spur gear, bevel gear and worm gear testing. worm testing For further information, please contact us by e-mail.

Condition: excellent (used), Year of construction: 2008, functionality: fully functional, measuring range X-axis: 500 mm, measuring range Y-axis: 500 mm, measuring range Z-axis: 500 mm, Equipment: type plate available, ZEISS DURMAX MEASURING MACHINE WITH MEASUREMENT ROOM EQUIPMENT: 1. Granite table 2. Calipers from 250-750 mm 3. Micrometers 4. Measurement rods and gauges 5. Scales for components 6. Surface roughness tester 7. Rockwell hardness tester Kdodpfx Ajxqcx Iod Iew 8. Gloss meter 9. Stereoscopic microscope with camera

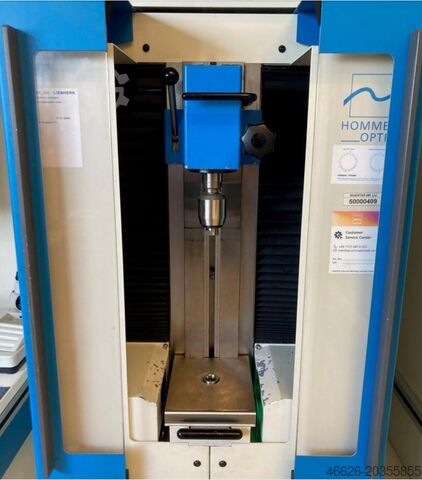

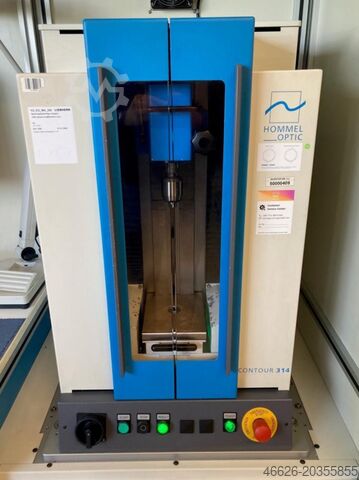

Condition: good (used), Year of construction: 2008, functionality: fully functional, machine/vehicle number: 10111408, Jenoptik Opticline C314 – Optical Shaft Measuring Device Year of manufacture: 2008 Model: C314 Serial number: 10111408 Condition: Fully functional Category: Optical Shaft Measuring Device Availability: Immediately Location: Germany Calibration: 07/2025 according to DIN EN ISO 10360 and VDI/VDE 2617, certificate available Measuring range diameter: 140 mm Measuring range length: 600 mm Kjdpfx Aoxqh Etjd Isdw Workpiece weight: 200 / 300 / 600 N Resolution diameter and length: 0.1 µm Resolution rotation: 0.0006° Diameter accuracy: 1.0 + D[mm]/200 µm Length accuracy: 2.6 + L[mm]/200 µm Repeatability diameter: 0.3 µm Repeatability length: 1.2 µm Software user interface: Turbo Optic 3 Software measuring module: BWMS4 Power supply: 230 V Measuring system dimensions: 700 x 840 x 1355 mm Dimensions with probe: 810 x 840 x 1355 mm Machine weight: approx. 155 kg Accessories weight: approx. 300 kg Accessories: Mobile table frame Manuals: available Technical documentation: available Loading options: Forklift compatible Maintenance status: Maintenance records for 2024 & 2025 available, inspection values without any findings, overall condition: very good Optical shaft measurement systems with multi-sensor technology and highest precision This measuring device is used for quality inspection of the following products: - Turned and precision-turned parts - Components for the automotive industry, e.g. electric motors, drivetrains, steering components, and turbochargers - Blanks and pressed components for the metalworking industry - High-precision parts for medical technology, e.g. implants, bone screws and surgical instruments - Components for injection and nozzle technology - Components for the bearing industry - Parts for turbines and emergency power generators - Parts for the textile and printing machinery industry - Applications in the aerospace sector - Pneumatic and hydraulic components, e.g. pumps - Various electric motors, e.g. for fans, household appliances, positioning and drive systems
