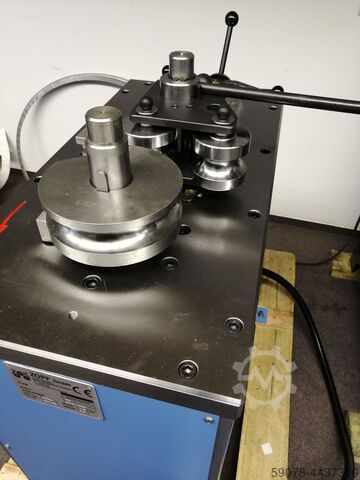

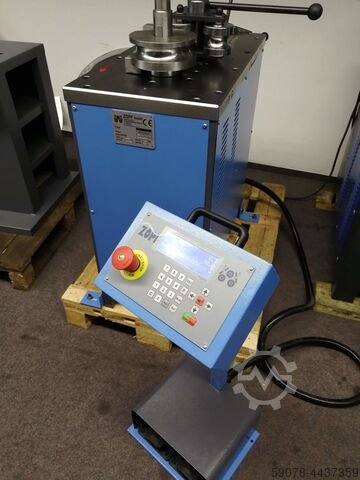

Tube bending machine

Zopf R 1

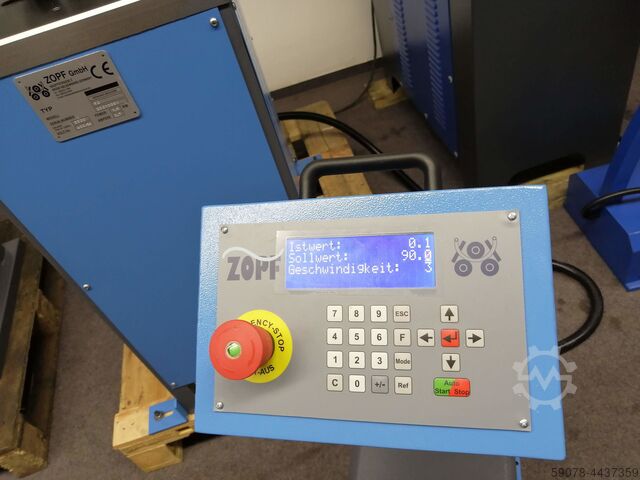

Condition: used, Year of construction: 1993, Technical details: tube diameter: 80 mm tube diameter min.: 6 mm control for program: Gelma MM-1 tube pipe draw up length: 1800 mm Djdpfx Aeu Ibyysgmsck weight of the machine ca.: 0,232 t dimension machine xH: 1,9 x 0,7 x 1,3 m Semi-automatic PIPE BENDING MACHINE Operating modes are manual but also semi-automatic Application: for multiple bending of pipes The swivel unit with bending preselection for 3 different bending angles in single and automatic mode. The machine is currently equipped with a stop bar for tube size Ø 10mm for 6 angle settings. The bending machine is movable/adjustable. Equipment/accessories: 6 cam rods/stop rods 6 control disks Bending tool for Ø 12mm *

Condition: new, Cesurbend Mandrel Tube Bending Machine / Pipe Bender PBM-32 E Technical Specifications Max. tube diameter (mm): 32 Max. tube wall thickness (mm): 2 Max. bending angle (°): 190 Tube bending speed (rev/min): 8.5 Max. bending radius (mm): 275 Bending motor power (kW): 2.2 Tube length (mm): 2000 Machine width (mm): 1000 Machine length (mm): 2300 Machine height (mm): 1050 Machine weight (kg): 300 Features • 4-way adjustable measuring device • 7" color touch display • 5 sequential rotation options Djdpfxsxt Rbpe Agmsck • 100 program memory capacity • Omron PLC control

Condition: new, Cesurbend Mandrel Tube Bending Machine PBH-32 E Technical Specifications Dsdpfxext Rcgj Agmjck Max. tube diameter (mild steel): 32 mm Max. tube wall thickness (mm): 2 Max. bending angle (°): 190 Tube bending speed (rpm): 8.5 Max. bending radius (mm): 275 Bending motor power (kW): 2.2 Hydraulic motor power (kW): 1.5 Tube length (mm): 2000 Machine width (mm): 1000 Machine length (mm): 2300 Machine height (mm): 1050 Machine weight (kg): 400 Features • 4-way adjustable measuring device • 7" touchscreen colour display • 5 sequential twisting options • 100 program memory capacity • Omron PLC control

Condition: excellent (used), Year of construction: 2003, pressure 60.0 t chamfer lenght 2600 mm distance between columns 2100 mm column arm 200 mm stroke of upper beam 100 mm dayligth 280 mm table height 840 mm working feed 10.0 mm/sec return speed 70.0 mm/sec back stop - adjustable max. 650 mm Control ATS 560 oil volume ca. 150 l Dcjdpjzbc Dmjfx Agmek voltage 380 V total power requirement 7.5 kW weight of the machine ca. 4700 kg range L-W-H 3800 x 1400 x 2200 mm Equipment: - electro-hydraulic NC press brake - easy to operate - HACO NC control model ATS 560 * 7-digit LED display * Memory capacity for 200 programs with a maximum of 400 sets * Working with pressure and immersion depth * Inching function for electric backgauge * Set / actual value input for back gauge * Swiveling control panel, left front - NC controlled axes : Y1 Y2 X axis - NC electro-hydraulic synchronization and immersion depth positioning - NC electro-motorized backgauge * with ball screws * speed 240 mm/sec. * including 2x manually adjustable stop fingers in width and height * backgauge programmable to an accuracy of 0.1 mm - Manual table crowning, with handwheel and analog display - "SYSTEM A" top tool holder, incl. top wedge crowning - "SYSTEM A" bottom tool holder - Various insert/bending tools - 1x freely movable 2-hand/foot control * only moves at working speed - Operating instructions also included in the scope of delivery (built-in): - 1x brand new / split set of upper tools * UKB 11,200 mm - 3x 835 mm * Angle 85° - Radius R 0.8 mm - Height 66.5 mm * Load capacity 1000 kN/m max - 1x brand new / split set of bottom tools * UKB 21.207 - 3x 835 mm * V openings = 16/22/35/50 mm * Angle 85° * Load capacity 800 kN/m max.
