Circular sawing machines

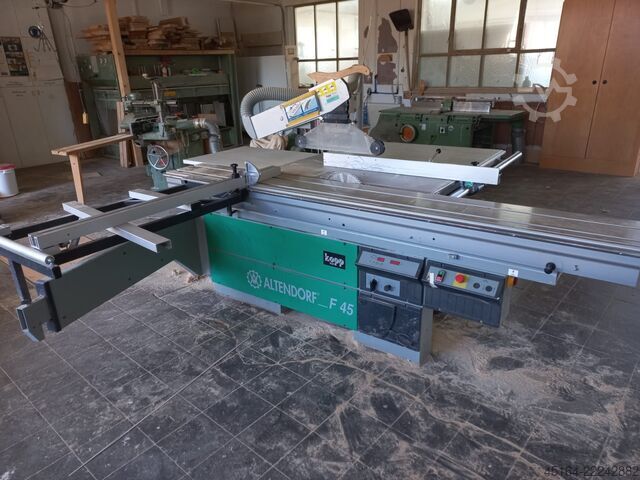

Altendorf F 45

Condition: used, Year of construction: 1998, Used machine Year of manufacture: 1998 Equipment and technical specifications: - Cutting length: 3400 mm - Cutting width: 1300 mm, CNC-controlled - Motor: 5.5 kW - Automatic brake - Digital display for cutting width - Digital display for tilting - Digital speed display Dsdpfxsx Sttne Ah Sscb - Digital display for mitre fence - Scoring unit: electric H+S F45 - RAPIDO scoring system - Automatic guard control - Parallelogram guard device F45 - Table extension: 800 mm - CE version - Anodised version Availability: approx. mid-April 2026 Location: Hesse

Condition: reconditioned (used), Year of construction: 2023, functionality: fully functional, machine/vehicle number: GM010.0396, cutting length (max.): 3,200 mm, cutting width (max.): 1,300 mm, saw blade diameter: 550 mm, table length: 840 mm, power: 5.5 kW (7.48 HP), Factory-refurbished Altendorf F45 with ProDrive control system! TECHNICAL DETAILS Dsdsxc Uq Hopfx Ah Sscb Cutting Data Cutting length: max. 3,200 mm Cutting width at rip fence: 1,300 mm Saw blade diameter: 550 mm Saw blade projection at 90°: 204 mm Saw blade projection at +45°: 141 mm Carriage length, double roller carriage: 3,200 mm Table Data Table length: 840 mm Performance Data Power output: 5.5 kW MACHINE DETAILS Machine height: 910 mm Motor power: 5.5 kW (7.5 HP) Dust Extraction Connection Extraction, top: Ø = 80 mm Extraction, bottom: Ø = 120 mm Negative pressure: 1,200 Pa at total suction port, Ø = 140 mm Air consumption: v_min = 1,110 m³/h at 20 m/s Air Cushion Table Compressed air consumption: 200 l/min at 1 bar (max. 400 l/min at max. 3 bar) EQUIPMENT Lighting Continuously variable speed control Scorer unit LED lighting 3-axis scorer including park position On/off switch on the double roller carriage Angle/miter fence Parallel stop DIGIT X 1,300 mm Front support roller Second support on the double roller carriage

Condition: excellent (used), Altendorf F45 panel saw, sliding table 320 cm, max. blade diameter 500 mm, Dodpfxex Sw Age Ah Secb unit tilt 0-45 degrees, blade tilt and height adjustment are motorized, right-side fence adjustable up to 1040 mm, motorized 2-axis scoring unit, main motor 5.5 kW, used machine.

Condition: used, Year of construction: 1996, machine/vehicle number: 96-02-044, Operator panel control: LCD screen, eye-level, swiveling, cutting width, cutting height, saw blade tilt Edging table: 3200 mm (double roller carriage with hardened chrome guides) Cutting width: 1300 mm Main saw: ø250–400 mm, 5.5 kW, speed 3,000–6,000 rpm 0–46° NC electric adjustment: yes Djdpfsx Ry Shex Ah Secb Scorer: none Parallelogram table: extendable 700 mm Length stop: angle stop with fixed 90° position, 2 stop flaps, cross-cutting up to 3500 mm Condition: Well-maintained machine, technically and functionally tested

Condition: used, Good day! 1 used Altendorf F 45 sliding table saw - Hydraulic height and tilt adjustment - Digital display (speed and tilt) - 4.5 m trimming length - Automatic star-delta start - 105 mm cutting height with 350 mm saw blade with scorer - 155 mm cutting height with 450 mm saw blade without scorer - 3000/4000/5000/6000 rpm - Automatic motor brake - Rip fence with fine adjustment - Parallelogram guard Djdpox Rt E Uofx Ah Sscb - Table extension and table width extension - Chassis - Extraction ports top and bottom - Trimming shoe - Adjustable handle on the sliding carriage - Operating tools - Operating manual/spare parts list New parts: - Narrow extraction hood 90° 181.00 + 19% - Wide extraction hood 45° 268.80 + 19% - Poly Flex V-belt 11W875 35.50 + 19% - Flat belt for scorer 32.50 + 19% - Gas pressure spring 50N for scorer 45.30 + 19% - GUHDO saw blade 350 mm 78.50 + 19% - Saw spindle new bearings fitted 250.00 + 19% - Scorer new bearings fitted 150.00 + 19% Special equipment: - 7.5 kW 380 Volt motor New price: €1,350 + 19% - Scorer New price: €3,150 + 19% - 4.3 m sliding carriage New price: €4,250 + 19% - Pneumatic pressure beam 3.2 m New price: €3,800 + 19% - Rip fence with fine adjustment 1.3 m New price: €580 + 19% - Duplex double-sided mitre fence New price: €1,350 + 19% - LASER cut line indicator New price: €2,300 + 19% - Circular saw feed Panhans Type 76 New price: €4,665 + 19% Price: €13,800 + 19% VAT The machine has been technically inspected, cleaned, adjusted, and newly painted. Cables and plug included – ready for immediate use. Payment by cash or bank transfer prior to collection/shipping only. The machine is sold without any warranty or guarantee. Please send me a brief message. Thank you!

Condition: good (used), Elmo 2 model Electric lift/lower Electric 45-degree tilt Dcsdpjx Rg Ucjfx Ah Seb Manual side guide Top and bottom controls 3400 mm trolley

Condition: used, Year of construction: 2013, Available by arrangement. Saw unit: tiltable 45°. Carriage length: 3200 mm. Max. saw blade diameter: 550 mm. Max. saw blade projection at 90°: 200 mm. Max. saw blade projection at 45°: 141 mm. Saw blade bore: 30 mm. Motor power: 5.5 kW. Max. cutting width: 1000 mm. Control panel: mounted at the lower machine housing. Control panel design: with buttons and LCD screen. Height adjustment: electric motor driven. Tilting adjustment: electric motor driven. Tilt angle display: on screen. Cutting width adjustment: manual with fine adjustment. Cutting width display: scale. Sliding carriage guide: steel. Table extension length: 840 mm. Crosscut at cross fence: 3500 mm. Cross fence display: scale. Cross fence design: tiltable. Speeds: 3/4/5000 rpm. Scoring unit: prepared—retrofit possible. PSV safety guard: Yes. End position lock: Yes. Automatic motor brake: Yes. Working height or infeed table height: 910 mm. Weight approx.: 1050 kg. Extraction diameter: 120/80 mm. Storage location: Dcsdpex Rdmpsfx Ah Seb

Condition: good (used), Year of construction: 2003, Tilting panel saw Altendorf F45 with ELMO IV-plus package, featuring 2-axis scoring unit, 3m sliding table, and Control-Plus control system Sliding table length: 3000mm Saw blade tilting from 0 to 45 degrees Speeds: 3,000, 4,000, 5,000 and 6,000 rpm with electronic speed display Drive motor: 5.5kW with automatic motor brake Control panel at eye level with Control-Plus controller 4 axes CNC-controlled Chain dimension and groove cutting on rip fence and crosscut fence Cutting width correction on rip fence and crosscut fence when blade is tilted 600 cutting programs Calculator function with results transferable to the corresponding axis Tool management Saw blade diameter up to 450mm Max. cutting height: 150mm Cutting width up to 1040mm, electrically adjustable Tilting angle and height adjustment electrically adjustable Crosscut fence rail up to approx. 3210mm, electrically adjustable with automatic coupling of the second stop flap for large cutting dimensions Rip fence foldable Extraction ports: 120 + 80mm Sliding carriage lockable Additional mitre gauge rail 2 used saw blades and one scorer blade included 2 riving knives 2-axis scoring unit, electrically adjustable while the machine is running 2 protective hoods 3 emergency stop switches Clipboard at control panel CE mark Machine with signs of use. No cuts in the sliding table. Original paint (special colour), retouched in places. Machine has 18,985 operating hours. It comes from a furniture factory and has obviously been regularly serviced and well maintained. Condition: see original photos. A video of the machine in operation can be provided on request. Dimensions approx. 3150 x 3750 x 1900mm (LxWxH). Weight approx. 1400kg. Dodpfxexw Ii Ss Ah Socb The machine can be viewed on our premises by prior appointment. We only offer machines that are ready for demonstration in our warehouse – see other offers from this seller.

Condition: used, Year of construction: 1990, Carriage length: 3800 mm Cutting width at rip fence: 600 mm Cutting width at crosscut fence: 2800 mm Cutting depth: 150 mm Scoring unit: yes Saw blade height adjustment: manual / hydraulic Dedpfxetk H Tnj Ah Secb Saw blade tilt adjustment: manual / hydraulic Rip fence adjustment: manual Saw blade angle display: scale Cutting height display: - Rip fence display: scale Crosscut fence display: scale Saw blade diameter: 450 mm Speeds: 4 Motor power: 7.5 kW Motor brake: yes Extraction connection: 80 mm and 120 mm Machine length: 3870 mm Machine width: 1200 mm Weight: 1000 kg

Condition: used, Panel saw ALTENDORF F45 - used - double roller carriage, tilting, parallel fence with fine adjustment, outrigger table, table extension, anodized aluminium, table width extension, anodized aluminium, Dcedpfx Aow Nv I Ush Sob mitre fence, overhead guard, narrow and wide ----- Technical specifications ----- Tilting range: 45°, Carriage length: 2,500 mm, Cutting width: 800 mm, Max. saw blade Ø: 450 mm, Motor power: 5.5 kW, Extraction nozzle Ø: 80 / 120 mm
