Injection molding machine

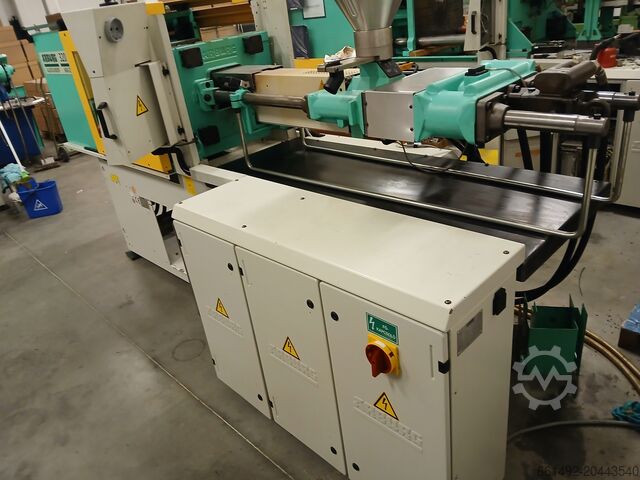

Arburg 320 C 600-250

Condition: excellent (used), Year of construction: 2001, Arburg 320C 600-250 / machine in very good technical condition Year of manufacture: 2001 injection unit: Screw diameter: 35 mm injection weight: 121 g Injection pressure: 1820 bar Metering volume: 144 ccm Clamping unit: clamping force: 60 t tie bar distance: 320x320 mm size of clamping platens: 446x446 mm ejector: hydraulic clamping unit: hydraulic Control system: SELOGICA Gisdpfx Asx Ng Iaja Ijl Additional equipment: Very good technical condition Machine has produced molded parts for medical industry - pure production conditions Core pull control Injection unit hardened - bimetal Built-in sorting flap Dimensions: Weight: 2330 kg Length/width/height: 3.65x1.48x1.99 m Drive: Pumps/motor: 15 kW Heating power: 6,5 kW Total power: 21,5 kW All offered machines are started by our service technicians before sale. It is possible to get a video of technical tests of the selected machine or participate in live technical tests in our company in Łódź. Price: Upon request

Condition: ready for operation (used), Year of construction: 2001, operating hours: 70,111 h, functionality: fully functional, Manufacturer ARBURG Description 320 C 600 - 250 Serial Number 186245 Machine Type ALLROUNDER 320 C Control Version SELOGICA 3.030 Tie Bar Distance 320 x 320 mm Clamping Force 600 kN Injection Unit 1 250 Weight 2,330 kg Delivery Date 27 August 2001 Description Quantity CS - Model Size II 1 0001/000 320 C 600 - 250 1 0006/030 Thermoplastics Cylinder, complete, 35 mm, highly wear-resistant 1 0060/035 SELOGICA User Interface 1 0131/002 Software Version 3.x SELOGICA 1 0131/030 Technology Level 2, servo-regulated with 2 control pumps 1 0132/003 Equipment for processing thermoplastics 1 0135/001 Open nozzle, 35 mm 1 0220/035 Gsdpfjxt Rpysx Aa Ieil Nozzle tip for open nozzle 1 0300/000 Heater band for open nozzle 1 0320/000 Clamping platen set 320, central, 125 mm central diameter 1 0356/011 Sorter unit, longitudinal installation incl. connection 1 0375/000 Programmable conveyor belt in machine base, longitudinal 1 0412/002 euromap robot interface, 32-pin with plug 1 0425/000 Serial interface for printer V24 1 0454/001 OKI dot-matrix printer with serial V24 interface, incl. cable 1 0459/000 3 electric heating control circuits for mould heating 1 0469/003 Low voltage cabinet 400 x 800 1 0500/001 High voltage cabinet 800 x 800 1 0500/004 Shut-off valve for cooling water in supply line 1 1 0501/001 Machine cooling circuits regulated, material feed adjustable 1 0525/002 Software package "Additional monitoring functions" 1 0555/001 Software package "Additional machine movements" 1 0555/002 Software package "Production control" 1 0555/003 Equipment package optimisation / user assistance 1 0555/005 Software package "Quality assurance" 1 0555/006 Software package "Documentation" 1 0555/007

Year of construction: 2003, condition: ready for operation (used), A total of seven injection molding machines Arburg are available. 1) Arburg 320C 600-250, year of manufacture: 2001, operating hours: 83365h, clamping force: 600kN, screw diameter: 30mm, shot weight: 97g, max. injection pressure: 2470bar, injection volume: 106cm³, centering: 125mm/125mm, max. opening stroke: 550mm, plate distance: 550mm, plate dimensions X/Y: 446mm/446mm, tie bar distance: 320mm/320mm, core pulls: 2, temperature control units: 6, machine dimensions X/Y: approx. 4000mm/2300mm. Including Multilift handling unit. 2) Arburg 420C 1000-250, year of manufacture: 2001, operating hours: 90769h, clamping force: 1000kN, screw diameter: 30mm, shot weight: 97g, max. injection pressure: 2470bar, injection volume: 106cm³, centering: 125mm/125mm, max. opening stroke: 750mm, plate distance: 750mm, plate dimensions X/Y: 570mm/570mm, tie bar distance: 420mm/420mm, core pulls: 2, machine dimensions X/Y: approx. 4700mm/2350mm. Including Multilift handling unit. 3) Arburg 270C 300-100, year of manufacture: 1999, operating hours: 78784h, clamping force: 300kN, screw diameter: 20mm, shot weight: 28g, max. injection pressure: 2500bar, injection volume: 31cm³, centering: 110mm/110mm, max. opening stroke: 550mm, plate distance: 550mm, plate dimensions X/Y: 446mm/446mm, tie bar distance: 270mm/270mm, core pulls: 1, temperature control units: 6. Including Geiger handling unit. 4) Arburg 320C 300-100, year of manufacture: 2000, operating hours: 78784h, clamping force: 300kN, screw diameter: 20mm, shot weight: 28g, max. injection pressure: 2500bar, injection volume: 31cm³, centering: 125mm/110mm, max. opening stroke: 350mm, plate distance: 350mm, plate dimensions X/Y: 446mm/446mm, tie bar distance: 320mm/320mm, core pulls: 1, temperature control units: 6. 5) Arburg 220C 250-60, year of manufacture: 2001, operating hours: 86595h, clamping force: 250kN, screw diameter: 22mm, shot weight: 27g, max. injection pressure: 2340bar, injection volume: 30cm³, centering: 110mm/110mm, max. opening stroke: 425mm, plate distance: 425mm, plate dimensions X/Y: 400mm/400mm, tie bar distance: 221mm/221mm, core pulls: 1, temperature control units: 6. 6) Arburg 270C 300-100, year of manufacture: 2007, operating hours: 59885h, clamping force: 300kN, screw diameter: 20mm, shot weight: 28g, max. injection pressure: 2500bar, injection volume: 31cm³, centering: 110mm/110mm, max. opening stroke: 550mm, plate distance: 550mm, plate dimensions X/Y: 446mm/446mm, tie bar distance: 270mm/270mm, core pulls: 2, temperature control units: 6, machine dimensions X/Y: approx. 3750mm/2400mm. Including Multilift handling unit. 7) Arburg 220S 250-60, year of manufacture: 2001, operating hours: 57504h, clamping force: 250kN, screw diameter: 18mm/22mm, shot weight: 18g/27g, max. injection pressure: 2500bar/2340bar, injection volume: 20cm³/30cm³, centering: 110mm/110mm, max. opening stroke: 425mm, plate distance: 425mm, plate dimensions X/Y: 400mm/400mm, tie bar distance: 221mm/221mm, core pulls: 1, temperature control units: 6, machine dimensions X/Y: approx. 3300mm/1100mm. Documentation available. An on-site inspection is possible. Giodpotyyn Hofx Aa Iol

Condition: excellent (used), Year of construction: 2008, operating hours: 74,753 h, clamping force: 600 kN, screw diameter: 35 mm, clearance between the columns: 320 mm, displacement volume: 144 cm³, injection pressure: 1,820 bar, injection weight: 132 g, mold height (min.): 200 mm, Arburg 320C-600-250 injection molding machine (241) possibility of working vertically Number: 241 Availability: in stock Year of production: 2008 Screw diameter [mm]: 35 Injection weight [g]: 132 Injection pressure [bar]: 1820 Closing force [kN]: 600 Column spacing [mm]: 320×320 Plate size [mm]: 446 x 446 Min. mold height [mm]: 200 Control type: Selogica Tongue: german Installed power [kW]: 23.9 Working hours [h]: 74753 Weight [kg]: 2330 Dimensions [mm]: 3500×1500 Gisdpfx Aow R Tixsa Ijl Feed hopper: NO Robot socket: Yes Core string: 1x

Condition: used, Year of construction: 2002, Injection moulding machine Arburg 320 C 600-250, year of manufacture 2002 Gijdoxuq U Eopfx Aa Iol

Condition: excellent (used), Year of construction: 2008, operating hours: 76,550 h, clamping force: 600 kN, screw diameter: 35 mm, clearance between the columns: 320 mm, displacement volume: 144 cm³, injection pressure: 1,820 bar, injection weight: 132 g, mold height (min.): 200 mm, Arburg 320C-600-250 (238) possibility of working vertically Number: 238 Availability: in stock Year of production: 2008 Producer: Arburg Gisdpfx Aowwknaea Iol Screw diameter [mm]: 35 Injection weight [g]: 132 Injection pressure [bar]: 1820 Column spacing [mm]: 320×320 Plate size [mm]: 446x446 Min. form height [mm]: 200 Control type: Selogica Tongue: german Installed power [kW]: 23.9 Working hours [h]: 76550 Weight [kg]: 2330 Dimensions [mm]: 3500×1500 Feed hopper: NO Robot nest: Yes Core string: 1x
