Injection molding machine

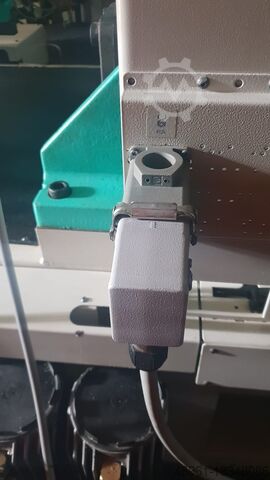

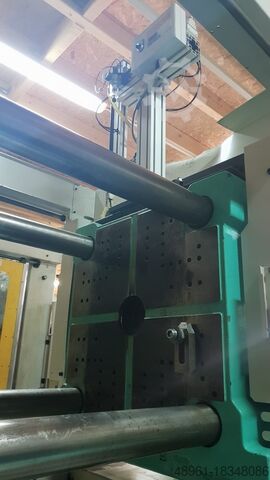

Arburg 470 C 2000-675

Condition: excellent (used), Year of construction: 1998, operating hours: 94,737 h, clamping force: 2,000 kN, screw diameter: 60 mm, injection pressure: 1,440 bar, injection weight: 427 g, Arburg 470C-2000-675 (Nr. 40) without picker Hfjdpfsvt Tb Asx Ahujb Year of production: 1998 TECHNICAL DATA Screw Dia [mm]: 60 Shot Weight [g]: 427 Injection Pressure [bar]: 1440 Clamping Force [kN]: 2000 Tie Bar Distance [mm]: 470x470 Platen Size [mm]: 715x715 Mould Height min. [mm]: 250 CONTROL Type of Controls: Selogica Monitor: Yes Control Cabinet: Yes Language: Polish, German OTHER Power [kW]: 45,8 Workinghours [h]: 94737 Weight [kg]: 6630 EUROMAP

Condition: good (used), Year of construction: 2001, Ref. no.: 18404 Hersteller: ARBURG Type: 420C-1300-350 Year of construction: 2001 Clamping unit Clamping force: 130 ton Opening stroke: 500 mm Distance between tie bars: 420 x420 mm Mould height min.: 250 mm Opening width: 750 mm Platen size (h x v): 605 x 605 mm Injection unit Screw diameter: 45 mm Injection volume: 230 cm³ Shot weight: 210 g Injection pressure: 1670 bar Measurements and weight Dimensions: 4,68 x 1,3 x 2,2 m Machine weight: 4080 kg Additional information & extras Hfjdpfx Aowm I A Tshuob Core pull: 1 pcs

Condition: good (used), Year of construction: 2001, operating hours: 56,380 h, machine/vehicle number: 184172, Used injection molding machine The machine has a complete history with all important repair work and components replacement hoses etc. Manufacturer: Arburg Type: 420C 1300-350 Year of construction: 2001 Machine no. 184172 Control system: Selogica Operating hours: 56380 h constant maintenance by manufacturer clamping unit Clamping force: 1300 kN/ 130 tons Distance between tie bars: 420 x 420 mm Mold mounting platens: 570 x 570 mm Ejector stroke: 175 mm / 40 kN Hfedpfx Aovimd Nshuob Opening stroke: 500 mm Tool installation height: 250 mm Distance between platens: 750 mm max. Injection unit Injection volume: 145 ccm Injection weight: 127 g Cgu3U8W0U Screw diameter: 35 mm Injection pressure: 2500 bar Extras Hydraulic core pull - Available immediately from our warehouse in Hanover, free on delivery or free to your door against freight reimbursement - Functionally tested (guaranteed function until first commissioning)

Condition: good (used), Year of construction: 2008, Ref. no.: 18643 Hersteller: ARBURG Type: 470 C 1500-400 Golden Editions Year of construction: 2008 Clamping unit Clamping force: 150 ton Opening stroke: 500 mm Hsdpfxexvy Rle Ahuofb Distance between tie bars: 470 x 470 mm Mould height min.: 250 mm Opening width: 750 mm Injection unit Screw diameter: 35 mm Injection volume: 154 cm³ Shot weight: 141 g Injection pressure: 2500 bar Measurements and weight Machine weight: 4850 kg Dimensions LxWxH part 1: 4,6 x 1,6 x 2,1 m Additional information & extras Core pull: 1 pcs Further information: Communication card for ProSeS interface is available (OPC-UA). Robot interface is available (EUROMAP 67).

Condition: excellent (used), Year of construction: 2014, Equipment: documentation/manual, Arburg 470C 1500 400 (2014) Golden edition Clamping force: 150 t Screw diameter: 45 mm Hfedpex Elqrsfx Ahueb Distance between tie bars V: 470 mm Distance between tie bars H: 470 mm Type: Horizontal Drive: Hydraulic

Condition: used, Year of construction: 2004, clamping force: 130 kN, displacement volume: 230 cm³, injection pressure: 1,670 bar, overall weight: 4,500 kg, load hours: 60,000 h, screw conveyor diameter: 45 mm, terms of delivery: EXW (ex Works) delivery time: on request Hedpfx Aoxqhr Tohuofb terms of payment: 100% prior to delivery

Condition: used, Year of construction: 2017, Arburg 470S 1100 290 injection moulding machine, year 2017 2-component machine The machine has been idle for quite some time. It is from 2017 and has only around 21,600 operating hours. The machine has a clamping force of 1100 kN; the lower unit is a 290 with a 35 mm screw, and the upper unit is a 100 with a 30 mm screw. Only ABS and TPE have been processed so far. The machine is equipped with an integrated hot runner system and 3 core pulls, along with additional options. Included is a Kuka handling unit, which is operated via the Selogica control of the machine, as well as the complete safety enclosure. Hfsdpfx Ajw D R N Rehueb The two material loaders and the large conveyor belt are not included in the sale.

Condition: excellent (used), Year of construction: 2014, Arburg 420C 1000-290 (2014) e2 Clamping force: 100 t Hodpjxdl H Ijfx Ahuofb Screw diameter: 25 mm Shot weight: 54 g Distance between tie bars V: 420 mm Distance between tie bars H: 420 mm Shot volume: 59 cm3 Type: Horizontal Drive: Hydraulic

Condition: refurbished (used), functionality: fully functional, clamping force: 350 kN, Awaiting refurbishment at our headquarters in Northamptonshire is this Arburg 221KS 350/100 U injection moulding machine. Fitted with a Selogica controller. This is a universal machine from Arburg which allows for the clamp unit to be pivoted vertically, ideally suited to insert moulding. These small machines are sought after for the many moulding options they can suit, from a very compact machine. Occasional vertical moulding requirement? These machines are ideal. In standard horizontal configuration, they operate the same as any traditional machine. Any machines awaiting refurbishment with us can be reserved with a 10% deposit and we then prioritise the refurbishment and aim to have the machine available for inspection within 8 weeks from order. Refurbished machines from STV Machinery undergo a comprehensive test procedure during which every function of the machine is tested and if necessary repaired. A production run of at least 5000 fault free cycles prior to sign off ensures trouble free operation once delivered. Machines are ultra clean and cosmetically as good as we can get them. We guarantee our refurbs are delivered fault free and leak free. Prices shown are ex-works, but we can quickly provide DAP (Delivered at Place) Incoterm pricing on request. We can take out the hassle and additional costs of purchasing machinery within the UK and EU. Contact us with a potential delivery address and we’ll do the rest. Please note that the video shown is of a near identical machine previously refurbished by STV Machinery. It’s a good example of what can be expected once this machine is fully refurbished by our team. Hfsdpewqnggefx Ahusb *The video shown in this listing is of a previously refurbished Arburg 221 which is similar to the Arburg 221KS machine we are currently refurbishing. Please contact the team if you would like to see the machine in person.

Condition: good (used), Year of construction: 2001, functionality: fully functional, machine/vehicle number: 184686, clamping force: 1,000 kN, screw diameter: 25 mm, clearance between the columns: 420 mm, displacement volume: 54 cm³, injection weight: 45 g, For sale is an injection moulding machine from the brand Arburg, model 420 C 1000-150/60. The machine is in excellent technical condition and has been very well maintained. The machine is offered without peripherals. The rotary table, material feed, temperature control units, and other accessories are not included. Technical data: Year of manufacture: 2001 Clamping force: Clearance between tie bars: 420 x 420 mm Opening stroke: 500 mm Hedpfx Ahox E U Elouefb Mould installation height: 250 mm Mould mounting plate: 570 x 570 mm Ejector stroke: 175 mm Screw diameter: 25 mm Theoretical shot volume: 54 cm³ Shot weight: 45 g/PS Transport and loading can be organised on request, at an additional cost, Europe-wide. All prices are subject to VAT. Inspection by appointment is possible. Please contact us—our team is happy to assist you. Trade-in or exchange possible! Machinery purchase / sale BUYING / SELLING PRODUCTION & METALWORKING MACHINES AND MORE Are you looking for a high-quality yet affordable metalworking machine for your production? Or are you looking to sell yours? For further information or contact options, please visit our website.
