Broaching machine

Arthur Klink

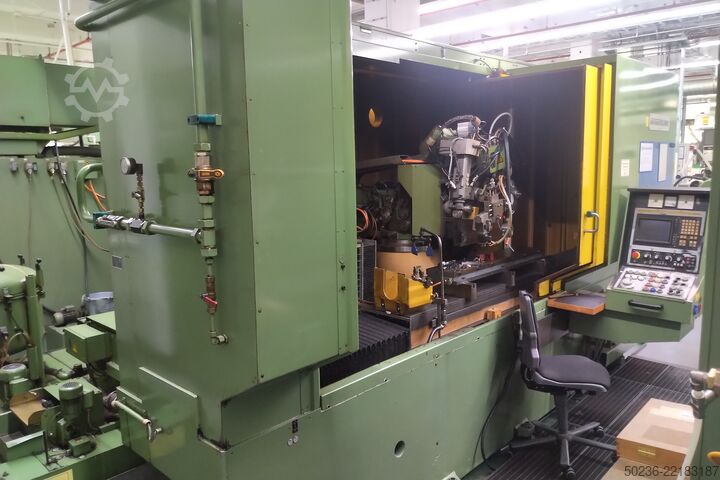

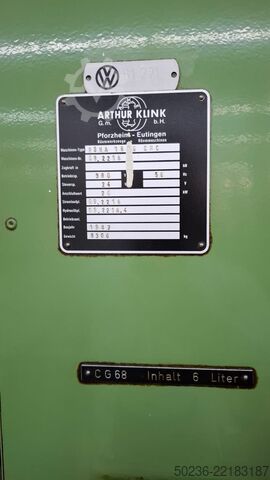

Condition: good (used), functionality: fully functional, Year of construction: 1987, operating hours: 9,999 h, machine/vehicle number: 09.2216, overall weight: 8,300 kg, Manufacturer: Arthur Klink GmbH Type: RSHA 1600 CNC Machine No.: 09.2216 Year of Manufacture: 1987 Connection: 380 V / 50 Hz Connected Load: 20 kW Weight: 8,300 kg Hydraulic Diagram: 09.2216.4 The RSHA 1600 CNC is not a conventional reaming machine for machining workpieces, but rather a grinding or sharpening machine for reaming tools (reaming cutters). This machine is used for: * Re-grinding reaming tools * Correcting chip and clearance angles * Reconditioning worn reaming tools * Repairing reaming tools for internal gears, spline profiles, and special profiles Typical technical data for the Arthur Klink RSHA 1600 CNC Since the exact specifications varied depending on the year of manufacture and customer requirements, the typical data are approximately in this range: Lodszf Ukxopfx Ammjac Max. reaming tool length approx. 1,600 mm Max. reaming tool weight approx. 100–150 kg Grinding wheel diameter approx. 250–400 mm CNC axes 2–4 axes Grinding process profile and clearance surface grinding Drive power 20 kW Machine weight 8,300 kg Areas of Application The machine was mainly used in: * Automotive industry * Gearbox manufacturing * Gear manufacturing * Toolmaking * Manufacturers of reaming tools

Year of construction: 1984, condition: used, machine/vehicle number: 16700, Color: White With magnetic chip-conveyor Automatic lead Force: 10 to Stroke: 1200mm Weight: 6 to Laodjbrclqjpfx Ammsc Area required: appr. 160 x 140 cm

Condition: used, Artrhur Klink RSH1 - 1250 Broach Grinder 09.2009 , new 1979, Table 200 x 1800, Electro mag 200 x 600, with related tooling/accessories, no cabinet. Lsdpfxszc Iq Is Ammeac

Year of construction: 1994, condition: excellent (used), machine/vehicle number: 04.2398, Manufacturer: Arthur Klink Type: RIW 10 x 1500 x 500 Machine No.: 04.2398 Year of construction: overhauled by manufacturer 1994 weight: 3700kg tractive force: 10.000kg (100kN) max. stroke: 1500mm max. workpiece diameter: Ø 500mm clearing speed: infinitely variable from 1m/min to 6m/min return speed: stepless adjustable up to 20m/min Laedpfx Amegyd T Ejmec power supply: 400V / 50Hz

Condition: used, functionality: fully functional, Manufacturer: Arthur Klink Year of construction: ca.1960 Type: horizontal broaching machine Model: RH 10-50 Machine. No.: 241 Weight: 3.700 KG General / technical data: used horizontal hydraulic internal broaching machine in a good condition according to age with manual tool feeder in heavy design Clearing stroke: 1,500 mm Tractive force: 10,000 kg (100KN) Mounting in the drawbridge: Ø 85mm Cylindrical Through-hole in the clamping table: Ø 100mm Workpiece clamping surface: Ø 460mm Workpiece diameter: max. approx. 750mm (due to the tool trough of the tool feeder) Cutting speed: hydraulically infinitely variable from 1.0 m/min to 7 m/min Return speed: hydraulically infinitely variable from 5 m/min to 30 m/min Space requirement of the machine: (w x d x h) approx. 6500mm x 950 mm x 1,400 mm (without working area) Power supply: 380Volt 50 HZ Connected load: 8kw Equipment: - the machine has a mechanical hydraulic control for the clearing & return stroke - the machine has an integrated coolant system - the machine has a manually operated tool feed system - The broaching carriage with the pulling head holder is guided flat on both sides. - The machine has an adjustable tractive force limiter Accessories - 1 universal pulling head for flat shafts from 3mm to max. 25mm wide - Adapter sleeve for drawbridge from Ø 85mm to Ø 63mm Laodpfjr A Hdgjx Ammec Remarks: The machine can be used for the production of keyways with flat broaching tools, as well as for profile broaching. In combination with the machine bed of the machine and the stable broaching tool feeder, the machine is well suited for heavy profile broaching tools. The machine is used and is in very good condition for its age. The machine is in our warehouse and can be inspected under power. The machine is currently not technically and visually refurbished, but can be used immediately. Pulling heads for profile broaching are mostly available used on request depending on DIN standard, dimensions and stock. Direct contact details and further information can be found in the attached PDF document

Year of construction: 1985, condition: good (used), machine/vehicle number: 04.2187, Hydraulic indoor broaching machine in technically good condition Lsdpfxeixntwe Ammoac Manufacturer: Arthur Klink Year of manufacture: 1985 reconditioned Weight: 2t Model: RIW 10 x 1200 x 400 Machine No: 04.2187 Tractive force: 10.000kg at 3m/min clearing speed: hydraulically stepless adjustable from 1m/min to 7m/min return speed: hydraulically stepless adjustable from 7m/min to 30m/min maximum stroke: 1200mm Broaching tool clamping: universal drawing head for flat shanks up to 26mm width maximum workpiece diameter: Ø max. 480mm (due to oil and chip tray) table opening: Ø 70mm power supply: 380 Volt / 50 Hz / 5kW

Year of construction: 1980, condition: good (used), machine/vehicle number: 03.2123, Manufacturer: Arthur Klink Model: RISZ 25x 2500 x 500 Year of manufacture: 1980 Machine no.: 03.2123 General / technical data: Used vertical hydraulic internal broaching machine with 3 broaching stations in very good condition. Pulling force: 25000 KG Broaching length: 2000 mm Number of broaching stations: 3 Distance between broaching stations: 160 mm Lasdpfx Asdffzfommsc Mounting diameter for broach holders: 3 x Ø 100 mm Clearance width between cylinders: Nominal size 500 mm Measured clearance width between cylinders: max. 590 mm Cutting speed: Hydraulically continuously adjustable from 1 m/min to max. 10 m/min Return speed: Hydraulically continuously adjustable from 5 to max. 25 m/min Machine footprint: (w x d x h) approx. 3400 mm x 3400 mm x 6900 mm (without pit) Power supply / connection value: 380 volts 50 Hz / 22 kW Accessories / special equipment: The machine is currently without a workpiece table. A workpiece sliding table was mounted on the machine, with a special workpiece clamping device for external broaching. (Workpiece sliding table can be modified). The tool clamping system is equipped with a hydraulic locking mechanism in the pull bridge and in the feed mechanism. The machine has a coolant system with an integrated chip conveyor. Remarks: The machine is in very good condition and still has its original paint. It is designed for use in series production, and for optimal use, a foundation (pit) is ideally required. Broach holders and pin ejectors are available upon request. The machine can be inspected at our warehouse.

Year of construction: 1990, condition: excellent (used), Manufacturer: Arthur Klink Year of manufacture: 1990 Model: RISZ 16 x 1250 x 400 / HG Technical data: Ljdpfx Amolpadyjmjac Vertical internal broaching machine in technically very good condition tractive force: 16.000kg clearing speed: up to 27,5 m/min infinitely variable return speed: up to 34 m/min infinitely variable maximum stroke: 1250mm broaching units: 4 pieces accessories: - automatic tool changer - automatic part feeding (part specific) - hydraulic tool clamping device (part specific) Remark: High performance production broaching machine for high volume production with high cutting speed!

Year of construction: 1999, condition: like new (used), functionality: fully functional, Manufacturer: Arthur Klink Year of construction: 1999 Type: horizontal broaching machine Model: RIW 10x1600x400 Weight: 2.700 KG General / technical data: horizontal hydraulic internal broaching machine in mint condition with tool holding system ideal for the use of flat broaching tools. Broaching stroke: 1.600mm Tractive force: 10,000 kg (100kN) Mounting in the drawbridge: Ø 85mm Cylindrical Through-hole in the clamping table: Ø 100mm Workpiece diameter: max. 400mm (due to the machine body of the tool trough) Cutting speed: hydraulically infinitely variable from 1.0 m/min to 9 m/min Return speed: hydraulically infinitely variable from 1 m/min to 24 m/min Space requirement of the machine: (w x d x h) approx. 6,400 mm x 1,450 mm x 1,600 mm (without working area) Power supply: 400Volt 50 HZ Connected load: 9kw Equipment: - the machine has an electric control for the clearing stroke movement with manual operation and automatic sequence - the machine has an integrated coolant system - the machine has a tool holding system for flat broaching tools (no feed) - The broaching carriage with the pulling head holder is equipped with a flat guide on both sides Accessories - 1 universal pulling head for flat shanks from 3mm to max. 25mm wide and a maximum pulling force of 10kN (10,000kg) - Complete machine documentation and CE declaration of conformity Lasdper A Hcbsfx Ammec Remarks: The machine is ideal for the production of keyways. Due to the connection with the stable machine bed of the machine and the broaching tool holding system, the machine is particularly suitable for quick and easy use of flat broaching tools. The machine has been used very little and is in mint condition. The machine is available for inspection in our warehouse and is ready for demonstration under power. Our direct contact details and further information about the machine can be found in the attached PDF document

Year of construction: 1971, condition: excellent (used), Horizontal internal broaching machine Arthur Klink RIW 16x1800 -WAG 718- Manufacturer: Arthur Klink Type: RIW 16 x 1800 Year of manufacture: 1971 Max. Tractive force: 16t Laedpfx Amehpqquomoc Max. Stroke: 1800mm Max. Cutting speed: 7m/min Max. Return speed: 25m/min Max. Tool diameter: Ø 95mm Weight: 4,8to
