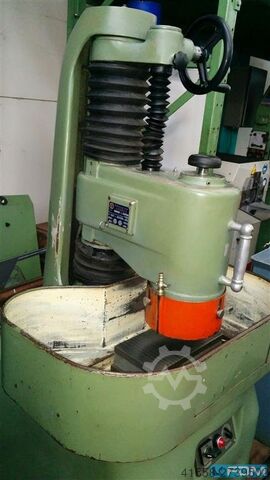

Flaring Cup Wheel Grinding Machine

Athena T / 175

Condition: new, Year of construction: 2025, cutting speed 35 m/s grinding height 210 mm workpiece length / mm weight of the machine ca. 210-260 kg required space 1100 x 760 x 860 mm The G115 Surface Grinder is a compact grinding machine designed for processing the circumference or face of the grinding wheel on the horizontal or vertical surfaces of a workpiece. Using fixtures or shaped grinding wheels, inclined or shaped surfaces can also be processed. The machine is ideal for small businesses, maintenance industries, home workshops, laboratories, teaching demonstrations, and more. TECHNICAL DATA Maximum cutting amount: not greater than 0.03 mm Maximum linear speed of the grinding wheel: 35 m/s Table size: 152×304 mm Maximum grinding height: 210 mm Longitudinal stroke of the worktable: 340 mm Transverse travel of the worktable: 170 mm T-slot of the worktable: 1-12 mm Outer diameter × inner diameter × thickness of the grinding wheel: 180×32×13 mm Grinding head motor: 550 W/220 V Vertical feed handwheel interval: 0.025 mm Lateral feed handwheel interval: 0.02 mm Net weight / Gross weight: 210/260 kg Machine dimensions: 930×780×730 mm Package size: 1100×760×860 mm Ijdpovuuvkefx Ahusht FEATURES The worktable can be moved back and forth as well as left and right. The grinding head can be raised and lowered vertically. High rigidity of the entire machine. The grinding head runs smoothly. Compact design with low noise. The machine is lubricated by a manual oil pump. To lubricate, simply pull out the handle. Work cabin is available separately. If you need any other special accessories to improve work efficiency, please contact customer service. (Special accessories must be purchased separately.) PRODUCT INFORMATION: From the proximal end of the main spindle to 100 mm, the radial runout of the tapered hole axis is 0.01~0.02 mm.

Year of construction: 1992, condition: good (used), machine/vehicle number: 20281, Offer 23034 Technical data: - max. grinding length approx. 350 mm - max. grinding width 150 mm - max. installation height with / without magnet 150 / 210 mm - grinding wheel stroke approx. 200 mm - clamping surface 300 x 160 mm - magnetic clamping plate 250 x 150 mm - grinding wheel dimension approx. 200 x 80 x 78 mm - grinding wheel speed 2800 rpm - swivel range of the grinding arm approx. 180 ° - manual swivel arm clamping via clamping lever - wet grinding device - drive 400 V / 1,85 kW Iedpfxsklxwks Ahueht - space requirement approx. W 850 x H 1650 x D 800 mm - weight approx. 350 kg

Condition: used, Luenette Diameter 150 mm Height without base 420 mm Ihedpfx Ahjcrcv Usuet Width of the foot 125 mm

Condition: used, Technical details: grinding wheel diameter: 240 mm Ijdju Ng Edopfx Ahuoht saw blade diameter: 600 mm total power requirement: 1,1 + (0,37 kW) kW weight of the machine approx.: 600 kg Saw Blade Sharpening Machine Machine performs grinding process automatically saw blade continue to move automatically grinding wheel diameter: max.: 240 mm driving motor for feed (0,37 KW) *

Condition: used, Year of construction: 1968, workpiece length 200 mm work piece width 110 mm workpiece height 135 mm dia. of cup wheel 125 mm magnetic clamping plate 200 x 100 mm spindle throat 75 mm spindle speed: 2.800 U/min. voltage 380 V total power requirement 0,8 kW weight of the machine ca. 120 kg dimensions of the machine ca. 0,65 x 0,65 x 1,80 m - Serial-No.: 5991 - with magnetic plate Ijdpfxjwz Rtde Ahueht - hydr. UP / DOWN - Fine feed via rotary wheel - Diamond cup wheel - Coolant device

Condition: used, Year of construction: 1984, Milling Head vertical accessory for a milling machine Fritz Heckert FSS 400 - weight 255 kg - dimensions: LxWxH: 560 x 500 x 400mm - swiveable 90° right / left - clamping area 500 x 400mm Iodpfsu N E Abox Ahueht *

Condition: used, Accessories for e.g. a bench drill BFT 130: The spindle head and swivel angle can be swivelled 360° around their own axes. Two swivel planes Iedsu Nlgyjpfx Ahuoht The set angles can be read off on circumferential scales Speed max. 600 rpm. Spindle taper ISO 50 Weight approx. 270kg incl. connecting piece to the drive SK 50 pinoler/head *

Condition: used, Year of construction: 1974, Technical details: grinding length: 600 mm grinding width: 200 mm Ihsdpfx Asu Ngmbohust workpiece height: 400 mm magnetic plate size: 630 x 200 mm Max. Table-movement horizontal: X-Richtung max. 710 mm Max. Table-movement across: Y-Richtung max, 250 mm table load capacity: 110 /1100N) kp table speed: 1,5 - 18 m/min dimensions of grinding wheel: max. 200 x 20 x Ø 51 mm grinding wheel dimensions:: gespannt: Ø 142 x 20mm grinding spindle speed: 2800 U/min feed of spindle: 0,01 mm total power requirement: 5,0 kW weight of the machine ca.: 1,0 t dimension machine xH: 1,8 x 1,2 x 1,9 m dimensions: Behälter Absaugung: 420 x Ø 350 x 680 mm The machine was used for dry grinding. -very good condition -without dressing device -dust extraction -machine lamp *

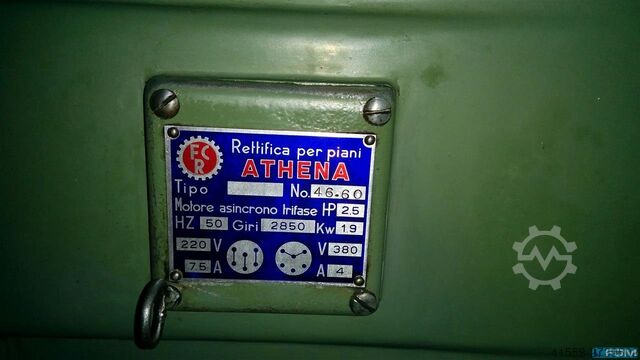

Condition: good (used), FCR Athena flatgrinding machine offered. Type: PB Magnetbed: 150 x 250 mm Speed: 2860 RPM Engine power: 2,5 HP Included coolant pump Dimensions: 80x72x174 cm LxWxH Isdpfshvmrijx Ahuoht For more information call us or send an e-mail.

Condition: used, Surface grinding machine, grinding machine, surface grinding machine-horizontal, surface grinding machine, magnetic grinding machine Ijdpfx Ajt N Adbjhusht -Manufacturer: Blohm, surface grinding machine-horizontal -Table size: 770 x 140 mm, swiveling -Travel paths: x 490 mm / y 200 mm / z 220 mm -Dimensions: 1030/870/H1510mm -Total weight: 403 kg
