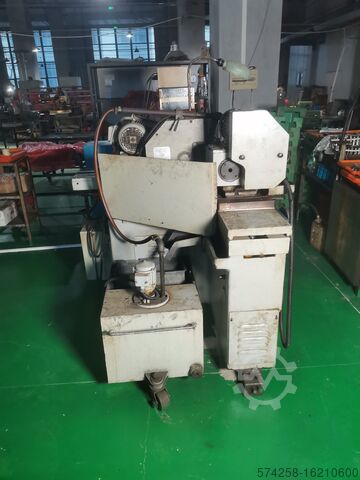

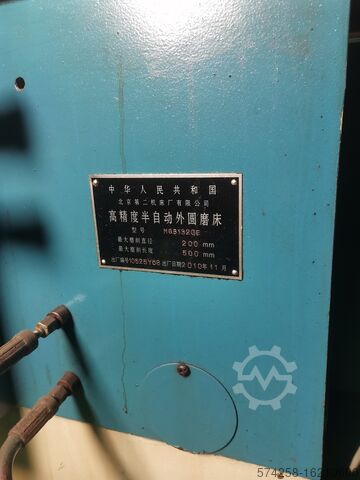

Beiji High Precision Semi-Automatic Cylindrical Grinding Machine MGB1320E

BEIER MACHINE TOOL WORKS CO LTD Grinding Machine MGB1320E

Condition: used, Year of construction: 2001, Control SIEMENS table surface area 160 mm Kedpfx Acoudc S Ts Honf weight of the machine ca. 10 t

Condition: refurbished (used), Year of construction: 2025, functionality: fully functional, center height: 150 mm, total length: 620 mm, Mechanics: All wear parts of the machine are replaced, including the infeed spindle in the X-axis. All assemblies are restored to as-new condition. After the overhaul, the machine is comparable to a new machine. Geometry: The machine is completely dismantled down to the guides. Before the geometry of the individual tables and assemblies can be restored, both guides of the X and Z axes are scraped by hand and restored to as-new condition. After completion, the machine receives a measurement report in accordance with the manufacturer's specifications. Painting: Once the geometry of the machine has been restored, it is prepared for repainting. All housings, tables and the machine bed are stripped of old paint, cleaned and repainted. Hydraulics: The entire lubrication system, including the lubrication unit, is replaced. The hydraulic unit is also completely overhauled. Conventional internal cylindrical grinding machine TSCHUDIN HTG 610I Equipment of the machine: Technical data: Center height: 150 mm Center width: 680 mm Grinding length: 620 mm Weight and space requirement of the machine: 2500kg // 2340x1445x1900 mm Machine equipment (standard): 1 pc. Workpiece headstock MK5 1 pc. Control panel 1 pc. Holder for internal grinding spindle 1 pc. Speed control unit for belt spindle (UJ50 / UJ80) FISCHER Knedpfx Asurw Uyec Hof 1 pc. Hydraulic unit Optional: - Digital measuring system 2-axis - Freely adjustable speed (1-800 rpm) incl. soft start (higher speeds are optionally possible after clarification of technical details) - Separate low speed for part alignment

Condition: reconditioned (used), Year of construction: 1992, functionality: fully functional, center height: 150 mm, grinding length: 620 mm, center width: 680 mm, grinding wheel diameter: 350 mm, total width: 500 mm, Condition of the machine: The machine is currently in a used, non-overhauled condition. The following work carried out on the machine: - Complete disassembly of the entire machine except for the guides - Replacement of all sealing and wear parts of the entire machine - Replacement of the infeed spindle of the X-axis - Replacement of the main bearing of the workpiece spindle - Replacement of grinding spindle - All machine assemblies are restored to as-new condition Geometry: - Scraping of the X-axis guide - Scraping the Z-axis guide - Grinding the X-axis table - Grinding the Z-axis table - Grinding the upper tables - Grinding of the assembly housing (workpiece headstock, grinding headstock and tailstock) - Creation of measurement report for TSCHUDIN cylindrical grinding machine Painting: The main assemblies are repainted, the rest of the machine retains the original paintwork Knodpfx Ajrz Nfljc Hsf Electronics: The complete electronics of the machine are checked, tested and defective switches and cables are replaced

Year of construction: 1985, condition: used, workpiece diameter 25-90 mm threading length 3000 mm thread pitch 2-16 mm total power requirement 25 kW Knsdstzdyzjpfx Ac Hjf weight of the machine ca. 10,5 t dimensions of the machine ca. m

Condition: excellent (used), Grinding range 650 x 300 x 550 mm Table size 650 x 250 mm Automatic dresser Knodpfsrvhirox Ac Hjf MARCELS MASCHINEN CH

Condition: used, Year of construction: 1969, max. wheel diameter 160,175 mm gear width 355 mm max. module 4,5 spindle bore 75 mm centre distance 410 mm min. number of teeth 2, 3 cutter diameter max. 115 mm cutter length max. 105 mm Knsdpfsvzhf Sjx Ac Hjf axis distance between cutter and workpiece - max. 138 mm axis distance between cutter and workpiece - min. 30 mm milling head -swivable 120 ° milling spindle speeds 70 - 400 U/min axial-feeds 0,25 - 4,0 mm/U radial feeds 0,09 - 1,5 mm/U total power requirement ca. 9,5 kW weight of the machine ca. 3,5 t dimensions of the machine ca. 1730x1400x1440 mm Equipment/accessories: - Interchangeable wheels - Milling arbors - Clamping devices - Documentation

Condition: used, Technical details: swing diameter: 200 mm centre distance: 450 mm cross travel: 245 mm longitudinal feed: 830 mm table speed: 0,05-4,5 stufenlos m/min revolution per minute: Schleifspindel 1780, 2050 U/min revolution per minute: Werkstückspindel 50-500 U/min dimensions of grinding wheel: 350x32x127 mm Table dimensions: 2200x280 mm table swivelling to both sides: 9°vor+10°zurück Grad total power requirement: 6,0 kW weight of the machine ca.: 2,2 t dimensions of machine: 2,2x2,05x1,6 m Universal Center Grinding Machine without internal grinding device! - for precision grinding of outer, inner such as cone surfaces - feed of grinding headstock via hydr. or manual possible - table feed hydraulic stepless - grinding spindle swivelable with 60 degrees - workpiece headstock 90 degress swiveable with tapper MK4 - tailstock tapper MK 3 Knodpfsu Ng Dgox Ac Hef equipment: - dressing device/extruder - coolant tank incl. pump and supply i.D. *

Condition: excellent (used), Year of construction: 1991, functionality: fully functional, Machine still under power and production can be seen at any time. Technical Data – PE 150 This hobbing machine with automatic workpiece change system is designed for series production of workpieces, for which the corresponding drawings have been received. Our specialists for automatic workpiece changing systems will gladly assist you if you wish to convert the machine for milling different workpieces. Hob Cutter: Max. permitted cutter outside diameter: 130 mm Max. length (depending on cutter arbor diameter): 220 mm Slide Travel: Radial (X-axis): 150 mm Tangential (Y-axis): 170 mm Axial (Z-axis): 200 mm Max. Swivel Angle of Milling Head: In +A direction: 30° In -A direction: 45° Workpiece Table: Outer diameter: 160 mm Bore diameter: 63 mm Overall Dimensions of the Machine: Length: 5,820 mm Width: 4,047 mm Height: 2,810 mm Approximate Weight of Machine: 8,000 kg Speeds: Feeds: Axes X, Y, and Z: 1 to 3,000 mm/min Rapid Traverses: Axes X, Y, and Z: 3,000 mm/min Spindle Speeds: Tool (S-spindle): 150 to 600 rpm Ksdpfxsu N E Rro Ac Henf Workpiece table (C-axis): 1 to 125 rpm Electrical Equipment: Operating voltage: 400 V Supply voltage: 230 V Control voltage: 24 V Frequency: 50 Hz Connected load of the machine: 48.5 kVA Cable cross-section: 25 mm² Fusing: 100 A

Condition: used, Year of construction: 1969, max. wheel diameter 160 mm gear width 355 mm max. module 4,5 min. module 0,5 centre distance 450 mm total power requirement 11 kW weight of the machine ca. 3,8 t dimensions of the machine ca. 2x17,1,6 m Wheel diameter - max. 160.175 mm Wheel width 355 mm Module - max. 4.5 Spindle bore 75 mm Center distance 410 mm Number of teeth - min. 2, 3 Cutter diameter max. 115 mm Cutter length max. 105 mm Center distance between milling cutter and workpiece - max. 138 mm Center distance between milling cutter and workpiece - min. 30 mm Milling head - swivels 120 ° Milling cutter speeds 70 - 400 rpm Axial feeds 0.25 - 4.0 mm/rev Radial feeds 0.09 - 1.5 mm/rev Total power requirement approx. 9.5 kW Machine weight approx. 3.5 t Space requirement approx. 1730x1400x1440 mm Equipment/accessories: - Changing wheels Knedpfxsvz Ec Ij Ac Hsf - milling arbors - Clamping device Dra8M7 - documentation

Condition: new, Year of construction: 2025, Grinding machine for continuous operation in production, tool shops and renovation departments. The machine has a modern, sturdy design. Its headstock operates on two pairs of guides. Hydraulic feeds for 2 axes, by default comes with a digital display. Description Double V-shaped guide Hydraulic feed in 2 axes Tempered and precisely ground linear feeding guides Central lubrication of guides Kodpfx Acjkkcm Ue Henf Digital display Sturdy design High machining accuracy Technical data TABLE DIMENSIONS 500 x 250 mm CROSS / LONGITUDINAL FEED 260 x 560 mm MAX. GRINDING SURFACE 540 x 240 mm MAX. DISTANCE FROM TABLE TO SPINDLE CENTERLINE 490 mm TABLE RUNNERS DOUBLE GUIDE CROSSWEEP PER 1 DIVISION OF NONIA SCALE 0.02 mm CROSSMOUNT PER 1 TURN OF THE WHEEL 2.5mm VERTICAL SHIFT PER 1 DIVISION OF NONIA SCALE 0.01 mm MANUAL VERTICAL FEED VOLUME PER ROTATION 1.25mm WHEEL DIMENSIONS 200 x 20 x 32 mm WHEEL ROTATION 2850 rpm MAIN MOTOR POWER 1.5 kW OIL TANK CAPACITY 80 L HYDRAULIC PUMP MOTOR POWER 1.5 kW ENGINE POWER FOR COOLANT PUMP 40 W DIMENSIONS 1800 x 1400 x 1800 mm WEIGHT 900 kg Optional equipment, dependent on the model (inquire with the sales rep) Magnetic table Chips separator with a magnetic filter Grinding wheel Grinding wheel fixture Cooling system Halogen lighting User manual EC declaration of conformity The price is a net price. Price does not include shipping costs. For more information, please contact us by phone or e-mail. We invite you to familiarize yourself with the offer on our website.
