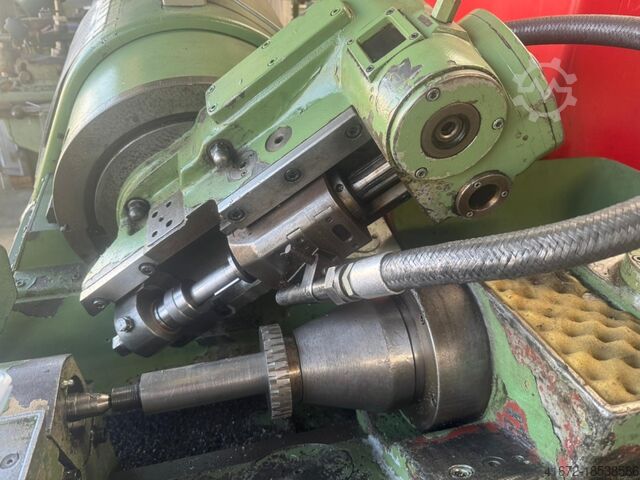

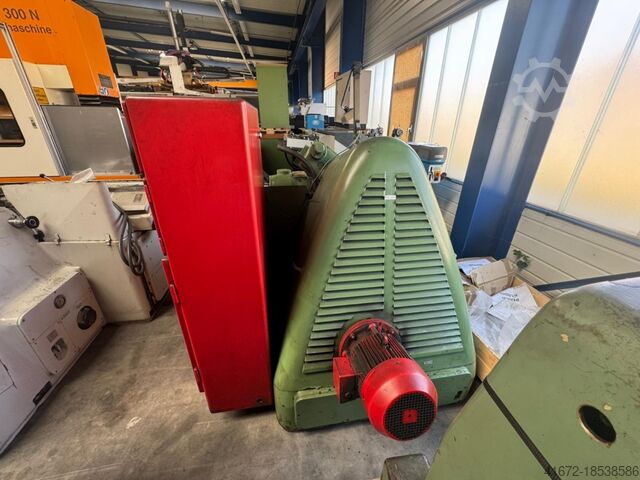

Gear Hobbing Machine - Horizontal

PFAUTER P 160 H

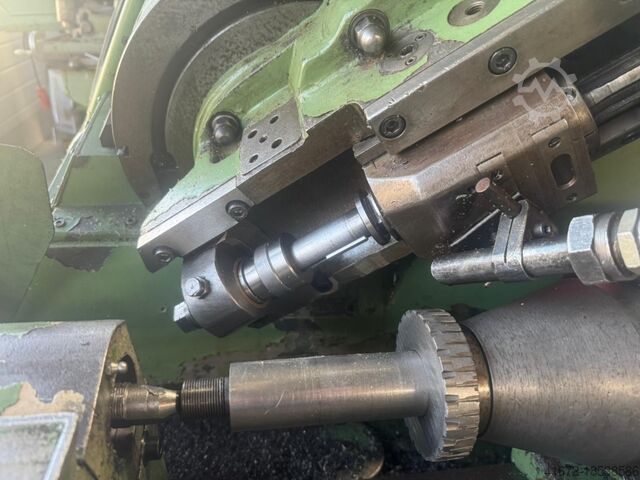

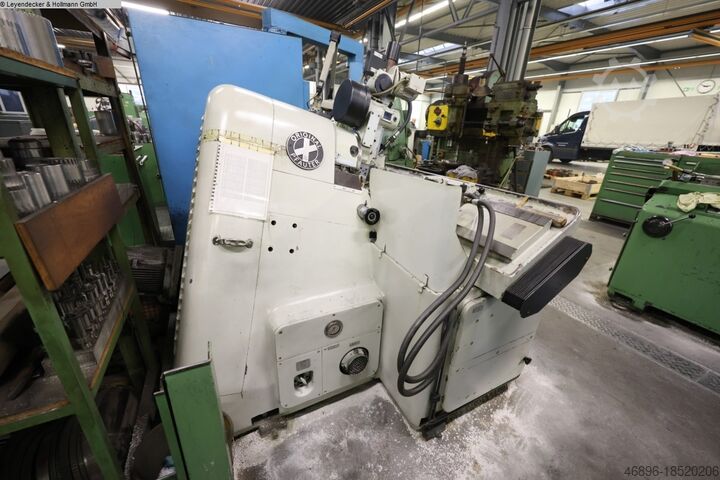

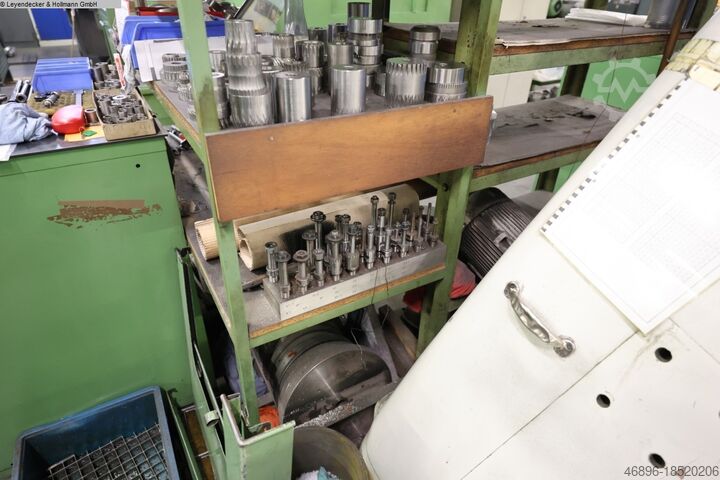

Condition: used, Year of construction: 1969, max. wheel diameter 160,175 mm gear width 355 mm max. module 4,5 spindle bore 75 mm centre distance 410 mm min. number of teeth 2, 3 cutter diameter max. 115 mm cutter length max. 105 mm axis distance between cutter and workpiece - max. 138 mm axis distance between cutter and workpiece - min. 30 mm milling head -swivable 120 ° milling spindle speeds 70 - 400 U/min axial-feeds 0,25 - 4,0 mm/U radial feeds 0,09 - 1,5 mm/U total power requirement ca. 9,5 kW weight of the machine ca. 3,5 t dimensions of the machine ca. 1730x1400x1440 mm Equipment/accessories: - Interchangeable wheels - Milling arbors Ppjdjvzhf Sopfx Afpjp - Clamping devices - Documentation

Condition: used, Technical details: swing diameter: 200 mm centre distance: 450 mm cross travel: 245 mm longitudinal feed: 830 mm table speed: 0,05-4,5 stufenlos m/min revolution per minute: Schleifspindel 1780, 2050 U/min revolution per minute: Werkstückspindel 50-500 U/min dimensions of grinding wheel: 350x32x127 mm Table dimensions: 2200x280 mm table swivelling to both sides: 9°vor+10°zurück Grad total power requirement: 6,0 kW weight of the machine ca.: 2,2 t dimensions of machine: 2,2x2,05x1,6 m Ppsdpfx Aou Ng Dgefpep Universal Center Grinding Machine without internal grinding device! - for precision grinding of outer, inner such as cone surfaces - feed of grinding headstock via hydr. or manual possible - table feed hydraulic stepless - grinding spindle swivelable with 60 degrees - workpiece headstock 90 degress swiveable with tapper MK4 - tailstock tapper MK 3 equipment: - dressing device/extruder - coolant tank incl. pump and supply i.D. *

Year of construction: 1970, condition: ready for operation (used), Wheel diameter: 160mm, max. wheel width: 355mm, module range: 0.5-4.5, max. cutter diameter: 115mm, max. cutter length: 105mm, cutter head swivel range: 120°, speed: 400rpm, distance between centers: 410mm. Machine dimensions X/Y/Z: approx. 2000mm/1500mm/2000mm, weight: approx. 3500kg. An on-site inspection is possible. Podpexph Skefx Afpopp

Condition: excellent (used), Year of construction: 1991, functionality: fully functional, Machine still under power and production can be seen at any time. Pedpfx Afou N E Rrjpjpp Technical Data – PE 150 This hobbing machine with automatic workpiece change system is designed for series production of workpieces, for which the corresponding drawings have been received. Our specialists for automatic workpiece changing systems will gladly assist you if you wish to convert the machine for milling different workpieces. Hob Cutter: Max. permitted cutter outside diameter: 130 mm Max. length (depending on cutter arbor diameter): 220 mm Slide Travel: Radial (X-axis): 150 mm Tangential (Y-axis): 170 mm Axial (Z-axis): 200 mm Max. Swivel Angle of Milling Head: In +A direction: 30° In -A direction: 45° Workpiece Table: Outer diameter: 160 mm Bore diameter: 63 mm Overall Dimensions of the Machine: Length: 5,820 mm Width: 4,047 mm Height: 2,810 mm Approximate Weight of Machine: 8,000 kg Speeds: Feeds: Axes X, Y, and Z: 1 to 3,000 mm/min Rapid Traverses: Axes X, Y, and Z: 3,000 mm/min Spindle Speeds: Tool (S-spindle): 150 to 600 rpm Workpiece table (C-axis): 1 to 125 rpm Electrical Equipment: Operating voltage: 400 V Supply voltage: 230 V Control voltage: 24 V Frequency: 50 Hz Connected load of the machine: 48.5 kVA Cable cross-section: 25 mm² Fusing: 100 A

Condition: new, Year of construction: 2026, Grinding machine for continuous operation in production, tool shops and renovation departments. The machine has a modern, sturdy design. Its headstock operates on two pairs of guides. Hydraulic feeds for 2 axes, by default comes with a digital display. Description Double V-shaped guide Hydraulic feed in 2 axes Tempered and precisely ground linear feeding guides Central lubrication of guides Digital display Sturdy design High machining accuracy Technical data TABLE DIMENSIONS 500 x 250 mm CROSS / LONGITUDINAL FEED 260 x 560 mm MAX. GRINDING SURFACE 540 x 240 mm MAX. DISTANCE FROM TABLE TO SPINDLE CENTERLINE 490 mm TABLE RUNNERS DOUBLE GUIDE CROSSWEEP PER 1 DIVISION OF NONIA SCALE 0.02 mm CROSSMOUNT PER 1 TURN OF THE WHEEL 2.5mm VERTICAL SHIFT PER 1 DIVISION OF NONIA SCALE 0.01 mm MANUAL VERTICAL FEED VOLUME PER ROTATION 1.25mm Ppjdpskkcm Ujfx Afpop WHEEL DIMENSIONS 200 x 20 x 32 mm WHEEL ROTATION 2850 rpm MAIN MOTOR POWER 1.5 kW OIL TANK CAPACITY 80 L HYDRAULIC PUMP MOTOR POWER 1.5 kW ENGINE POWER FOR COOLANT PUMP 40 W DIMENSIONS 1800 x 1400 x 1800 mm WEIGHT 900 kg Optional equipment, dependent on the model (inquire with the sales rep) Magnetic table Chips separator with a magnetic filter Grinding wheel Grinding wheel fixture Cooling system Halogen lighting User manual EC declaration of conformity The price is a net price. Price does not include shipping costs. For more information, please contact us by phone or e-mail. We invite you to familiarize yourself with the offer on our website.

Condition: used, total height: 1,800 mm, total length: 3,500 mm, total width: 2,300 mm, Empty weight: 5.800 kg Price: On request Grinding diameter: 315mm Grinding depth: 500mm Swing: 500/600mm Stroke of table: 800mm - Documentation available: No - CE certificate present: No - Serial number: 31577 - Drive system: Conventional - Grinding diameter [mm]: 315 - X-axis travel [mm]: 800 - Transport dimensions: 3500mm x 2300mm x 1800mm (l x w x h) - Transport weight [kg]: 5800kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum Pjdpfxswya A Se Afpspp

Condition: used, Year of construction: 1991, workpiece diameter 30 mm threading length 110 mm Pedpfx Ast Hwzcsfpopp thread pitch 0,5-2,75 mm/GG total power requirement 4,5 kW weight of the machine ca. 1,7 t dimensions of the machine ca. m

Condition: used, Year of construction: 1992, max. wheel diameter 150 mm gear width 300 mm max. module 4,5 min. module total power requirement 20 kW weight of the machine ca. 6 t dimensions of the machine ca. m Ppsdpfx Aot Hwxbsfpep

Condition: good (used), functionality: fully functional, BUA 25/1000 Pjdpewug A Isfx Afpepp

Condition: new, Precision surface grinding machine with automatic longitudinal and transverse feed. All castings, such as machine stand, table, etc., are made of MEEHANITE® quality cast iron and are therefore ideally suited for rough everyday work. Ideal for tool and mold making. Table size: 250 x 500 mm Installation height (max. distance spindle/table): 500 mm Max. Table load: 250 kg Motor power main spindle: 1,5 kW Connection: 400 V Dimensions (LxWxH), approx.: 2250 x 1400 x 1800 mm Weight, approx.: 1350 kg* * only machine without auxiliary units Features: - All castings, such as machine column, table, etc., made of MEEHANITE® quality castings. Ppsdsp Dt T Nspfx Afpep - All guideways hardened and ground - Automatic cross and longitudinal feed - NC-controlled automatic vertical infeed - Ergonomically arranged control panel - Automatic central lubrication - Separate hydraulic power pack - Grinding wheel - Grinding wheel flange - Manual dressing device - Balancing mandrel - Balancing scale - Dressing diamond - Demagnetizing device - Machine light - leveling elements - Operating tool - Operating instructions - CE Available options: - Elektromagent clamping plate (fine-pole) - Automatic demagnetization control for electromagent clamping plate - 2-axis digital display, accuracy 0.001 mm, X 450 / Y 500 mm - Coolant system with magnetic separator / magnetic separator - Partial enclosure with limit switch protected sliding doors - Full enclosure with limit switch protected sliding doors - Additional grinding wheel flange - Grinding wheel and flange for mild steel - Grinding wheel and flange for HRC55 - Ball screw for cross feed - Further options on request Pictures may show the machine with special accessories and with application examples.
