Tube bending machines

BLM dynamo-ELE- MR200

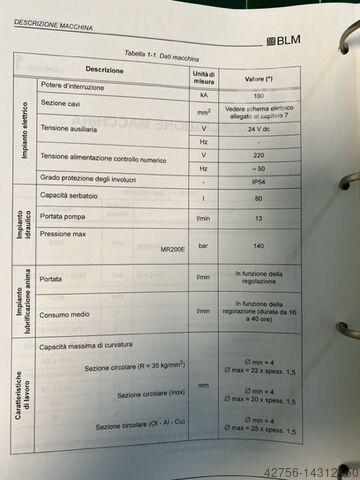

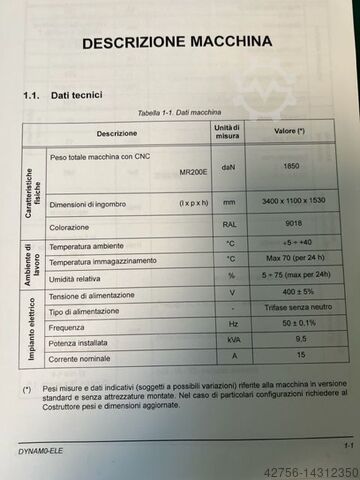

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2008, machine/vehicle number: 611080402022, Equipment: bar feeder, TECHNICAL DETAILS Axis Speeds Positioning speed X-axis: 2,000 mm/s Bending speed Y-axis: 400 °/s Rotational speed Z-axis: 900 °/s Rotational speed R-axis: 110 °/s Positioning speed T-axis: 400 mm/s Tolerance Tolerance X-axis: ±0.05 mm Tolerance T-axis: ±0.05 mm Tolerance Y-axis: ±0.05° Tolerance Z-axis: ±0.05° Tolerance R-axis: ±0.05° Bending Capacity Round profile (R = 35 kg/mm²): min. Ø 4 mm, max. Ø 22 x 1.5 mm Round profile stainless steel: min. Ø 4 mm, max. Ø 20 x 1.5 mm Round profile (brass/aluminium/copper): min. Ø 4 mm, max. Ø 28 x 1.5 mm Average output: 1,700–2,000 bends/hour MACHINE DETAILS Hydraulics System Tank capacity: 80 l Pump delivery rate: 13 l/min Pressure MR200E: max. 140 bar Ambient Conditions Ambient temperature: 5 to 40 °C Gujdpfoyzya Tsx Alxsb Storage temperature: max. 70 °C, 24 h Relative humidity: 5 to 75 %, 24 h Electrical Data Supply voltage: 400 V ±5 % Power type: Three-phase without neutral Frequency: 50 Hz ±0.1 % Connected load: 9.5 kVA Rated current: 15 A Dimensions & Weight Dimensions (L x W x H): 3,400 x 1,100 x 1,530 mm Machine weight: 1,850 kg EQUIPMENT BLM bar feeder BLM CARM 7 Bar feeder weight: 650 kg Conveyor belt Note: The machine is sold without safety guards.

Condition: like new (used), functionality: fully functional, Year of construction: 2026, operating hours: 8 h, machine/vehicle number: BD89NC2A1S, bending angle (max.): 190 °, overall weight: 2,000 kg, total length: 4,300 mm, total width: 1,300 mm, total height: 1,600 mm, power: 11 kW (14.96 HP), input voltage: 380 V, type of input current: AC, warranty duration: 12 months, Semi-Automatic Single-Head Hydraulic Pipe Bending Machine BD89NC2A Gsdpfxevu R Ams Alxeub Machine Model: BD89NC2A Machine Applications  Transportation Sector For locomotives, automobiles, and bicycles: exhaust manifolds, brake lines, fuel supply conduits, steering mechanisms, air - conditioning ducting systems, seating assemblies, balancing components, bumper structures, window frame assemblies, handlebar components, and frame structures.  Furniture Industry Indoor and outdoor seating and table sets, office furniture including desks and chairs, shelving units, bed frames and associated furniture pieces.  Leisure and Recreation Industry Fitness apparatus, infant strollers, utility carts, and amusement ride installations.  HVAC (Heating, Ventilation, and Air - Conditioning) and Appliance Industry Water heating units, electric heating appliances, gas - fired cooktops, refrigeration units, and air - conditioning equipment.  Heavy Industrial Sphere Piping networks for boilers, heat exchanger, power generation plants, chemical processing facilities, diesel engine manufacturing, and shipbuilding operations.  Diverse Other Industries Household consumer goods, rehabilitation - oriented medical devices, sanitary fixtures, the decoration and interior design sector, the construction industry, agricultural machinery and equipment, and the aviation manufacturing and maintenance industry. The largest applicable carbon steel pipe (bending radius ≥ 2d) Φ89×3.0mm (thickness Max. 3.0) The largest applicable stainless steel pipe (bending radius ≥ 2d) Φ76×2.0mm (thickness Max. 2.0) Maximum core length (*) 3500mm Maximum bending radius (*) 450mm Maximum bend angle 190° The number of bends that can be set for each pipe fitting (*) 25 bends The number of pipe fitting files can be set 280 sets (extensible) Working speed bending speed Max.30°/s Machine tool bending angle ±0.1° Hydraulic motor power 11.0kw

Condition: used, Year of construction: 1993, Technical details: tube diameter: 80 mm tube diameter min.: 6 mm control for program: Gelma MM-1 tube pipe draw up length: 1800 mm weight of the machine ca.: 0,232 t dimension machine xH: 1,9 x 0,7 x 1,3 m Guodpfx Aou Ibyyelxeb Semi-automatic PIPE BENDING MACHINE Operating modes are manual but also semi-automatic Application: for multiple bending of pipes The swivel unit with bending preselection for 3 different bending angles in single and automatic mode. The machine is currently equipped with a stop bar for tube size Ø 10mm for 6 angle settings. The bending machine is movable/adjustable. Equipment/accessories: 6 cam rods/stop rods 6 control disks Bending tool for Ø 12mm *

Condition: good (used), Year of construction: 1977, machine/vehicle number: 22247, Offered 23250 Technical data: - Bending performance - Pipe at 45 kg / mm² Ø 6 - 48 mm Godpfev Hzr Nex Alxeub - Max. bending angle 180 ° - Max. bending radius 145 mm - Drive 400 V / 1.7 kW - Space requirement approx. W 900 x H 1100 x D 1400 mm - Weight approx. 600 kg - with - Pipe circular saw - Inside and outside pipe deburring device - Pipe necking device - Without tools

Condition: used, Year of construction: 2006, RASI S80.6L - Mandrel Bending Machine - Mandrel and rotary draw bending of tubes and round profiles - Spiral bending of tubes - Includes tooling and documentation - Year of manufacture: 2006 Gsdpoyvvk Djfx Alxjub Technical Data - Tube Ø x wall thickness: 82 x 2.6 mm - Max. section modulus: 12.7 cm³ - Min. tube Ø: 4 mm - Outer bending radius: 228 mm - Inner bending radius: 34 mm - Min. bending radius: 1.5 x D - Max. bending angle (accuracy ± 0.1°): 195° - Return bending speed (programmable): 0 – 9.3 rpm - Forward bending speed (programmable): 0 – 6.6 rpm - Pressure die: fixed / following - Tool configuration: single-, double- or triple-grooved - Bending direction: right - Feed speed (stepless): 0 – 60 m/min - Feed force adjustment during bending: stepless - Rotation speed (stepless): 0 – 60 rpm - Max. rotation angle (± 0.1°): unlimited - Max. tube clamping force: 8 t - Collet clamping range (diameter): 6.5 mm - Bending length: 3 – 6 m - Motor power: 11 kW - Operating voltage: 400 V / 50 Hz - Control voltage: 24 V DC - Machine length: < 7000 mm - Weight: approx. 2500 kg

Condition: used, functionality: fully functional, Year of construction: 1998, machine/vehicle number: 7385, degree of automation: semi-automatic, actuation type: electric, controller manufacturer: Transfluid, controller model: IPU 20, pipe diameter (max.): 648 mm, pipe length (max.): 6,000 mm, tube wall thickness (max.): 3 mm, bending angle (max.): 180 °, bending radius (max.): 125 mm, bending radius (min.): 50 mm, working width: 6,000 mm, mandrel length: 5,500 mm, number of axes: 3, working height: 1,300 mm, table length: 7,000 mm, table width: 900 mm, table height: 1,300 mm, overall weight: 1,000 kg, total length: 7,000 mm, total width: 900 mm, total height: 1,300 mm, power: 5 kW (6.80 HP), input voltage: 400 V, input current: 25 A, input frequency: 50 Hz, type of input current: three-phase, oil tank capacity: 1,320 l, operating pressure: 200 bar, Equipment: documentation/manual, emergency stop, Bending software requires a new update. Bending mandrels are available, bending tools are not included. Gusdpfexcxupjx Alxob

Year of construction: 2006, operating hours: 1,357 h, condition: ready for operation (used), number of axes: 3, This 3-axis Rasi S 80.6 L G-V3C50 was manufactured in 2006. It can bend pipes with a diameter ranging from 4 to 82 mm and features a bending radius of 240 mm. The machine is lightly used and comes with many tools included. If you are looking to get high-quality bending capabilities, consider the Rasi S 80.6 L G-V3C50 machine we have for sale. Contact us for further details. • Pipe bending capacity: 4–82 mm diameter • Bending radius (RM): 240 mm Gedpfjyx Hdgex Alxoub • Nominal voltage: 400 V • Nominal current: 26 A • Condition: Lightly used Additional equipment • Included tooling set (many tools included)

Condition: ready for operation (used), A mandrel tube bending machine Sommer is available. Tube diameter range: 15mm-65mm, tube feed length: 3000mm, max. bending radius: 150mm, chuck: 200mm, tube clamping: hydraulic. Including accessories. Documentation available. An on-site inspection is possible. Gusdpfx Alexl Up Uexeb

Condition: good (used), functionality: limited functionality, Year of construction: 1990, WE OFFER AN GOOD CONDITION MACHINE HERBER 75 CNC YEAR: Not known MAX CAPACITY: 75 X 3mm MACHINE NEED BE PUT BACK ON POWER AND CHECKED OIL GASKET NEED BE CHANGED FROM THE OIL TANK . Guedpfsvmtxzex Alxsb MACHINE WAS WORKING IN SAAB - SCANIA TRUCKS IN SWEEDEN

Condition: used, Year of construction: 1995, tube diameter 45 mm wall strength 2 mm bending radius min. . mm weight of the machine ca. 1,7 t dimensions of the machine ca. 5x0,85x1,5 m sn 1765 Pipe length up to 4100 The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity Gusdpfx Aoyutr Uslxeb More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team
