Roll grinding machine 1600 x 6000 x 60 T

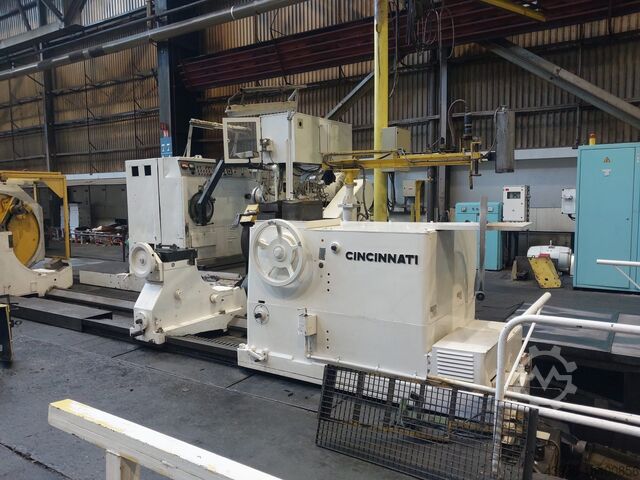

CINCINNATI Roll Grinder GRW 60 / 1600

Condition: good (used), travel distance X-axis: 2,500 mm, travel distance Y-axis: 2,000 mm, travel distance Z-axis: 1,200 mm, spindle diameter: 110 mm, table length: 1,400 mm, table width: 1,600 mm, Bench drill Kdedpsq E Ryfefx Acusw Control Heidenhain 407

Condition: used, Year of construction: 1980, max. wheel diameter 2500 mm Kjdpfxet Hwqqj Acusdw gear width 1200 mm max. module 32 min. module 3 total power requirement 25 kW weight of the machine ca. 60 t dimensions of the machine ca. m Gear , min. / max. 180 / 2,500 mm Module 3 - 32 Helix angle, max. 10 - 35 ° Gear width for straight gears 1,200 mm Stroke length, approx. 100 - 1,200 mm No. of strokes 80 - 350 /min Stroke position adjustable 300 mm Stroke speed 4 - 40 mm Max. weight of workpiece, approx. 18,000 kg Min. / max. no. of teeth 16 / 576 Table size x bore 1,400 x 500 mm Grinding wheel Ø, approx. 500 mm Grinding wheel peripheral speed 34 m/s Total electrical load, approx. 45 kW - 380 V - 50 Hz Weight of machine, approx. 60,000 kg Accessories / Special Features: * Hydrostatic guides in grinding slide, table and in all other guideways. * Completely covered working area with sliding doors. * Automatic grinding process for various cycles, with settings for roughing, finishing, fine finishing and automatic dressing cycle after preset number of teeth. * Profile correction is possible via appropriate dressing, as well as additional movement of grinding slide (depth and width crowning). * Approx. 50 change gears. * Grinding slideTilt display device. * Large coolant device with band filter and oil mist exhaust. * Separate switch cabinet. * Separate hydraulic unit. * Separate oil cooling unit. Condition : Very good. Machine can soon be inspected in our showrooms. It is not under power at present. Delivery : Ex stock, as inspected. Payment : Net, after conclusion of contract. The machine comes directly from a first class gear factory, where it was grinding Quality 5 - 6. Grinding diagrams are available. This type and quality of machine is rarely available. Thank you for your interest. We always have a good selection of gear machines available. Please let us know what you need.

Condition: good (used), Year of construction: 1979, Complete production line for Technical and Commercial Chain Manufacturer - WAFIOS / VITARI / DANIELI / IPSEN Year - 1979/1989 Factory Consists : - Welding machines 14 pieces - Bending machines 10 pieces - Bending + welding machines - 2 pieces ( Wafios KEH3 +KER3 ; Wafios KEH5 + KER5 ) - Wire drawing line 7 blocks - Danieli with spooler - Cementation furnace Kdjdpfx Ajqy E I Uocusw - Annealing furnace Lots of sapare parts

Year of construction: 1985, condition: used, spindle diameter 110 mm x-travel 900 mm y-travel 600 mm z-axis 200 mm table length 1020 mm table width 860 mm taper MK 40 Table size, approx. 1,020 x 860 mm Max. weight of workpiece 800 kg Table travel, longitudinal, max. (X) 900 mm Boring head travel, cross, max. (Y) 600 mm Boring spindle stroke (Z) 200 mm Vertical travel of cross beam (W) 635 mm Vertical distance between table and boring spindle 15 - 850 mm Distance between columns 950 mm Spindle Ø 110 mm Spindle taper internal/external ISO 40 18 spindle speeds 10 - 2,500 rpm Milling feeds of table, infinitely variable 1 - 6,000 mm/min 4 milling feeds of boring head 30 - 180 mm/min 6 boring feeds 0.01 - 0.39 rpm Accuracy of all 3 axes when the machine was new 0.003 mm Kdedpfjt Hwyxex Acusw Quick feeds for table, boring head slide, and boring spindle, max. 6,000 mm/min Spindle drive 6.2 kW Weight, approx. 9,000 kg Total electrical load 15 kW - 380 V - 50 Hz Accessories / Special Features - BOSCH CNC Control, Model MICRO 8, in 3 axes, with monitor. Program input is either manual or via cassette, or via interface entry. - Digital display for Z Axis. - Separate switch cabinet. - Various tools. - Oil cooler for spindle lubrication.

Condition: good (used), functionality: fully functional, Year of construction: 2011, operating hours: 73,483 h, machine/vehicle number: A0435A0050, laser hours: 44,000 h, laser power: 3,000 W, For sale: Trumpf TruLaser Cell L45, a high-precision 5-axis 3D laser cutting system, ideal for demanding applications in automotive, aerospace, and general engineering. Built in 2011, the machine is equipped with a 3000W TRUMPF laser source and offers excellent performance on complex components, tubular parts, and deep-draw metal forms. The machine is currently disassembled, professionally prepared for shipment. While on-site inspection is possible, test cutting is not available due to its current state. Key features: • TRUMPF laser source (3000W) – excellent power and reliability • Multi-axis 3D capability for intricate parts and precise detailing Kdodpfeqgcn Sex Acujw • High-speed and high-accuracy processing for both small batches and series production • Machine ready for international shipment, carefully disassembled • Includes full documentation and technical history from TRUMPF Machine details: • Year of manufacture: 2011 • Laser power: 3000W • Condition: Disassembled, stored securely indoors • Inspection: Available on-site (test cuts not possible in current state) • Serial number: A0435A0050 • Location: LeTheil, France • Availability: Immediately Extras & Services Offered: • We offer a complete turnkey logistics solution, including: • Professional disassembly • Loading and transport (domestic and international) • Delivery to final installation site • Reinstallation with qualified technicians • Commissioning and setup until fully operational • Optional post-installation support available on request • Attractive pricing due to current disassembled condition This is a unique opportunity to acquire a high-end Trumpf 3D laser cutting machine with full service and support, at an excellent price-performance ratio.

Condition: good (used), centerless grinding machine Kdjdpfxetrguve Acuew

Year of construction: 2013, condition: ready for operation (used), Turning length: 6000mm, orbital diameter over bed/support: 820mm/515mm, spindle bore: 128mm, speed: 1600rpm, spindle power: 46kW, center height: 400mm, bed width: 560mm, quill diameter: 125mm, quill stroke: 280mm, connected load: 62kW. Machine dimensions X/Y/Z: approx. 6500mm/2500mm/2300mm, control: Heidenhain, operating hours: approx. 9000h. Including accessories such as a steady rest. Documentation available. On-site inspection is possible. Kdjdpevwcwusfx Acuew

Condition: ready for operation (used), travel distance X-axis: 18,000 mm, travel distance Y-axis: 3,600 mm, travel distance Z-axis: 700 mm, spindle speed (max.): 1,600 rpm, spindle diameter: 160 mm, CNC FLOOR TYPE BORING MACHINE MAKE PAMA MODEL SPEEDRAM 2 X AXIS: 18000MM Y AXIS: 3600MM Z AXIS: 700MM V AXIS: 800MM (RAM TRAVEL) Z+V AXIS: 1500MM SPINDLE DIA: 160MM,ISO50 SPINDLE MOROR:65KW Kdodpev Rv N Rsfx Acusw SPINDLE SPEED: 1600RPM ATC: 60POSITIONS MILLING HEAD: MANUEL MILLING HEAD: AUTOMATIC CNC ECS FLOOR PLATES 4NOS(4000X1500) 1NO(3000X2000) ROTRY TABLE: NOT AVAILABLE

Condition: good (used), CHARACTERISTICS Plate diameter ⌀; 3200 mm Maximum turning/turning diameter ⌀; 3300 mm - With upright forward; 3300 mm - With upright set back; 5600 mm Min. turning/turning diameter ⌀ - With advanced upright; 800 mm - With upright set back; 3100 mm Max turning height; 750 mm Kdodpfx Asr I Aykscuew Control; FAGOR 8025 Spindle RPM (2 ranges); - 0,5 - 10 rpm - 10 - 40 rpm Motor Power; 80 hp Maximum table load; 30.000 kg

Condition: excellent (used), max. workpiece diameter 600 mm threading length 7000 mm max. module 8 / 12 min. module 1 swival range ° diameter of hob 63 - 140 mm spindle turning speed - stepless 45 - 450 U/min Kdedpfx Acjwgizdeusw weight of the machine ca. 12,5 t dimensions of the machine ca. 9,0 x 2,0 x 2,2 m Condition: In good condition, checked and partially overhauled by a specialist. The existing milling head was replaced by an overhauled universal milling head. Furnishing: Differential for inclined machining Automatic indexing device (indexing discs changeable!) For multi-wedge, multi-thread parts, then extensive bushings, support rollers and around 70 Change gears. Conversion of the milling head speed to a frequency converter with corresponding powerful motor is a great thing and saves a lot of set-up time. Equipment: Around 70 change gears, 3 bushing sticks of different sizes, around 20 Bushings, 2 roller mountings, 2 tips for direct mounting on the Clamping spindle, 350 mm chuck, 2 spare part disks.
