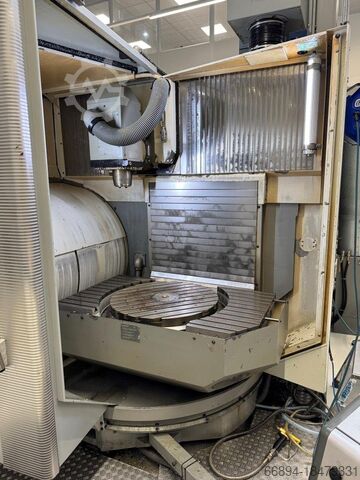

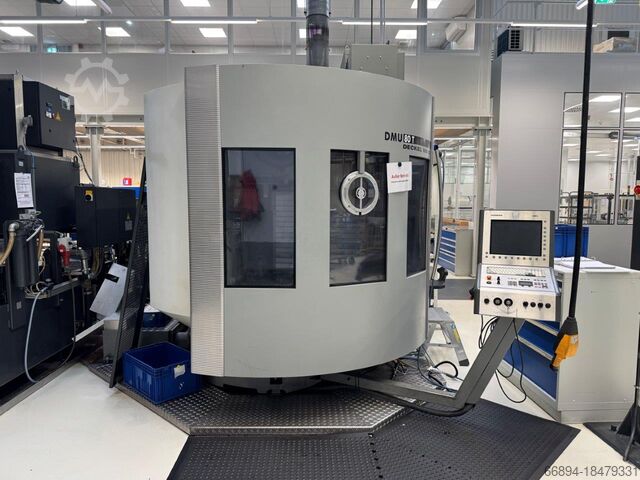

Machining center

Deckel Maho DMU 80 T

Condition: ready for operation (used), Year of construction: 2004, operating hours: 40,000 h, Control Unit Brand HEIDENHAIN Model Mill Plus Main Drive Spindle speed range 18000 Number of axis 3 Movement X-Axis Movement 880 mm Y-Axis Movement 630 mm Z-Axis Movement 630 mm Tools Gbjdpfx Asxulb Hjbpew Type of tool holder SK40 This 3-axis DMG DECKEL MAHO DMU 80T was manufactured in 2004. It features a high-speed spindle at 18,000 RPM, internal coolant supply with 40 Bar pressure, and a 32-station tool changer. The machine includes SK 40 tool holders and a Rotoclear viewing window. Ideal for demanding machining tasks, consider the opportunity to buy this DMG DECKEL MAHO DMU 80T vertical machining centre. Contact us for more information about this machine. Application Types Milling

Condition: used, Year of construction: 2007, x-travel 730 mm y-travel 560 mm z-travel 560 mm control iTNC 530 Heidenhain turning speed range - main spindle max. 18.000 min/-1 power capacity - main spindel 10 / 15 kW max. Torque 130 / 87 Nm tool taper HSK-A63 swivellable NC: ° table surface area 1.000 x 600 mm T-slots 9x 14 x 63 mm table diameter 600 mm rotatable C: 360 ° max. table load 500 kg number of toolpositions 60 pos. tool taper HSK-A63 total power requirement 40 kVA weight of the machine ca. ca. 11,0 t dimensions of the machine ca. 4,5 x 4,5 x 3,5 m CNC - MachiningCenter Universal Gsdpfx Abowpw E Nopsbw DECKEL MAHO - DMU 60 monoBLOCK - 5 Axis - NC-Rotary-Table - Swivel-MillingHead

Condition: good (used), Year of construction: 1997, Equipment: documentation/manual, Deckel DMU 80T Mill Plus Gbedsu Hy E Sepfx Abpew

Condition: excellent (used), Year of construction: 2000, operating hours: 1,600 h, functionality: fully functional, travel distance X-axis: 800 mm, travel distance Y-axis: 650 mm, travel distance Z-axis: 550 mm, rotational speed (max.): 6,300 rpm, overall weight: 5,500 kg, spindle speed (max.): 6,300 rpm, Universal Machining Center Deckel Maho DMU 80T Year of manufacture: 2000 Control: Heidenhain Operating hours: approx. 1,600 h Technical specifications: Spindle speed: 0 - 6,300 rpm Spindle torque: Tool holder: SK 40 Magazine capacity: 24 positions X-axis: 800 mm Y-axis: 650 mm Gbjdpfewq Dmcjx Abpjw Z-axis: 550 mm Equipment: - Coolant system (KSS) - 30 SK 40 tool holders - 1x machine vice The machine is in very good condition and has seen very little use.

Condition: ready for operation (used), Year of construction: 2007, Control Unit Gbedpfswbw A Sex Abpsw Brand MAZATROL Model Matrix Main Drive Spindle speed range 12000 Spindle motor power 22 kw Number of axis 5 Movement X-Axis Movement 510 mm Y-Axis Movement 510 mm Z-Axis Movement 460 mm Table Outer length 500 mm Outer width 400 mm Tools Slots in storage 40 Additional Equipment Swarf Conveyor Control Unit Brand MAZATROL Model Matrix Main Drive Spindle speed range 12000 Spindle motor power 22 kw Number of axis 5 Movement X-Axis Movement 510 mm Y-Axis Movement 510 mm Z-Axis Movement 460 mm Table Outer length 500 mm Outer width 400 mm Tools Slots in storage 40 Additional Equipment Swarf Conveyor This 5-axis Mazak Variaxis 500-5X II was manufactured in 2007. Ideal for complex and precise machining tasks, this vertical machining center offers versatility and reliability. If you are looking to get high-quality milling capabilities, consider the Mazak Variaxis 500-5X II machine we have for sale. Contact us for more information. Application Types Milling

Condition: repair required (used), Year of construction: 1995, operating hours: 18,000 h, functionality: limited functionality, travel distance X-axis: 880 mm, travel distance Y-axis: 630 mm, travel distance Z-axis: 630 mm, Equipment: chip conveyor, For sale is a DECKEL MAHO DMU 80 T, a robust and precise 3-axis machining center with a large clamping area. The machine is still connected to power and operational—a test run can be arranged upon request. However, an overhaul of the axes is necessary. On-site loading can be organized. Technical Data: Travel (X/Y/Z): 880 / 630 / 630 mm Clamping surface: 1250 x 700 mm Table load: 600 / 500 kg Spindle taper: SK 40 (DIN 69871) Speed range: stepless 20 – 12,000 rpm Control: HEIDENHAIN TNC 426/430 Feed (X/Y/Z): stepless 20 – 15,000 mm/min Rapid traverse: 30 m/min Tool changer: 25 stations Tool data: Ø 80 / 130 mm | Max. length: 315 mm | Max. weight: 8 kg Total power requirement: 60 kW Machine weight: approx. 9.6 t Dimensions (L x W x H): 4.53 x 2.60 x 2.50 m Accessories Gbodpsxphdgofx Abpow Electronic hand pendant Chip conveyor (screw conveyor) Coolant system ✅ Your advantages at a glance: Immediately ready for operation – machine is connected and can be tested Heavy-duty 3-axis machining center High spindle speeds & feed rates for efficient machining On-site loading possible Attractive price-performance ratio Location: 69181 Leimen Fixed price: €10,000 If you are interested or would like to arrange a viewing/test run, please get in touch!

Year of construction: 1996, condition: good (used), A used machining center of the company DECKEL MAHO equipped with: - MillPlus CNC control - Rigid angular table - coolant system - lighting system - tool changer 25-fold - documentation traverse X/ Y/ Z 800/ 650/ 550mm spindle speed 20- 6300rpm tool holder SK 40 Godehzt Thopfx Abpobw Further tech. Data: see pdf. document Tech. Data and dimensions: Errors excepted.

Condition: used, TECHNICAL DETAILS - Number of axes : 5 MILLING SPINDLE - Tool holder type : SK 40 - Spindle power : 12 [kW] - Spindle speeds : 12.000 [rpm] LINEAR AXES - Travels on X/Y/Z axes : 510 x 510 x 460 [mm] A ROTARY AXIS - Travel : [°] - Indexing precision : 0,001 [°] B ROTARY AXIS - Travel : 360 [°] - Indexing precision : 0,001 [°] TOOL CHANGER - Auto. Tool Changer type : Bras chargeur - Tool magazine capacity : 40 TABLE - Table dimensions : 400 x 400 [mm] - Maximum weight upon table : 300 [kg] - Max. turning diameter : 500 [mm] - Max. machining height : 405 [mm] PALLET CHANGER - Pallet size : 400 X 400 [mm] - Pallets number : 2 POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 50 [kVA] WEIGHT & DIMENSIONS - Machine weight : 11500 [kg] MACHINE HOURS - Number of working hours : 32763 [h] EQUIPMENT - CNC : Mazatrol PC-Fusion 640 - Interactive programming - Supports : RS232/RJ45/PCMCIA - Rigid tapping - Coolant tank * with high-pressure pump : 15 [bars] - Coolant through spindle - Spindle cooling unit Gjdpfx Abouhbr Hopobw - Chips conveyor : MAYFRAN - Tool probe

Condition: used, Year of construction: 2002, x-travel 880 mm y-travel 630 mm z-travel 630 mm control iTNC 530 Heidenhain Main spindle: turning speed range - main spindle 20 - 10.000 min/-1 power capacity - main spindel 13 kW Torque 130 Nm tool taper BT 40 DIN 69872 work table: table surface area 1.250 x 700 mm max. table load ca. 500 kg table diameter 700 mm T-slots 11x 14 x 63 mm max. table speed 15 min/-1 tool magazin: number of toolpositions 32 (2x 16) pos. tool taper BT 40 max. tool diameter 80 / 130 mm max. tool-dia with free toolbox 160 mm max. tool length 315 mm max. tool weight 8,0 kg feeds: feed speeds 20 - 15.000 mm/min rapid traverse 12 m/min total power requirement 30 kVA weight of the machine ca. 9,0 t dimensions of the machine ca. 4,0 x 3,0 x 2,5 m CNC - MachiningCenter Universal DECKEL MAHO - DMU 80 T - 5-Axis Gbedpfjvn Ur Sjx Abpew - Rotary table in Fixed-Table - Retrofitting to SK 40 optionally possible!

Condition: ready for operation (used), Year of construction: 2002, Control Unit Brand HEIDENHAIN Gbodpfx Abewgf D Ijpjw Model TNC 430 Main Drive Number of axis 3 Movement X-Axis Movement 900 Y-Axis Movement 650 Z-Axis Movement 600 This 3-axis DECKEL MAHO DMU 80T vertical machining center was manufactured in 2002. Ideal for precision machining, it offers robust construction and reliable performance. Consider the opportunity to buy this DECKEL MAHO DMU 80T vertical machining center. Contact us for more information. Application Types Milling

Year of construction: 2000, condition: ready for operation (used), X-travel: 250mm, z-travel: 1450mm, center distance: 1500mm, max. workpiece weight: 350kg, turning diameter over bed/support: 500/350mm, quill diameter: 80mm, quill stroke: 180mm, connected load: 30kVA, length: 3130mm, width: 1560mm, height: 1845mm, weight: 2.6t, with documentation, an on-site inspection is possible. Gedpeqv Et Ijfx Abpebw

Condition: excellent (used), Year of construction: 2002, operating hours: 1,800 h, functionality: fully functional, travel distance X-axis: 800 mm, travel distance Y-axis: 650 mm, travel distance Z-axis: 550 mm, controller manufacturer: Heidenhain, controller model: MillPlus, Universal Machining Center Deckel Maho DMU 80T Year of manufacture: 2000 Control: Heidenhain MillPlus Operating hours: approx. 1,600 h Gjdpfxsw U Tvms Abpsbw Technical data: Spindle speed: 0 - 6,300 rpm Spindle torque: Tool holder: SK 40 Number of magazine slots: 24 X-axis: 800 mm Y-axis: 650 mm Z-axis: 550 mm Equipment: - Coolant system (KSS) - Chip conveyor - 30 tool holders SK 40 - 1x machine vice The machine is in very good condition. Has only been used very little.

Condition: ready for operation (used), Number of tool slots: 25, max. rotational speed: 6300/min, tool cone: SK40 with DIN 7388 tightening pin, connected load: 35kVA, controls: Deckel Maho MillPlus, operational/ spindle hours: 56,344/ 14,965h, with chip conveyor and 600l coolant tank, without tools and clamping devices. Gedpjlbmtnofx Abpsbw

Condition: excellent (used), Year of construction: 2007, functionality: fully functional, turning length: 450 mm, turning diameter: 246 mm, spindle speed (min.): 10 rpm, spindle speed (max.): 6,000 rpm, spindle bore: 68 mm, travel distance X-axis: 140 mm, travel distance Y-axis: 80 mm, travel distance Z-axis: 450 mm, Siemens 840 D control with Shop-Turn Travel paths X- 140 mm, Z- 450 mm, Y+- 40 mm Godpjvta Amsfx Abpobw Max turning diameter 246 mm Centre height 365 mm New main spindle with 6000 rpm Counter spindle with 6000 rpm Sauter star turret with 12 driven stations Part catcher, chip conveyor Reinforced coolant and lubricant pump C-axis, Y-axis Partial hollow clamping device Package bar machining Interface for bar loader magazine Finished parts container Tool measurement in the work area

Condition: excellent (used), Year of construction: 2006, 5-axis CNC machining center Gedpfx Abewn A Slopebw 2006 Control: Heidenhain iTNC 530 Technical data: x-axis travel 880 mm y-axis travel 630 mm z-axis travel 630 mm Max. torque 130 Nm tool holder SK 40 (ISO 7388IIB) swiveling B: 103° Work table: Clamping surface 1,250 x 700 mm Rotary table diameter 700 mm rotatable C: 360 ° Max. table load approx. 500 kg T-slots 11x 14mm x 63mm Tool magazine: Number of tool places 32 (2x 16) pos. tool holder SK 40 (ISO 7388IIB) Max. tool diameter 80 / 130 mm Max. tool diameter with free neighbor box 160 mm Max. tool length 315 mm Max. tool weight 8.0 kg
