Universal Milling Machine

DECKEL FP3NC

Year of construction: 1990, condition: ready for operation (used), Control: Deckel Dialog 11, with vice, an inspection is possible. Codpfx Abeqi D S Uswerh

Condition: good (used), Year of construction: 1986, Milling machine Deckel FP3NC Manufacturer: Deckel Type: FP3NC Year of manufacture: 1986 Control: Dialog 4 Condition: used Travel paths: X 400 / Y 400 / Z 400 mm Quill stroke: 80 mm Speed: 40 rpm. Up to 3600 rpm. Pivoting milling head. Hydraulic tool holder vertical/horizontal SK40 Electronic handwheel. Control bar. For changing tools and starting programs. Documentation. Lamp. Coolant system. Full cabin. NC T400 rotary table Crjdpfew Ein Uex Abweh Weight: approx. 2000 kg. Control cabinet weight: 300 kg

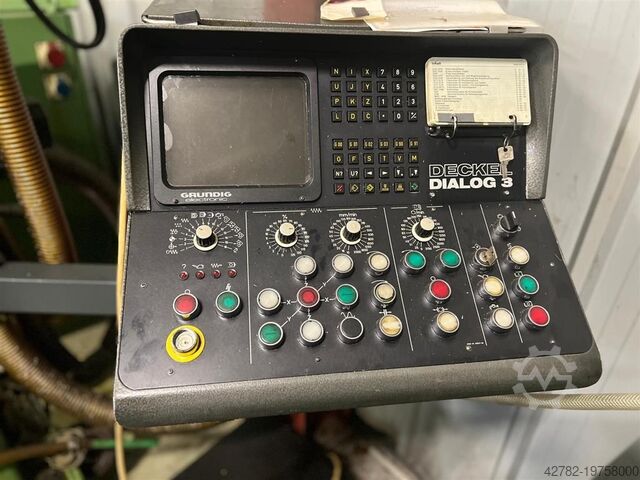

Condition: used, Year of construction: 1984, x-travel:500 mm y-travel:400 mm z-travel:400 mm table-size:700 x 470 mm spindle turning speed range:40 - 4000 U/min feed range:02 - 3600 mm/min rapid traverse speed:4,0 m/min quill stroke:90 mm spindle taper:SK 40 control:Deckel Dialog 3 Codpscxxypsfx Abwjrh power capacity - milling spindle:3 kW total power requirement:22 kW weight of the machine ca.:1,8 t Deckel FP3 NC Universal Milling Machine - CNC - Spilndle Head can be swiveled 90 ° (left or Right) - Work Table: 700 x 470 mm - Hydralic Tool clamping system SK40 with Pull studs DIN 2080 or DIN 69872 - Portable Handheld operating unit for easy control of machine - 3.0 kw Motor for Main Spindle - Deckel Dialog 3 CNC control Systems - Seperate Power Cabin, Central Lubrication and Coolant System and Chip tray with Splash cabin

Condition: defective spare-parts repository (used), Year of construction: 1994, machine/vehicle number: 2803-2194, Universal milling machine cover FP3 with 3 - with cover analog 4 control (defective) Technical data: - Year of construction: 1994 - Table diameter: 500mm - Speed: 40 - 2000 rpm - Drive power: 3 KW - Travel X/Y/Z - Weight approx. 1500 kg Accessories and equipment: - Display cover Analag4 Grundig dialog control 4 (defective, error not known) Credpju U I Iujfx Abwsh About the machine : We are offering a Deckel FP3 NC universal milling machine in good external condition. The spindles can be moved easily. The round_groove clamping table is in good condition. Mechanically ready for operation, but the control is defective. Exact fault unfortunately not known. Sold on behalf of a customer, without any warranty as a spare parts donor.

Condition: ready for operation (used), Two Deckel Maho milling machines are available. 1) Maho MH 800 E, travel X/Y/Z: 800mm/450mm/500mm, speed: 3150rpm, tool holder: SK40, quill stroke: 80mm, table dimensions X/Y: 900mm/600mm, max. table load: 450kg, feed X/Y/Z: 150mm/min, rapid traverse X/Y/Z: 4500mm/2500mm/4500mm/min. Machine dimensions X/Y/Z: approx. 2900mm/2400mm/2300mm, weight: approx. 4400kg. 2) Cover Maho FP3NC, travel X/Y/Z: 500mm/300mm/400mm, table dimensions X/Y: 800mm/420mm, tool holder: SK40, speed: 2000rpm, feed: 50mm/min, rapid traverse: 1500mm/min, weight: approx. 1500kg. On-site inspection is possible. Cedsvb Ha Uspfx Abwsrh
