Injection molding machine

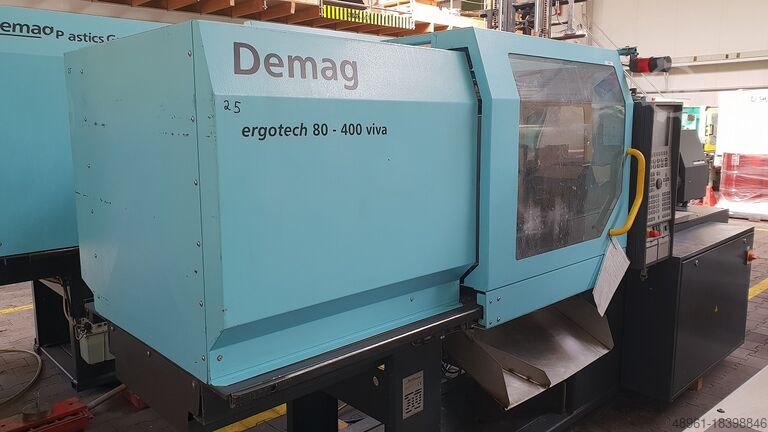

Demag Ergotech Viva 800-400 (144) with Picker

Condition: like new (used), Year of construction: 2003, For sale complet MC 4 control for Krauss-Maffei machines, tested and full in function ! Kjdpfjikfmhex Akwodt

Condition: ready for operation (used), Year of construction: 2018, clamping force: 400 kN, screw diameter: 30 mm, injection weight: 79 g, Hydraulic injection moulding machine manufactured in 2018. This Arburg ALLROUNDER 270 S 400-100 features a maximum clamping force of 400 kN and offers screw diameter options of 15 mm, 20 mm, or 30 mm. It has a maximum injection pressure of 2,500 bar for the smaller screws and a maximum shot weight of 79 g for the largest. If you are looking to get high-quality injection moulding capabilities, consider the Arburg ALLROUNDER 270 S 400-100 machine we have for sale. Contact us for further details. • Tie bar distance: 270 mm • Injection unit: size 100 (per EUROMAP) • Operating hours: 4,261 h (automatic) • Screw diameter options: 15 / 20 / 30 mm • Max. swept volume: 18 cm³ (15 mm), 31 cm³ (20 mm), 71 cm³ (30 mm) • Max. shot weight (at 1.15 g/cm³): 20 g (15 mm), 35 g (20 mm), 79 g (30 mm) • Max. injection pressure: 2,500 bar (15/20 mm), 1,390 bar (30 mm) • Centering diameter: 125 mm • Vacuum pump capacity: approx. 25 m³/h Kjdpfx Asy Nkwlekwsdt • Pneumatic flow rate: 1,000 l/min per circuit • Heating capacity per control circuit: 3.6 kW / 230 V (16 A fuse) • Drive motor voltage: 380–480 V (50–60 Hz)

Year of construction: 2012, condition: ready for operation (used), This FANUC ROBOSHOT S-2000 i 150B was manufactured in 2012. A pristine electrical injection moulding machine, it has never been used, maintaining zero working hours. It features a 52 mm screw diameter. Consider the opportunity to buy this FANUC ROBOSHOT S-2000 i 150B electrical injection moulding machine. Contact us for more information. Kodpfx Ajx D Rq Ejkwjdt Application Types Injection Moulding

Condition: reconditioned (used), Year of construction: 2006, operating hours: 60,000 h, functionality: fully functional, clamping force: 8,000 kN, screw diameter: 85 mm, Horizontal injection moulding machine from Krauss-Maffei. 800 tons clamping force. Year of manufacture 2006. Screw diameter 85mm. MC5 control. Approximately 60,000 working hours. The machine is delivered REFURBISHED by our team of technical experts and in optimal working condition. We can offer commissioning services at our customer's premises, ensuring full functionality upon installation completion. Technical Details Kdsdjw Avafjpfx Akwot Screw diameter: 85mm Injection pressure: 2242 Bar Injection volume: 2695 cm3 Injection weight: 2452g (PS) Year of manufacture: 2006 Working hours: 60,000 Minimum mould thickness: 550/1100mm (Min/Max) Maximum platen distance: 2100mm Opening stroke: 1600mm Tie bar distance: 1120x1000mm Platen dimensions: 1600x1530mm Clamping force: 8000 kN

Condition: like new (used), Year of construction: 2019, operating hours: 400 h, clamping force: 1,000 kN, screw diameter: 32 mm, displacement volume: 103 cm³, injection pressure: 2,200 bar, mold height (min.): 150 mm, ejector force: 25,000 N, ejector stroke: 100 mm, opening stroke: 350 mm, number of injections: 1, Equipment: documentation/manual, FANUC ROBOSHOT Alpha S100iA – like-new, fully electric precision injection molding machine, manufactured in 2019, with only 400 operating hours. Your advantages: • 1,000 kN clamping force • FANUC 31i-B CNC control with a 15-inch touchscreen • 32 mm screw and 103 cm³ injection volume Kdjdozrikmjpfx Akwot • Injection speed up to 200 mm/s, maximum 2,200 bar • Hardened W/C plasticizing unit – for temperatures up to 350 °C and up to 30 % glass fiber • Euromap 67 robot interface Tool space and clamping unit: • Plate dimensions 660 × 610 mm • Tie bar spacing 460 × 410 mm • Mold height 150–620 mm, extended version • Opening stroke 350 mm • Ejector stroke 100 mm, ejector force 25 kN Equipment includes, among other things: AI pressure and dosing control, tool and ejector protection, backflow monitoring, automatic tool height adjustment, energy consumption measurement, four-circuit flow meter, hopper slide, three-color LED signal light, three air valves, and cascade control for up to eight needle gate valves. Hungarian operating manual and warning instructions are available. A robot is not included in the scope of supply. Inspection by appointment. Further technical documents and the offer are available upon request.

Condition: excellent (used), Year of construction: 2010, Krauss Maffei KM 80-380 CX Injection Moulding Machine Year of manufacture: 2010 Clamping unit Clamping force: 800 kN Kdedpfx Aoxw Upfjkwot Mounting plate dimensions (H × V): 670 × 670 mm Space between tie bars (H × V): 420 × 420 mm Mould height (min./max.): 250 mm Maximum opening: 750 mm Injection unit Screw diameter: 40 mm Injection volume: 201 cm³ Shot weight (PS): 183 g Injection pressure: 1860 bar Electro-hydraulic equipment Pump motor power: 15 kW Heater power: 10.9 kW Dimensions and weight Machine dimensions (L × W × H): 4.09 × 1.48 × 2.02 m Weight (with control cabinet): 3.55 t

Condition: excellent (used), Year of construction: 2004, Engel INSERT 330H/90 Controll: CC100 Condition: funtional Vertical machine with Horizontal injection Rotary table diameter: 1100mm Clamping force: 90 ton Opening max. : 570 Opening min. : 270 Platen size: 590x340 Screw: 40 mm Screw length: 160 mm Injection volume: 201 cm3 Injection pressure: 1230 bar Kdjdpfx Aeu Dbkdekwjt Motor: 15 kw Weight: 5600 kg Height 2800 mm

Condition: ready for operation (used), Year of construction: 2009, functionality: fully functional, clamping force: 6,500 kN, screw diameter: 70 mm, Clamping unit: Clamping force 6500 kN Mould opening force, max. 346 kN Kedpfx Aov Stbmjkwodt Travel force movable platen opening 169 kN Travel force movable platen closing 144 kN Size of mould platens (h x v) 1520 x 1470 mm Distance between tie bars (h x v) 1000 x 930 mm Mould opening stroke 1150 mm Mould height min 675 mm Max. daylight 1825 mm Hydraulic ejector - stroke 135 mm Ejector force 226 kN Injection unit: Screw diameter 70 mm Ls/D ratio 23 Injection pressure 2389 bar Stroke volume 1097 ccm Shot weight (PS) 998 gr. Injection rate 393 ccm/s Screw speed 218 1/min Plasticising rate max. 83 g/s Nozzle pressure 173 kN Electric and Hydraulic Equipment: Nominal capacity of pump motor 75 kW Installed heating capacity 36 kW Adjustable barrel heating zones 7 Dimensions and weights: Dimensions of the machine ca. 8,70 x 2,90 x 2,80 m Total machine weight 44000 kg Accessories: - Anti vibration pads Additional options: - 1 x air valve - 8 x pneumatic sequentional valves - Accumulator - 2 x hydr. core pulls on movable plate - 2 x hydr. core pulls on fix plate - Robot interface according to EUROMAP 67

Condition: used, Year of construction: 1999, Technical details: screw size: 45 mm Kdodpfewvkgmsx Akwot injection shot weight in Polysterol: 149 g/PS closing pressure: 1250 kN

Condition: used, Year of construction: 2018, clamping force: 500 kN, screw diameter: 27 mm, clearance between the columns: 360 mm, mold height (min.): 210 mm, ejector stroke: 70 mm, opening stroke: 600 mm, plate width: 500 mm, plate height: 470 mm, Equipment: documentation/manual, For sale is a used FANUC ROBOSHOT Alpha S50iA, manufactured in 2018. This compact injection molding machine is offered based on the current technical description and the attached machine photographs. Technical specifications: - Year of manufacture: 2018 - Clamping force: 500/650 kN - Screw diameter: 27 mm - Theoretical cylinder volume: 50 cm³ - Column spacing horizontal/vertical: 360 x 320 mm - Platen size: 500 x 470 mm - Mold height: 210 to 460 mm - Maximum opening stroke: 600 mm - Maximum ejector stroke: 70 mm - Core circle diameter: 125 mm - Hydraulic cores: 0 - Pneumatic circuits: 2 - Connected power: 30 kW Equipment and options: - Power transformer AC 400 V to AC 200 V - Air ejector, 3 circuits - Short shot detection - Euromap 67 - USB interface - Parallel tool movement / dosing - Parallel tool movement / ejector - Pre-injection function - Precision dosing function - Backflow measurement at the screw check valve - Nozzle with shut-off function, software - Hot runner valve control, 8 circuits (software) - Communication with temperature controllers (software) - Intelligent tool protection - Intelligent ejector protection - Tool set Kodpfx Akozwhdiowodt - Safety set - 21 freely programmable inputs/outputs - 2 analog inputs 0-10 V DC - Alarm column with audible signal - Czech operating manual Optional services available upon request: The following services can be offered upon request and are not included in the machine scope: - 1-day operator training at the customer's site - Commissioning - Automatic clamping force correction during operation Operating hours, control system, ejector force, injection speed, injection pressure, screw/cylinder design, and robot interface are not specified. The machine is offered used and in its current condition. Technical specifications and scope of supply are to be confirmed before the contract is concluded. The written confirmed scope of supply shall prevail. Inspection and further information are available upon request.
