CNC turn-mill center

DMG CTX gamma 1250 TC

Condition: excellent (used), Year of construction: 2002, travel distance X-axis: 1,250 mm, travel distance Y-axis: 880 mm, travel distance Z-axis: 800 mm, workpiece height (max.): 1,230 mm, workpiece diameter (max.): 1,250 mm, spindle speed (min.): 18,000 rpm, spindle speed (max.): 18,000 rpm, Heidenhain iTNC 530 control Dedpow Ngipefx Afpecf Tool changer for 60 tools Automatic head +180/-7° stepless HSK A63 Number of pallets: 2 pcs Pallet size: 1000*800 mm

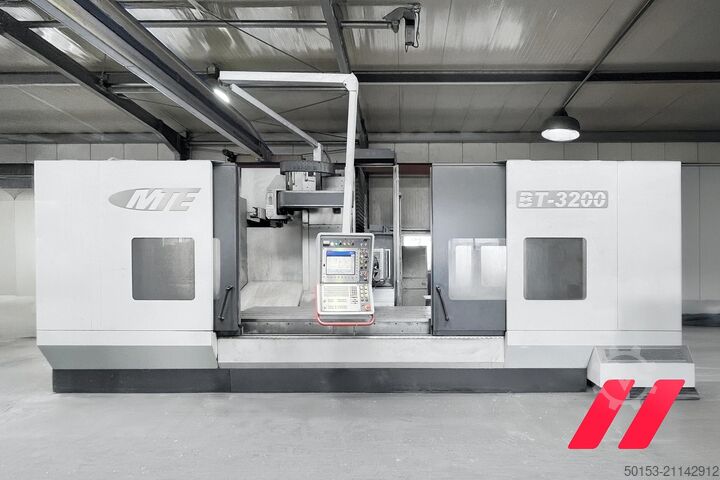

Condition: used, Year of construction: 2014, travel distance X-axis: 3,000 mm, travel distance Y-axis: 1,200 mm, travel distance Z-axis: 1,500 mm, spindle speed (max.): 6,000 rpm, spindle speed (min.): 20 rpm, RepairFIT by Dornhöfer The Difference. Installation & Commissioning Included! TECHNICAL MAIN DATA Year of manufacture: 2014 Travel/Capacity: Longitudinal (X): mm 3,000 Transverse (Y): mm 1,200 Vertical (Z): mm 1,500 Clamping table/Clamping surface: Length: mm 3,200 Width: mm 1,000 Number of T-slots on table surface: pcs. 7 T-slot size: mm 22H12 Reference slot: mm 22H7 Distance between slots: mm 140 Maximum transport load: kg 11,000 Paint: graphite grey RAL 7024 and agate grey RAL 7038 Tool holder: ISO 50, DIN 69871 AD Pull stud: DIN 69872 Form A Main drive: Maximum drive power, from 198 rpm: kW 30 Spindle speed range: Spindle speed: rpm 20-6,000 Maximum torque: Nm 935 Speed control: 3-stage (oil-cooled) with automatic changeover Feed rates: X, Y and Z axes mm/min: 2 – 15,000 Maximum rapid traverse speed: X, Y and Z axes mm/min: 25,000 Maximum feed force: X, Y and Z axes: N 22,000 Space requirements: Length approx. BT3200: mm 8,100 (without cross conveyor +1,280 mm) Height approx. (at Z = 1,500 mm): mm 3,800 Width approx. (at Y = 1,200 mm): mm 5,000 (with spacer 4,500 mm) Weight: approx. kg 20,200 Connected load: approx. KVA 52 HEIDENHAIN iTNC 530 HSCI Automatic MTE universal milling head Diagonal 2.5° x 2.5° Automatic tool changer with 40 positions Dedpeygipasfx Afpscf 2 chip conveyors + cross conveyor Coolant system with 20 bar & through-spindle coolant RepairFIT is our proven offer for a profitable entry into our product lines. The machines available in this line are sourced through a strict selection process and undergo thorough inspection (Deep-Dive Check). After intensive cleaning, any identified obvious defects and faults are professionally repaired by our qualified service team.

Condition: ready for operation (used), Year of construction: 2008, functionality: fully functional, machine/vehicle number: 20194, travel distance X-axis: 4,000 mm, travel distance Y-axis: 1,200 mm, travel distance Z-axis: 1,500 mm, power: 49 kW (66.62 HP), Features High rigidity for heavy-duty machining Dedpfjx S Hgzjx Afpocf Large table for oversized workpieces CNC control with HEIDENHAIN TNC 530 for precision operations Automatic tool changer with 50 positions Centralized lubrication and hydraulic system

Condition: used, Year of construction: 2009, Technical details: turning diameter: 1000 mm swing diameter: 1000 mm Machine type: Vertical lathe Manufacturer: Hessapp Type: DV 62 Serial no.: 14.2308 Working range of the spindle Largest diameter 1000 mm Largest swing diameter 1000 mm Cross slide travel Stroke of the vertical slide 900 mm Stroke of the horizontal slide 1810 mm Total travel 2315 mm Turning spindle Spindle head with centering cone according to DIN 55021 A15 Spindle diameter in the front bearing 203 mm Main drive Via a controlled asynchronous motor and gear transmission with range switching. Spindle speeds Speed ??range I: 5 - 350 rpm. Speed ??range II: 30 - 1000 rpm. Dcsdpfxst Rmdzj Afpjf Travel speed X/Z axis: 10 m/min. W1 axis: 8 rpm No C-Axis *

Condition: excellent (used), operating hours: 8,064 h, Brand : LAGUN Model : GBM-22E Type : CNC 5 EJES Cnc :HEINDENHAIN 530 Table dimensions : 2.200 x 1000 mm Dsdpfx Afsyg R Abepecf Number and width of T slot: 7 x 22 mm Distance between T slots: 140 mm Axis travels (X,Y,Z) : 2.000 x 1.200 x 1.000 mm Head type : Automático Spindle speed : 4.000 rpm Taper : ISO 50 DIN 2080 Main motor : 28 kw Continuusly variable speeds : 50➗ 4.000 Speed range : 2 Rapid traverse : 10.000 mm/min Machine weight : 15 tn Electronic hand-wheel : Yes Working hours : Machine running: 22.924 h Control on : 23.132 h Automatic cycle: 8.064 h

Condition: good (used), Year of construction: 2006, travel distance X-axis: 2,500 mm, travel distance Y-axis: 1,250 mm, travel distance Z-axis: 1,000 mm, Travel paths Longitudinal (X): 2500 mm Vertical (Y): 1250 mm Transverse (Z): 1000 mm Table size (rotary): Length: 1000 mm Width: 1000 mm Max. table load: 5000 kg T-slots: 6 x 22 mm H10 Drive power: 100% duty cycle, 24 kW Tool holder: ISO 50, DIN 69871 - AD Spindle speeds: 20 – 4000 rpm Torque: 479 Nm Feed rates (X, Y, Z): 10 – 10,000 mm/min Rapid traverse (X, Y, Z): 25,000 mm/min Weight: approx. 15,000 kg Dedpeykbxzefx Afpjcf Equipment: - Internal coolant supply according to DIN 69871 Form AD, including minimum quantity oil lubrication with 15 different dosing levels via programmable M-functions; 20 bar - NC rotary table, size 1000 x 1000 mm, integrated as 4th axis into the CNC control. Max. load capacity 5000 kg, positioning accuracy ±5", table surface with 22 mm T-slots. - Chip conveyor for TA-D 25 - Tool changer Accessories - Front-mounted movable control pendant including Heidenhain iTNC 530 control (1 processor) - Portable electronic handwheel HR 420 with 3 m spiral cable (option) - 3D thermal expansion compensation - Automatically indexing milling head / 2 planes with 2.5° indexing (H200) (option) - Distance spindle nose to table edge: 250 mm - NC rotary table, size 1000 x 1000 mm, integrated as 4th axis into the machine control. Max. load capacity 5000 kg, positioning accuracy ±5", table surface with 22 mm T-slots - Coolant system with 150 l tank capacity, delivery pressure 5 bar, delivery rate 50 l/min, discharge via shower ring around spindle - Splash guard enclosure, fully enclosed on 4 sides with front sliding doors and an additional sliding door on the left side column and viewing windows on all 4 sides - Heidenhain drive motors on all axes with digital drive technology - INA linear roller guide system on all axes - Direct linear measuring system Heidenhain on all axes - Telescopic covers for X-axis guideways - Ball screws on X, Y, and Z axes - Automatic cycle lubrication for all axes and moving components - Electrical equipment by Siemens - Hydraulic system by Vickers

Condition: good (used), Year of construction: 1997, functionality: fully functional, machine/vehicle number: ABCM 1250/3, type of input current: three-phase, Gas burner for I-beams. Dsderbif Topfx Afpecf manufacturer - Peddinghaus Germany; type - ABCM 1250/3; control - Fagor; The device is connected and functional.

Condition: reconditioned (used), functionality: fully functional, machine/vehicle number: F39033, KEKEISEN Universal Bed Milling Machine UBF 2000/13, machine no. F39033; well maintained, very good condition, mechanically partly overhauled in 2025 2-axis universal head automatically swivelling, with locking in Hirth coupling Intermediate positions adjustable in 1° steps by jog mode SK50 tool holder according to DIN 69871/872 Longitudinal travel of the table (X-axis) 2000 mm Transverse travel of the headstock (Y-axis) 1000 mm Vertical travel of the headstock (Z-axis) 1300 mm Machine table size 2200 x 960 mm, with T-slots 22 mm, spacing 140 mm Rotary table rotation 360° (stepless, with clamping) Rotary table load 5000 kg Spindle power 30 kW (100%ED), max. torque 1180 Nm Spindle speed 20 - 3800 rpm (infinitely variable in 2 ranges), with oil cooling Axis speeds 4 m/min or 10 m/min rapid traverse CNC control Heidenhain TNC 426 CA with electric handwheel HR 330 Drive system make Baumüller Coolant system with inner cooling up to 16 bar. Air/water changeover Purolator double-switching filter with 200 litre collecting tank Tool changer for 30 tools Dcsdpfx Aeykuxhsfpof Work area panelling all round, open at the top, with longitudinal chip conveyor Connection data 400 V; 50 Hz; approx. 55 kVA without installation elements (fixators),

Condition: used, Year of construction: 2008, operating hours: 16,772 h, functionality: fully functional, travel distance X-axis: 4,000 mm, travel distance Y-axis: 1,200 mm, travel distance Z-axis: 1,500 mm, position of the milling head: Automatico 2,5ºx2,5º, spindle speed (max.): 4,000 rpm, table width: 1,000 mm, table load: 10,000 kg, table length: 4,200 mm, total height: 4,000 mm, total width: 3,500 mm, total length: 10,000 mm, overall weight: 21,900 kg, Milling machine LAGUN GBM42 Dedpfx Afjyiu Rnopjcf

Condition: excellent (used), Year of construction: 2005, operating hours: 8,800 h, travel distance X-axis: 2,000 mm, travel distance Y-axis: 1,000 mm, travel distance Z-axis: 1,000 mm, spindle speed (min.): 4,000 rpm, Correa Prisma with Heidenhain 530 Djdpfsyuy Tfex Afpscf With many SK 50 holders
