Slotter & casemaker

Dong Fang/ EDF Europe 618 FFG

Year of construction: 2019, condition: excellent (used), functionality: fully functional, Characteristics * Speed 350 m/min * 500 cuts/min * 8 unwinding stations * 10 cutting blades (pair) * 2 sets of cutting blades * Cutting capacity (set) 540 gsm * Cross cutter max.load 805 gsm Sheet output * Paper sheet width min: 350 mm * Paper sheet width max: 2200 mm * Paper sheet length min: 400 mm * Paper sheet length max: 1650 mm * Stack height incl.pallet: 1800 mm * Stack weight incl.pallet: 5000 kg Nwodpfx Afovphiyecsc Roles input * Roll diameter min: 500 mm * Roll diameter max: 1500 mm * Roll weight max: 5000 kg * Sleeve diameter min: 76 mm * Sleeve diameter max: 150 mm

Condition: good (used), Year of construction: 1999, MOSCA strapping press Automatic pallet strapping machine, model KPK-121-18 Year of manufacture: 1999 The control system is S7. The strapping machine is equipped with 2 strapping heads. The press has a walk-in roller conveyor with a turnstile. Occupancy dimensions including pallet: Length: 1,200 mm Width: 1,200 mm Height min. 500 mm max. 1,600 mm Technical data: Continuously adjustable belt tension: 200 – 2,000 N Belt guide speed: 4.6 m/s Type of closure: friction weld closure Dimensions of the control panel: Width = 1,200 m, depth = 650 mm, height = 850 mm Dimensions of the packaging press: Max. clearance height: 1,600 mm Max. clearance width: 1,500 mm Length of the pressure plate: 1,600 mm Pressure force: up to max. 50,000 N selectable via potentiometer Belt guide distance: 440 mm Drive: via pole-changing Gear brake motor Rapid traverse speed: 150 mm/sec Pressing speed: 37 mm/sec Conveyor belt in the pressing area: Nwjdpfoq Svgkex Afcjc Usable width: 1,500 mm Length: 2,100 mm

Condition: used, Year of construction: 2002, functionality: fully functional, type of input current: three-phase, Mosca Strapping Press Type: KPK-121 Nwsdexk T Dhopfx Afcsc Year of manufacture: 2002 With integrated turntable roller conveyor Turntable diameter: 1,800 mm Suitable for Euro and industrial pallets, pallet runners in the direction of travel Pallet dimensions: Length: min. 1,000 mm / max. 1,600 mm Width: min. 800 mm / max. 1,000 mm Height: 145 mm Package size including pallet: Length: min. 800 mm / max. 1,600 mm Width: min. 800 mm / max. 1,400 mm Height: min. 500 mm / max. 2,000 mm For cross strapping, the following pallet dimensions are possible: Length: min. 800 mm / max. 1,200 mm Width: min. 1,200 mm / max. 1,200 mm Dimensions of the packing press: Max. clearance height: 1,800 mm Max. clearance width: 1,400 mm Platen length: 1,600 mm Pressing force: up to max. 50,000 N, adjustable via potentiometer Pressing speed: 75 mm/s Performance of pallet packing press: With double strapping: max. 120 pallets/hour With cross strapping: max. 70 pallets/hour Number of position programs: 10 Strapping material: PET strap Size/width: 12 mm

Condition: ready for operation (used), Year of construction: 1982, operating hours: 40,000 h, functionality: fully functional, machine/vehicle number: 1986, cutting width (max.): 1,900 mm, cutting length (max.): 1,900 mm, stack height: 1,900 mm, type of input current: AC, front table length: 14,000 mm, total width: 5,500 mm, total height: 3,200 mm, input voltage: 380 V, compressed air connection: 6 bar, Maker: Valmet-Strecker Year: 1982 Max knife load 600gsm ( Min 40 gsm ) Max working width 1900 mm Min sheet size (w x i) 320 x 420mm Max sheet size (w x l) 1900x1900mm Nwsdpfjwpp Szjx Afcsc Unwind stands one, double type Max unwind reel diam. 1500 mm Core size 3”, 6”, 10” and 12” Max pallet hight 1900mm Max speed 200m/min Spare parts and tools Machine overall dimensions: length 14 m, width 45.5 m in delivery exit working condition Machine modifided many time last years

Condition: used, Year of construction: 2018, Casemaker EDF Europe 8/21 Introduction 5 colors Automatic slitter Rotary die cutter Folding gluer Counter ejector Nwodpfx Asxz Ai Isfcsc

Condition: good (used), Year of construction: 2002, functionality: fully functional, Automatic Pallet Packing Press MOSCA KPK-121 Year of manufacture: 2002 With integrated rotary turntable roller conveyor (diameter: 1,800 mm) Suitable for Euro and industrial pallets, with pallet runners aligned in the conveying direction Pallet dimensions: Length: min. 1,000 mm / max. 1,600 mm Width: min. 800 mm / max. 1,000 mm Height: 145 mm Packed dimension including pallet: Length: min. 800 mm / max. 1,600 mm Width: min. 800 mm / max. 1,400 mm Height: min. 500 mm / max. 2,000 mm For cross-strapping, the following pallet dimensions are possible: Length: min. 800 mm / max. 1,200 mm Width: min. 1,200 mm / max. 1,200 mm Dimensions of the packing press: Max. clearance height: 1,800 mm Max. clearance width: 1,400 mm Length of the pressing plate: 1,600 mm Pressing force: up to max. 50,000 N, selectable via potentiometer Pressing speed: 75 mm/s Capacity of the pallet packing press: With double strapping: max. 120 pallets/hour With cross-strapping: max. 70 pallets/hour Number of position programs: 10 Nwjdpswlaicofx Afcoc Strapping band: PET strap Dimension/width: 12 mm Pallet wrapper: Max. pallet dimensions: Width: 1,000 mm / Length: 1,200 mm Wrapping dimensions: 1,200 mm x 1,200 mm Roller conveyor under the wrapper: W: 1,000 mm x L: 2,500 mm The system consists of: - Centering roller conveyor - Rotary corner conveyor - MOSCA pallet packing press - Robopac pallet wrapper - 3 x outfeed roller conveyors

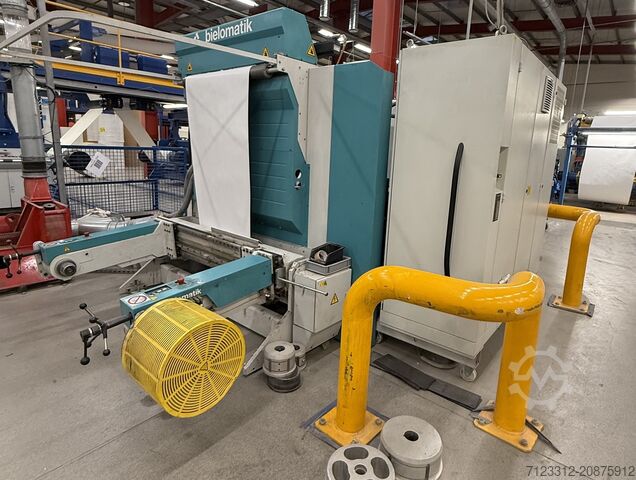

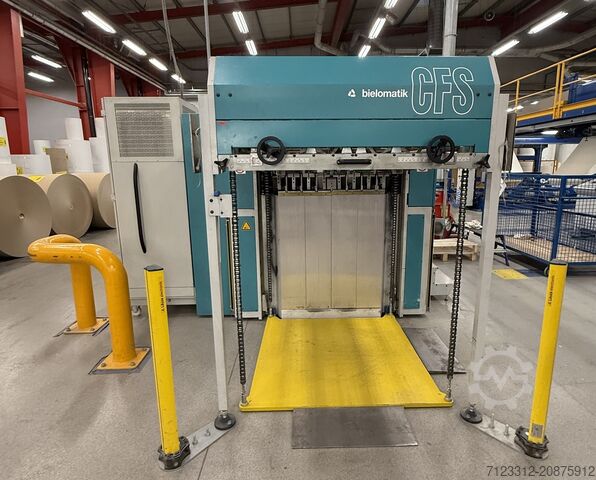

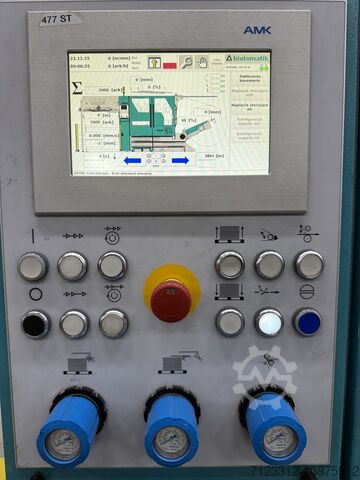

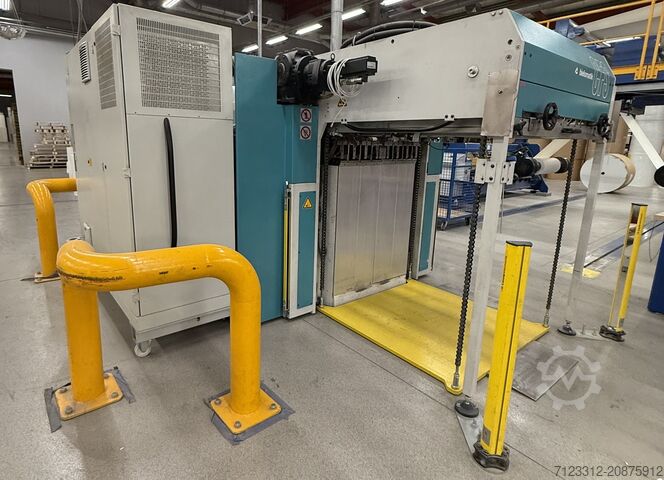

Year of construction: 2014, condition: used, We offer for sale a cutter from the renowned BIELOMATIK brand – model CFS 145/23. The machine was manufactured in 2014 and has been used by a single owner since new. The unit has undergone thorough servicing, is fully equipped, technically sound, and ready for continued trouble-free operation. Technical details: - Roll diameter: max. 1,525 mm; min. 120 mm Nodox Scykopfx Afcewc - Roll width: max. 1,100 mm - Roll weight: max. 2,000 kg - Roll loading diameter: min. 500 mm - Machine speed: max. 300 m/min - Cutting frequency: max. 366 cuts/min = 22,000 cuts/h - Core diameters: 100, 150, 200, 300 mm. If you have any questions or would like to inspect the machine, please contact us.
