CNC lathe

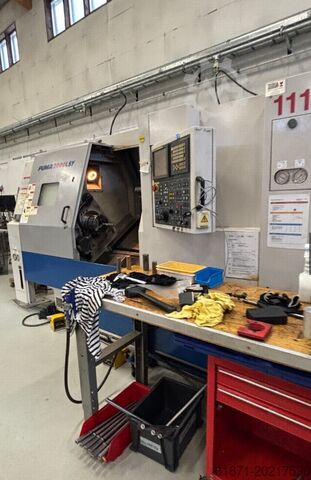

Doosan Puma 2000 LSY

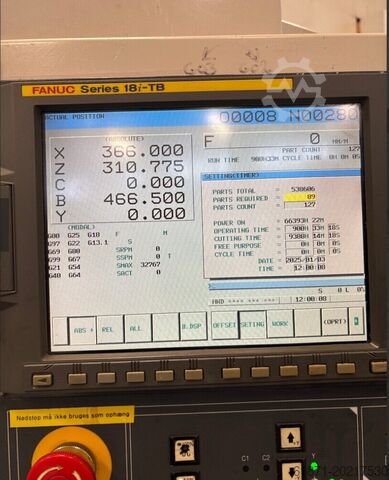

Condition: ready for operation (used), Year of construction: 2004, operating hours: 9,389 h, functionality: fully functional, turning length: 760 mm, turning diameter: 330 mm, travel distance X-axis: 250 mm, travel distance Y-axis: 50 mm, travel distance Z-axis: 830 mm, TECHNICAL DETAILS Max. turning length: 760 mm Max. turning diameter: 330 mm X-axis: 250 mm Y-axis: ±50 mm Z-axis: 830 mm B-axis: 830 mm Main spindle speed: 5,000 rpm Counter spindle speed: 6,000 rpm Bar capacity: Ø65 mm Number of tool stations: 12 MACHINE DETAILS Weight: 5,500 kg Workpiece counter: 538,606 pieces Switch-on time: 66,394 h Cutting time: 9,389 h EQUIPMENT Kdedov D H Nujpfx Aayjw - Chip conveyor - Tool measuring probe - LNS Servo 2 bar loader - Accessories as per pictures

Condition: good (used), Year of construction: 2000, Daewoo Puma 230, year of manufacture 2000, Fanuc 18 iT control, turning length 548 mm, turning diameter 350 mm, 10-position turret, tailed tailstock, three-jaw chuck Ø 254 mm, tool measuring arm, Ksdpfxowx I Efs Aayedw swarf conveyor, coolant system, main spindle newly mounted, flat guides, accessories,

Condition: used, Year of construction: 2000, turning diameter 0420 mm turning length 635 mm control 21i-T Fanuc Kjdpfx Aaoxukqtsyodw turret head 12 pos. swing over bed 570 mm spindle turning speed - stepless 25 - 5000 rpm spindle bore 79 mm feed - longitudinal/cross mm/min rapid travel - longitudinal/face 24/20 m/min main drive motor 28/21 (40/100%) kW total power requirement 44 KVA weight of the machine ca. 5,7 t dimensions of the machine ca. 5,5 x 3 x 1,8 m Control: Fanuc 21i-T. Machine is with tailstock. Machine has dust exhaust and chip conveyor.

Year of construction: 1998, condition: used, 2 turning diameter max. 250 mm toll turrets 2 x 12 control Fanuc 16 T tool taper HSK 63 Kdedeqn A Rgopfx Aayow 04800000181 frequency 50 Hz ampere 168 A

Year of construction: 1998, condition: ready for operation (used), Base machine CTX 200E with driven tools, C-axis and 1x back working. Includes DATAPILOT software package TurnPlus, cooling unit for control cabinet, hinge belt chip conveyor, discharge height: 1100mm including coolant tank, tool holder set for universal disc turret with tool holders for external machining, boring bar holders, tools with cylindrical shank holders, sealing plugs, reducing sleeves. Bar gripper, axial complete, workpiece pick-up device, tool spindles 3x axial for drilling/milling/tapping, 1x radial for drilling/milling/tapping, 1x for saw blades, collet chuck complete for main spindle, collet chuck complete for counter spindle, 17x DIN collets 173E round Ø 3-40mm, 2x DIN collets 173E, hex SW 7 and 12mm, 2x DIN collets 173E, square SW 8mm. Bar loading magazine IEMCA BOSS 542/32, guide channel set LW 13, additionally for IEMCA BOSS 542, 13x guide jaws for bar loading magazine IEMCA BOSS 542/32, Ø 8-41mm. With complete documentation. The machine has been idle for one year as the turret head is missing, no further defects known, operating hours unknown, without maintenance records. With bar loader and numerous tools. Kodpfjw Tl Ifjx Aayodw
