Press Brake

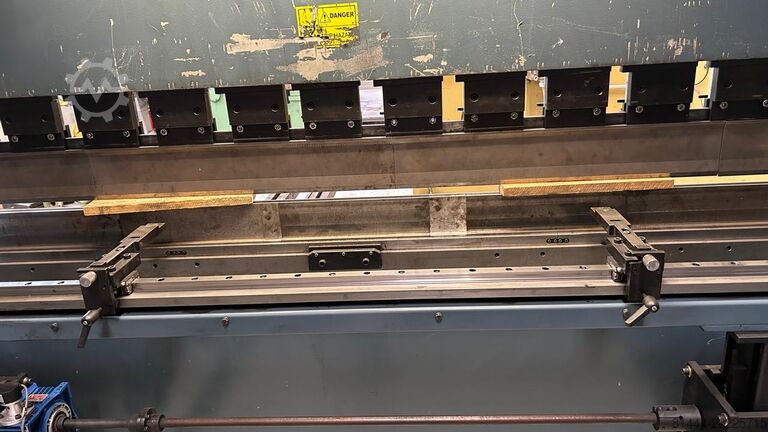

Durma AD-R 30175

Condition: excellent (used), functionality: fully functional, Year of construction: 2013, control type: CNC control, degree of automation: semi-automatic, actuation type: hydraulic, controller manufacturer: Cybelec, controller model: DNC 880, bending force (max.): 175 t, working width: 3,050 mm, stroke length: 265 mm, installation height: 530 mm, operating speed: 120 mm/s, reverse speed: 100 mm/s, number of axes: 4, table height: 900 mm, type of crowning: CNC-controlled, oil tank capacity: 200 l, travel distance X-axis: 650 mm, back gauge adjustment: CNC-controlled, back gauge travel distance R-axis: 250 mm, overall weight: 11,250 kg, total length: 4,570 mm, total width: 2,360 mm, total height: 2,900 mm, power: 18.5 kW (25.15 HP), Equipment: CE marking, documentation/manual, emergency stop, european tool clamping system, finger protection, foot remote control, lower tooling, safety light barrier, upper tooling, electro-hydraulic CNC press brake - Two synchronized cylinders with HIGH PERFORMANCE hydraulic components - Equipped with CYBELEC CNC control unit - DNC 880S - * 2D graphic display for visualization and multi-stage simulation * Graphic 2D programming * User-friendly operation * Automatic bending sequence calculation and collision detection * Extensive product and tool library * Automatic tonnage (pressure) calculation - Swiveling operator panel mounted front right - CNC controlled axes: Y1 + Y2 + X + R + CNC crowning - Upper beam with heavy-duty four-guide system - CNC electric backgauge (X axis) * with 2x manually adjustable backgauge fingers * Adjustment range up to max. 650 mm - CNC electric height adjustment of backgauge (R axis) * Adjustment range up to max. 250 mm - CNC electric table crowning - AMADA/PROMECAM upper tool clamping Fodjxlizxspfx Aa Njgi * incl. segmented upper tool set - AMADA/PROMECAM lower tool holder, incl. die * incl. segmented single-V die (V=20 mm) - FIESSLER LASER safety device at the front - 2x front, movable support arms (sliding system) - Side safety enclosure (pivoting doors) - Rear safety enclosure (pivoting door) - 1x movable foot switch - Large hydraulic oil tank to maintain low operating temperature - Original operating manual
