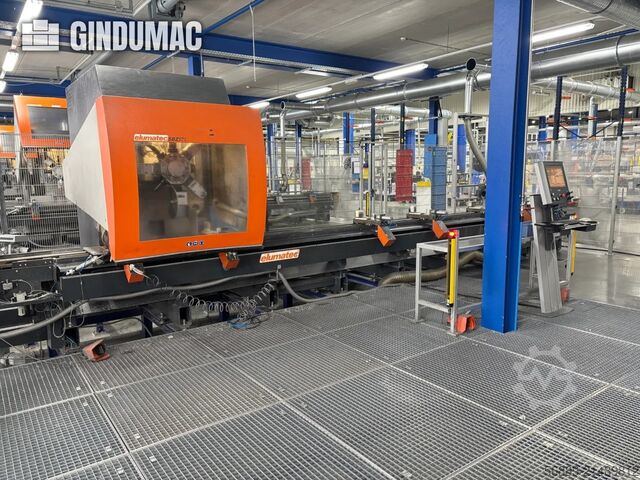

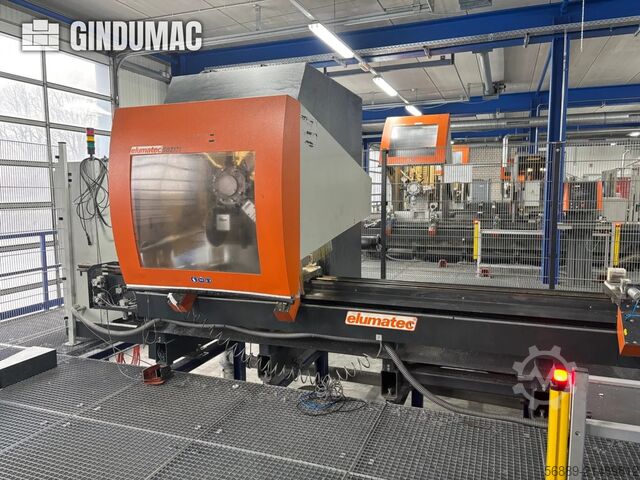

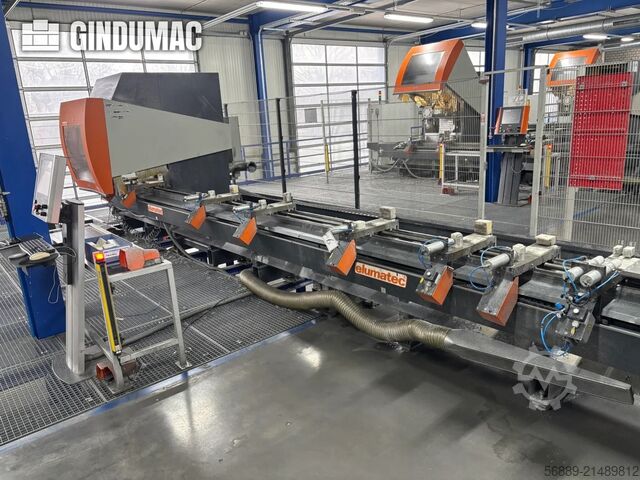

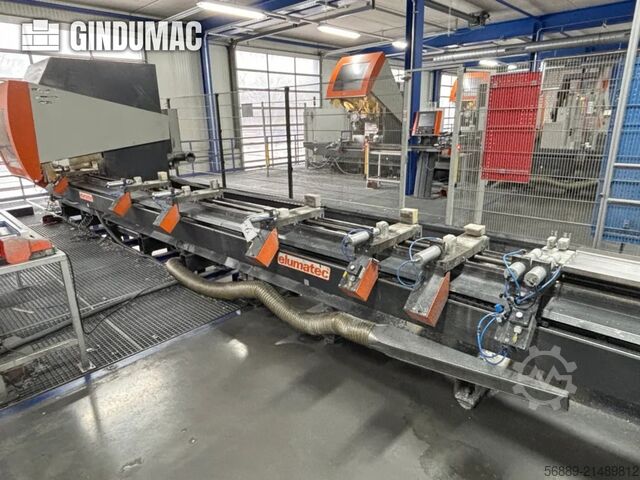

Profile machining center

Elumatec SBZ 131

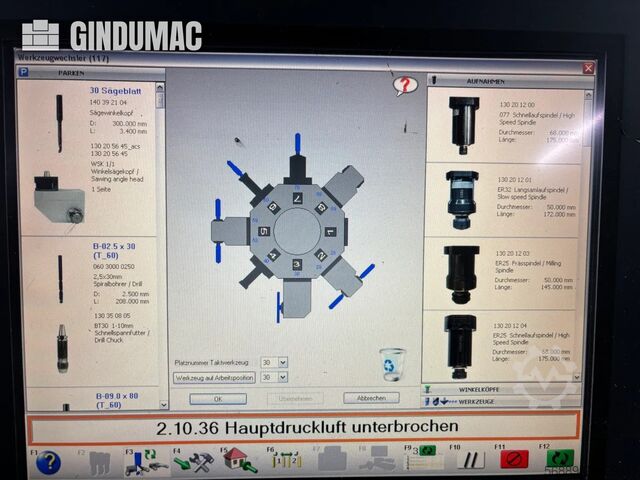

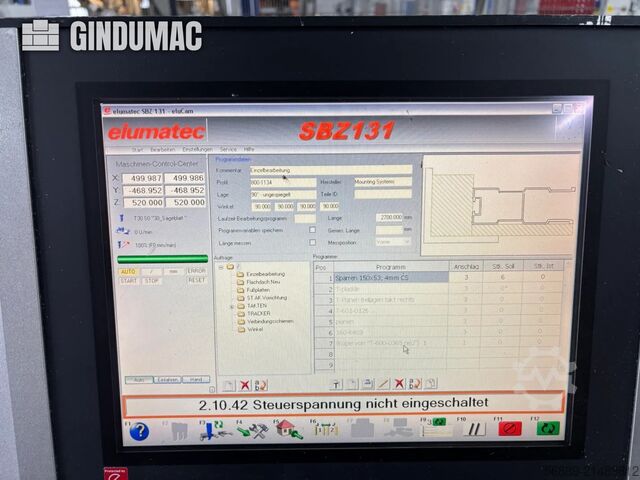

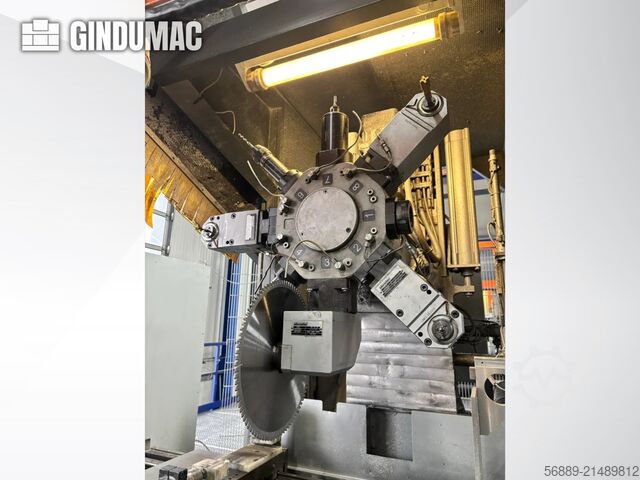

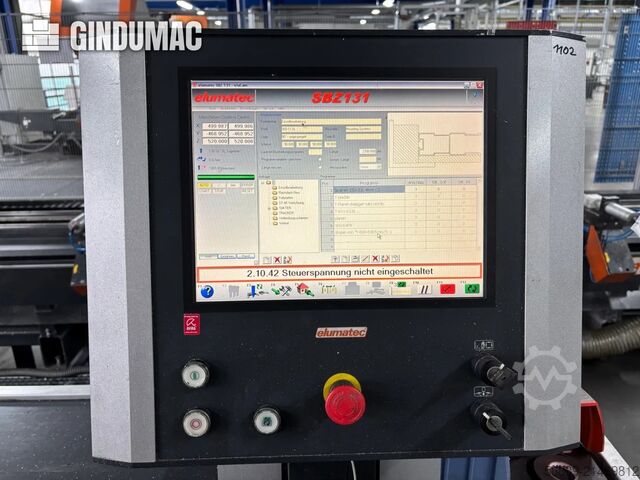

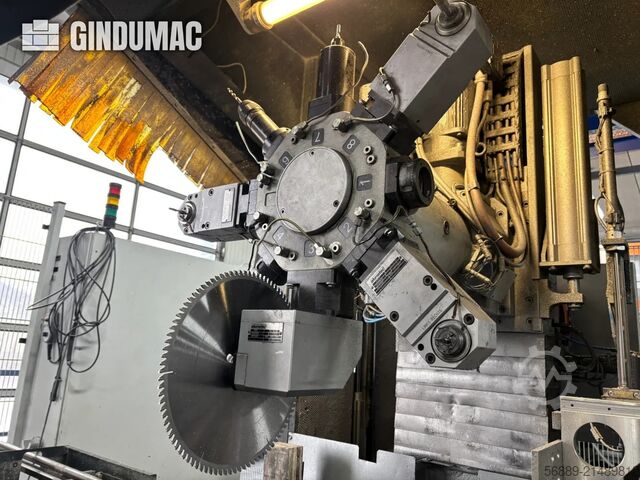

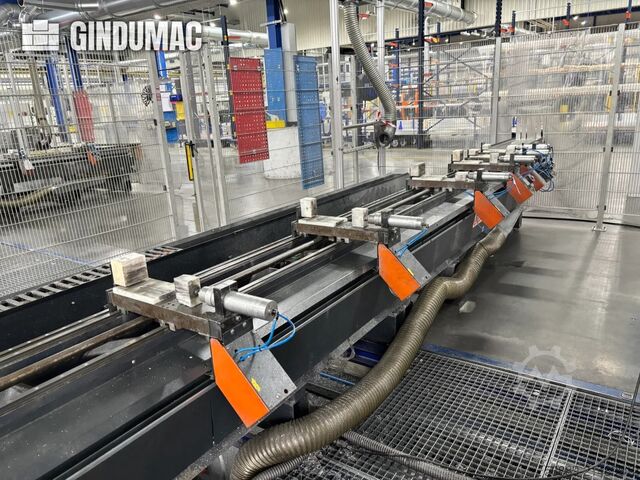

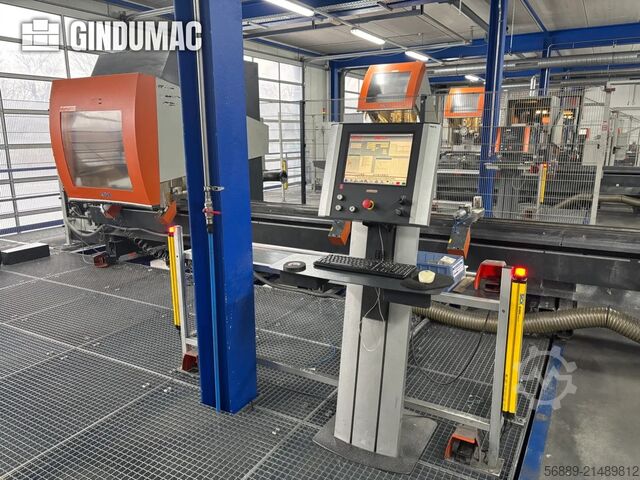

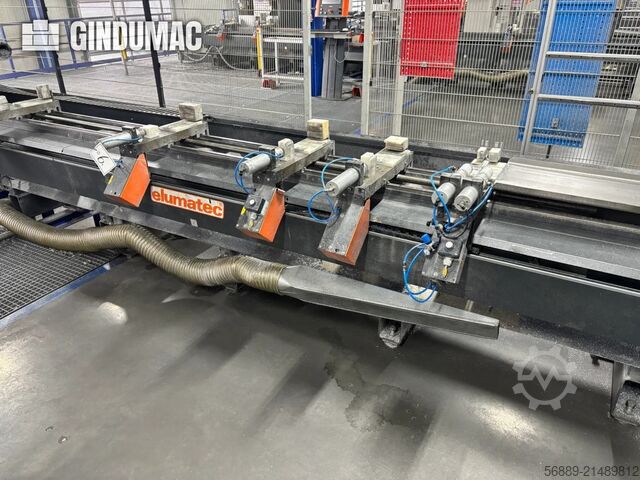

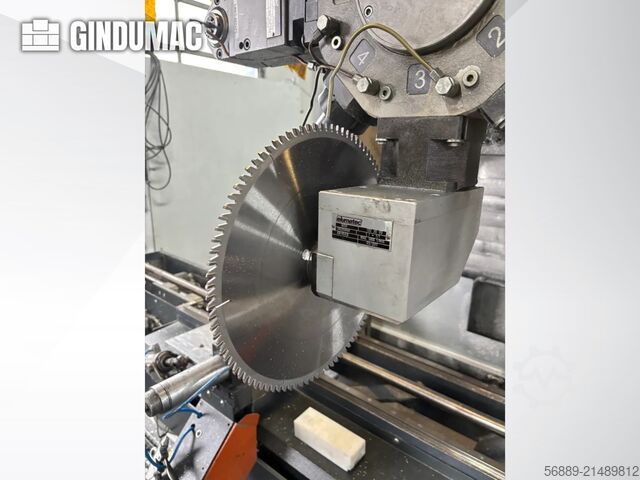

Condition: excellent (used), Year of construction: 2024, operating hours: 193 h, functionality: fully functional, travel distance X-axis: 7,200 mm, travel distance Y-axis: 480 mm, travel distance Z-axis: 340 mm, cutting width (max.): 335 mm, workpiece length (max.): 6,000 mm, milling spindle speed (max.): 6,000 rpm, section length (max.): 6,000 mm, TECHNICAL DETAILS - Profile Milling Machine Processing length: 7,200 mm Number of axes: 4 Nsdpfxowprmzj Ab Iocl Control: eluCAM graphical, Windows XP user interface Workstations: 2 independently operating stations Turret tool changer: 8 tools, servo motor driven Tool holder: BT 30 Disc mill diameter: 180 mm Tool length: 150 mm (from point of attachment) Travel distances Travel X-axis: 7,200 mm (without end-face processing), 7,080 mm (with end-face processing) Travel Y-axis: 480 mm Travel Z-axis: 340 mm Rapid traverse X-axis: 60 m/min Rapid traverse Y-/Z-axis: 30 m/min Positioning accuracy: ±0.1 mm/m Spindle Milling spindle speed: 1 to 6,000 rpm Milling spindle power: 6.0 kW Supply Air connection: min. 7 bar Air consumption: 100 l/min Electric connection: 400 V, 3~, 50 Hz, 35 A EQUIPMENT two independent workstations with light barrier and camera system Non-swiveling inclined milling head for 2 tools, Er20A, up to 18,000 rpm Inclined milling head swiveling 4 × 90°, Er20, up to 22,000 rpm Inclined milling head non-swiveling for steel, Er20A, 1,554 rpm Fixed saw head i=1:1, for D=300 mm saw blade, suitable for 90° cross cuts Carbide saw blade Z=100, D=300 mm, cutting width 3.2 mm Tool holder i=1:3.86 for 18,000 min⁻¹, ER25 Cooling/lubricating unit for steel processing Disc milling holder BT30, D=16 mm Disc cutter D=92 × 6 mm, Z=14, D=16 mm, carbide teeth TECHNICAL DETAILS - Double Mitre Saw Max. cutting length: 6,000 mm Min. cutting length at 90°: 335 mm Min. cutting length at 45°: 335 mm Saw blade diameter: 420 mm Cutting angle (rotation): pneumatically adjustable 90° and 45° inside, intermediate angles and 22.5° acute manually adjustable with digital display Cutting angle (tilt): pneumatically adjustable 90° and 45° inside Saw direction: saw blades move from bottom to top Control Control type: E580/1 Length adjustment: automatic with positioning control Saw blade tilt: pneumatically automatic between 90° and 45° Positioning accuracy: ±0.1 mm/m Positioning: pneumatic locking Operating system: Windows Saw unit Speed: 2,800 rpm Power per motor: 4,000 W (5.5 HP) Saw blade cooling: available Air consumption per cycle without cooling: 40 l Air consumption per cycle with cooling: 64 l Supply Electric connection: 230/400 V, 3-phase, 50 Hz Air connection: 7 bar Dimensions and Weight Length: 7,550 mm Width: 1,600 mm Height: 1,450 mm Weight: 1,750 kg EQUIPMENT Automatically closing protective covers Electronic positioning of the heads with +/- 0.1 mm/m accuracy Digital angle display for manually adjustable special angles Pneumatically adjustable saw blade rotational and tilt angles Operation via Windows control with 8.4" display and handwheel Cooling system for saw blades included Saw unit with bottom feed for optimal cutting force

Condition: good (used), Year of construction: 2009, Elumatec SBZ 140 Extended Length Version: 7.6 meters Approximate weight: 5,000 kg Automatic tool changer 2-section clamping system 2 pneumatic stops Safety hood Light curtains Automatic clamp detection Central lubrication Coolant spray system Ncsdpfxsx E Ahzs Ab Isl Chip trolley Conditioning unit Max spindle speed: 24,000 rpm Tool holder: HSK-63F, 8-position tool changer Max milling diameter: 80 mm Max saw blade diameter: 200 mm Compressed air: 7 bar The SBZ 140 is a 4-axis profile machining center (axes: X, Y, Z + A). Designed for aluminum and thin-walled steel profiles. 4-axis CNC machining center (X/Y/Z + tilt/rotation axis A) X-axis: approx. 7,900 mm travel Y-axis: approx. 850 mm travel Z-axis: approx. 650 mm travel A-axis (rotation/tilting): Freely programmable angle, –90° to +90° Axis traverse speed: X-axis up to approx. 65 m/min, Y- and Z-axis up to approx. 60 m/min (varies with configuration) Control: 4-axis CNC system, PC control, color display, USB & network connectivity. Software: eluCam. Automatic material clamps; automatic positioning via index pins Pendulum/shuttle operation (two work zones), improving production throughput time. In addition to milling and drilling, also tapping, sawing, and profile machining—all with stationary clamped profiles. Please note: The information on this page has been obtained and compiled to the best of our knowledge, but its accuracy cannot be guaranteed. Accordingly, it does not constitute a representation or contract and we recommend verifying all relevant details. Financial information VAT/margin: VAT: The price shown is exclusive of VAT (VAT deductible for business customers).
