Used Elumatec Sbz 131 for sale (4)

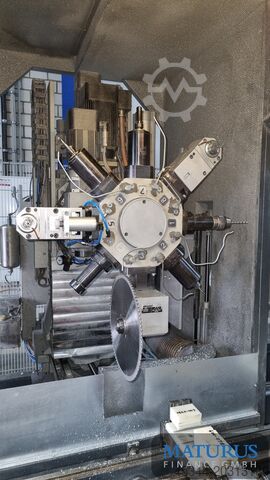

Condition: excellent (used), Year of construction: 2011, functionality: fully functional, CNC profile machining centre | elumatec SBZ 131 Njdsxn Sbmopfx Afxelh - 8-position tool turret with driven tools - Material support with automatic clamping system - Operator panel with touchscreen - Separate Rittal control cabinet with cooling unit - Mesh enclosure, SICK light curtain system An inspection is possible at any time by appointment. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: elu | SBZ | profile machining centre

Condition: excellent (used), Year of construction: 2018, operating hours: 2,900 h, functionality: fully functional, machine/vehicle number: 1310051193, travel distance X-axis: 7,200 mm, travel distance Y-axis: 485 mm, travel distance Z-axis: 340 mm, rapid traverse X-axis: 60 m/min, rapid traverse Y-axis: 60 m/min, rapid traverse Z-axis: 60 m/min, input voltage: 400 V, type of input current: three-phase, The machine was purchased new and has been in our ownership since then, regularly maintained, and is still operational. The machine will remain in use until 20.09.2025, and until then you can view it in our production facility. Nljdpfxew Eu Ruj Afxeh

Year of construction: 2018, condition: excellent (used), For machining aluminium and steel profiles Fully functional, in very good condition Year of manufacture: 2018 Machining length: 7,200 mm 3-axis control with 15" monitor Tool changer: 8 positions / turret Nedpfewynitox Afxelh 8 pneumatic horizontal material clamps Autonomous clamp positioning Two separate work zones, suitable for pendulum operation 2 pneumatic material stops 8 tool positions / BT30 turret Barcode scanner Handheld control unit Safety light curtain at the front and lateral safety fence Minimum quantity lubrication system Centralised lubrication system Thread cutting without compensating chuck Easy programming via hand control unit High-speed spindle up to 18,000 RPM Includes 3 angle heads X-Axis [mm]: up to 7,200 / 7,200 Y-Axis [mm]: up to 485 / 310 Z-Axis [mm]: up to 340 / 260 Traverse speed X/Y/Z-Axis [m/min]: 60/60/60 Max. milling cutter diameter: 25 mm Max. saw blade diameter: 180 mm Max. tool length: 200 mm (tool + holder) Max. spindle speed: 6,000 RPM Spindle power: 6 kW Weight: approx. 5.5 t Total operating hours: 30,844 h Total spindle hours: 11,583 h

Condition: excellent (used), Year of construction: 2024, operating hours: 193 h, functionality: fully functional, travel distance X-axis: 7,200 mm, travel distance Y-axis: 480 mm, travel distance Z-axis: 340 mm, cutting width (max.): 335 mm, workpiece length (max.): 6,000 mm, milling spindle speed (max.): 6,000 rpm, section length (max.): 6,000 mm, TECHNICAL DETAILS - Profile Milling Machine Processing length: 7,200 mm Number of axes: 4 Control: eluCAM graphical, Windows XP user interface Workstations: 2 independently operating stations Turret tool changer: 8 tools, servo motor driven Tool holder: BT 30 Disc mill diameter: 180 mm Tool length: 150 mm (from point of attachment) Travel distances Travel X-axis: 7,200 mm (without end-face processing), 7,080 mm (with end-face processing) Travel Y-axis: 480 mm Travel Z-axis: 340 mm Rapid traverse X-axis: 60 m/min Rapid traverse Y-/Z-axis: 30 m/min Positioning accuracy: ±0.1 mm/m Spindle Milling spindle speed: 1 to 6,000 rpm Milling spindle power: 6.0 kW Supply Air connection: min. 7 bar Air consumption: 100 l/min Electric connection: 400 V, 3~, 50 Hz, 35 A EQUIPMENT two independent workstations with light barrier and camera system Non-swiveling inclined milling head for 2 tools, Er20A, up to 18,000 rpm Inclined milling head swiveling 4 × 90°, Er20, up to 22,000 rpm Inclined milling head non-swiveling for steel, Er20A, 1,554 rpm Fixed saw head i=1:1, for D=300 mm saw blade, suitable for 90° cross cuts Carbide saw blade Z=100, D=300 mm, cutting width 3.2 mm Tool holder i=1:3.86 for 18,000 min⁻¹, ER25 Cooling/lubricating unit for steel processing Disc milling holder BT30, D=16 mm Disc cutter D=92 × 6 mm, Z=14, D=16 mm, carbide teeth TECHNICAL DETAILS - Double Mitre Saw Max. cutting length: 6,000 mm Min. cutting length at 90°: 335 mm Min. cutting length at 45°: 335 mm Saw blade diameter: 420 mm Cutting angle (rotation): pneumatically adjustable 90° and 45° inside, intermediate angles and 22.5° acute manually adjustable with digital display Cutting angle (tilt): pneumatically adjustable 90° and 45° inside Saw direction: saw blades move from bottom to top Control Control type: E580/1 Length adjustment: automatic with positioning control Saw blade tilt: pneumatically automatic between 90° and 45° Positioning accuracy: ±0.1 mm/m Positioning: pneumatic locking Operating system: Windows Saw unit Speed: 2,800 rpm Power per motor: 4,000 W (5.5 HP) Saw blade cooling: available Air consumption per cycle without cooling: 40 l Air consumption per cycle with cooling: 64 l Supply Electric connection: 230/400 V, 3-phase, 50 Hz Air connection: 7 bar Dimensions and Weight Length: 7,550 mm Width: 1,600 mm Height: 1,450 mm Nledjwprmzepfx Afxoh Weight: 1,750 kg EQUIPMENT Automatically closing protective covers Electronic positioning of the heads with +/- 0.1 mm/m accuracy Digital angle display for manually adjustable special angles Pneumatically adjustable saw blade rotational and tilt angles Operation via Windows control with 8.4" display and handwheel Cooling system for saw blades included Saw unit with bottom feed for optimal cutting force
