Profile machining center

Emmegi Quadra L1

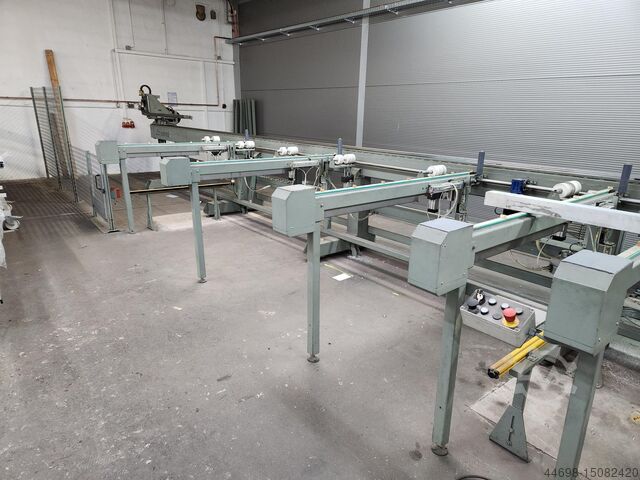

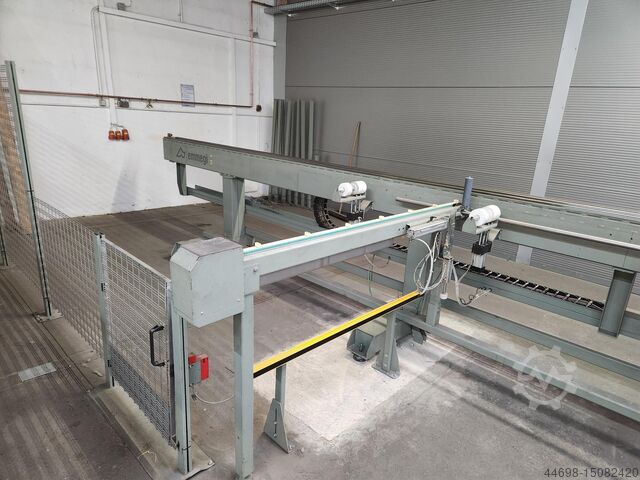

The QUADRA L1 consists of an automatic loading magazine and a gripper feed for profile lengths of up to 7500 mm. The feed transports the profile bar to the processing unit, which is equipped with 6 spindle motors and can carry out drilling and milling operations around the profile. The sawing module has 3 axes and is equipped with a saw blade with a diameter of 600 mm. The finished part is transferred from the machining area to the unloading table by means of an unloading unit, where it is transported to the unloading position by means of driven belts. The processing area is completely enclosed and can optionally be fitted with sound-absorbing mats.
Csdpfxorpk Sys Agmorh
Automatic loading magazine with a maximum capacity of 15 profiles with a width of 100 mm. The profiles are transported to the gripper position by a belt conveyor.

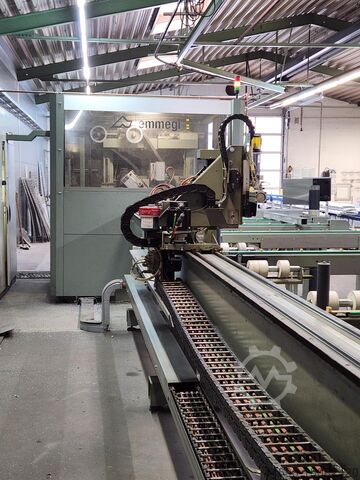

Automatic 3-axis CNC feed unit. Based on profile data, the unit positions itself in the pick-up position depending on the length and profile cross-section in order to feed the bar for processing.
The gripper clamps the profile bar at a predefined position based on the drawing.

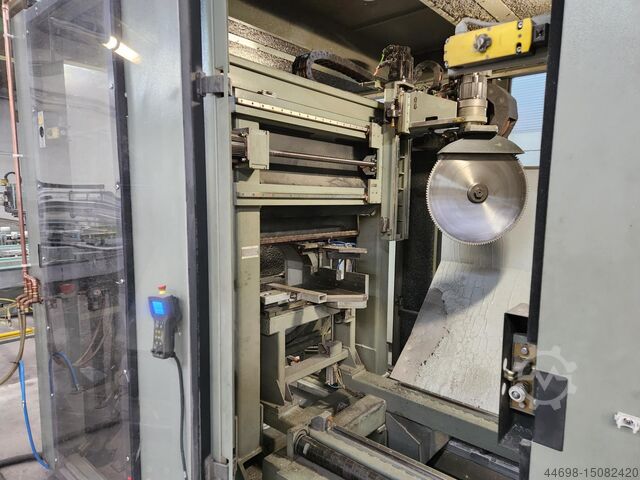

A 600 mm saw blade enables a large cutting range to be covered thanks to the 3-axis movement option.
