Used Emmegi Quadra L1 for sale (65)

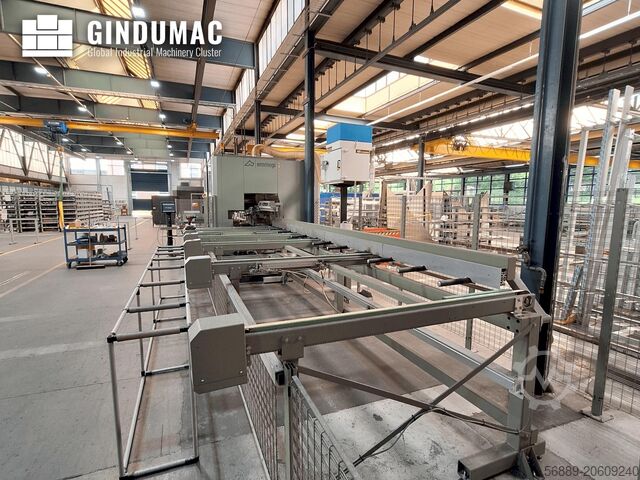

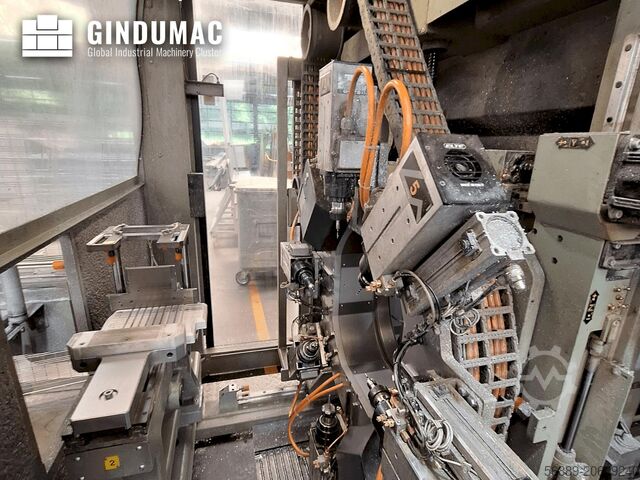

Year of construction: 2010, Condition: excellent (used), Functionality: fully functional, The QUADRA L1 consists of an automatic loading magazine and a gripper feed for profile lengths of up to 7500 mm. The feed transports the profile bar to the processing unit, which is equipped with 6 spindle motors and can carry out drilling and milling operations around the profile. The sawing module has 3 axes and is equipped with a saw blade with a diameter of 600 mm. The finished part is transferred from the machining area to the unloading table by means of an unloading unit, where it is transported to the unloading position by means of driven belts. The processing area is completely enclosed and can optionally be fitted with sound-absorbing mats. Automatic loading magazine with a maximum capacity of 15 profiles with a width of 100 mm. The profiles are transported to the gripper position by a belt conveyor. Automatic 3-axis CNC feed unit. Based on profile data, the unit positions itself in the pick-up position depending on the length and profile cross-section in order to feed the bar for processing. The gripper clamps the profile bar at a predefined position based on the drawing. A 600 mm saw blade enables a large cutting range to be covered thanks to the 3-axis movement option. Ncelhccjrpk Sysqror

Year of construction: 2007, Condition: ready for operation (used), Number of axes: 6, x-travel: 240mm, y-travel: 350mm, z-travel: 350mm, U-travel: 9500mm, A-travel: 360°, max. bar length: 7500mm, max. workpiece weight: 500kg, work spindle power: 4.55kW, suitable for drilling, milling, thread cutting, aluminum cutting, has been regularly serviced, with documentation and roller conveyors, on-site inspection is possible. Ncelsrl Rbgohccqrjr

Year of construction: 2010, Condition: good (used), Automatic line for milling and cutting aluminum profiles Ncoljqwgt Rjhccqrsr

Year of construction: 2023, Condition: like new (used), Automatic milling and cutting line automatic loader milling center with 6 spindles kW 5.6 Njlhcjwbwkiecqrocr cutting center with blade diameter 600 automatic unloader

Year of construction: 2007, Condition: ready for operation (used), Sawing and processing machine Emmegi Quadra. Machine can still be seen in operation Ncslhsvy Ecreccqror

Condition: excellent (used), Year of construction: 2021, Functionality: fully functional, machine/vehicle number: TK204204, TEKNA TKE 805 (Emmegi Quadra L0) for sale - Production date machine 2021! CNC 13-axis machining centre, built for milling, drilling and cutting aluminium profiles and light alloys. Optionally it may be equipped with an end milling module. QUADRA L0 is an automatic magazine with a thrust-feed system for profiles up to 7,500 mm, complete with gripper movement to block the profile. Thanks to the movement of the gripper, the feeder returns to the start position allowing the loader to prepare the next profile at the same time. The milling module, the cutting module and the optional end milling module are located in the central area of the machine. There are 4 electrospindles installed on the CNC 4-axis milling module which allow working on the whole edge of the workpiece, whichever way it faces. The cutting module is equipped with a Ø 350 blade with CNC 3-axis horizontal movement. The optional end milling module operates on two CNC axes by means of a group of cutting units. QUADRA L0 also includes an automatic ejector to transfer the workpiece from the cutting unit to the unloading magazine. The unit is composed of a transverse belts magazine to unload machined workpieces of up to 4000 mm in length (optional 7500 mm). The machining unit is equipped with a sound-proof cabin in the central operating part, which, besides protecting the operator, reduces the environmental noise impact. Ncolhccqevl Igqoror

Condition: ready for operation (used), Technical characteristics fully automatic center type QUADRA ES205 V04 Bar loading magazine o Max bar length 7500 mm o Minimum bar length 3000 or 1550 mm o Load capacity with axis 100 mm : 20 bars o Load capacity with axis 200 mm: 10 bars o Maximum loadable weight: 500 kg Bar positioning unit o Max bar length : 7500 mm o Minimum length of manually loaded bar: 500 mm o Carriage translation speed: 0.60 m/min Milling section 4 machining units o Drilling o Milling Ncsleundhfjhccqrjr o Tapping up to M8 on thicknesses up to 4 mm (aluminium) o Sawing (aluminium) cut 0/90° and +/- 45 Sawing machine Evacuation section Finished parts magazine Power and Motors Power: 35 Kw Overall dimensions Weight: 8420 Kg

Condition: excellent (used), Year of construction: 2016, travel distance X-axis: 7,700 mm, travel distance Y-axis: 420 mm, Emmegi Phantomatic X6 HP 4 axis Machining Centre Year: 2016 'X' axis travel: 7700mm Ncjlhccjwbqmqsqrjr

Year of construction: 2020, Condition: ready for operation (used), Saw blade diameter: 2x400mm, max. cutting length: 4000mm, cutting angle: +/-45°. Documentation available. On-site inspection is possible. Njlhccqswfg Hborscr

Year of construction: 2011, Condition: good (used), Roller belt left: 400 cm, roller belt right: 600 cm. Nslhjwdui Ijccqrjcr

Condition: good (used), Year of construction: 2008, Functionality: fully functional, Machine in excellent condition with suction Nelsvbvkvohccqrocr Visible in operation in our premises. Price machine loaded on truck. Possibility of assembly and start-up in your workshops at an additional cost

Year of construction: 2004, Condition: excellent (used), 4-axis machining center work range in X: 7000 mm automatic clamp movement Njlhccqewfw N Terocr

Year of construction: 2003, Condition: used, Functionality: fully functional, Emmegi Phantomatic isola t4 cnc aluminum profile machining center Manufacturer: Emmegi. Model: Phantomatic. Model year: 2003. Voltage: 3-phase. Dimensions and weight: Length: 5000 mm. Width: 1700 mm. Height: 2400 mm. Weight: 1550 kg. In working condition. Ncolhcev Rrvascqrsr The machine is located in Poland and connected to power - 33350 Piwniczna Zdrój

Condition: used, NUMERICALLY CONTROLLED MACHINING CENTER FOR ALUMINUM/PVC Emmegi Model Index Multi-piece Working range: Ncolhccewd Tvyjqrer X= 6500 mm. Y= 250 mm. Z= 250 mm. No. 1 HSD 3-axis electrospindle with ISO 30 connection 2-output angular head for horizontal milling Automatic tool change magazine No. 8 vices Right+Left stop ISAC SAB 9500 Numerical Control Waste and shavings collection trays Installed power 11 kw Machine weight 2700 Kg Machine overall length 8600 mm.

Year of construction: 1999, Condition: used, Max. sawing length: 5,000 mm Max. saw blade diameter: 500 mm Automatic positioning of the length as well as motorized angle adjustment inwards and outwards Moving roller conveyor Material support Minimum quantity spray device Nolhjwb Eq Roccqrocr Weight: 1800 kg

Condition: like new (used), Year of construction: 2021, operating hours: 1,000 h, Functionality: fully functional, machine/vehicle number: C125349, travel distance X-axis: 7,800 mm, travel distance Y-axis: 1,100 mm, travel distance Z-axis: 655 mm, rapid traverse X-axis: 75 m/min, rapid traverse Y-axis: 60 m/min, rapid traverse Z-axis: 40 m/min, nominal power (apparent): 15 kVA, torque: 12 Nm, controller model: Emmegi, workpiece width (max.): 580 mm, workpiece height (max.): 400 mm, total height: 2,820 mm, total length: 12,820 mm, total width: 4,800 mm, overall weight: 13,870 kg, spindle speed (max.): 24,000 rpm, coolant supply: 6 bar, number of spindles: 1, number of slots in tool magazine: 24, Equipment: chip conveyor, rotational speed infinitely variable, A 5-axis profile machining center from Emmegi, built in 2021 due to insufficient utilization, is for sale. The machine is in mint condition and can be tested on-site. The axis travels are: X-axis: 7800 mm Y-axis: 1100 mm Z-axis: 655 mm Profiles made of aluminum 3.3535, steel 1.0038, steel 1.0553, and stainless steel 1.4301 were machined on this machine. Cutting with the 500 mm circular saw blade is only possible in aluminum. The machine was equipped with a second lubrication circuit in 2022 to allow the use of separate lubricants for aluminum and steel materials. The following machining operations can be performed: - (Thread) milling - Drilling Njljwczg Dshccqrecr - Thread cutting - Flow drilling in stainless steel up to 3 mm with pre-drilling, steel up to 3 mm with pre-drilling, and aluminum up to 4 mm without pre-drilling - Miter cutting (only possible in aluminum) Included are Emmegi's CAM software "CAMplus 6.1" as well as the additional software "job" and "shape" CAMplus - enables graphical programming in the office or at the machine job - enables the merging and waste optimization of individual jobs shape - enables the milling and drilling of free contours If you have any further questions, please contact me.

Condition: excellent (used), Year of construction: 2012, Functionality: fully functional, machine/vehicle number: C109289, cutting length (max.): 4,000 mm, saw blade diameter: 500 mm, Double saw for cutting aluminum, 500 mm blade, radial cut for increased cutting capacity. Automatically set angles of 90, 45, 30 degrees. Roller feeder supporting the profile on the movable head, USB socket, list import, intermediate support. Nslhccqswcb D Norscr

Condition: ready for operation (used), Functionality: fully functional, 4-axis machining center Nolhcjwfw Ntocqrecr

Year of construction: 2011, Condition: ready for operation (used), Functionality: fully functional, saw blade diameter: 550 mm, conveyor belt length: 300 mm, conveyor belt width: 6,000 mm, machine/vehicle number: 0112613,, Machine recovered from the insolvency of an automotive supplier - machines are currently still in operation! TECHNICAL DETAILS Sawblade diameter: 550 mm Roller conveyor: 300 x 6,000 mm Material feed Feed: automatic Material clamping: present EQUIPMENT - Automatic feed - Material clamping - Control system - Chip extraction system - Two light barriers Further information according to the manufacturer - without guarantee Machine length: approx. 17.2 m Sawblade speed: approx. 2,800 rpm U-axis travel: approx. 7.4 m Sawblade swivel range: -45° to +45° Ncelewbvbtjhccqrer Maximum loading length: 7,200 mm

Condition: like new (used), Year of construction: 2021, CNC work center with 3 controlled axes with automatic rotation of the tool on three fixed positions that allows to perform machining on 3 sides of the piece. It is dedicated to the machining of bars or pieces in aluminum, PVC, light alloys in general and steel up to 2 mm thick. It has a manual 9-place tool magazine to which one or two automatic magazines with 4 places each can be added, which can be installed on both sides of the cabin. The profile is positioned using a pneumatic stop positioned on the left, the locking is done using 4 sturdy clamps that are positioned automatically via the X axis. The optional installation of a second pneumatic stop on the right side allows to perform oversized machining of bars of double length compared to the working field. All CN axes are absolute and do not require zeroing when restarting the machine. It also has a mobile work surface that facilitates the piece loading/unloading operation and significantly increases the workable section. ELECTROSPINDLE - M - The 4 kW electrospindle in S1 can reach a speed of 20,000 rpm. The electrospindle can perform an automatic rotation by electronically locking itself in 3 fixed positions (-90°, 0° and +90°), allowing the profile to be machined on 3 faces, without having to reposition it. It can be used on aluminum, PVC and light alloy profiles, and can also machine steel extrusions with thicknesses of up to 2 mm. Ncelhccqswd Tdworjr VICES The machine software, depending on the length of the piece and the machining operations to be performed, is able to determine, in complete safety, the positioning height of each clamp group. The automatic positioner allows each clamp group to be hooked and moved by moving the carriage. This operation takes place with maximum speed and precision, avoiding long times and risks of collision and making the machine easy to use even by less experienced operators. The mobile work table facilitates the loading/unloading operation of the piece and significantly increases the workable section.

Year of construction: 2011, Condition: excellent (used), Functionality: fully functional, 4-axis milling machine Ncelhccjwaa Uueqrsr 8 pneumatic clamps with automatic positioning automatic toolchange 8 tools Dynamic pendular usefull lenght 7700 mm

Condition: excellent (used), Year of construction: 2014, Functionality: fully functional, cutting length (max.): 6,000 mm, saw blade diameter: 550 mm, Used Emmegi PrecisionTS2 Emmegi Precision TS2 Double Miter Saw Year of 2014 Cutting length 6000mm Double miter saw with 3 controllable axes with automatically movable saw unit and electronic control of all miters from 45° (inside) to 15° (outside) with an accuracy of 280 intermediate positions per degree. Including profile support roller conveyor on the movable unit Nolhcjwaz Agecqrocr Additional clamping device on the roller conveyor Label printer with dispenser PRO software (overlength cutting, underlength cutting, cross-cutting, wedge cutting) SLICE software (butt cuts with variable corners and lengths up to a usable cut of 500mm) Driver for connecting external calculation programs

Condition: good (used), Year of construction: 1996, Functionality: fully functional, machine/vehicle number: 238067, saw blade diameter: 450 mm, type of input current: three-phase, Saw for cutting aluminum profiles at a 90 degree angle, fully automatic cutting. Njlhccqjwcbh Usrscr

Condition: refurbished (used), Functionality: fully functional, Blade diameter 450 mm Blade shaft diameter 32 mm Blade cutting speed 60 m/sec Blade feed speed 0÷60 mm/sec Nsljwctnyehccqrecr Motor power 4 Kw Blade motor revolutions 2800 rpm CE machine Dimensions 1220 x 1000 x h 1550 mm Weight 500 Kg Notes Complete with user manual and CE Including roller conveyor with positioning stop via handwheel and mechanical counter

Condition: excellent (used), Year of construction: 2011, Functionality: fully functional, Compact work center with 5 controlled axes, the last of which controls the movement of the piece reference stop to the right and left for total control of the work cycle. The rotating vice table (CN axis) allows you to work up to 4 sides of the piece without unlocking the vices. Variable speed electrospindle up to 11,500 rpm, quick tool change with collet attachments, ISO 30 cone. Ncelhcewb R Rpjcqror
