Centerless grinding machine

ESTARTA 301

Condition: like new (used), Centerless grinding machine ESTARTA 301 CNC Nodpfexfqzmex Ah Dsdd

Condition: used, Year of construction: 2001, functionality: fully functional, machine/vehicle number: 124, Price upon request Njdpfswl An Isx Ah Dsdd Used CNC Vertical Lathe Manufacturer MORI SEIKI Model VL 55 Year of manufacture 2001 With MSC 518 CNC control, 12-tool turret, and chip conveyor Turning length = 653 mm Turning diameter = 550 mm X-axis = 350 mm Z-axis = 660 mm Speed up to = 2000 rpm Spindle power = 30 kW Approx. weight = 12.5 t Price upon request Specifications: Used CNC Vertical Lathe Manufacturer MORI SEIKI Model VL 55 YOM 2001 With MSC 518 CNC control, 12-tool turret, and chip conveyor Turning dia. = 550mm Turning length = 653 mm X-Axis = 350mm Z – Axis = 660 mm Speed = 2000 rpm Spindle power = 30 kW Weight approx.. = 12.5 t

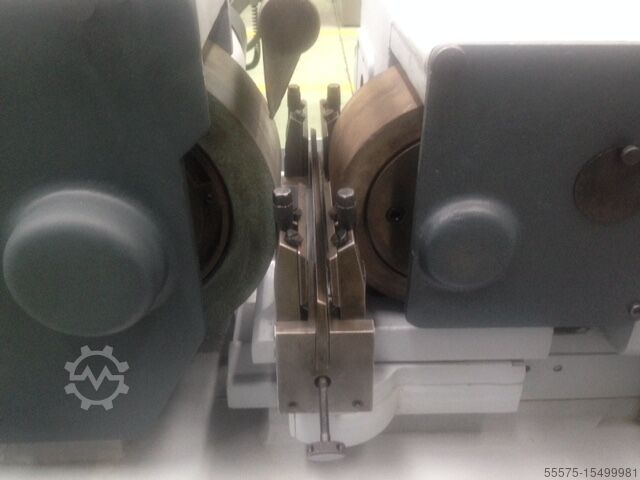

Condition: good (used), Manufacturer ESTARTA Model 301 MV Condition Used Stock number 4576 Location Badajoz, Spain Dimensions 1520x1020x1260mm Weight 1550 kg Opening between grinding wheels 1,5/50mm Max. grinding wheel width in plunge grinding plunge 125mm Dimensions of the working wheel (od x id x width) 300x125x175mm Øext.min. working wheel working wheel 220mm Max. depth of profile of working profile depth 8mm Dimensions of the driving wheel (od x id x width) 220x125x125mm Øext.min. of driving wheel drive wheel 165mm Max. depth of profile of the driving wheel profile depth 8mm Grinding wheel motor power motor power 7,5Kw Motor power of grinding wheel Njdpfsr Ezfpox Ah Dsdd driving motor power 0.75Kw Tilting angle angle of working working +/- 5º

Condition: used, TECHNICAL DETAILS - Pulling force : 80 [kN] Ndsdpfxou E U R To Ah Djd - Max. broaching stroke : 1250 [mm] - Max. feed stroke : 500 [mm] - Spindle lengths : 650 - 1400 [mm] - Table width : 400 [mm] - Broaching speed : 1 - 10 [m/min] - Return stroke speed : 1 - 15 [m/min] - Installed power : 25 [kW] - Machine weight : 4300 [kg]

Year of construction: 1965, condition: used, machine/vehicle number: 2112, Color: green Njdpfobrclvox Ah Dodd Force: 2,5 to Stroke: 1000mm Weight: 1,2 to 3 KW Area required: appr. 140 x 130 cm

Condition: excellent (used), Year of construction: 2004, Technical Specifications – ZS 130 T Gearwheel Shaving Machine Gear Specifications: * Gear diameter: 20 – 145 mm * Tooth width: 40 – 45 mm * Module range: 1.25 – 3.5 Working Area: * Swivel range of the shaving head: -23° to +90° * Taper adjustment (B-axis): +2° / -2° * Horizontal adjustment (X-axis travel): 160 mm * Swivel range of rotary table (E-axis): ±20° * Input resolution for all NC axes: 0.001 mm / degree Slide Travel (Z-Axis): * Travel range (Z-axis): 300 mm * Input resolution: 0.001 mm Shaving Cutter Dimensions: * Outer diameter: 230 – 256 mm * Bore diameter: 63.5 – 100 mm * Shaving cutter width: 50.8 – 0.2 mm Workpiece Parameters: * Outer diameter: 20 – 145 mm * Module: 1.25 – 3.5 * Gear width: up to 40 mm Rotational Speeds: * Tool spindle speed (infinitely adjustable): up to 600 rpm * Workpiece speed (machining): up to 3000 rpm Nsdekwc Tfspfx Ah Dedd * Workpiece speed (spin): up to 4500 rpm Feed Rates: * A-axis: up to 3.3 rpm * B-axis: up to 0.5 rpm * C0-axis: up to 60 rpm * X-axis feed: 10 – 10,000 mm/min * Z-axis feed: 10 – 10,000 mm/min Machine Weight: * Approx. 5,600 kg --- Machine Description: The ZS 130 T is a high-performance gearwheel shaving machine designed for the precise finishing of cylindrical gears after hobbing or shaping. Shaving is a crucial process in gear manufacturing, used to correct profile and lead deviations and to improve surface finish, ensuring quiet operation and extended gear life. This machine is capable of processing gears with modules from 1.25 to 3.5 and diameters up to 145 mm. With its CNC-controlled axes and flexible swivel and taper adjustment capabilities, the ZS 130 T allows for a wide range of gear geometries and high production efficiency. The machine is ideal for manufacturers requiring high precision, consistency, and productivity in gear finishing processes. Typical Applications: * Finishing of gears for automotive transmissions and gearboxes * Shaving of helical and spur gears * Volume production in automotive and industrial gear manufacturing * Correction of tooth profile and lead errors before heat treatment The ZS 130 T combines robust construction, high-speed capability, and flexible adjustment options, making it a reliable solution for demanding gear shaving applications.

Year of construction: 2018, condition: ready for operation (used), Two custom-made, yet reprogrammable and modifiable mixing and metering systems for 2-component polyurethane mixtures are available. 1) Gasketing and foaming system Sonderhoff DM 402, year of manufacture: 2011, mixing head: MK650, output rate: 0.08g–0.15g/s, material: 2K PU foam, robot travel X/Y/Z: 1000mm/800mm/250mm, max. application speed at R=6mm: 9m/min, max. travel speed: 20m/min, max. acceleration: 5m/s², table dimensions X/Y: 485mm/700mm. 2) Gasketing and foaming system Sonderhoff DM 402, year of manufacture: 2018, mixing head: MK125MP, output rate: 0.5g–2g/s, material: Fermapor, robot travel X/Y/Z: 2500mm/1250mm/300mm, max. application speed at R=5mm: 13m/min, max. travel speed: 58m/min, max. acceleration: 10m/s², table dimensions X/Y/Z: 2x 1200mm/1250mm. Both systems include peripheral devices and systems for monitoring and controlling temperature, consistency, mixing, refilling, and other processes. The systems can presumably be adapted to any mixing ratio – exclusively for polyurethane. Documentation available. An on-site inspection is possible. Ndjdsw Hgltopfx Ah Ded

Condition: excellent (used), Year of construction: 2007, Wittman Tempro Basic C 90 Thermostat Year of production -2007 and 2006 Heating power 9kw Njdpfx Aowh Slnoh Dsdd Pump capacity 40 l/min, 3.8 bar Cooling water connections 1/4 Output to tool 3/4 Input from tool 1/2 Electrical connection 3 x 400v, 50 HZ Capacity 9l Dimensions 235 x 660 x 590 mm Weight 31kg

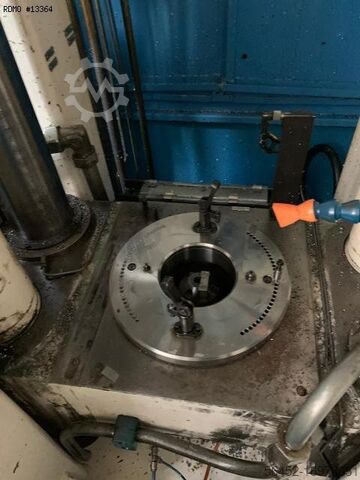

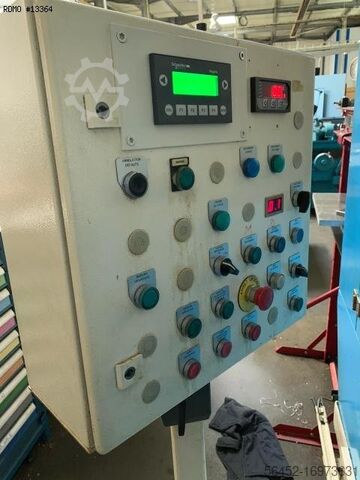

Condition: used, TECHNICAL DETAILS - max. force : 63 [kN] - broaching stroke : 1000 [mm] - spindle stroke : 400 [mm] - 3 cutting feeds : 2,5 - 5 - 7,5 [m/min] - return speed : 24 [m/min] - broaching positions : 1 - hydraulic motor : 9 [kW] - capacity of hydraulic tank : 600 [l] - capacity of cooling tank : 150 [l] - main voltage : 400 [V] - total power : 10,5 [kW] - floor space : 3.700 x 3.000 [mm] - total height : 3.200 [mm] Nsdpfxeug U H Ue Ah Dsdd - weight : 3.500 [kg]
