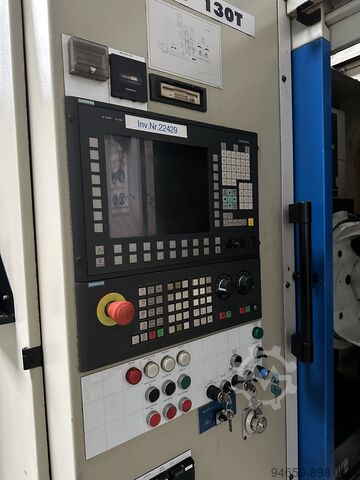

Gearwheel shaving machine

Gleason-Hurth ZS 130 T

Condition: ready for operation (used), Year of construction: 2004, operating hours: 26,583 h, functionality: fully functional, machine/vehicle number: A0248, workpiece diameter (max.): 130 mm, TECHNICAL DETAILS Workpiece diameter (max.): 130 mm Number of axes: X, Z, A, B, C (0–3) Electrical Power consumption: 47 kVA Iijdpfowmc Idex Ab Nsb Voltage: 400 V Frequency: 50 Hz

Year of construction: 1971, condition: used, Technical details: max. wheel diameter: 300 mm max. module: 5 module min. : 0,5 max. workpiece weight: 60 kg weight of the machine ca.: 4,0 t dimensions of machine: 1800x1850x2500 mm dimensions electric cabinet: Nr. 1: 1930x400x1920 mm dimensions electric cabinet: Nr. 2: 800x230x1950 mm dimensions:: Abluftanlage: 1400x700x560 mm dimension cooling device LxWxH: 1,2 x 1,0 x 0,45 m Electronically controlled tooth flank grinding machine up to module 5 and a Ø of 240 - 300 mm feed speed per workpiece revolution infinitely variable 0.4 - 3.2 mm max./min. Number of teeth: 130 / 12 max./min. Pressure angle: 30° / 14°30` max./min. Spiral pitch with 24 teeth: 6000 / 200 mm max. tooth helix angle, both sides: 45° Speed of the grinding worm: 1900 rpm Ijdpfx Aovc Apbeb Noib without dressing device Equipment: approx. 77x change transmission wheels, pipe extensions and various tools Two of these machines are for sale. Both machines are supplied via two common control cabinets and an exhaust air system. *

Condition: used, Year of construction: 2007, max. wheel diameter 380 mm gear width 540 mm max. module 7 Control SINUMERIK 840 D Axial travel 600 mm table diameter 317 mm table speeds 100 U/min milling head -swivable + / - 35 Grad milling spindle drive 27,00 kW milling spindle speeds (infinitely variable) 1500 U/min diameter of hob 160 mm cutter length max. 330 mm cutter speeds max. 3000 1/min hob dia. - max. 160 mm swarf cutter lenght - max. 330 mm tangential travel max. 300 mm 10.000 mm/min tangential speed max. 3000 mm/min 7.500 mm/min Iiodpjyt Rvhofx Ab Neb oil volume 100 l coolant capacity 780 l Counterholder movement 540 mm total power requirement 50,00 kW weight of the machine ca. 16,00 t dimensions of the machine ca. 6,00 x 4,50 x H3,50 m for the following processes: axial hobbing, individual part milling, Worm wheel milling, roofing, deburring; NC tailstock

Condition: excellent (used), Year of construction: 2006, operating hours: 53,000 h, functionality: fully functional, Full-option CNC gear grinding machine in outstanding condition, previously used in special-purpose machinery manufacturing. The machine produces up to 200 different gear types/products for special orders in batch sizes from 1 to 10,000. Manufacturer: Reishauer Model: RZ 150 Type: CNC Gear Grinding Machine Year of manufacture: 2006 Serial number: 7XXXX Machine specifications: - 2 identical workpiece spindles - Workpiece spindles with tailstocks - Turret design - Enclosed machining area - External loading and unloading station - Especially designed for run-in gearings Equipment: - Grinding worm profiling device Reishauer RP 120 - Hoffmann belt suction filter system HSF 150 - OLAER cooling unit CD35.02-NE Iedpfeyxrygjx Ab Noib - OLAER designation PC31.02NE-S - ELBARON extraction/filter unit RON/A2000V-2V-RH - 5-axis robotic automation (optional) Operating data: - Total operating hours: approx. 70,569.5 h - Run-time / part counter workpiece spindle / workstation 1: counter reading 01794635 - Run-time / part counter workpiece spindle / workstation 2: counter reading 002929 Hoffmann belt suction filter system HSF 150 - Connection: 400 V / 50 Hz - Phases: 3 / PE - Operating voltage: 400 V - Connected load: 31.4 kW - Nominal current: 56.9 A - Control voltage: 24 V DC - PLC voltage: 24 V DC - Valve voltage: 24 V DC - Lamp voltage: 24 V DC OLAER cooling unit CD35.02-NE / PC31.02NE-S - Year of manufacture: 2005 - Refrigerant: R134a - Fill quantity: 2.1 kg - Max. permissible operating overpressure HD: 21.7 bar - Max. permissible operating overpressure ND: 10.6 bar - Voltage: 400 V / 3 Ph / 50–60 Hz alternative: 480 V / 3 Ph / 60 Hz - Max. current: 5 A - Power: 2.5 kW ELBARON RON/A2000V-2V-RH - Year of manufacture: 07/2005 - Weight: 74 kg - Connection: 3 x 400 V AC / 50 Hz alternative: 1 x 230 V / 60 Hz - Power: 3.56 kW - Current: 7.0 A - Protection class: IP54 - High voltage max.: 9.9 kV DC - Current max.: 24.8 mA Condition: - Machine under power - Operated in single-shift to two-shift operation - Preventatively maintained - Very well-kept condition - Comprehensive documentation available Scope of delivery: - Without tools - Without production fixtures - Without grinding wheels - 5-axis robotic automation optional - Comprehensive documentation available Availability: - Inspection by appointment - Available from 06/2026 Sales information: - Sale as seen and inspected - Warranty excluded

Condition: used, TECHNICAL DETAILS - Number of axes : 8 - Number of spindles : 2 MAIN SPINDLE - Max. bar diameter : 25.4 [mm] - Max. machining length : 200 [mm] - Spindle speeds : 10000 [rpm] - C axis indexing precision : 0.1 [°] COUNTER-SPINDLE Ijdpfxjuhayce Ab Njib - Max. bar diameter : 20 [mm] - Spindle speeds : 10000 [rpm] - Spindle power : 3.7 [kW] - C axis indexing precision : 0.1 [°] - Number of guide bush holders : 2 GUIDE BUSH HOLDER 1 - Number of positions : 5 GUIDE BUSH HOLDER 2 - Number of positions : 5 - Number of motorized positions : 4 - Live tools speed : 8000 [rpm] SECONDARY OPERATION - Number of positions : 7 - Number of motorized positions : 3 - Live tools speed : 8000 [rpm] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 14 [kW] WEIGHT & DIMENSIONS - Machine floor space : 2270 x 1650 [mm] - Machine height : 2200 [mm] - Machine weight : 3500 [kg] MACHINE HOURS - Number of hours under power : 46571 [h] EQUIPMENT - CNC : Fanuc - Rotating tool motor on : S2 - Rotating guide bush - Parts catcher - Ejection of workpiece - Chips conveyor : KNOLL - Coolant tank * with high-pressure pump : 100 [bars] - Bar loader : TORNOS ROBOBAR SSF - Oil mist extractor : Elbaron - Fire extinguisher * * NB : working order not guaranteed. To have it checked by a qualified organization of the buyer.

Year of construction: 1997, condition: excellent (used), Universal Turning key drawing machine from Cardinal apply for toolmaker , mold maker, education and Locksmith Slot width 3 - 100 mm max. groove length 1250 mm Pulling force 6000 kg Draw length 1250mm Isdpsin Dkzefx Ab Njib Motor 5,5 KW Weight 1650 kg Dimensions 1000x1650x1000mm

Year of construction: 1965, condition: used, machine/vehicle number: 2112, Color: green Force: 2,5 to Stroke: 1000mm Iodpfx Abebrclvs Nsib Weight: 1,2 to 3 KW Area required: appr. 140 x 130 cm

Condition: used, Year of construction: 2009, Technical details: rotor dia: 30-500 mm hobbing length: 500-1000 mm total power requirement: 80 kW weight of the machine ca.: 15 t dimensions of the machine ca.: 3,6 x 2,5 x 3,0 m max. module: 8 Max. module Et milling = 12 Max. module hobbing = 12 Max. axial travel = 110 to 1100mm Max. cutter speed = 300rpm Max. cutter displacement tangential = -350 to -55mm Max. table speed = 100rpm Table drive: torque motor Filter system: chip conveyor is for magnetic materials, belt filter is for all suspended matter that floats in the oil Including milling mandrel * Iiedpfx Aev Hrp Ejb Nsb

Condition: excellent (used), Mikron Gear Hobbing Machine A33/0 – for Module 0.5 to 2.5 – rarely used Manufacturer: Mikron Isdpfex A D Izjx Ab Nsib Model: A33/0 – Gear Hobbing Machine (vertical) Version: Base machine with standard milling head Condition: used, very good condition, machine has been rarely operated Color: green Technical Data Max. workpiece diameter: approx. 80 mm Max. hobbing length: approx. 150 mm Module range: approx. 0.5 – 2.5 Ideal for small gears in the module range 0.5 – 1.0 Main drive: 3 kW Electrical connection: 3 x 380 V AC, 50 Hz Total power consumption: approx. 9.5 kVA Dimensions & Weight L x W x H: approx. 1,450 x 1,380 x 2,080 mm Weight: approx. 2,200 kg Special Features Very well-suited for manufacturing small gears (module 0.5 – 1.0) Machine was rarely used in production, therefore minimal wear Availability / Service Detailed photos and operating video available upon request Quotation including price, delivery terms, and lead time possible Subject to prior sale and errors.

Condition: used, Year of construction: 1988, max. wheel diameter 150 mm Ijdpfxowhq Eae Ab Njib gear width . mm max. module 5 min. module 0,5 Control . total power requirement . kW weight of the machine ca. 10.000 t dimensions of the machine ca. 6500 × 2700× 3600 m
