Machining center

FANUC α-D21MiA5 CNC

Condition: used, TECHNICAL DETAILS - Number of axes : 4 MILLING SPINDLE - Tool holder type : BT30 - Spindle power : 4,9 [kW] - Spindle speeds : 16.000 [rpm] LINEAR AXES - Travels on X/Y/Z axes : 700 x 400 x 300 [mm] - Rapid traverses rates (X/Y/Z) : 50 / 50 /56 [m/min] - Cutting feed rates (X/Y/Z) : 1 - 30.000 [mm/min] Gedpfexzu T Sjx Aptebp - Distance table / spindle nose (min./max.) : 330 - 630 [mm] TOOL CHANGER - Auto. Tool Changer type : Parapluie - Tool magazine capacity : 21 - Tool exchange time : 0,8 [sec] TABLE - Table dimensions : 800 x 400 [mm] - Maximum weight upon table : 250 [kg] POWER SUPPLY - Supply voltage : 220 [V] - Total installed power : 9,5 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 2.050 x 2.220 [mm] - Machine height : 2.497 [mm] - Machine weight : 2.400 [kg] MACHINE HOURS - Number of hours under power : 23.456 [h] - Number of working hours : 16.703 [h] EQUIPMENT - CNC : Brother CNC-C00 - Interface : Ethernet / USB - Electronic handwheel - CNC option : extanded Memory 500 Mo - CNC option : High accuracy mode BⅡ - Type of divisor : 4e axe CNC intégré * manufacturer : YUKIWA * model : DRC170-EU * travel 4th axis : 360 [°] * indexing precision 4th axis : 0,001 [°] * clamping diameter : 140 [mm] * center height : 135 [mm] * with counter bearing * Coolant tank : 150 [l] * with high-pressure pump : 15 [bars] * With cabin washing - Coolant through spindle - Tool probe - Electric transformer

Condition: used, TECHNICAL DETAILS - max. power : 40 [t] - max. workpiece diameter : 40 [mm] - spindle diameter : 80 [mm] Gbjdpfx Apeuhb Uhetjp - spindle length : 120 [mm] - max. tool diameter : 250 [mm] - dimensions : 2400 x 2100 x 2200 [mm] - weight : 7100 [kg] EQUIPMENT - control CNC (base Siemens) - tail stock device - coolant tank with pump - 2 boring wheel 80, diameter : 260 [mm]

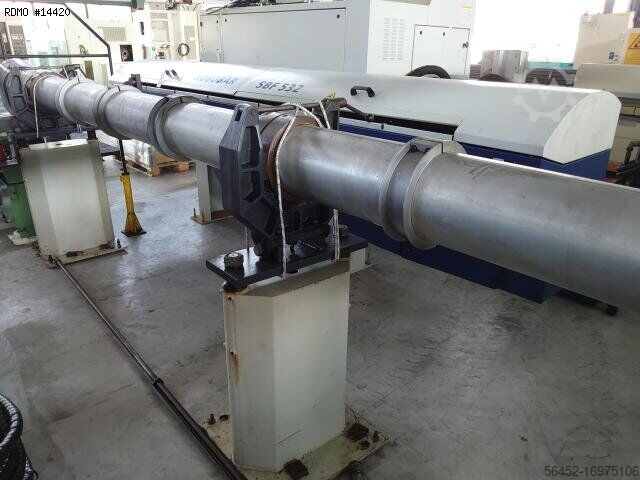

Condition: used, TECHNICAL DETAILS - Number of axes : 4 Gbjdpfxsx Tvklo Aptop - Number of spindles : 1 - Number of turrets : 1 MAIN SPINDLE - Spindle nose : A2-8 - Spindle power : 18,5 [kW] - Spindle speeds : 4.000 [rpm] - Max. bar diameter : 80 [mm] - Max. machining length : 728 [mm] - Max. turning diameter : 460 [mm] - C axis indexing precision : 0,001 [°] TURRET - Number of positions : 12 - Number of motorized positions : 12 - X/Z stroke : 260/795 [mm] - Y stroke : +/- 50 [mm] - Tool type : BMT - Live tools speed : 10000 [rpm] TAILSTOCK - Tailstock type : Numérique - Type of cone : CM5 - Tailstock stroke : 650 [mm] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 39 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 3.110 x 1.922 [mm] - Machine height : 2.120 [mm] - Machine weight : 6.100 [kg] MACHINE HOURS - Number of hours under power : 26654 [h] - Number of working hours : 15488 [h] EQUIPMENT - CNC : CELOS - Interactive programming : MAPPS 4 - Interface : USB, PCMCIA, RJ45, RS232 - Tool probe : Renishaw - Coolant tank * with high-pressure pump : 15 [bars] - Chips conveyor - Tool probe - Parts catcher - Parts conveying strip - Bar loader : LNS QUICK LOAD SERVO 80 S2 - Number of fixed tool holders : 9 - Number of turning tool holders : 3 - Electric transformer - Collet chuck

Condition: used, Year of construction: 2001, functionality: fully functional, Press force 85 t, Bending length 2050 mm, Distance between uprights 1750 mm, Control DELEM, Stroke 215 mm, Throat depth 410 mm, Total power 13 kW, Weight 8,750 kg, Machine dimensions 3190 x 2100 x 2375 mm Gbsdjw Imq Rspfx Aptop

Condition: excellent (used), Year of construction: 2005, X 450 Y 300 Z 300mm, BT 30, 10.000Rpm, cooling trough spindle, paper filter, Mitsubishi Gbsdpfx Apjtiyl Eetsp

Year of construction: 2009, condition: excellent (used), IPM-TP 40 - 400 PIPE SAW for PVC PIPE Application: Cutting and chamfering PVC, PE, PP PIPES With chip extraction fan Gjdpfx Asvbvznsptsbp Min. diameter 40 mm Max. diameter 400 mm Year of manufacture 2009 Accessories: Various clamp jaws Machine locations: Sachal Extrusionsmaschinen D-26345 Bockhorn-Grabstede Bahnhofstraße 6 The machine is my property.

Year of construction: 2004, condition: ready for operation (used), A total of three EMAG vertical turning machines are available. Chuck diameter: 200mm, max. swing diameter: 200mm, travel X/Z: 200mm/400mm, speed: 7500rpm, tool stations: 12. Machine dimensions X/Y/Z: approx. 2450mm/1900mm/2300mm, weight: approx. 5500kg, control: Fanuc. Including extraction system and chip conveyor. Documentation available. An on-site inspection is possible. Gsdpfx Apeygmdbetsbp

Condition: used, Year of construction: 2017, functionality: fully functional, Eccentric press for sheet metal processing with tools. Gbjdpfxsytykze Aptsp

Condition: used, DVS UGRIND 800 is a CNC external and internal grinder, engineered for precision, high accuracy and reliability. Handles workpieces Ø 130–500 mm; Z axis 1200 mm, X axis 250 mm. Grinding spindle 25 kW; workpiece spindle motor 24 kW; speeds 0–500 t/min stepless; supply 50 Hz 3x 400 V; weight ~7000 kg; L2850×W2490×H2290 mm; operating time 12000 Heures. Accessories: coolant system, coolant filter system, measuring feeler gauge, set of flanges for internal grinding, set of flanges, lamp, tool cabinet, electronic handwheel. Capable of achieving tight tolerances; typical applications: automotive, machine tools, aerospace, medical, watchmaking. Godpfx Apsyxnuaotjbp

Condition: good (used), Year of construction: 1999, functionality: fully functional, machine/vehicle number: M232302, turning length: 435 mm, turning diameter: 250 mm, spindle bore: 63 mm, spindle speed (max.): 4,500 rpm, travel distance X-axis: 195 mm, travel distance Z-axis: 480 mm, rapid traverse X-axis: 12 m/min, rapid traverse Z-axis: 24 m/min, total height: 2,200 mm, total length: 8,000 mm, total width: 2,400 mm, overall weight: 5,000 kg, bar passage: 52 mm, spindle nose: A2-5, controller manufacturer: FANUC, controller model: SERIES 18i-T, Equipment: chip conveyor, rotational speed infinitely variable, NAKAMURA TOME WT-250 CNC lathe - Operating voltage: 400 V - Frequency: 50 Hz - Rated current: 225 A - Connection: 62 kVA - Swing diameter over bed: 250 mm - Swing diameter over carriage: 250 mm Gedpfx Ajyvrthoptebp - Standard turning diameter: 100 mm - Max. bar size: 51 mm - Chuck size: 6 inch - Front spindle bearing diameter: 90 mm - Tailstock travel: 620 mm - Tailstock rapid traverse: 24 m/min - Ball screw diameter: 32 mm - Ball screw pitch: Diameter 12 mm - Distance between spindle centers: min. 250 mm, max. 870 mm - Positional accuracy of feed axes: 0.05 mm The machine is equipped with a counter spindle, HAINBUCH clamping system, a main spindle with a HAINBUCH clamping system, a double turret with the tool holders visible on the turret, as well as a bar feeder from the manufacturer KUPA, type: LM92P, and a chip conveyor and transformer. Attention: the item must be picked up between May 12th and May 22nd, 2026, on a date to be agreed upon. FCA D-73529 Schwäbisch Gmünd - loaded onto a truck.
