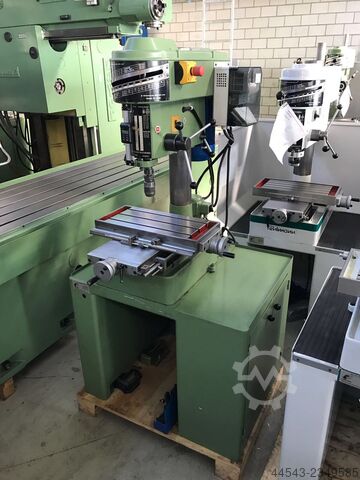

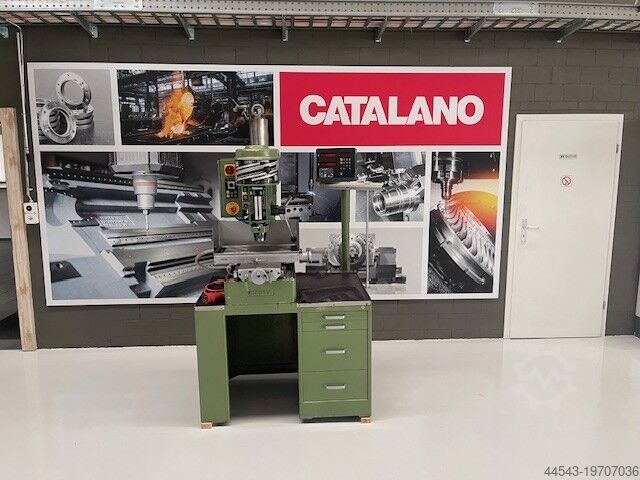

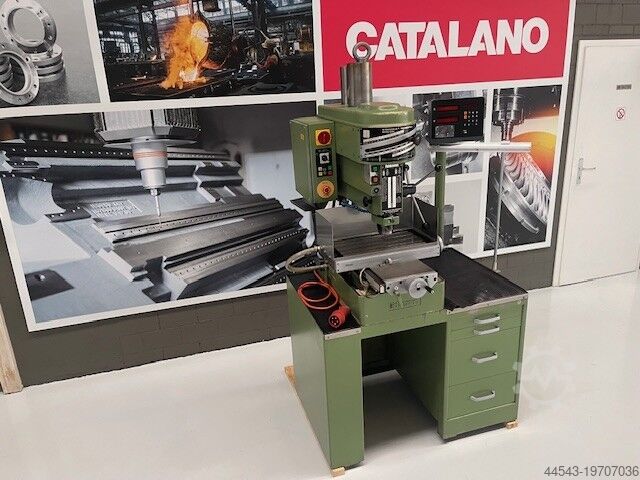

UMD drilling milling machine

Fehlmann Picomax 18

Condition: excellent (used), - Mitutoyo digital readout. - Accessories available. Travel distances: X-axis travel: 280 mm Y-axis travel: 210 mm Cross table: KS 255 Ijdsw Hqh Ejpfx Ahujtb Spindle speeds: 135 – 4,500 rpm

Condition: new, functionality: fully functional, Fervi T047/400VDA Gear-Driven Milling and Drilling Machine with Tapping 400V 1.5kW BRAND NEW “CE” CERTIFIED Itodpeg Npiwsfx Ahuob Promo price – single unit available while stocks last. The machine can be used for: Milling Drilling Tapping Drilling capacity in cast iron (with pilot hole): ø 40 mm Max drilling capacity in steel (with pilot hole): ø 32 mm Milling capacity with indexable cutter: ø 80 mm Milling capacity: ø 25 mm Tapping capacity: Ø 22 mm Taper: MT 4 Quill stroke: 130 mm Quill diameter: ø 76 mm Column diameter: ø 115 mm Head tilt: ± 60° Spindle speed: (12) 75 ÷ 3200 rpm Three-phase motor: 400 V 50 Hz 1.1 – 1.5 kW Table dimensions: 585 x 190 mm T-slot: 12 mm Base dimensions: 648 x 412 mm Overall dimensions: 740 x 790 x 1960h mm Weight: 390 kg.

Condition: excellent (used), - Heidenhain digital display. Isdew Hqf Rjpfx Ahustb - Accessories available. Travel paths: X – travel 280 mm Y – travel 210 mm Cross table KS 255 D Spindle speeds 135 – 4,500 rpm

Condition: excellent (used), - Digital display Heidenhain - Accessories available Travel paths: Ijdpfx Ahjv E D Ttoujtb X – path 280 mm Y – path 210 mm Cross table KS 255 D Spindle speeds 135 – 4,500 rpm

Condition: good (used), bore capacity in steel (diameter) 25,0/30,0 mm throat 260 mm bore stroke 120 mm number of spindle speeds 80-1400 min-1 Itjdpfxsuhhzhj Ahujb table surface area 410 x 390 mm total power requirement 0,8/1,5 kW weight of the machine ca. 250 kg dimensions of the machine ca. 0,75 x 0,6 x 1,15 m

Condition: new, Variable-speed ISO 40, Motorized cross table on all axes. 3-axis viewer included. Base with chip tank. Refrigeration system. Led lamp. Mechanical speed indicator. Variable speed motorized axes with rapids. Rail lubrication system with manual pump. Milling capacity with insert cutter : mm 100. Milling capacity : mm 35. Drilling capacity on cast iron with pre-hole : mm 60. Max drilling capacity on steel with pre-hole (s235jr) : mm 24. Spindle taper : ISO40 DIN2080. Spindle sleeve : mm 86. Spindle stroke : Ijdpfx Aeh Im H Sohuetb 120 mm. Head inclination : +/- 45°. Vertical head rotation : +/- 90°. Head body rotation : +/- 180°. Vertical spindle speed : (2) 60 ÷ 500 |500 ÷ 3600 rpm. Motor : 400 V 50 Hz 2.25 kW. Distance between machine nose and table : 45 - 395 mm. Spindle-column axis distance : 215-450 mm. Table size : 1246 x 230 mm. Longitudinal table displacement : 850 mm. Transverse table displacement : 310 mm. Maximum load capacity : 400 kg. Dimensions : 1680 x 1500 x 2100 h mm. Net weight : 1000 kg.

Condition: new, Fervi T052/400VDA Milling drill. Ready for delivery except sold. With automatic descent, choice of direction of rotation and belt drive rack spindle 1 ÷ 13 b16 drilling spindle attachment cm 3 cutter attachment cm 3 ø 27 mm refrigeration system Drilling capacity with pre-hole Ø 32 mm Milling capacity with insert cutter Ø 76 mm Isdoh Dbbgopfx Ahujtb Milling capacity Ø 20 mm Head stroke 405 mm Morse taper CM 3 Column spindle distance 205 mm Max. distance between spindle and table 700 mm Spindle stroke 130 mm Manual vertical feed division 0,05 mm Sleeve Ø 75 mm

Condition: good (used), Year of construction: 2006, machine/vehicle number: 860027, Offer 24331 Technical data: - Table surface 1700 x 550 mm - manual travel X / Y 1300 x 500 mm - MAXION drilling machine, type: BT 18 STP - Drilling capacity up to 18 mm - Tapping device up to M 16 Itedsu Aq Amjpfx Ahuob - Drill spindle holder MK 2 - Drill spindle stroke with fine drilling depth adjustment 76 mm - Pneumatic feed unit PV 12 - throat depth 670 mm - Spindle speeds 100 - 1800 rpm - 200 - 3600 rpm - mot. Stroke of the drilling unit - mot. Table clamping x + y - Minimum quantities Lubrication - Pneumatic connection 6 bar - Connection 400 V - Space requirement approx. W 1750 x H 1600 x D 1000 mm - Weight approx. 1200 kg

Condition: new, ELMAG Geared pillar drill GBM 3/30 SNA - Set Fast geared pillar drill 1,200 / 900 W The robust GBM 3/30 SNA pillar model is equipped with a powerful special gearbox, has a drilling capacity of 30 mm in steel and, with a quill spacing of 820 mm, offers plenty of space for holding tall workpieces. Helical gears made of steel and pressed material ensure high load capacity and smooth running. The GBM 3/30 SNA is therefore a perfect solution for medium-sized requirements in steel construction and metalworking stores, also for small batch processing. Standard equipment - Quick-action drill chuck B 16, 1 - 16 mm - Taper arbor MK 3 / B 16 - Reducing sleeve MK 3 / MK 2 - Reducing sleeve MK 3 / MK 1 - Drive-out wedge - Operating instructions / CE Set equipment - GBM 3/30 SNA geared pillar drill - Machine vice 120 or 150 mm - Two clamping screws 14 mm - 9-piece drill cartridge, 14.5 mm - 30 mm, MK 2 / MK 3 - Cutting oil spray ADVANTAGES Drilling capacity Ø 30 mm Automatic sleeve feed (0.1; 0.15; 0.22; 0.33 mm/rev) Cubature 500x350x870 mm Spindle projection 320 mm Powerful drive motor 400 V, 2-stage 1,200 / 900 W Smooth-running quality gearbox with heavy-duty helical gearing 8 speeds 75 - 3,010 rpm Drill spindle with precision bearing Clockwise and counter-clockwise rotation Drill spindle protection cover Drilling depth scale and stop Tool ejector Large, precise drill table with T-slots and coolant channel Heavy-duty, ground steel column with gear rack Rotatable and height-adjustable drill head Itodet Edzaepfx Ahueb Heavy-duty, ground steel column with toothed rack Emergency stop button / zero voltage release TECHNICAL DATA Drilling capacity in steel 30 mm Thread cutting capacity M22 Spindle holder (turning spindle) MK 3 Speed range 75 - 3010 rpm Speed steps 8 Quill stroke 150 mm Quill feed stages 4 Column diameter 105 mm T-slots, width 14 mm Drill head stroke 270 mm Drill table stroke 500 mm Spindle projection 320 mm Drill table rotatable ± 180 ° Drill head rotatable ± 180 ° Quill spacing table 50 - 820 mm Drilling table surface 500x350 mm Motor power (2-stage) 900 / 1200 W Mains connection 400/50 V/Hz Cubature 500x350x870 mm Base plate area (lxw) 400x670 mm Weight 210 kg

Condition: new, Technical Specifications: Tool Holder: MT 3 Drilling Capacity: 25 mm Drilling Depth: 120 mm Throat: 250 mm Speed Range, Continuous: 0 - 2000 rpm Table Size: 470 x 420 mm Itsdpfevnrgaex Ahueb Column Diameter: 100 mm Motor Power: 0.75 kW Weight, Approx.: 200 kg Dimensions (W x D x H), Approx.: 630 x 850 x 1760 mm Features: - Continuous speed adjustment with digital display - Height-adjustable spindle guard with micro limit switch - Base plate with T-slots - Emergency Stop Push Button - Star Grip - CE
