Drilling and milling machine

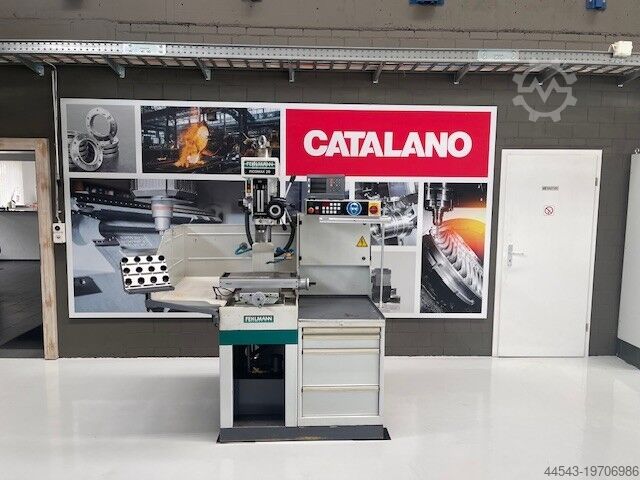

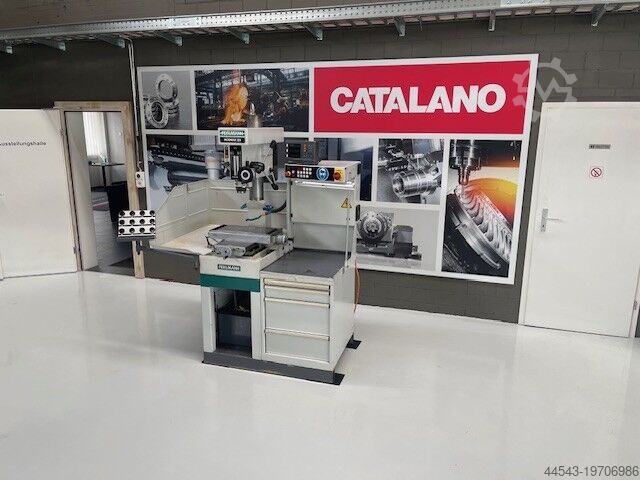

Fehlmann Picomax 20

Condition: ready for operation (used), Year of construction: 1999, x-travel 350 mm y-travel 260 mm w-axis 450 mm z-axis 110 mm tool taper SF 32 Quickchange-System turning speed range - stepless 50-6300 U/min table surface area 670 x 320 mm table load 0,2 t feed range - table manuell mm/min feed for quill 1: manuell mm/U total power requirement 2,9 kW weight of the machine ca. 0,9 t dimensions of the machine ca. BTH 1,47 x 1,34 x 2,10 m Lhodpfxez Dpz Te Aiqjl Infinitely variable electronic spindle speed control: 50–6,300 rpm (with 5 memory presets) Power: 2.9 kW (100%), 40 Nm max. Clockwise/counter-clockwise thread cutting Adjustable quill depth stop Precision height adjustment with fitted column wedge Includes machine base with integrated tool cabinet Fine depth feed via handwheel Precision coordinate table incl. direct measuring system Heidenhain digital position display Swiveling tool rack for 12 SF32 tools Incl. Heidenhain digital readout Incl. coolant pump Incl. electrical schematics; operating manual not included

Condition: used, TECHNICAL DETAILS - max. power : 40 [t] - max. workpiece diameter : 40 [mm] - spindle diameter : 80 [mm] - spindle length : 120 [mm] - max. tool diameter : 250 [mm] - dimensions : 2400 x 2100 x 2200 [mm] - weight : 7100 [kg] Lhodpfx Aouhb Uhoiqsl EQUIPMENT - control CNC (base Siemens) - tail stock device - coolant tank with pump - 2 boring wheel 80, diameter : 260 [mm]

Condition: excellent (used), Heidenhain digital readout. Fehlmann cross table: KS 255. Accessories: available. Lhedpfx Aisw Hqdmjqel Working range: Quill stroke Z-axis 110 mm Machine head travel 450 mm Table spindle nose 0 - 527 mm Quick-change systems SF 32 Work spindle 2.9 kW Speed range infinitely variable 50 - 6300 rpm Clamping surface 255 x 550 mm Dimensions and weight: Space requirement W x D x H 1.5 m x 1.35 m x 2.1 m Weight approx. 850 kg

Condition: used, Year of construction: 2008, functionality: fully functional, travel distance X-axis: 800 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 500 mm, torque: 46 Nm, controller manufacturer: HEIDENHAIN, controller model: 530, spindle nose: HSK A 63, number of slots in tool magazine: 170, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, CNC Heidenhain iTNC 530 WORKING AREA Longitudinal travel X: 800 mm Transversal travel Y: 600 mm Vertical travel Z: 500 mm Ledpfxjy Tam Rs Aiqohl B axis: +30° / -100° C axis: n x 360° WORK TABLE Table dimensions: 320 x 320 mm Maximum workpiece weight: 120 kg SPINDLE Spindle taper: HSK A63 Maximum spindle speed: 24.000 rpm Motor power 40% ED: 22 kW Maximum torque 40% ED: 46 Nm AUTOMATION Tool magazine capacity: 170 tools Erowa pallet changer: 7 positions MACHINE EQUIPPED WITH • High-pressure coolant through spindle • Probe • Laser tool presetting • Chip conveyor • Oil mist cooling system • Rotoclear • ITC Intelligent Thermal Control • ITC-5X 5 Axis Intelligent Thermal Control • APS Advanced Process System • Remote electronic handwheel • Instruction manuals and CE declaration

Condition: used, Year of construction: 2001, functionality: fully functional, Press force 85 t, Bending length 2050 mm, Distance between uprights 1750 mm, Control DELEM, Stroke 215 mm, Throat depth 410 mm, Total power 13 kW, Weight 8,750 kg, Machine dimensions 3190 x 2100 x 2375 mm Lsdsw Imq Rjpfx Aiqjhl

Condition: excellent (used), Sound insulating cabins. For Bruderer high speed automatic presses. On stock available cabins for machines: BSTA 25 BSTA 41 BSTA 50 BSTA 60 BSTA 80 Lhodsiw Icbspfx Aiqjl Cabins sold refurbished, carefully disassembled and packed for transport. Painted in white and anthracite (or colors requested by customer). Cabin is equipped with all needed holes for easy use of a Bruderer press. Front and rear doors with inspection glass. Air ventilator for climate control on top cover. For more information don't hesitate to contact us. We have on stock Bruderer BSTA 25, BSTA 30, BSTA 50, BSTA 110, also Mabu and Schaal automatic punching machines.

Condition: new, distance between shaft and table: 470total power requirements: 2,2 kwweight approx.: 1,2messurements (LxWxH): Länge2400 mm Breite/Tiefe2160 mm Höhe2300 mm Gewicht 1200 kgspindle rotation speed: 60 4200 min¯¹ Lhsdjd H Hhzjpfx Aiqel

Condition: repair required (used), Fehlmann Picomax 60 M (5-axis universal milling machine) with Heidenhain TNC 426 x-axis 500 mm y-axis 350 mm z-axis 610 mm Motor spindle 18,000 rpm Power 10.2 kW 24-position tool changer Ljdowmwrdspfx Aiqohl Weight 3,200 kg with 4 axes SK 30 tools approx. 40 tool holders The machine has the following problems: - Heidenhain 430 control system is defective (booting up is not always possible, crashes during machining)

Condition: good (used), Year of construction: 2006, machine/vehicle number: 860027, Offer 24331 Technical data: - Table surface 1700 x 550 mm - manual travel X / Y 1300 x 500 mm - MAXION drilling machine, type: BT 18 STP - Drilling capacity up to 18 mm - Tapping device up to M 16 - Drill spindle holder MK 2 - Drill spindle stroke with fine drilling depth adjustment 76 mm - Pneumatic feed unit PV 12 - throat depth 670 mm - Spindle speeds 100 - 1800 rpm - 200 - 3600 rpm Lhsdpfxeu Aq Amo Aiqjl - mot. Stroke of the drilling unit - mot. Table clamping x + y - Minimum quantities Lubrication - Pneumatic connection 6 bar - Connection 400 V - Space requirement approx. W 1750 x H 1600 x D 1000 mm - Weight approx. 1200 kg

Condition: used, Year of construction: 1985, bore capacity in steel (diameter) 30 mm x-travel 850 mm y-travel 435 mm Control HEIDENHAIN TNC 150 total power requirement 16 kW weight of the machine ca. 3500 kg dimensions of the machine ca. m F E H L M A N N (Switzerland) CNC-Controlled High Precision Drilling and Milling Machine with HEIDENHAIN CNC-Control Model TNC 150 Model PICOMAX 100 CNC – 2 + A * Year 1985 Serial No. 16 085 109 _____ Table travel: Longitudinal ( X-Axis) 850 mm Cross (Y-Axis) 435 mm Milling/Boring head travel vertical ( Z-Axis) 210 mm Table size /Clamping area 500 x 1.570 resp. 390 x 1.280 mm Mounting height below spindle, approx. 140 / 690 mm Height adjustment of Milling head max. 540 mm Distance between spindle and column 450 mm Spindle taper SF 32 Spindle quill travels 210 mm Drilling Capacity approx.. 30 mm Spindle speeds steplessly adjustable 50 – 2,500 rpm Feeds steplessly adjustable 1 – 8.000 mm/Min. Quick feed 8.000 mm/Min. Spindle drive, approx. 6 kW Total electrical load 16 kW - 400 V - 50 Hz Weight, approx. 3,500 kg Accessories / Special Features: * HEIDENHAIN – CNC Path Control System Model TNC 150 with colour Screen Grafik, Subroutines, cycles, Threading cycles, Milling Cycles, etc. Mobile Control unit with electronic handwheel. Ideal for quick set-up and approach to the workpiece. * The quill movement can be actuated manually or also by the CNC-Control, * The Drilling depth can be presetted by a 12 fold turret drum for different quillstops and with a digital display of the values on monitor. * The complete Milling/Drilling head can be positioned in 3 different heights and with automatic clamping. * Hi Precision Coordinate table controlled by the XY – CNC axis with hardened Ljdpfot Hxa Hjx Aiqehl ball screw spindles. * With quick change tool holders, chucks, millers, etc. and with coolant device. Condition : Very Good to excellent - Machine under power, ideal for small batch production Delivery : Ex stock, as inspected. Payment : Net, after conclusion of contract.
