Edgebander

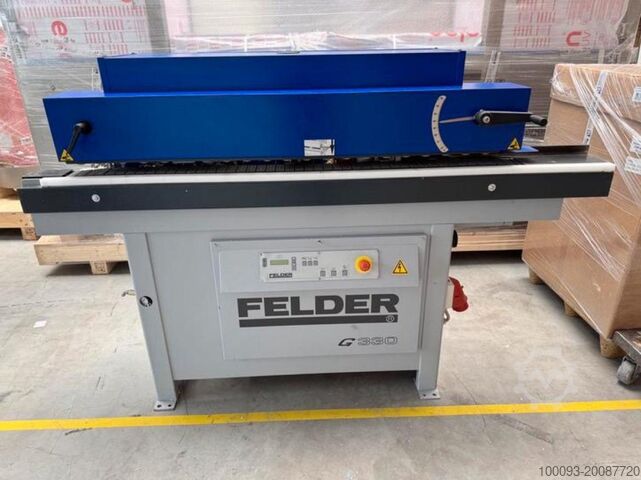

Felder G330

Condition: excellent (used), Year of construction: 2013, functionality: fully functional, FELDER G330 Edge Bander Used edge bander, post-service inspection. - Machine in excellent technical condition. - Year of manufacture: 2013. - One-owner machine. - Recently serviced. EQUIPMENT: Electrical equipment: - Supply voltage: 3x 400 V - Power frequency: 50 Hz Workpiece dimensions: - Edge thickness: 0.4 – 3.0 mm - Workpiece thickness: 10 – 45 mm - Minimum workpiece width: 70 mm - Minimum workpiece length: 210 mm Units: - Edge feeding from coil via feed plate - Edge feeding for thicknesses 0.4–3 mm, manual feed for individual edging strips - Guillotine shear for trimming coil edges up to 3 mm thick - Gluing unit for hot-melt granulate adhesive, Teflon-coated glue pot - Spring-loaded pressure unit, 1 straight pressure roller and 1 pressing roller - Saw trimming unit: 9,000 rpm, 0.18 kW, HW saw blades Z=16, Ø 80 mm - Multifunctional milling unit: 12,000 rpm, 0.22 kW, for rounding, straight milling, and chamfering - Mechanically-activated corner scraper unit for R=2 mm - Mechanically-activated flat scraper unit Operation: - Control panel with LCD display and keypad - Quick, tool-free unit adjustment system Feed: - Workpiece feed with chain-type conveyor - Feed speed: 8 m/min - Extendable support General data: - Extraction port Ø 120 mm Overall dimensions: - Length: 2,000 mm - Width: 800 mm - Height: 1,500 mm - Weight: 360 kg Machine financing available via leasing or installments. Just visit our website: jbsmaszyny.pl We invite you to test the machine. Where to see our machines? JBS WOODWORKING MACHINERY WOLICA DRUGA 26 23-310 MODLIBORZYCE, Poland Nationwide machine transport! Psdpfx Agexly I Asqegw Phone: 663 495 647 (German) Phone: 664 335 475 (English) Phone: 530 632 386 (English)

Condition: excellent (used), Felder G330 Feature Specification / Description Machine length / installation length ~ 2444 mm (≈ 2.44 m) Edge (band) thickness ~ 0.4 mm up to ~ 3.0 mm (some sources say up to 5 mm for stick edges) Workpiece (panel) thickness ~ 10 mm to 45 mm Minimum workpiece size ~ 210 mm length; ~ 70 mm width Feed speed / advance speed 8 m/min in many listings Motors / Power 5.5 kW (for some used models) 3×400 V, 50 Hz is a common power configuration Glue pot Teflon‑coated glue pot, capacity ~ 1.2 kg glue Cutting / Trimming / Milling features Pneumatic guillotine cutters for end cuts Quick‑Set system for switching between flush, beveled, or radius trimming Radius scraping unit, glue scraping unit, buffing unit (optional) Dust / vacuum connection 120 mm vacuum connection (Ø 120 mm) este într-o stare perfectă de funcționare Pjdpoxga Skefx Agqogw

Year of construction: 2013, condition: excellent (used), Caracteristică Valoare / descriere Funcție aplicare cant pe borduri / plăci Lungime totală 2 444 mm (≈ 2,44 m) Sistem de alimentare transport pe lanț (“chain conveyor”) Reglaje rapide (“Quick‑Set”) da — pentru adaptarea la grosimea cantului Buncăr / rezervor de adeziv Teflon coated, capacitate 1,2 kg Grosimea cantului suportată ~ 0,4 – 3 mm (pentru cant în rolă) Grosimea plăcii (piesei de lucru) 10 – 45 mm Lățimea minimă piesă ~ 70 mm Lungimea minimă piesă ~ 210 mm Viteza de alimentare ~ 8 m/min Greutate estimată ~ 350 kg Diametrul tubului de aspirare ~ 120 mm Pjdpfx Agexga Npoqegw
