Circular sawing machines

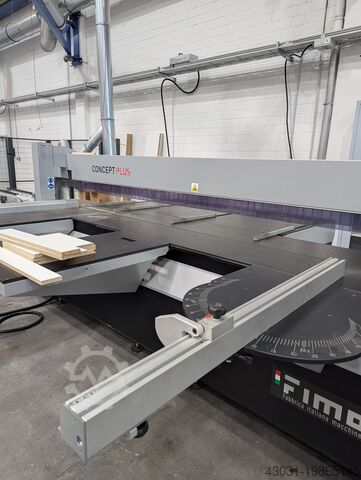

FIMAL Concept 350 Plus Schnittlänge 3.200 mm

Exhibition machine – as new –

including the following options:
- Laser cutline indicator
- Saw motor with 7.5 kW (10 HP)
- Mitre fence swivels +/- 50° with length compensation
- Programmable saw blade height adjustment

Saw unit swivels up to 46°
Pressure beam, including:
LED lighting with 3 different action colors:
- WHITE: Machine at standstill
- RED: Pressure beam lowering or emergency stop function
- BLUE: Saw unit in motion
Up to 3,400 mm extendable telescopic stop with 2 digital displays
4 parallel, motorized positioning width stops on a 2,000 mm wide support table, size adjustment up to 1,300 mm
Automatic stop retraction
Csdpfx Asw Uf Nljbwjhc
Versatile support table 800 x 200 mm
Scoring system using the main saw blade in synchronised rotation
Automatic workpiece length detection for minimum travel distances

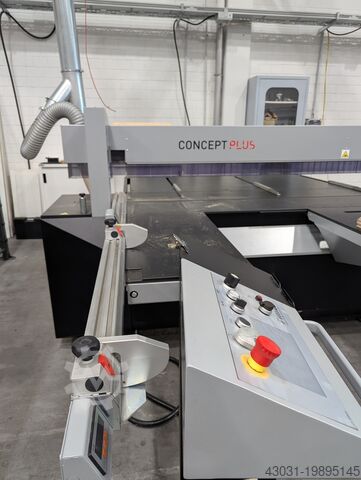

Mobile, height-adjustable control panel, including:
- Touchscreen control panel with cut plan creation
- Saw blade stand
- Template holder
- Emergency stop button, start button, selector switch for grooving/groove sawing/cutting, rotary switch for feed speed
- Switch for laser (option)
- USB socket
Attention: Machine is supplied without saw blade!
Technical data:
Cutting length: 3,200 mm
Max. saw blade projection: 100 mm at 90°, 72 mm at 45°
Saw blade: Diameter 300 – 350 mm, bore 30 mm
Saw blade speed: 4,000 rpm
Motor: 5 kW (= 7.5 HP)
Feed speed: 0 – 40 m/min
Overall length: approx. 4,270 mm
Weight: from approx. 1,150 to 1,550 kg (depending on equipment)
Required air pressure: 7 bar
Extraction ports: 1 x 100 mm, 1 x 120 mm
