Sliding table saws Fimal Concept 350 2018

Fimal Concept 350

Year of construction: 2026, condition: new, New machine Year of manufacture: 2026 Partnership Edition General features: - Aluminium machine and extension tables - Saw unit tiltable up to 46° - Pressure beam including LED lighting with 3 different status colors: WHITE: Machine in idle position RED: Pressure beam lowering or emergency stop function BLUE: Saw unit moving; variably positionable support table 1,000 x 500 mm - Scoring system using main saw blade in the same direction of rotation - Automatic workpiece length detection for minimal travel distances - Mobile and height-adjustable control panel including: saw blade holder, template holder, emergency stop button, start button, selector switch Scoring/grooving saw, rotary switch for feed speed, switches for laser (option) and USB socket Partnership Edition includes: - Motorized rip fence with 4 aluminum stops, synchronized positioning. All four stops adjustable up to 1,300 mm. The table is approx. 2,000 mm long. - Windows 10 screen control (10'' touchscreen). The graphical interface offers the following functions: tool database, miter cut calculation at the length stop, cutting plans can be created and saved, programs can be saved, exported, and imported via USB. - Telescopic stop extendable to 3,400 mm including 2 digital displays Hjdeyncpcspfx Afcoi Technical data: - Max. saw blade protrusion 350 mm blade: 100 mm at 90° / 70 mm at 45° - Saw blade: diameter 300 – 350 mm, bore 30 mm - Saw blade speed: 4,000 rpm - Motor: 5 kW (approx. 7.5 hp) - Feed speed: 0 – 40 m/min - Overall length: approx. 4,250 mm - Weight: approx. 1,300 – 1,700 kg (depending on cutting length and equipment) - Required air pressure: 7 bar - Extraction ports: 1 x 100 mm, 1 x 120 mm Includes: - Motorized rip fence with 4 aluminum stops, adjustable up to 2,100 mm instead of 1,300 mm - Cutting line laser - Saw motor with 7.5 kW (10 hp) including automatic star-delta startup - Programmable saw blade height adjustment including height correction when tilting the saw unit - Mitre fence tiltable +/- 50° with length compensation Location: Flörsheim am Main Availability: by arrangement

Year of construction: 2022, condition: new, angle: 0° - 90° max cutting length: 1370 mm Hsdpji Ezr Njfx Afcsi

Condition: excellent (used), Year of construction: 2017, functionality: fully functional, Maximum width: 1300 mm Hsdpfx Afeyl U Rgecei Carriage length: 3200 mm Blade: Maximum diameter 350 mm, tiltable 0-46° Blade rotation speed: 4000 rpm Panel reading system Mounted on a mobile pedestal, equipped with PLC memory for up to 250 programs Telescopic squaring fence up to 2500 mm Motorized rear fence with double rotating stop Comes with a removable quick-release side table Third motorized stop for parallel cuts on panels over 1500 mm in length Control panel with 8" touchscreen displaying cutting diagrams Equipped with USB port for importing cutting programs No printer and no optimizer included

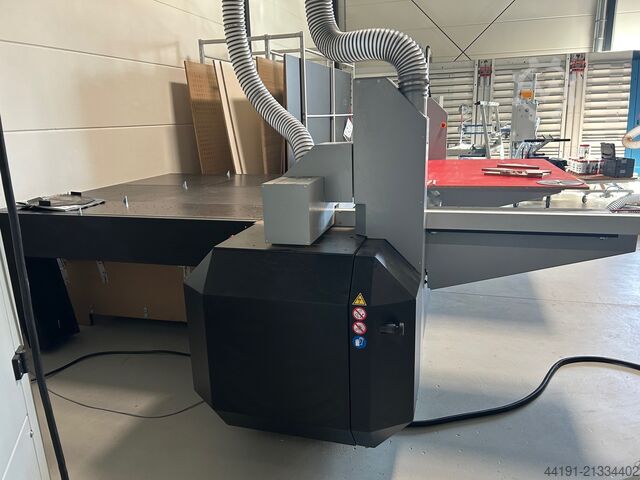

Condition: as good as new (ex-display), functionality: fully functional, power: 7.35 kW (9.99 HP), cutting height (max.): 105 mm, cutting width (max.): 2,100 mm, saw blade diameter: 350 mm, total length: 4,300 mm, The FIMAL CONCEPT 350 ELITE is the further development of the proven CONCEPT 350 PLUS, setting new standards in precision, safety, and efficiency. With a reinforced machine base, optimized extraction system, and a redesigned Multistop fence table, it offers even greater comfort and performance for joiners, furniture makers, and industrial panel processing. Hjdpjw Axf Rofx Afcoi Thanks to its pressure beam with automatic feed, the ELITE combines the flexibility of a sliding table saw with the cutting quality of a pressure beam saw – all within a footprint of just 28 m². Technical Specifications ⦁ Aluminum machine and extension tables ⦁ Saw unit tiltable up to 46° ⦁ Pressure beam, including LED lighting with 3 different action colors: WHITE: Machine in stand-by RED: Pressure beam lowering or emergency-stop function BLUE: Saw unit in motion ⦁ Versatile support table 1,000 x 500 mm ⦁ Scoring system via the main saw blade (co-rotating) ⦁ Automatic workpiece length detection for minimal travel distance ⦁ Mobile and height-adjustable control panel, including: Saw blade holder, template holder, emergency-stop button, start button, selector switch for grooving/scoring/cutting, rotary switch for feed speed, switches for laser (option) and USB socket ⦁ Max. saw blade projection (350 mm blade): 100 mm at 90° / 70 mm at 45° ⦁ Saw blade: diameter 300 – 350 mm, bore 30 mm ⦁ Saw blade speed: 4,000 rpm ⦁ Motor: 5 kW (= 7.5 HP) ⦁ Feed speed: 0 – 40 m/min ⦁ Total length: approx. 4,250 mm ⦁ Weight: approx. 1,300 – 1,700 kg (depending on cutting length and configuration) ⦁ Required air pressure: 7 bar ⦁ Extraction port: 1 x 100 mm, 1 x 120 mm ⦁ Extension table length: 3,670 mm / 4,270 mm / 4,870 mm (total length) ⦁ Tilting range: 0 - 46° ⦁ Sliding table: 1,000 x 400 mm (extension table) ⦁ Crosscut fence: 3,200 mm with 2 digital flip stops ⦁ Speed: 4,000 rpm ⦁ Air requirement: 6 bar ⦁ Motor voltage: 400 V (50 Hz) ⦁ Feed speed: 0 - 40 m/min Options Multistop, cutting width 2,100 mm instead of 1,300 mm Programmable saw blade height adjustment Miter fence +/-50° Cutting line laser Including delivery and installation within postal code areas 71,72,73,77,78,79,86,87,88,89

Condition: good (used), Code: 0190 Brand: MASTERWOOD Model: PROJECT TF 100 - CE Standard CNC point to point throughfeed boring machine for panels, furniture, custom-made furniture, kitchens, bathroom furniture, carpentries and various - CE Standard Features: Robust clamping device for panel translation running on linear guides with preloaded ball bearings and moving by means of ball screw with high precision and stiffness. Brushless motor Working table: table with idle rubber wheels for panels in and outfeed . Panel movement on air film to avoid any scratching of panels with delicate surfaces . Panel pusher for smooth and accurate movement. Longitudinal sinking reference stop. Automatic reading of panel length Operating unit: boring head with vertical and horizontal spindles plus grooving saw unit. Centralised chips suction outlet Numeric control with PC: Windows operating system - network connection MASTERWORK software: Masterwood system for automatic drawing and programming - Boring, cutting programming with boring cycle optimisation Technical data: X-Y-Z axis strokes mm 1670-1330-87 Max displacement speed of X-Y-Z axis mt/min 25-50-25 Working range: width min/max mm 80/1000 - Length min mm 250 - Lenght max unlimited - Thickness min/max mm 10/60 Drilling head: n° 5 X axis independent vertical spindles - n° 5 Y axis independent vertical spindles - n° 2 X axis double horizontal spindles - n° 1 Y axis double horizontal spindle Spindles pitch 32 mm Motor power 1,7 Kw Spindles revolution speed 4000 rpm Sawing unit - Motore Kw 1,7 - Blade diameter mm 125 - 4000 rpm Working air pressure 7/8 bar Overall dimensions mm 2400 x 1990 x 1600 h Hedpfxsw Emgbj Afcsi Weight kg 1300

Condition: as good as new (ex-display), Year of construction: 2023, functionality: fully functional, power: 7.35 kW (9.99 HP), input voltage: 400 V, input frequency: 50 Hz, cutting height (max.): 105 mm, cutting width (max.): 1,300 mm, saw blade diameter: 350 mm, rotational speed (max.): 4,000 rpm, total length: 4,300 mm, overall weight: 1,300 kg, cutting length (max.): 3,200 mm, pivoting range: 45 °, The Concept 350 combines the advantages of various saw systems: As flexible as a panel saw, the cutting quality of a pressure beam saw, and as ergonomic as a trimming saw. Hjdpowzuipjfx Afcsi This is the sawing concept for modern industrial production. The machine is a leasing return. Further technical data: - Motorized rip fence with 4 aluminum stops, which move synchronously - Screen control with 8" touchscreen - Air requirement: 6 bar - Sliding table: 1,000 x 400 mm (extension table) - Outrigger table size: 3,200 mm with 2 digital stop jaws - Extraction connection: 1 x 100 mm, 1 x 120 mm - Feed speed: 0 - 40 m/min Special features: - Programmable saw blade height adjustment - Mitre fence +/- 50° - Cutting line laser - Additional support table 800 x 200 mm With the new Concept 350, you no longer need a panel saw! The workpiece rests on the machine and is positioned precisely with a pressure beam. The saw unit can be swiveled from 90° to 45°, is guided with precision, and cuts your workpiece at a constant feed speed of 0–40 m/min, ensuring the best possible cutting results. The standard crosscut fence enables quick cutting to length and efficient operation, with significantly less space required compared to any sliding table saw! Advantages over a sliding table panel saw: - Significantly less space required - The pressure beam secures the workpiece on the machine and guarantees optimal cutting results - The pressure beam prevents the operator from reaching into the saw blade - Ergonomic operation, as the operator no longer has to push the material through the saw blade - Time saving, as the operator does not need to guide the material during the sawing process Including delivery and installation within postal code areas 71, 72, 73, 77, 78, 79, 86, 87, 88, 89.

Condition: new, engine output 5 kW saw-blade dia. 300-350 mm Working speed 0-40 m/min Hsdpfxjwli Nro Afcei weight ca. 1.300 – 1.800 kg kg

Condition: used, Year of construction: 2000, Number of spindles in row: 11 Number of horizontal spindles: 3 Cup hinge boring head: yes, Blum Drill pitch: 32mm Hsdpfx Asxc Hi Uefcji Power consumption: 2.2kW Drilling unit: swiveling

Condition: as good as new (ex-display), Year of construction: 2024, functionality: fully functional, Exhibition machine – as new – including the following options: - Laser cutline indicator - Saw motor with 7.5 kW (10 HP) - Mitre fence swivels +/- 50° with length compensation - Programmable saw blade height adjustment Saw unit swivels up to 46° Pressure beam, including: LED lighting with 3 different action colors: - WHITE: Machine at standstill - RED: Pressure beam lowering or emergency stop function - BLUE: Saw unit in motion Up to 3,400 mm extendable telescopic stop with 2 digital displays Hjdpjw Uf Nljfx Afcji 4 parallel, motorized positioning width stops on a 2,000 mm wide support table, size adjustment up to 1,300 mm Automatic stop retraction Versatile support table 800 x 200 mm Scoring system using the main saw blade in synchronised rotation Automatic workpiece length detection for minimum travel distances Mobile, height-adjustable control panel, including: - Touchscreen control panel with cut plan creation - Saw blade stand - Template holder - Emergency stop button, start button, selector switch for grooving/groove sawing/cutting, rotary switch for feed speed - Switch for laser (option) - USB socket Attention: Machine is supplied without saw blade! Technical data: Cutting length: 3,200 mm Max. saw blade projection: 100 mm at 90°, 72 mm at 45° Saw blade: Diameter 300 – 350 mm, bore 30 mm Saw blade speed: 4,000 rpm Motor: 5 kW (= 7.5 HP) Feed speed: 0 – 40 m/min Overall length: approx. 4,270 mm Weight: from approx. 1,150 to 1,550 kg (depending on equipment) Required air pressure: 7 bar Extraction ports: 1 x 100 mm, 1 x 120 mm

Condition: used, Year of construction: 2013, Machine design: Throughfeed Hsdex Urnijpfx Afcoi Processing size in X direction: 1000 mm Processing size in Y direction: unlimited mm Processing thickness (Z dimension): 60 mm Number of main spindles: 1 unit Main spindle power: 3.3 kW Tool changer: No tool changer Rear wall groove units: fixed in Y direction Vertical drilling spindles - in X direction: 5 units Vertical drilling spindles - in Y direction: 5 units Spindle speed, vertical drilling spindle: 4000 rpm Horizontal drilling spindle in X direction: 2 double spindles Horizontal drilling spindle in Y direction: 1 double spindle Spindle speed, horizontal drilling spindle: 4000 rpm Monitor size: 17" Control type: PC control Operating system: Windows XP Typewriter keyboard: Yes Mouse: Yes Programming system: Masterwork DXF interface: Yes Online connectivity possible: Yes CD-ROM drive: Yes Table version: fixed table with rollers Weight approx.: 1300 kg Dimensions: 2,200 x 2,470 x 1,590 mm Location: Customer site
