FPT Industrie DINOX 350IAT

Condition: like new (used), Year of construction: 2018, operating hours: 5,498 h, functionality: fully functional, travel distance X-axis: 2,500 mm, travel distance Y-axis: 1,300 mm, travel distance Z-axis: 3,500 mm, feed rate X-axis: 40 m/min, feed rate Y-axis: 40 m/min, feed rate Z-axis: 40 m/min, table length: 2,500 mm, table width: 3,500 mm, spindle speed (max.): 12,000 rpm, table height: 300 mm, table load: 130,000 kg, workpiece weight (max.): 130,000 kg, spindle nose: HSK A100, MOVING GANTRY MILLING MACHINE FPT MOD. DINOX 350 IAT Bodpfx Amswzv Tcsbodd 5 axes Numerical control: Heidenhain TNC 640 X axis: 2,500 mm Z axis (Vertical): 1,300 mm Y axis: 3,500 mm Rapid traverse: 40,000 mm/min Universal head with continuous positioning HSK A100 electrospindle interface Maximum speed: 12,000 rpm A axis: + / - 185° C axis: + / - 270° Table: 3,500 x 2,500 mm, height 300 mm Load capacity: 15t/m^2 Tool changer: 64 positions Total power: 85.13 kW Weight: 51,370 kg Complete with: - Laser probe and software for tool integrity check and tool length and radius measurement - Workpiece probing and alignment sensor - External/internal tool coolant with 1,500 l tank, p=40 bar - Workpiece washing gun with tool coolant, dedicated pump - Internal tool cooling with compressed air, High Speed - Chip conveyor USED MACHINE YEAR 2018

Condition: used, Year of construction: 2008, functionality: fully functional, travel distance X-axis: 3,150 mm, travel distance Y-axis: 1,850 mm, travel distance Z-axis: 1,000 mm, feed rate X-axis: 30 m/min, feed rate Y-axis: 30 m/min, feed rate Z-axis: 24 m/min, spindle speed (max.): 24,000 rpm, torque: 87 Nm, Fidia C20 CNC WORKING AREA X-axis longitudinal travel: mm 3,150 Y-axis transverse travel: mm 1,850 Z-axis vertical travel: mm 1,000 MAX AXIS SPEEDS X, Y axis feed rate: m/min 30 Z axis feed rate: m/min 24 WORK TABLE Clamping surface: mm 3,000 x 1,600 Maximum permissible load: kg/m² 5,000 T-slots: • Longitudinal 8 H12 + 1 H8 • Width mm 22 • Pitch mm 160 ELECTROSPINDLE Maximum power (S6 60%): kW 55 Spindle speed range: rpm 240 ÷ 24,000 Constant power range: rpm 6,000 ÷ 24,000 Maximum torque: Nm 87.5 Bdjdpfx Amsyw Tddsbsd Tool holder: HSK-A63 C-axis travel: ± 200° C-axis speed: °/min 2,000 C-axis offset from spindle axis: mm 75 A-axis travel: +95° / -110° A-axis speed: °/min 2,000 Max distance spindle nose – table surface: mm 1,175 Machine equipped with: • 24-position tool magazine • Remote electronic handwheel • HMS system for head calibration • Various equipment included with the machine • User and maintenance manual and CE declaration of conformity

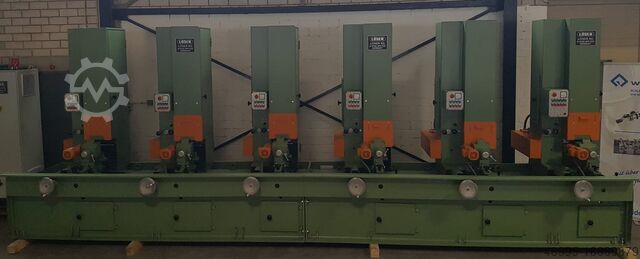

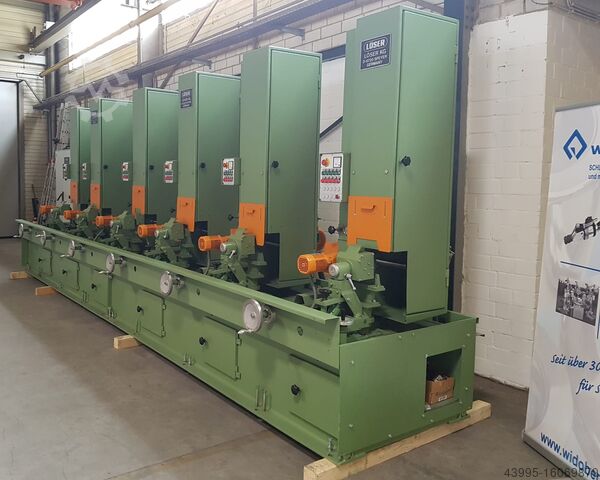

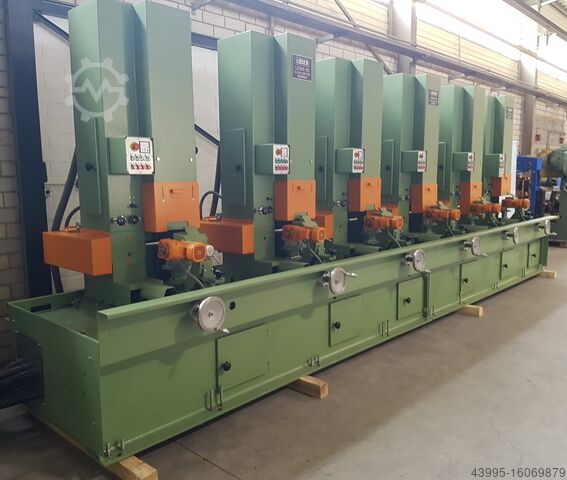

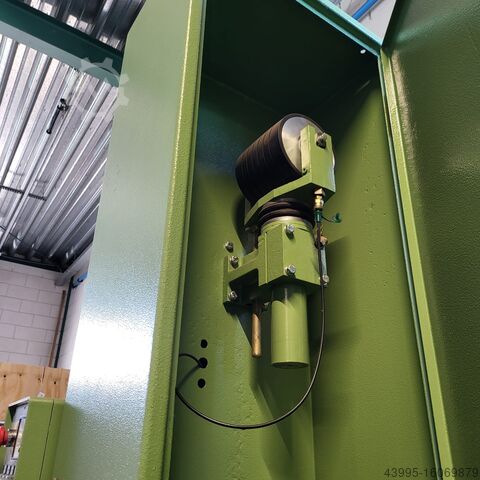

Condition: refurbished (used), functionality: fully functional, Löser centerless tube grinding machine - belt grinding machine - polishing machine - Cylindrical grinding machine Centerless tube grinding / polishing machine for workpieces with a minimum length of 1100mm. The machine was built in 1988 and was completely overhauled in 2012. The machine was converted for polishing and then only polished around 10,000 parts. The machine was no longer used after that. During the general overhaul, the motors, bearings and the entire control cabinet with the frequency converters were completely replaced. The machine can be used for both wet grinding and polishing. Bdsdstmqi Dspfx Ambod Wastewater treatment including pumps is not yet available. We can retrofit these for you according to customer requirements. The transport systems (roller conveyors) between the grinding stations must also be retrofitted to suit your workpieces. The machine can process pipe diameters from 10mm to 160mm. The grinding motors / polishing motors have an output of 7,5kW per station. The system can be viewed by appointment in our warehouse in D-63128 Dietzenbach.

Condition: excellent (used), Year of construction: 2020, travel distance X-axis: 8,000 mm, travel distance Y-axis: 1,300 mm, travel distance Z-axis: 2,500 mm, rapid traverse X-axis: 35,000 m/min, rapid traverse Y-axis: 40,000 m/min, rapid traverse Z-axis: 40,000 m/min, total width: 5,800 mm, total height: 4,500 mm, total length: 13,500 mm, table length: 10,000 mm, table width: 1,250 mm, Travelling Column High performance, precision and machining power Linear guiding of RAM combined with Hydrostatic Guiding HDS ACD2 Milling head with 5000 Rpm and 1400 Nm torq Aitek ATC chain 60 position with L=400 and 250 diameter x 35 Kg Bdjdpfx Ameyr Dmdjbjd Filtration with IKZ 15 Bar Chip conveyor BLUM 3D Measuring probe Wide bed linear guided in X-Travel W=930 mm Rotary table driver prepared in E-Cabinet X-Axis: 8000mm Y-Axis: 1300mm Z-Axis: 2500mm Table Length: 10000mm Table Width: 1250mm Power on spindle: 40kW Spindle speeds: 5000Rpm Spindle Taper: 40ISO/Bt/Mk Feed rate X-Axis: 35000mm/min. Feed rate Y-Axis: 40000mm/min. Feed rate Z-Axis: 40000mm/min. Millinghead auto-index:0.001 x 0.001 Gr° Working hours: 3800H Length: 13500mm Width: 5800mm Height: 4500mm Weight: 45000kg Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Condition: as good as new (ex-display), Year of construction: 2023, operating hours: 1,700 h, functionality: fully functional, machine/vehicle number: MP7/5/P, travel distance X-axis: 730 mm, travel distance Y-axis: 250 mm, travel distance Z-axis: 400 mm, feed length X-axis: 585 mm, feed length Y-axis: 250 mm, feed length Z-axis: 400 mm, feed rate X-axis: 50 m/min, feed rate Y-axis: 50 m/min, feed rate Z-axis: 50 m/min, spindle speed (min.): 1 rpm, spindle speed (max.): 42,000 rpm, rapid traverse X-axis: 80 m/min, rapid traverse Y-axis: 80 m/min, rapid traverse Z-axis: 80 m/min, type of input current: three-phase, table load: 60 kg, workpiece weight (max.): 60 kg, overall weight: 8,000 kg, MP7-5 Axis with integrated pallet changer 5-axis with rotary/swivel axis Travel range X/Y/Z 585x250x400 mm Travel range B +/- 105 degrees Travel range C continuous Workpiece weight 60 kg Distance machine table to spindle nose 450 mm Machine dimensions (W x D x H) 2845 x 2370 x 3000 mm Machine weight 8000 kg Spindle speed 42,000 rpm Equipment: Control: Heidenhain TNC640 Main spindle: HVC140 HSK-E40 with rotary union for internal media supply - Max. speed 42,000 rpm - Milling power S1/S6 10 kW / 13 kW - For internal coolant supply, air and emulsion Oil mist extraction for oil/emulsion Bdjdpfxjxlctbj Ambod Dust extraction: L-CUT Machine-integrated workpiece changer for 36x EROWA ITS50 or 18x EROWA ITS115 Hand-held control unit with electronic handwheel and enabling switch Measuring probe system: Renishaw OMP400 Aerosol DRY LUBRICATION (ADL) - Precise dosage of media externally and through the tool Rotary table chuck: EROWA PowerChuck P on 5-axis Blum laser: LC50 Media distributor: MHT Tool changer 90 positions, HSK E40 Warranty: 12 months Transport Initial commissioning on site Training

Condition: used, Year of construction: 2013, Technical details: faceplate diameter: 800 mm power requirement: 110 kW weight of the machine ca.: 37.000 / total 52.000 t transport measurements machine: 5,07 x 2,98 x 3,90 m Bedpfx Amouyp Enjbedd clamping diameter: 800 mm : Ø 800 x 720 mm Tool bore: Capto C6 tools in tool magazin: 2 x 80 With C-Axis *

Condition: ready for operation (used), Nominal power: 468.2kW, max. temperature: 100°C, capacity: 59l, length: 1870mm, width: 845mm, height: 1460mm, weight: 465kg, was maintained regularly. Bjdpfx Amomt Efnjbjdd

Condition: used, Technical details: turning diameter over bed: 3800 mm turning diameter over slide rest: 3200 mm turning length: 12000 mm faceplate turning speed range -stepless-: 2 - 200 U/min max. workpiece weight: 90.000 kg bed width: 4000 mm 2 steadies Bjdpfx Amox Ngzyjbedd *

Condition: used, Year of construction: 2018, travel distance X-axis: 2,300 mm, travel distance Y-axis: 2,000 mm, travel distance Z-axis: 1,000 mm, table length: 2,300 mm, table width: 1,600 mm, spindle speed (max.): 10,000 rpm, spindle nose: SK 50, Used CNC portal milling machine KRAFT VM-2018B with Heidenhain TNC 620 Year of manufacture: 2018 Storage location: Germany Delivery time: short term Payment: 100% before loading Warranty: none Machine description The KRAFT VM-2018B is a precise and powerful CNC portal milling machine with HEIDENHAIN TNC 620 control, ideal for heavy-duty and high-precision machining processes. Thanks to its robust design and high-quality components, it is ideal for demanding milling tasks in tool and mold making as well as in series production. Highlights & features Bdjdpswkg T Sjfx Ambed Monoblock cast iron bed and cross beam for maximum rigidity and precision FEM-optimized machine design BF gearbox with 26 kW motor for high torque (662 Nm) Feed roller linear guides P-class (very low coefficient of friction 0.003-0.006) C3 ball screws with double nut - high load capacity & accuracy Spindle: SK50, 10. 000 rpm, direct drive Heidenhain TNC 620 control Spindle cooling & IKZ 20 bar Coolant system, oil separator, air conditioning for control cabinet Full enclosure, TÜV-approved, CE-compliant Technical data Travel (X/Y/Z): 2,300 / 2,000 / 1,000 mm Table size: 2,300 × 1,600 mm T-slots: 8 × 22 × 180 mm Max. Table load: 8 t Distance spindle nose - table: 180-1,180 mm Rapid traverse X/Y: 20,000 mm/min Rapid traverse Z: 15,000 mm/min Feed range: 1-10,000 mm/min Positioning accuracy (VDI/DGQ3441): 0.020

Condition: excellent (used), Year of construction: 2014, x-travel 2500 mm y-travel 3000 mm z-travel 1250 mm Control HEIDENHAIN iTNC530 spindle turning speed - stepless 22000 U/min c-axis +-300° milling-head swivable +/- +-110° tool taper HSK 63 A tool change unit 50 Pos. total power requirement 130 kW weight of the machine ca. 53,5 t dimensions of the machine ca. 7,6 x 7,3 x 5,7 m This ZIMMERMANN FZ33c is available immediately and in good condition. - NEW spindle received 6 months ago Description: Technical specifications of the machine and working ranges X-axis 2500 mm Y-axis 3000 mm Z-axis 1250 mm A-axis ± 110 ° C-axis ± 300 ° Includes vibration sensor Includes bearing temperature sensor Includes rotary joint for internal tool magazine feed (IKZ) 5-axis path control: Heidenhain iTNC 530/handwheel HR520, 15” TFT colour display Extraction system LTA Industrial Air Cleaning Machine room canopy 50-position tool changer, chain magazine, behind the machine Chip conveyor, ejection 60° to the left, front-facing No probe available!!! Blum Laser tool measurement ‘Control NT-Micro’ Clamping table Length x width x height 2500 x 3250 x 400 mm Table load 8000 kg/m² (max. 16000 kg) T-slots, arranged longitudinally 18H12 T-slot spacing 250 mm Dimensions, weights Footprint (excluding peripheral equipment) approx. 7600 x 7300 x 5650 mm Total weight approx. 53500 kg Electrical connection data Voltage (three-phase) 400 V Frequency 50 Hz Compressed air connection (to be provided by customer) Required air pressure 6 bar Average air consumption approx. 15 m³/h (depending on machine configuration) Linear axis drives Feed rate X, Y, Z axes 60 m/min Axis acceleration X, Y, Z axes up to 5 m/s² Rotary axis drives – VH30 Feed rate A- and C-axis 360 °/s Axis acceleration A- and C-axis 700 °/s² Resolution A- and C-axis 0.0001 Accuracies of linear axes – in accordance with VDI / DGQ 3441 Positioning accuracy X-axis P= 0.026 mm Y-axis P= 0.028 mm Z-axis P= 0.020 mm Repeatability X-axis Ps= 0.015 mm Bdedpfx Ajzak Hgombod Y-axis Ps= 0.016 mm Z-axis Ps= 0.010 mm Resolution of measuring systems (interpol) A-, C-axis 0.0001° Accuracy of rotary axes – VH30 Positioning accuracy A- and C-axis P= 12" = 0.0033° Repeatability A- and C-axis Ps= 8" = 0.0022° VH30 milling head 2-axis milling head: VH30, Siemens Weiss milling spindle Spindle power S1 (100% duty cycle) 60 kW, Spindle speed 22,000 rpm, 95 Nm, HSK-A63 External dimensions of fork head L x W approx. 500 x 600 mm Nominal torque of rotary axes Control loop A: min. 1,200 Nm C: min. 1,047 Nm Clamped A and C axes: 3,000 Nm (Continuous grease lubrication with automatic relubrication system) Swivel axis – spindle nose 326 mm Tool holder HSK 63 A Tool clamping Spring clamp Tool unclamping Hydraulic Permissible tool weight 4.5 kg (manufacturer’s specification) Coolant supply External and internal Coolant/lubricant supply (emulsion) at the front of the milling spindle with belt filter system Volume 1500 l Pump 1: 40 l/min at 20 bar Pump 2: 20 l/min at 40 bar, Air blow at the front of the milling spindle
