Travelling column milling machine

FPT Industrie SPIRIT 140

- - - - - travels - - - - - - - - - - -
travel -x axis 10.000 mm
travel -y axis 1.500 mm
travel -z axis 4.000 mm
- - - spindle - - - - - - - - -
output 62.5 kW
turning speed range 262 - 4.000 U/min
Torque 2.280 Nm
- - - table - - - - - - - - -
Size of table plate 2x (2.500 x 3.000) mm
longitudinal travel 2.000 mm
max. load 30.000 kg
solution 0,0005 °
solution 1,8 sek.
table turning speeds 1,5 U/min
- - - further technical details - - - - - -
control Siemens 840 Dsl
numbers of positions in the tool changer 80
tool taper ISO 50
max. feed 25.000 mm/min
- - - T-slots - - - - - - - - -
size of T-slots (DIN 650) 28 mm
T-slot - distance 225 mm

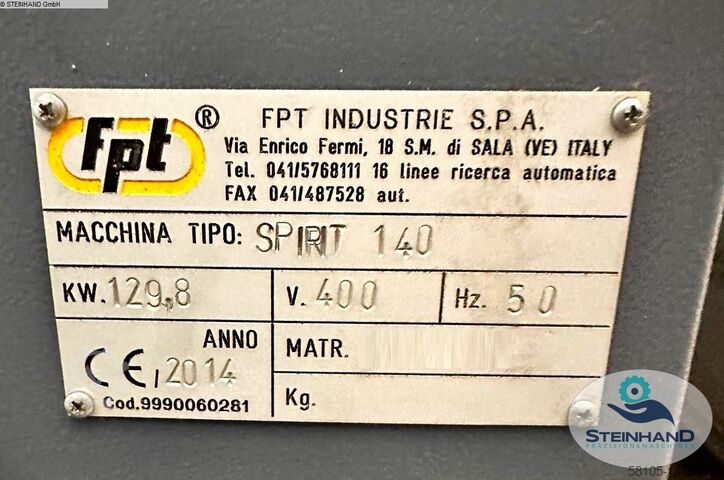

Milling machine | SPIRIT 140 - 2014 equipped with
two HYDROSTATIC rotary boring tables (TRT30).


Gbodpowrztvjfx Aa Isg
The machine has only approx. 9.900 H working hours.

Equipment:
- Hydrostatic guideways
- Cooling system
- Handwheel with radio transmission (HBG 800-DP)
- ITC (40 bar)

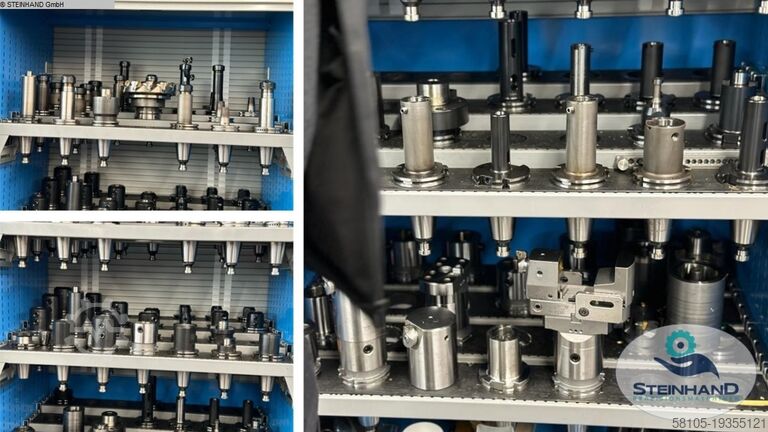

- Tool changer (80 pcs. | ISO50)
- Magazine for changing the milling heads with 3 places
- Infinitely positionable universal head
- Horizontal spindle extension (long version)
- chip conveyor
- Laser probe with software for tool measurement and breakage control
- Radio measuring probe (M&H)
- Pendulum processing with partition


The machine is in very good condition.


For additional equipment information please refer
to the original order confirmation which is included
in the offer of this machine.


A machine video from the production plant will be shared on request.

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
#Tags: SPIRIT-140 | SPIRIT140"
