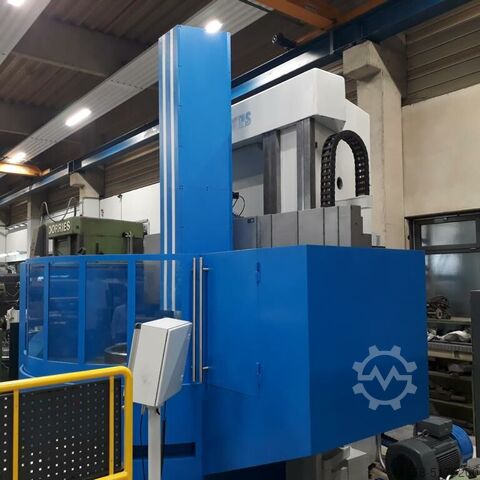

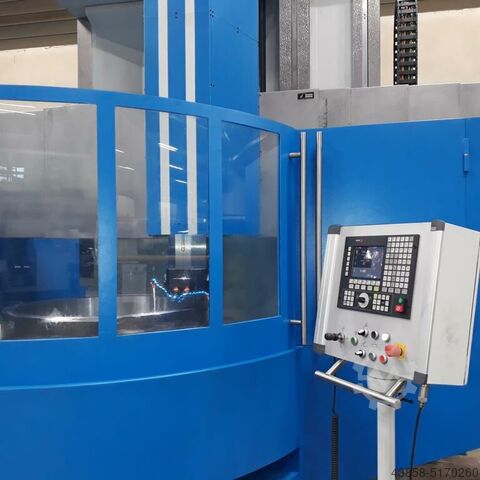

Vertical turning lathe

Fremtas(Schiess-Froriep) 20FFR23

Condition: good (used), Year of construction: 1999, functionality: fully functional, turning length: 3,000 mm, turning diameter: 1,000 mm, spindle bore: 197 mm, Upon request, videos of the machine in operation can also be provided. Maximum turning length: 6000 mm Turning diameter: over cross slide: 1000 mm over bed: 1250 mm Spindle bore: 197 mm Spindle speeds: 0 – 665 rpm Faceplate diameter: 1200 mm Workpiece weight: 15000 kg between centers Motor power: 55 kW / 74 hp 3 gear stages: 1.5-55 / 50-180 / 180-665 rpm Accessories: Iisdpoyr N N Rsfx Akzjg Sauter 4-position tool turret (rotation defective) Tailstock (hydraulics partially defective, pressure loss) Chip conveyor 2 chip guard doors (incl. safety device) 4-way bed machine (flat bed) LED lighting

Condition: new, Year of construction: 2025, functionality: fully functional, turning height: 1,600 mm, turning diameter: 2,000 mm, CNC Vertical Turning Center Model: VTC-16/20R with Fanuc 31i-B Table Diameter: Ø1,600 mm Max. Swing Diameter: Ø2,000 mm Max. Turning Height: 1,600 mm Table Speed: Max. 250 rpm Table Load Capacity: 8,000 kg Table Indexing Speed: 720°/min Table Indexing Accuracy: 0.001° X-Axis (Ram horizontal): -100 mm to 1,170 mm Z-Axis (Ram vertical): 900 mm Drive Spindle Speed: Max. 2,000 rpm Ram Size: 240 mm x 240 mm Milling Spindle Taper: ISO 50 Tool Shank Size: 40 mm x 40 mm Crossrail (vertical travel): 250 mm x 3 stages (hydraulic) Table Drive Motor: AC 37/45 kW (continuous/30 min. duty) Milling Spindle Drive Power ISO 50: 15/18.5 kW (continuous/30 min. duty) Control System: Fanuc 31i-B Display Unit: 15-inch TFT-LCD Memory Capacity: 1 MB Automatic Tool Changer: 24 positions (for 7 turning tools + 1 cover + 16 milling tools) Standard Tool Holders: New 240 TCR-01 (2 pcs) Splash Guard: Table version (R-Type standard design) External Coolant System: 3 bar (80 l/min) Ijdpfjxp Nb Tsx Akzoig Chip Conveyor: Hinged belt type Table Bearing Cooling Device 4-Jaw Independent Manual Chuck Foundation Anchor Bolts / Base Plates Maintenance Tools and Toolbox Hydraulic Power Unit Work Area Lighting Signal Lamp: 3 colors (green, red, yellow) Operating Manuals (English): 1 CD with Fanuc manuals and 3 books with mechanical/electrical manuals Power Supply: 220 V, 60 Hz, 3-phase Machine Color: Manufacturer standard OPTIONAL ACCESSORIES (#1) Turning Tool Holder: Type 240TCR, 4x included Rigid Tapping: 1x included OPTIONAL ACCESSORIES (#2) Automatic power-off for N.C. - on request Turning tool holder type 240TCR - on request Through-spindle coolant supply: 30 bar (pump pressure) - on request Transformer 415 V, 50 Hz, 3-phase - on request Linear scales X-, Z-axis (Fagor, Spain) - on request Workpiece measuring device - on request Tool measurement TS27R, Renishaw - on request Other information: INSTALLATION, COMMISSIONING, TEST OPERATION, AND TRAINING - not included in the price INSURANCE AND FREIGHT - not included in the price Image shows machine with pallet changer. The offered machine DOES NOT INCLUDE A PALLET CHANGER! Errors in technical data excepted. The scope of accessories is as described in the text of this article only. There is no entitlement to any other accessories, such as those shown for illustration purposes. The general terms and conditions of JS-Werkzeugmaschinen GmbH apply.

Condition: good (used), Year of construction: 2010, Machine is in good condition. Parts shown by hand not come. Ijdpfx Aox N Atfokzsig

Condition: used, Year of construction: 2007, functionality: fully functional, feed length Z-axis: 1,250 mm, turning diameter: 3,200 mm, turning height: 2,000 mm, faceplate diameter: 3,200 mm, DOUBLE RAM VERTICAL CNC LATHE KOLOMNA 1532 T KOLOMNA VERTICAL LATHE (VTL) • Table Ø 3,200 mm • Maximum turning diameter Ø 3,200 mm • Maximum workpiece height 2,000 mm • Two CNC-controlled RAMs Iijdpfx Akex Nhm Rezog • RAM travel 1,250 mm • FAGOR 8070 CNC • Motor power 115 kW • Mechanical, hydraulic, electrical and electronic retrofit new in 2007 • Chip conveyor • Complete enclosure • Cooling system • Work light • Refrigerated electrical cabinet

Condition: used, faceplate diameter 2500 mm swing diameter 3200 mm turning height 3100 mm Control R&D type MTC 2x-2 workpiece weight 20000 kg slide adjustment 1600 mm side head - cross travel 1000 mm Refurbished 1996 Many accessories Tool holders Jaws Jaw extensions Iiodpfeyq Swzsx Akzsg The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team

Condition: used, Year of construction: 1990, spindle diameter 150 mm x-travel 4000 mm y-travel 3000 mm z-travel 1000 mm w-travel 1500 mm Table area 2000x2000 mm Table load 30 t Feed 3-3500 mm/min Rapid movement 5000 mm/min transmission ratio 2 spindle power 37 kW voltage 380 V frequency 50 Hz Control Heidenhain type ITNC mm The tech. Data are manufacturer or operator information and therefore non-binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team Ijdpfoyqtf Tjx Akzeig

Condition: excellent (used), Year of construction: 2014, travel distance X-axis: 3,000 mm, travel distance Y-axis: 1,800 mm, spindle diameter: 130 mm, overall weight: 32,450 kg, year of last overhaul: 2014, The machine is in very good technical condition, equipped with a Heidenhain iTNC 530 CNC control system. Specifications: Spindle diameter: 130 mm X-axis travel: 3000 mm Y-axis travel: 1800 mm Taper in spindle: ISO 50 Spindle extension: 1120 mm Horizontal spindle head extension: 450 mm Total installed motor power: 50 KVA Dimensions (L x W x H): 10100 x 4380 x 5250 mm Iodpox Hfk Iofx Akzjig Weight: 32,450 kg

Condition: excellent (used), Year of construction: 2009, functionality: fully functional, travel distance X-axis: 13,000 mm, travel distance Y-axis: 5,000 mm, travel distance Z-axis: 1,200 mm, spindle speed (max.): 2,500 rpm, position of the milling head: Testa ad assi ortogonali indexati - TTL2 25 360, spindle diameter: 180 mm, travel distance W-axis: 1,000 mm, table load: 100,000 kg, rapid traverse X-axis: 20 m/min, rapid traverse Y-axis: 20 m/min, rapid traverse Z-axis: 20 m/min, table length: 3,000 mm, table width: 3,500 mm, quill travel distance: 2,500 mm, quill diameter: 180 mm, spindle stroke: 1,000 mm, workpiece weight (max.): 100,000 kg, torque: 9,050 Nm, CNC BORING MACHINE PAMA mod. SPEEDRAM 2000 Hydrostatic CNC Control: Siemens Sinumerik 840D Axis X: 13,000 mm Axis Y: 5,000 mm Axis Z: 1,200 mm Axis W: 1,000 mm Total axial travel (Z+W): 2,200 mm Working feed on all axes: 8,000 mm/min Rapid traverse on all axes: 20,000 mm/min Spindle: Boring spindle diameter: 180 mm Spindle carrier ram dimensions: 400 x 440 mm Spindle speed (3 ranges) max: 2,500 rpm Spindle power (S1): 91 kW Spindle nominal torque (S1): 9,050 Nm Spindle internal taper: ISO 50 DIN 69871 AD-Type Big Plus Orthogonal axis indexed head – TTL2 25 360 Tool taper: ISO 50 DIN 69871/2 AD-Type Big Plus Max spindle power: 25 kW Max spindle speed: 2,500 rpm Speed ratio: 1:1 Spindle indexing: +/- 100°, 200 positions per 1° Head indexing: +/-180°, 360 positions per 1° Max spindle nominal torque: 1,000 Nm TH 100 rotary-travelling table: Iedpfxeyxg Hbj Akzeig Table dimensions: 3,000 x 3,500 mm Table load capacity: 100 Ton Central T-slot size: 36h7 mm Lateral T-slot size: 36h12 mm T-slot pitch: 320 mm Longitudinal travel V-axis: 2,500 mm Feed/rapid traverse V-axis: 10,000 mm/min Chain-type tool magazine with 80 tools (capacity CU 145 R80) Machine weight approx. 160/165 Ton Complete with: - Hinged belt chip conveyor - No. 02 side chip conveyors for rotary table - Fixed closed accessory magazine with 2+1 positions - Fixed tool rack (ISO50, 6 positions) - Internal and external tool coolant system, 30 bar - Wireless workpiece probe (Renishaw) USED MACHINE YEAR: 2009

Condition: like new (used), Year of construction: 1970, turning height: 4,000 mm, workpiece weight (max.): 100,000 kg, turning diameter: 17,000 mm, faceplate diameter: 5,000 mm, Universal machine 5-axis (turning, milling) Froriep 40KE 500/600-400 Spheromill Year of construction: 1970 (modernized 1984 and 2006) Control: Siemens 840D Milling length: 8500 mm Ijdpfx Aoym Ri Uekzjig Working height max: 4000 mm Maximum turning diameter: 17,000 mm Table diameter: 5000 mm Ram setting: -15 degrees to +90 degrees Table speed max: 40 rpm (100 kW) Maximum working load: 100 tons Accessories Milling head (800 rpm / 60 kW) Universal milling head (630 rpm) Facing slide for diameter max. 1000 mm Grinding equipment 90 degree angle head (630 rpm) 90 degree angle head (450 rpm) - small

Condition: good (used), Year of construction: 2007, • Maximum possible drilling depth: 1200 mm • Maximum hole diameter: 32 mm • Minimum drilling diameter: 6 mm • Longitudinal travel (X-axis) table: 1800 mm • Cross travel (Z-axis) column: 1700 mm • Cross travel (W-axis) drilling head: 1150 mm • Vertical travel (Y-axis) drilling head: 1200 mm • Clamping surface NC table: 1500 x 1000 mm • Maximum table load: 10 t • Rotary axis (B-axis) rotary table: 360° • Rotary axis (A-axis) drilling head: -25°/+15° • Feed rate: 1-15 m/min (Y-axis: 1-10 m/min) • Rapid traverse speed in all axes: 15 m/min (Y-axis: 10 m/min) • Maximum spindle speed: 6000 rpm • Minimum spindle speed: 60 rpm • Tool holder: SK 40 • Tool clamping: OTT • Rated power main drive (100% ED, S1/40% ED, S6): 9/13 kW • Coolant tank capacity: 1000 l • Maximum coolant pressure: 100 bar • Low-pressure external and high-pressure internal coolant supply • Power supply: 3x 400 V; 50 Hz • Required installation space (L x W x H): 6550 x 5350 x 4130 mm • Machine weight: 12,000 kg Iiedpfx Akjxyf E Njzsg Deep Hole Drilling Machine Equipment • CNC control: HEIDENHAIN iTNC 530 • Interpolated rotary table with minimal backlash, dimensions 1500 x 1000 mm • Swiveling drilling head +15°/-25° • Shank drilling head • Handwheel HR520 • Fixed supports (2 units) • Tool magazine: ELB tools: 12 pcs (max. diameter: 32 mm / max. length: 1550 mm) Standard tools: 12 pcs (max. diameter: 140 mm / max. length: 400 mm) • Direct measurement and positioning system in X, Y, and Z axes • Collision monitoring system for supports and drill sleeves • Oil cooler • Coolant flow control system • Adjustable coolant nozzles • Cooling unit for electrical cabinet • Enclosed upper cover (roof) • Drip tray for machine and tank facility (tray height 30 mm) • Extraction system • Infrared touch probe • Drilling depth extension 1200 mm (retrofit) • Chip conveyor
