CNC LATHE

Geminis CNC5/PLUS/1000/4000

Condition: used, Horizontal Gear Hobbing Machine WMW MODUL ZFWZ 1250/3 Year of manufacture: 1982 Control: conventional Country of origin: Germany Max. gear diameter: 1250 mm Gear width: 600 mm Module – max.: 16 Module – min.: 2 Cutter diameter: 240 x 280 mm Table clamping surface: 1020 mm Speed range: 28 – 200 rpm Axial feeds: 0.28 – 8 mm/min Radial feeds: 0.1 – 2 mm/min Tangential feeds: 0.16 – 4 mm/min Swivel range of milling slide - L/R: +/- 45° Rapid traverse motor: 12.5 kW Voltage: 380 V Ijdpfx Aswxxxcjd Dstp Frequency: 50 Hz Total power requirement: 5/19.5 kW

Condition: ready for operation (used), empty load weight: 22,000 kg, Type FTC75 Distance between centers: 8000 mm Swing over bed: 1500 mm Swing over cross-slide: 1100 mm Iodpfjwkw Umox Ad Dotp Diametre of main spindle bore: 130 mm Number of speeds: 3,6 > 720 rpm Total power needed: 29,5 kW / 40 hp Max weight between centers: 11 ton

Condition: excellent (used), Year of construction: 1971, Centre lathe (parallel lathe) Brand: SAFOP Model: LEONARD 1500 Year: 1971 Itodpfjw Az Hdsx Ad Dsp Specifications: Max. swing over bed (bed with 4 guideways): 2,200 mm Max. swing over carriage: 2,000 mm Max. turning length: 10,000 mm Max. load between centres (without steadies): 15,000 kg Spindle speeds (4 ranges): 1–100 rpm Tailstock quill diameter: 190 mm Quill stroke: 310 mm Spindle motor power: 40 HP Equipped with: 4-jaw chuck, dia. 2,000 mm 3 roller steadies

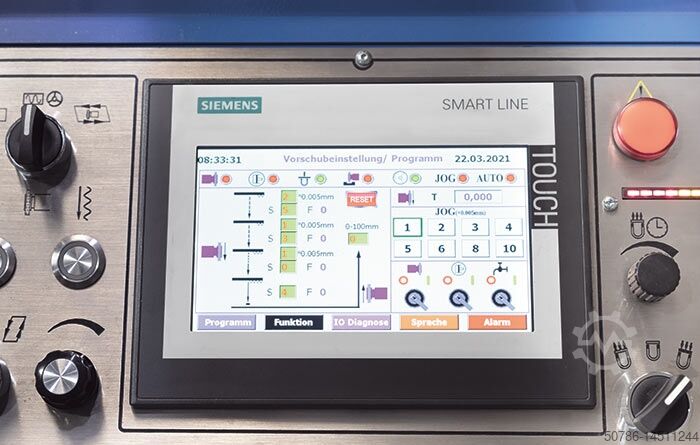

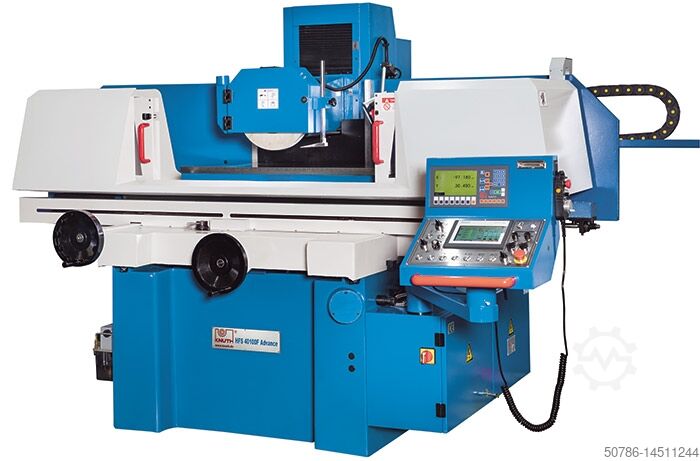

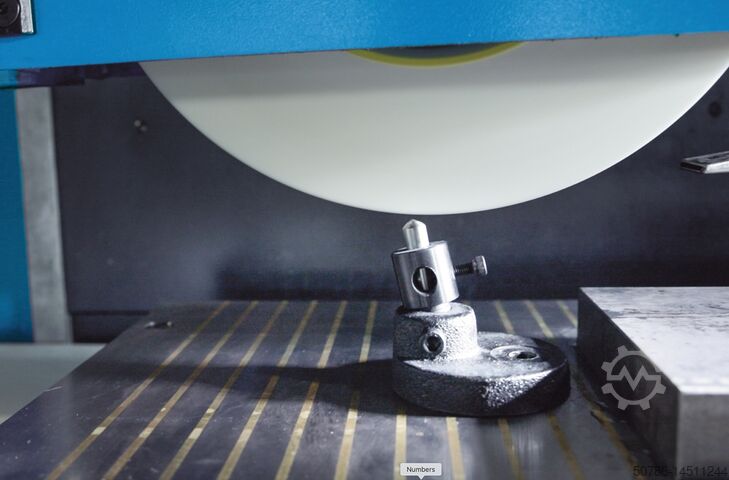

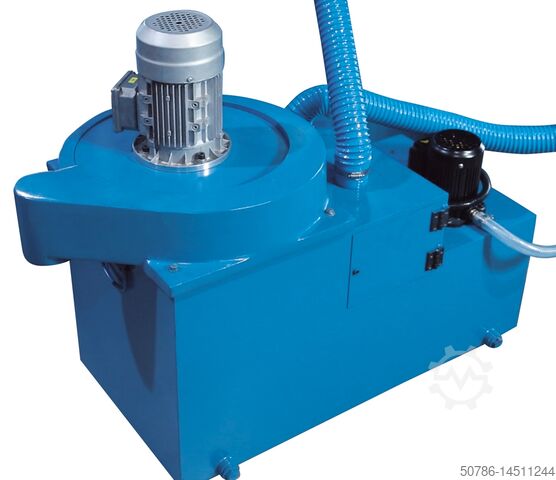

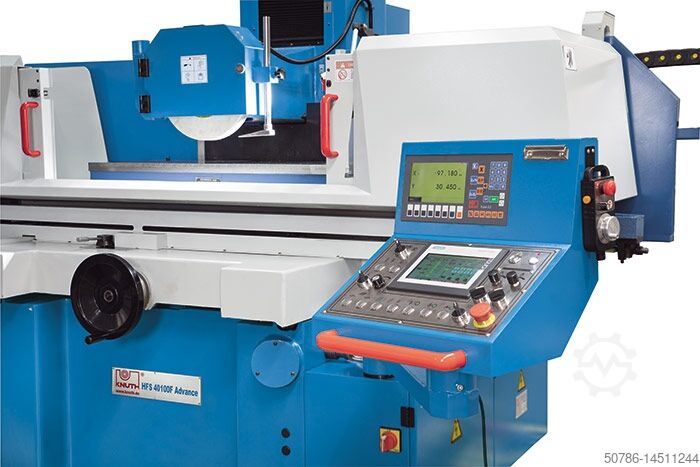

Condition: new, The HFS 4080 F Advance is a remarkable Conventional Surface Grinder from KNUTH, designed to elevate precision machining within the realm of Grinding Machines. This advanced surface grinding machine is built on a robust cast-iron frame, ensuring superior rigidity and quality while featuring precision guideways for excellent machining outcomes. Enhanced with Siemens technology, including a user-friendly touchscreen, the HFS 4080 F Advance offers intuitive programming and automatic processing of roughing and finishing parameters, perfect for users seeking more than conventional solutions without venturing into full CNC systems. With extensive standard equipment such as a large magnetic clamping plate, automatic central lubrication, and a powerful coolant system, this grinder guarantees exceptional efficiency and minimal maintenance. The preloaded precision bearings and high-quality servo motors ensure maximum reliability and repeatability, making it an ideal choice for demanding manufacturing environments. For those interested in enhancing their operations, you can request a quote for the HFS 4080 F Advance today and experience the benefits of a top-tier Conventional Surface Grinder. Itjdoq I Nfpspfx Ad Dsp

Condition: excellent (used), Year of construction: 1999, functionality: fully functional, turning diameter over cross slide: 470 mm, turning length: 3,000 mm, turning diameter: 720 mm, spindle bore: 104 mm, CNC Lathe Geminis 4 Plus 720 x 3000 mm Description Manufacturer: Geminis Model: CNC 4 Plus Control: CNC Fagor 8055 FL-BT Capacities: Distance between centers: 3,000 mm Swing over bed: 720 mm Swing over cross slide: 470 mm Spindle bore: 104 mm Tailstock diameter: 100 mm (Morse 6 taper) Bed width: 550 mm Speeds: 2 speed ranges: 0–1600 rpm Rapid traverse: X-axis: 8 m/min Z-axis: 8 m/min Motor: Power: 22 kW Weight: 8,000 kg Equipment: Itjdpfx Aewuligsd Dop CNC Fagor 8055 FL-BT 3-jaw SHUNK Rota-S Plus chuck Ø 315 mm Additional 3-jaw chuck Fixed steady rest Chip conveyor General condition: Lathe in excellent condition

Condition: good (used), Manufacturer: WMW Zeulenroda Type: PYE 160 SS Year of manufacture: 1980 C-frame construction Die height 850 mm Thickness bolster plate 100 mm Throat C side 360 mm Specifications Metric US Standard Capacity 160,000 Table length 1,250 mm Table width 600 mm Ram stroke 500 mm Starting speed 100 mm/min Working speed 10 mm/min Itjdpfxjwp Nv Ho Ad Dop Return speed 125 mm/min Power 22.5 kW Dimensions (Estimate) Length: 2,150 mm Width: 1,250 mm Height: 3,600 mm Weight: 7,500 kg Please note: The information on this page has been provided to the best of our knowledge and, where possible, from the manufacturer. The information is given in good faith, but accuracy cannot be guaranteed. Accordingly, they do not represent a warranty or contract terms. We recommend you check all important details.
