Used Geminis Cnc Lathe for sale (18)

Condition: good (used), Year of construction: 2006, Brand: GEMINIS Model: GHT4 G2 700x 2000 Cnc: FANUC 21 TB Distance between centers: 2000 mm Dsdpfoxdub Iex Ah Sjcb Ø Swing over bed : 720 mm Ø Over carriage: 470 mm Spindle diameter : 104 mm Maximum piece weight between points : 2.560 kg Spindle nose: DIN 55027-11 Spindle speed: 0-1600 m/min Total power : 28 kw

Condition: used, Year of construction: 1996, functionality: fully functional, Equipment: documentation/manual, rotational speed infinitely variable, Geminis Lathe Type: CNC5/PLUS/1000/4000 CNC control: Fagor Dcjdpjxvr E Iefx Ah Seb Year: 1996 With 2 steadies + Tooling With 2 chucks Can be inspected under power Video available

Condition: used, Year of construction: 2001, turning diameter 720 mm turning length 2.000 mm control FAGOR 8055 turning diameter over slide 470 mm feed 8 m/min spindle nose DIN-55027-11 spindle passage 104 mm number of spindle speeds 0-1600 U/min/rpm spindle drive 17/ 20.5 kW Torque 1590/1920 Nm total power requirement 28 kW Dsdpfx Aox Hp Dfeh Sscb weight of the machine ca. 4.9 t dimensions of the machine ca. 6.600 x 2.300 mm Tailstock Tailstock quill diameter: Ø 100 mm Tailstock quill travel: 200 mm Tailstock quill taper: Morse taper MT 6 Turret 4-position automatic turret Machine Equipment Full rear protection enclosure Hydraulic 3-jaw chuck SMW AUTOBLOCK 400 GH Fixed steady rest, capacity 50–220 mm Maximum Permissible Weights Max. workpiece weight between centers: 2,560 kg With 1 steady rest / with 2 steady rests: 3,200 kg / 4,000 kg Free-standing, center of gravity at 250 mm: 800 kg

Condition: good (used), functionality: fully functional, Machine specifications: Swing over bed: 1300 mm Dedex H Ifzspfx Ah Secb Maximum turning length: 4000 mm Description: The machine is in good technical condition; test run is possible by prior arrangement. Machine weight: 15,800 kg Machine dimensions (L x W x H): 7,425 x 3,475 x 2,535 mm Connected load: 82 kVA Center height over bed: 650 mm Maximum workpiece weight between centers: 10,000 kg Maximum swing / machinable diameter over cross slide: 940 mm Maximum swing / machinable diameter over bed: 1300 mm Maximum turning length / distance between centers: 4000 mm Spindle bore diameter: 104 mm Spindle diameter at front bearing: 180 mm Spindle speed range (rpm): 1st gear 0-100, 2nd gear 0-200, 3rd gear 0-400, 4th gear 0-800 Rapid traverse of longitudinal slide – max. working feed: 8 m/min Rapid traverse of cross slide – max. working feed: 6 m/min Tailstock quill diameter: 180 mm Quill stroke: 300 mm Accessories: SAUTER turret 0.5.480.532, Universal chuck 800 mm, Faceplate 1200 mm, Steady rest – small 300 mm, Steady rest – large 500 mm, Chip conveyor with container.

Condition: excellent (used), Year of construction: 1999, functionality: fully functional, turning diameter over cross slide: 470 mm, turning length: 3,000 mm, turning diameter: 720 mm, spindle bore: 104 mm, CNC Lathe Geminis 4 Plus 720 x 3000 mm Description Manufacturer: Geminis Model: CNC 4 Plus Control: CNC Fagor 8055 FL-BT Capacities: Distance between centers: 3,000 mm Swing over bed: 720 mm Swing over cross slide: 470 mm Spindle bore: 104 mm Tailstock diameter: 100 mm (Morse 6 taper) Bed width: 550 mm Speeds: 2 speed ranges: 0–1600 rpm Rapid traverse: X-axis: 8 m/min Z-axis: 8 m/min Motor: Power: 22 kW Weight: 8,000 kg Equipment: CNC Fagor 8055 FL-BT 3-jaw SHUNK Rota-S Plus chuck Ø 315 mm Dcjdpfjwuligex Ah Seb Additional 3-jaw chuck Fixed steady rest Chip conveyor General condition: Lathe in excellent condition

Condition: refurbished (used), Year of construction: 2025, functionality: fully functional, Equipment: documentation/manual, The used, FULLY REFURBISHED self-learning CNC lathe GEMINIS GHT4 720X3000 is a robust, medium-large parallel bed lathe equipped with FAGOR 8055 CNC, center height 360 mm, distance between centers 3000 mm, spindle bore 106 mm. The machine is COMPLETELY REFURBISHED AS NEW, including bed grinding, carriage grinding, Turcite overlays, spindle bearings, axis bearings, axis screws, electrical system, motor overhaul, new drives, new FAGOR keyboard, etc. Dcodpsxdvbcsfx Ah Sjb The equipment is completed with prearrangement for automatic turret, manual self-centering chuck, and 2 steadies.

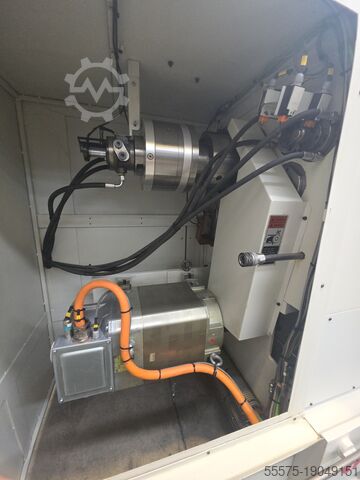

Condition: excellent (used), Year of construction: 2007, Manufacturer: GEMINIS Model: GHT5 G2 1000 x 3000 Cnc : SIEMENS 810 D Year : 2007 Distance between points : 3000 mm Max. Swing over bed : 1000 mm Max. Swing over saddle : 680 mm Main shaft hole diameter : 104 mm Turning speed : 1400 rpm Main motor : 37,5 kw Cross slide travel : 8m/min Dodpfxswgmz Uj Ah Socb Tailstock quill diameter : 140 mm Quill traverse : 300 mm Bed width : 550 mm

Condition: good (used), turning diameter over cross slide: 870 mm, spindle bore: 162 mm, turning length: 3,000 mm, turning diameter: 870 mm, center width: 3,000 mm, Distance between centres: 3000 mm Swing: 870 mm over bed, 560 mm over cross slide Weight between centers: 3.600 kg without steady 4.400 kg with 1 steady 5.600 kg with 2 steadies Spindle speeds: 0 - 900 Rpm Spindle bore: 162 mm CNC Controller: Fagor Featured with: Dcjdpsw Sm U Dofx Ah Sob - Additional chuck at back end of main spindle (oilcountry) - 1 fixed steady Ø420 mm - 1 moving steady - 4-jaw chuck Ø800 mm - 3-jaw chuck Ø 400 mm - 10 Toolholders - Coolingpump/chiptray at back end - Machine documentation Country of origin: Spain Motor power: 30 kW Machine weight: 9.000 kg Machine LxWxH: 5,1 x 2,4 x 2,0 mtr.

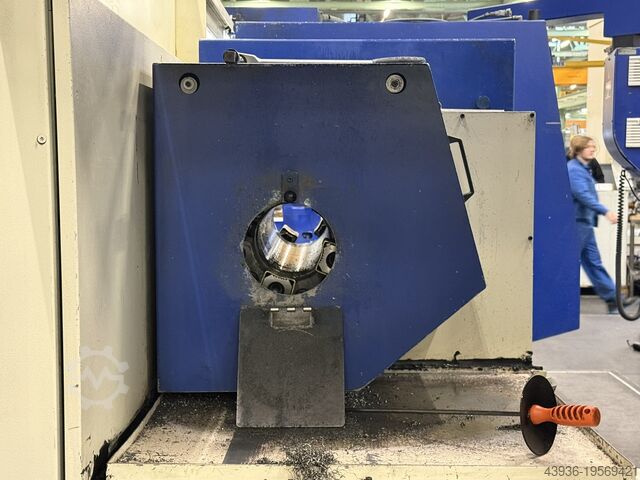

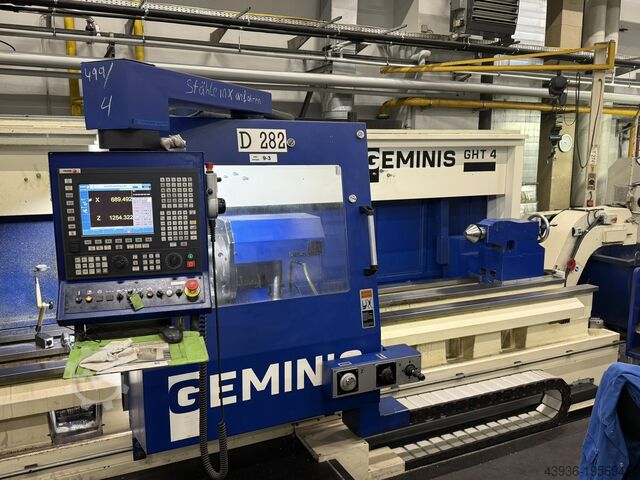

Condition: excellent (used), Year of construction: 2015, CNC Lathe with c-axis GEMINIS - GHT4-G4 MACH-ID 9182 Make: GEMINIS Type: GHT4-G4 Control: FAGOR 8055 TC Year: 2015 Full C-Axis 360.000 Driven tools Axiaal & Radial  Driven tailstock  Steady rest C-Type Front chuck with 180 bore Rear chuck with 180 bore 3 guide way bed width 750 mm Max. turning Ø: 800mm X-Axis: 450mm Z-Axis: 4200mm Spindle bore: 162mm Speedrange: 900Rpm ATC / revolver: 8 Speed live tools:3000Rpm Power live tools:7.5kW Pinole taper: 5Mk Stroke pinole: 250mm Workpiece load: 2500 Dsdpjwzh Eqjfx Ah Sscb Length: 8200mm Width: 3200mm Height: 2900mm Weight: 24000kg

Condition: ready for operation (used), Year of construction: 2015, functionality: fully functional, CNC Lathe - Horizontal / Brand: GEMINIS / Type: GEMINIS GT9 G2 (heavy series) / Year of construction: 2015 The machine can be inspected by appointment under power. TECHNICAL DATA: - Max swing over bed: 2.000 mm - Distance between centers: 8.000 mm - Height of centres: 1.050 mm - Swing over slide: 1.600 mm Djdpjvuih Uofx Ah Secb - Main spindle bore Ø: 150 mm - Main spindle nose: DIN 55026-15 - Speed range: 4 - Speed range I: 0-80 rpm - Speed range II: 0-175 rpm - Speed range III: 0-350 rpm - Speed range IV: 0-700 rpm - Cross slide travel: 1.060 mm - Quill Ø: 400 mm - Quill travel: 300 mm - Max. weight allowed between centers: 30 tons Machine base: - Distance between the guideways: 1.350 mm - Height of the machine base: 650 mm EQUIPMENT / ACCESSORIES: - CNC-Control: FAGOR 8065 - Independent 4-jaw chuck: Ø 1.600 mm - Set of hard inner and outer claws - Square automatic turret: SAUTER 4 pos – Ø 320 x 320 mm - Tailstock and quill: Motorised - Quill placement: Built-in Rotating - Automatic Locking/Unlocking of the tailstock body - Air conditioner for electronic cabinet - Portable electronic handwheel - Chip conveyor - 4-support Closed steady rest: Ø 500-900 mm - Permissible weight allowed for steady rest: 10 tons - Prepared for C-axis with transmission from main engine - Preparation for subsequent adaptation of a milling head with Y axis on turret - Preparation for rectifier head assembly - Very well-equipped with tools Without guarantee of completeness and correctness of the technical information and the equipment. - Subject to prior sale -

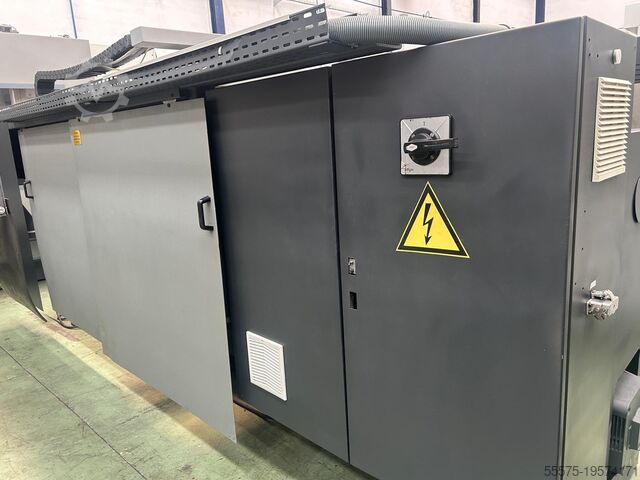

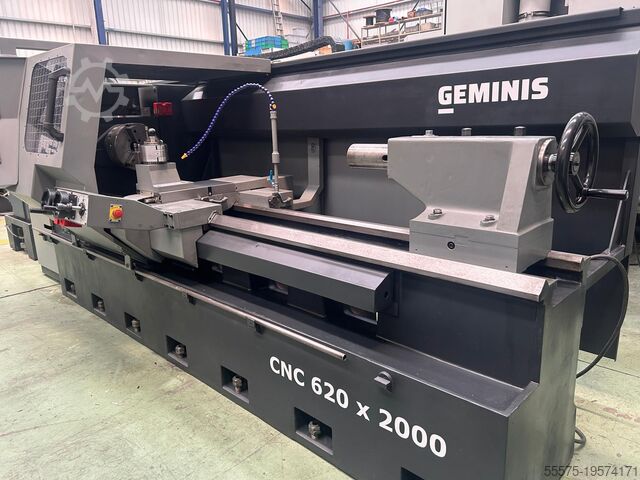

Condition: excellent (used), Brand: GEMINIS Model: CNC 4 PLUS 620 x 2000 Cnc : FAGOR Distance between points : 2000 mm Height of centers : 315 mm Max. turning diameter : 620 mm Swing over saddle diameter : 370 mm Bar passage : 80 mm Dcsdpjwznp Nofx Ah Sob Precision swivelling turret: 1st speed range: 0 to 355 rpm 2nd speed range :0 to 1800rpm Tailstock : Morse 6 Main motor : 15 kw Max. Piece weight : 2.560 kg Tailstock quill diameter : 140 mm Machine size (L x Wx H): 4300x 1900 x 1800 mm

Condition: excellent (used), Brand:GEMINIS Model: GE 650 Distance between centres: 2.000 mm Height of centers 315 mm Dcedpfx Ahjvnz Hvj Sob Swing over bed: 650 mm Swing over slide: 390 mm Max. Swing over neckline: 820 mm Neckline length: 310 mm Slide longitudinal width: 620 mm Slide traverse width: 250 mm Cross slide traverse: 360 mm Superior charriot traverse: 220 mm Tailstock axis traverse: 270 mm Quill diameter: 85 mm Bed width: 450mm

Condition: excellent (used), Year of construction: 1987, turning diameter over cross slide: 1,000 mm, turning diameter: 720 mm, turning diameter over bed slide: 1,000 mm, turning length: 3,000 mm, Lathe Geminis GE 1000S Max. turning diameter over cross slide: 1000 mm Dcjdpfx Aheuv Ehqj Seb Max. turning diameter over support: 720 mm Turning length: 3000 mm D.R.O. Heidenhain

Condition: excellent (used), functionality: fully functional, turning diameter over cross slide: 580 mm, spindle bore: 84 mm, turning diameter: 870 mm, Geminis lathe model GE 870 of 4000mm between points, turning on bed 870mm, turning on cross slide 580mm, turning on neckline 1100mm, length of neckline 340mm, speeds of 13-1000rpm, diameter of the hole of the shank 84mm, has mounted plate 3 claws diameter 315mm, has plate 4 independent claws of diameter 500mm, has fixed steady rests, lathe in general in good condition. Dcjdpfxowqz D Eo Ah Ssb

Year of construction: 1985, condition: refurbished (used), LATHE GEMINIS GE 650 -LENGHT 4200mm -HOLE 85mm Dodeggly Sopfx Ah Secb -DIAMETER ON SLIDES 650mm -DIAMETER ON SUPPORT 400mm

Condition: excellent (used), functionality: fully functional, GEMINIS GE1000 Dcedpfx Ahjwtniae Seb 1000X4000 mm

Year of construction: 1999, condition: ready for operation (used), General Data Measurements width 2385 mm Measurements depth 6800 mm Measurements height 1765 mm Machine weight 5700 kg Main Drive Spindle speed range 1600 Spindle bore 92 mm Movement X-Axis Rapid Traverse 8000 mm/min Z-Axis Rapid Traverse 8000 mm/min Dodpfsx D Sc Asx Ah Sjcb Workpiece Workpiece drm over bed 720 mm Workpiece drm over support 470 mm Turret Number of tool slots 18 Rotating tools Yes Tool taper Duplomatic VDI 40 Tail Stock Pinol diameter 100 mm Pinol way 200 mm Pinol tool taper Morse 6 Media Chip conveyor Yes Additional Equipment Chuck Protection: Included Fix SteadyRest 20/200: Included Complete Rear Protection: Included 2 Handwheels in Carriage: Included Longitudinal Chip Conveyor: Included This Geminis GHT-4 720 x 3000 was manufactured in 1999. It features a maximum swing over bed of 720 mm and a distance between centres of 3000 mm. The main spindle supports a speed up to 1600 rpm with a power of 17/20.5 kW. It includes a Duplomatic turret with 8 tool positions and a longitudinal chip conveyor. Consider the opportunity to buy this Geminis GHT-4 720 x 3000 horizontal turning machine. Contact us for further details regarding this machine. Application Types Turning

Condition: excellent (used), Boring bar Bar diameter 180 mm Total length 2500 mm Dcsdsum Uzgepfx Ah Sjb Siegfried Volz Werkzeugmaschinen Rüschebrinkstr. 151-153 DE - 44143 Dortmund - Wambel
