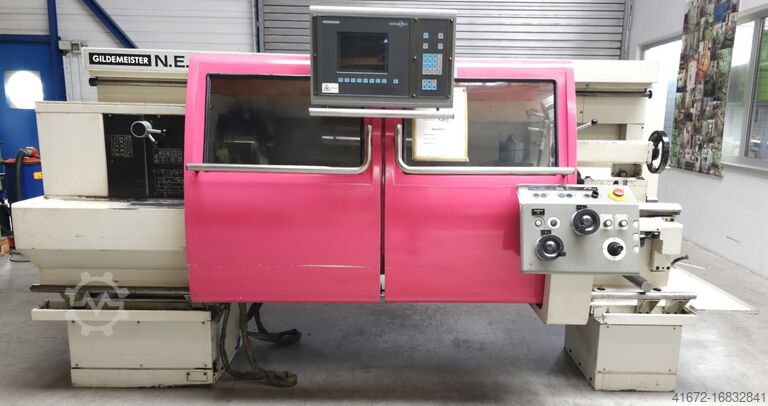

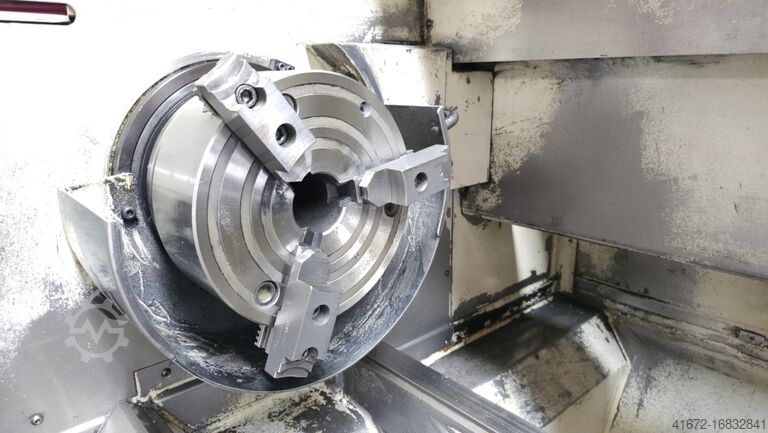

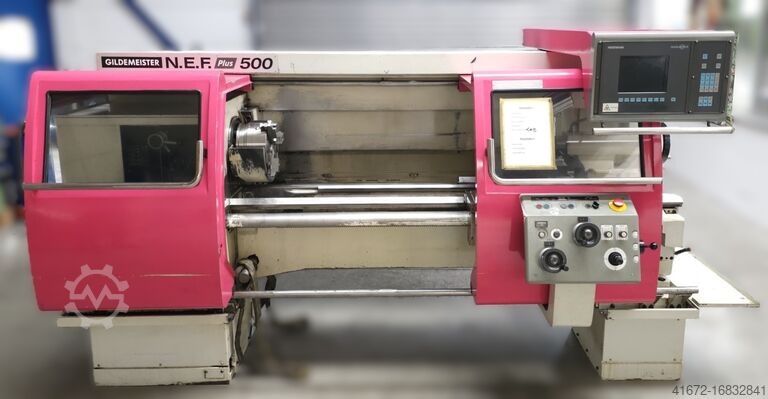

CNC LatheGILDEMEISTER
NEF 500 PLUS
Machine data
- Machine type:
- CNC Lathe
- Manufacturer:
- GILDEMEISTER
- Model:
- NEF 500 PLUS
- Year of construction:
- 1999
- Condition:
- used
Price & Location
- Location:
- Offenbach / Queich
Details about the offer
- Listing ID:
- A168-32841
- Reference number:
- 1058-24389
- Update:
- 05.11.2025
Description
turning length 1500 mm
control Manual Plus
spindle bore diameter 70 mm
turning speed range 8 - 2800 U/min
transmission ratio 3
swing diameter over face slide 290 mm
spindle head DIN 55027 Gr 8
tool holder Typ C
quill stroke 180 mm
weight of the machine ca. 3,2 t
dimensions 3,0 x 1,8 x 1,8 m
Description of the machine:
This machine is suitable for turning chucked and shaft workpieces.
The commercially available steel grades, casting, copper, aluminium, brass,
gunmetal and cuttable plastic can be turned on this machine.
--> Concept of the N.E.F. plus
The machine si supplied as standard with the following described equipment
- Cycle control
- AC-Main drive
- Compund slide rest with AC drive and operating panel
- Tailstock traversable using slavingunit, manualy clamped, including following
centre point
- Coolant unti
- Chip protection hoods, manually actuated
- Protection hood for chuck
- Fast change tool holder Hahn & Kolb Multifix C
- Reduction collar for turning spindel
accessories according to pictures:
Nwsdpfoub Amlox Ac Hor
- 2 STK steady rests
- various clamping jaws
- Hahn & Kolb Multifix type C
- Various torsion bar holders
Technical data:
Working area:
- Circulation diameter over bed: 500 mm
- Circumferential diameter above the radial slide: 285 mm
- Chuck Ø: 250(315) mm
- Face slide: 260 mm
- Distance between centres: 1000/1500 mm
Turning spindle:
- Spindle head DIN 55027: Size 8
- Hole diameter of the spindle: 70 mm
- Hollow taper of the spindle nose: 80 metric
- Spindle diameter in front bearing
Seller
Registered since: 2003
Send inquiry
Telephone & Fax

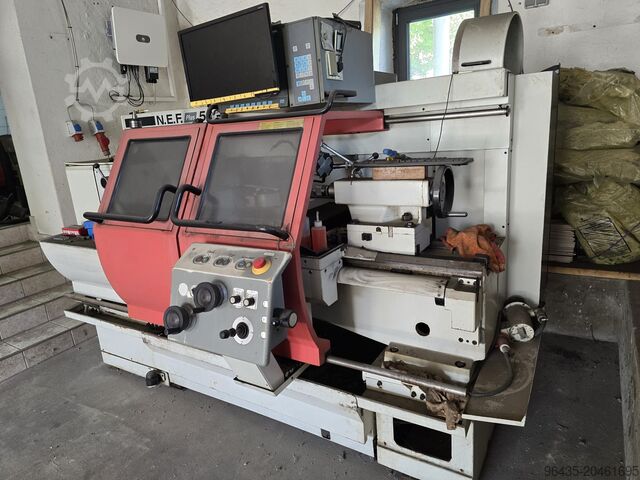

Germany GildemeisterNEF plus 500
Metzingen SEIGERSLZ 570/2

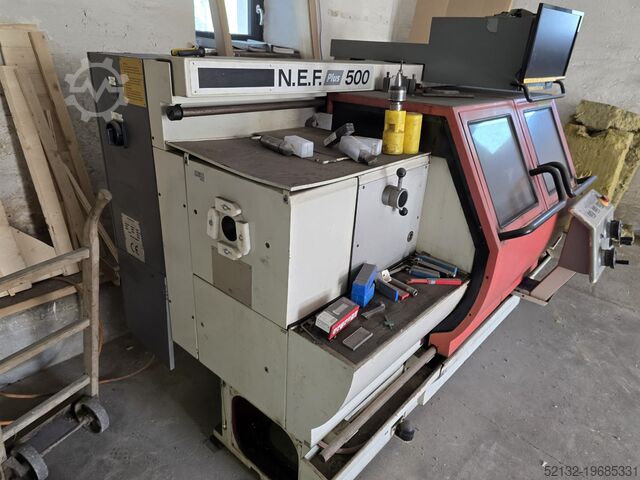

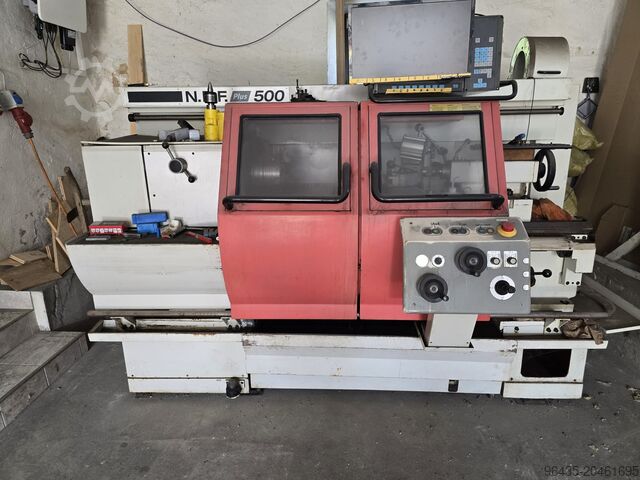

Schwäbisch Gmünd GildemeisterNEf plus 500
Germany GILDEMEISTERNEF Plus 500

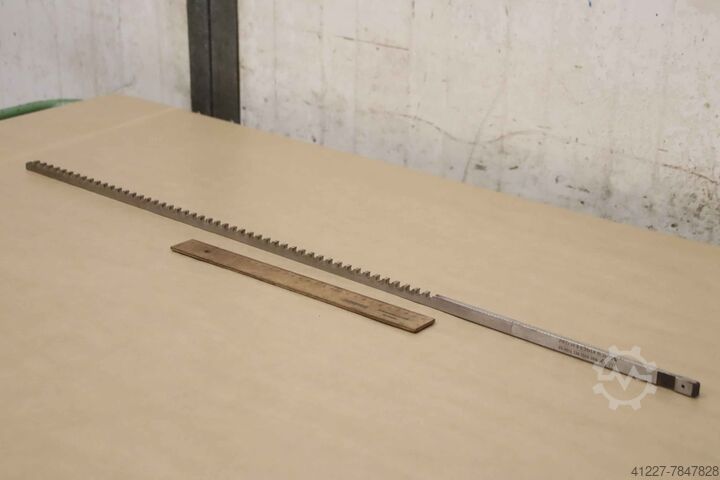

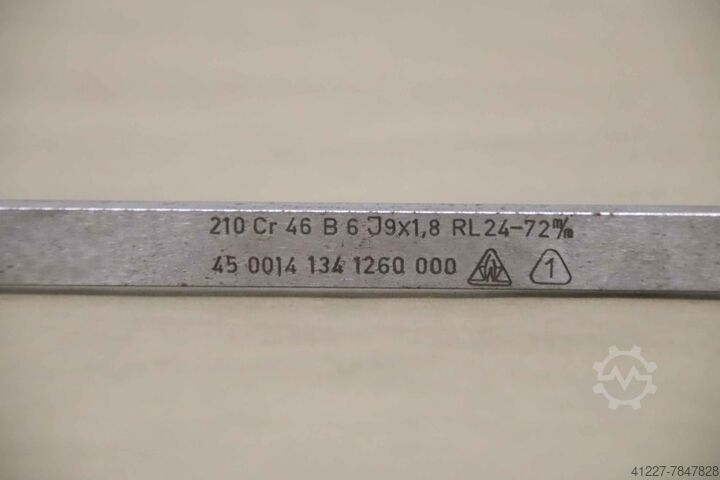

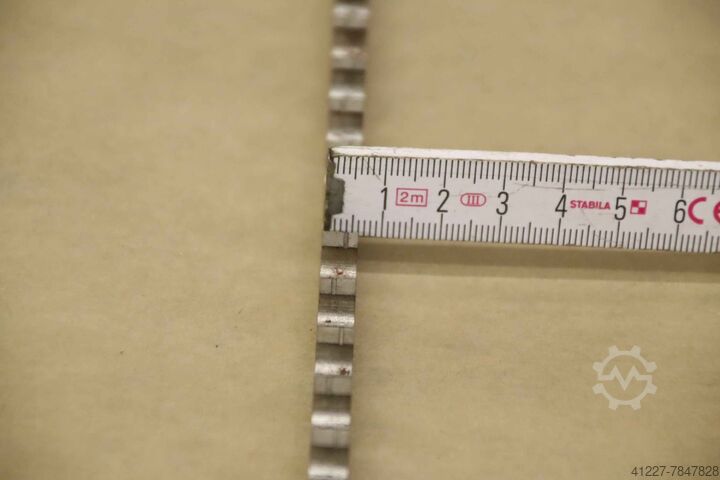

Wiefelstede SWZB 6 J9x1,8 RL 24-72 mm

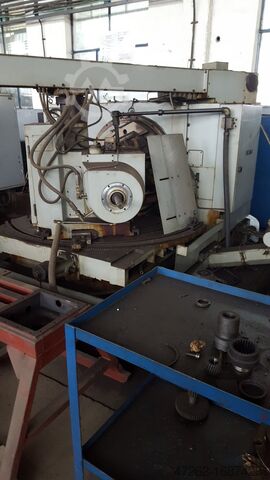

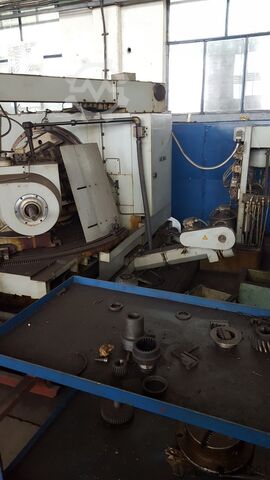

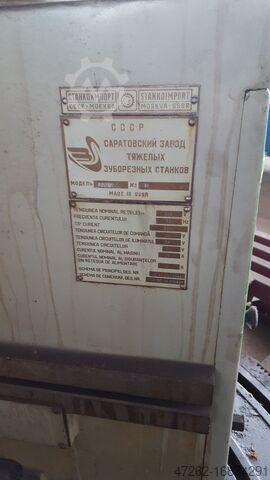

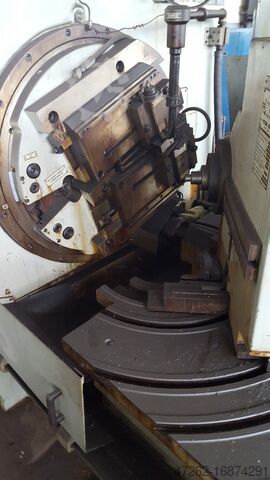

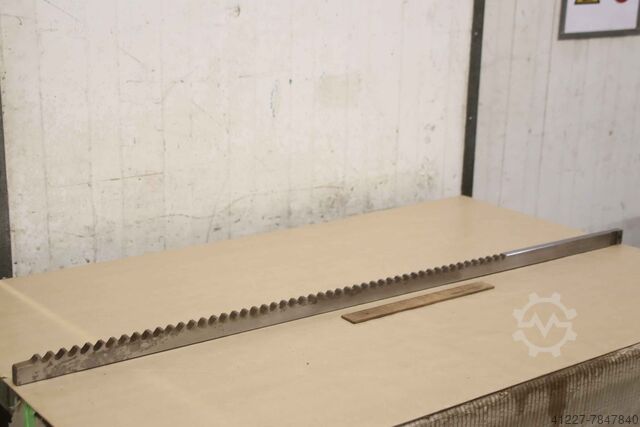

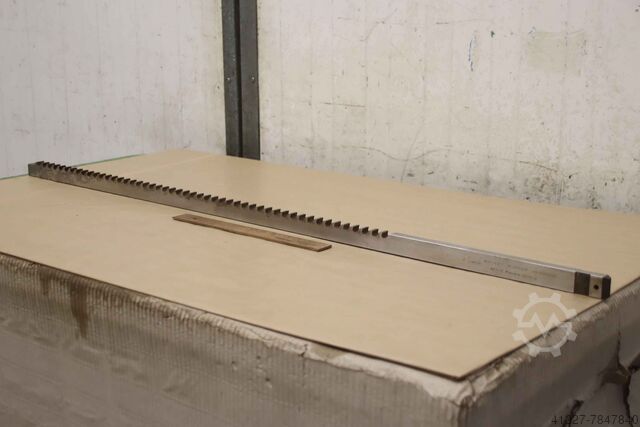

Wiefelstede Planeta Coswig16D11x2,7

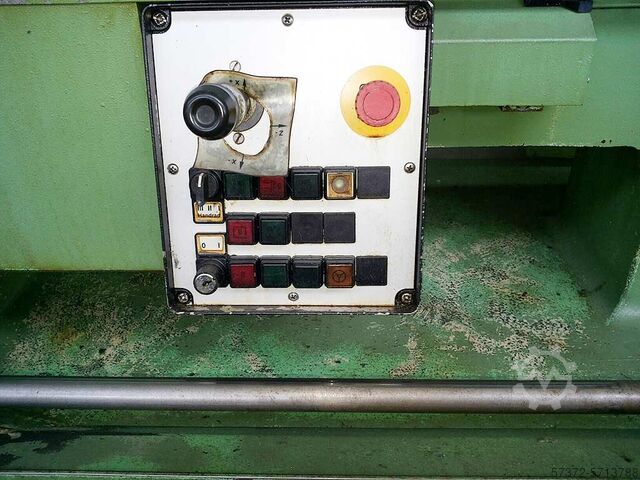

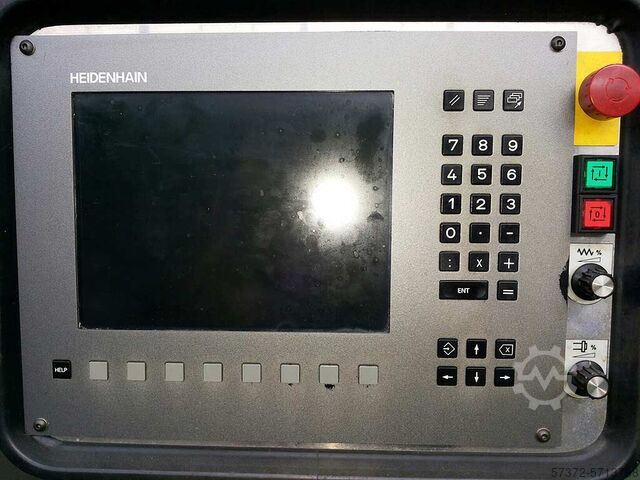

Berlin BERTECCORONA
Tönisvorst BAUMUELLERBUS 20-40/60-30-001

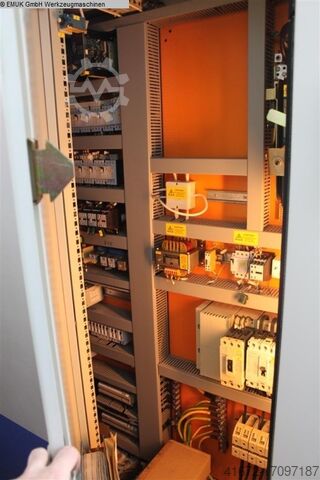

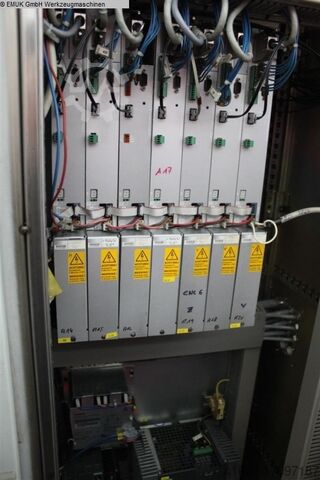

Germany KLINGELNBERGKNC 25 P

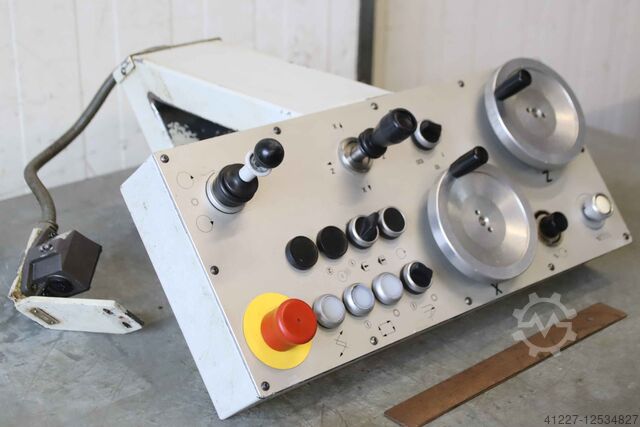

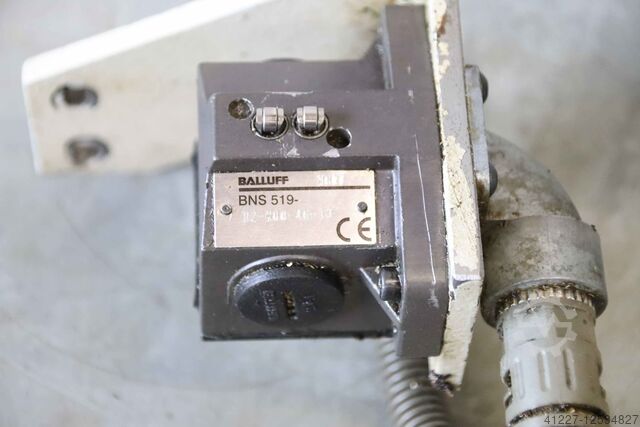

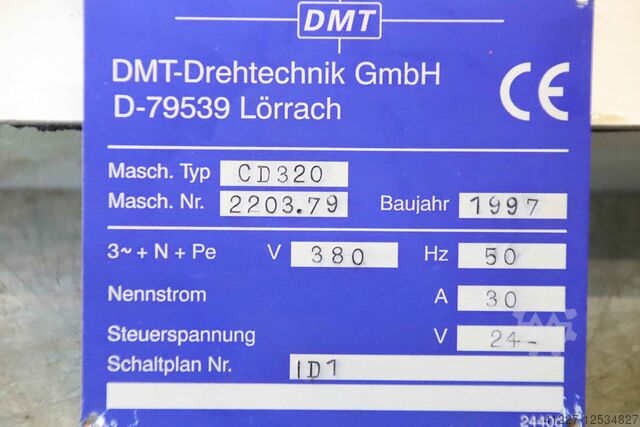

Wiefelstede DMTCD320
