Gear Hobbing Machine - Vertical

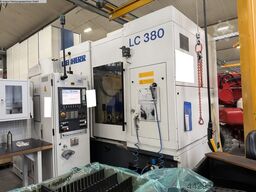

LIEBHERR LC380

Year of construction: 1971, condition: used, Technical details: max. wheel diameter: 300 mm max. module: 5 module min. : 0,5 max. workpiece weight: 60 kg weight of the machine ca.: 4,0 t dimensions of machine: 1800x1850x2500 mm dimensions electric cabinet: Nr. 1: 1930x400x1920 mm dimensions electric cabinet: Nr. 2: 800x230x1950 mm dimensions:: Abluftanlage: 1400x700x560 mm dimension cooling device LxWxH: 1,2 x 1,0 x 0,45 m Electronically controlled tooth flank grinding machine up to module 5 and a Ø of 240 - 300 mm feed speed per workpiece revolution infinitely variable 0.4 - 3.2 mm max./min. Number of teeth: 130 / 12 Redpfsvc Apbsx Aizst max./min. Pressure angle: 30° / 14°30` max./min. Spiral pitch with 24 teeth: 6000 / 200 mm max. tooth helix angle, both sides: 45° Speed of the grinding worm: 1900 rpm without dressing device Equipment: approx. 77x change transmission wheels, pipe extensions and various tools Two of these machines are for sale. Both machines are supplied via two common control cabinets and an exhaust air system. *

Condition: excellent (used), Year of construction: 2019, machine/vehicle number: 32006, input voltage: 480 V, The Sprinter for Gears with Short Face Widths up to 100 mm The 100S Gear Shaping Machine is ideally suited for small face widths, for shaping spur and helical gears, internal and external, and for crowned and tapered gears. With only 6 m2 the 100S is one of the most compact machines of its class. Equipped with: Siemens Sinumerik 840D SL Control Hydraulic System 180 Degree Load System HSK-63 Spindle Auto Stroke Adjustment Chip Conveyor Chip Basket Flexlink Automation Redpfx Aijrtrvyezet Festo Pneumatics Rittal Panel Conditioners Chiller 480/3/60, 35 KvA Motor & Controls Specifications: Workpiece With External Gear: -Largest Module (Steel W/Approximate 600 N/mm2): 3 mm -Maximum Width: 26 mm -Maximum Diameter: 100 mm Workpiece With Internal Gear: -Largest Module (Steel With Approximate 600 N/mm2): 3 mm -Maximum Width: 26 mm -Maximum Swing Diameter: 150 mm -Maximum Internal Diameter: 100 mm Tool: -Locating Cone In The Cutter Spindle: HSK-D63 -Diameter Shaping Spindle: 85 mm -Maximum Stroke Length: 30 mm Machine Travel Distances: -Radial (X-Axis): 180 mm -Column Tilting (B-Axis): -1 - +11 Degrees Machine Workpiece Table: -External Diameter: 220 mm -Clamping Diameter: 160 mm -Bore: 63 mm Speeds: -Feed Rate X-Axis: 12,000 mm/min -Workpiece Table (C-Axis): 0-400 min-1 -Cutter (C2-Axis): 0-300 min-1 -Spindle Stroke (A-Axis): 500-3,000 min-1 Electrical Equipment: -Operating Voltage: 480V -Supply Voltage: 115V -Control Voltage: 24V -Frequency: 60 Hz -Connected Load of Machine: 35 kVA -Cable Cross-Sectional Area: 35 mm2 -Protection: 80 A Machine Overall Dimensions (L x W x H): 3,380 x 3,950 x 3,015 mm Weight of Machine: 7,800 kg

Condition: used, TECHNICAL DETAILS - Number of axes : 8 - Number of spindles : 2 MAIN SPINDLE - Max. bar diameter : 25.4 [mm] - Max. machining length : 200 [mm] - Spindle speeds : 10000 [rpm] - C axis indexing precision : 0.1 [°] COUNTER-SPINDLE - Max. bar diameter : 20 [mm] - Spindle speeds : 10000 [rpm] - Spindle power : 3.7 [kW] - C axis indexing precision : 0.1 [°] - Number of guide bush holders : 2 GUIDE BUSH HOLDER 1 - Number of positions : 5 GUIDE BUSH HOLDER 2 - Number of positions : 5 - Number of motorized positions : 4 - Live tools speed : 8000 [rpm] SECONDARY OPERATION - Number of positions : 7 - Number of motorized positions : 3 - Live tools speed : 8000 [rpm] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 14 [kW] WEIGHT & DIMENSIONS - Machine floor space : 2270 x 1650 [mm] - Machine height : 2200 [mm] - Machine weight : 3500 [kg] MACHINE HOURS - Number of hours under power : 46571 [h] EQUIPMENT - CNC : Fanuc - Rotating tool motor on : S2 - Rotating guide bush - Parts catcher - Ejection of workpiece - Chips conveyor : KNOLL - Coolant tank * with high-pressure pump : 100 [bars] - Bar loader : TORNOS ROBOBAR SSF - Oil mist extractor : Elbaron - Fire extinguisher * * NB : working order not guaranteed. To have it checked by a qualified organization of the buyer. Rjdpouhaycjfx Aizot

Condition: used, cone distance min./max. 0-108 mm Pitch angle min/max 5°/84° Control GE Fanuc Series 0-GC Pitch diameter (1:1 ratio) 152 mm pitch diameter (10:1 ratio) 216 mm Diametral pitch (finest/coarsest) 1.3/8.5 Mod. Face width gear wheel max. 35 mm Knife spindle - Speed range 41-121 U/min Rsdpfx Aisyh Rmmezot working spindle speed range 0-33.33 U/min weight 9025 kg dimensions of the machine ca. 2707 x 2720 x 2200 mmxmmxmm Equipment/accessories: -Knife -Chip conveyor -Technical documentation

Year of construction: 1997, condition: excellent (used), Universal Turning key drawing machine from Cardinal apply for toolmaker , mold maker, education and Locksmith Rodpfx Aisin Dkzjzst Slot width 3 - 100 mm max. groove length 1250 mm Pulling force 6000 kg Draw length 1250mm Motor 5,5 KW Weight 1650 kg Dimensions 1000x1650x1000mm

Condition: good (used), Year of construction: 2007, max. wheel diameter 1200 mm gear width 260 mm max. module 16 min. module 0,5 stroke 270 mm distance between table/spindle 920 mm taper of shaper cutter SK control Liebherr LH 90 table diameter 900 mm min. workpiece diameter-at internal hobbing 1200 mm strokes - infinitely variable 50-1000 Hub/min Redpjwzmp Isfx Aizot spindle diameter 125 mm table hole 320 mm Distance of shafts Min/Max 0-820 power requirement Stosskopf 30 KW total power requirement 72 KVA weight of the machine ca. 24 t dimensions of the machine ca. 6,5x2,9x4 m Liebherr LH 90 control, 9 axis CNC, top condition.

Year of construction: 1965, condition: used, machine/vehicle number: 2112, Color: green Force: 2,5 to Stroke: 1000mm Rsdpfebrclvsx Aizot Weight: 1,2 to 3 KW Area required: appr. 140 x 130 cm

Condition: good (used), Year of construction: 1998, spindle diameter 90 mm control Siemens SINUMERIK 840 C voltage 400 V stroke position adjustment 100 mm table hole 150 mm no. of strokes 100-1200 Hub/min weight of the machine ca. 8,0 t Key data Normal module: 6 mm Max. workpiece pitch circle diameter: 250 mm Max. tooth width (straight teeth): 60 mm Helix angle adjustment: 45° to +0.5° Axis angle: 0° to 90° Center distance workpiece/jigging spindle: –80 mm to +320 mm Stroke position, stroke length Max. stroke position range (depending on stroke length): 0 mm to 80 mm Stroke position adjustment range: 0 mm to 80 mm Stroke drive Stroke rates infinitely variable Standard: 100 to 1200 DH/min Motor for stroke drive: 9 kW Maximum cutting speed: 150 m/min Feeds Rotation axes (tool C1, workpiece C2 axis): Feed stepless relative to 100 mm pitch circle diameter: 1.0 to 9420 mm/min Radial axis (column slide X1 Redexyadtopfx Aizjt axis): Feed continuously variable: 1.0 to 9420 mm/min, rapid traverse corresponds to maximum feed rates Connected load / weight Total connected load: 26 kVA Total weight (standard version): approx. 9,000 kg

Condition: excellent (used), Mikron Gear Hobbing Machine A33/0 – for Module 0.5 to 2.5 – rarely used Manufacturer: Mikron Model: A33/0 – Gear Hobbing Machine (vertical) Version: Base machine with standard milling head Condition: used, very good condition, machine has been rarely operated Color: green Technical Data Max. workpiece diameter: approx. 80 mm Max. hobbing length: approx. 150 mm Module range: approx. 0.5 – 2.5 Ideal for small gears in the module range 0.5 – 1.0 Main drive: 3 kW Electrical connection: 3 x 380 V AC, 50 Hz Total power consumption: approx. 9.5 kVA Dimensions & Weight L x W x H: approx. 1,450 x 1,380 x 2,080 mm Redpfx Aiex A D Izjzst Weight: approx. 2,200 kg Special Features Very well-suited for manufacturing small gears (module 0.5 – 1.0) Machine was rarely used in production, therefore minimal wear Availability / Service Detailed photos and operating video available upon request Quotation including price, delivery terms, and lead time possible Subject to prior sale and errors.

Condition: used, Year of construction: 2009, Technical details: rotor dia: 30-500 mm hobbing length: 500-1000 mm total power requirement: 80 kW weight of the machine ca.: 15 t Redev Hrp Eopfx Aizot dimensions of the machine ca.: 3,6 x 2,5 x 3,0 m max. module: 8 Max. module Et milling = 12 Max. module hobbing = 12 Max. axial travel = 110 to 1100mm Max. cutter speed = 300rpm Max. cutter displacement tangential = -350 to -55mm Max. table speed = 100rpm Table drive: torque motor Filter system: chip conveyor is for magnetic materials, belt filter is for all suspended matter that floats in the oil Including milling mandrel *
