Used Cyklop Strapping Machine for sale (17)

Condition: used, Strapping machine - IDL000754 - manufacturer: Cyklop - model: SAP7-OLS Pgslstqldvshccqnok - Working conditions

Condition: reconditioned (used), Year of construction: 2012, Functionality: fully functional, Cyklop Strapping Press / Cyklop Pallet Press Technical Specifications: Machine Type: XZE 30.2-18 DT Year of Manufacture: 2012 Packaging Unit: Width: 800 – 1,200 mm Height (including pallet): 350 – 2,600 mm Weight: 50 – 1,500 kg The Cyklop Press: Length: 1,950 mm Polhccqewdha Hsnogk Useful Width: 1,100 mm Conveyor Height: 350 mm Roller Diameter: 89 x 3.25 mm Roller Shell Surface: Galvanized Roller Pitch: 150.8 mm Load Capacity: 1,500 kg Centering Alignment: Concentric Minimum Usable Width: 600 mm Maximum Usable Width: 1,300 mm (incoming pallet is from the upstream Conveyor (centered conveyance) Centering beam length: 1,400 mm Performance: Total output: 60 packages/h with 2x2 strapping Power supply: 3/N/PE, 380 - 415 V, 50 Hz (loadable neutral conductor) Emergency stop: 2-channel Area protection: 2-channel Control system: Siemens S7 300 Functional sequence: The packages are positioned via the conveyor system of the strapping press. The signal exchange with the higher-level control system takes place via potential-free contacts. The number and position of the straps are determined by the preselected program. After strapping is completed, the package is released to the higher-level control system for further transport. The package is then sent to the higher-level control system. Intended strapping material: Quality: PET strapping Documentation: Version: Cyklop Standard Quantity: 1 copy in a Cyklop folder 1 copy on a USB stick in PDF format

Condition: good (used), Year of construction: 2006, Compact and fast strapping machine with maximum package dimensions of approximately 600 mm wide x 600 mm high from a renowned German manufacturer, designed for high speed and trouble-free operation. Equipped with an ergonomic and straightforward spool changing and threading system. Pgelhepuy Itoccqnek -Sealing type: Hot wedge welding. -Up to approximately 42 straps per minute. -Strap type: PP strap. -Strap width adjustable from 5-9 mm: Set to 5 mm. -Strap tension adjustable on the control panel. -Soft tensioning possible. -Standby function / power saving mode. -Sturdy foot pedal. -Low-maintenance and low-wear strap frame. -Movable and lockable via foot casters. The machine can be demonstrated with power on.

Year of construction: 2008, Condition: good (used), Build in 2008 - Type of strapping: single, double, cross - max speed for single strap: up to 40 bundles/min - min bundle dimensions (w x l): ~100 x 100 mm - max bundle dimensions (w x l): ~600 x 600 mm - min bundle (package) height: ~50 mm - max bundle (package) height: ~600 mm - max weight bundle/package: ~30 kg - Infeed / outfeed (conveying) height: ~760-890 mm - Type of sealing: heat-weld sealing - Strapping material: Polypropylen (PP) - No of strap coil dispenser: single - Strap coil dispenser - core diameter: ~200 mm - Strap coil dispenser - core width: ~190 mm - Equipped with auto. strap feeding - Equipped with auto. strap end detection - Equipped with auto. strap loop ejection (on "no bundle cycle") - Over all length equipment: ~600 mm - Over all width equipment: ~970 - Over all height equipment: ~1600 mm - Input Power: ~1kW Pjlsh I I Tpjhccqnegk - Weight: ~200 kg - Equipment at Helmstedt, airports: Hannover (~1 hr), Berlin (~2 hrs) - Mechanical / electrical machine test possible (option) - Condition: cleaned & in working conditions - Machine available: upon request Description: Automatic strapping machine. Stand-alone strapper with manual loading of bundles/packages.Foot pedal for strapping cycle start. Moveable, mounted on wheels.

Condition: used, Cyklop strapping machine IDL000753 Pgolhccetk E N Njqnek Model: SS-805

Condition: reconditioned (used), Year of construction: 2003, Cyklop XZE-311 strapping press Year of construction: 2003 Pgslotqpadehccqnok Passage width: max. 2200 mm Passage height: max. 2200 mm Belt guiding distance: 625 / 440 Roll pitch: 60 mm Strapping speed: 2.9 m/s Strap tensioning force of the strapping unit: adjustable up to 2000 N Pressing force: adjustable from 5 to 48 kN

Year of construction: 2004, Condition: good (used), Build in 2004 - Type of strapping: single & double - max speed for single strap: 36 bundles/min - max speed for parallel (double) strap: 19 bundles/min - min bundle dimensions (w x l): ~200 x 170 mm - max bundle dimensions (w x l): ~560 x 560 mm - min bundle (package) height: ~10 mm - max bundle (package) height: ~440 mm - max weight bundle/package: 25 kg - Infeed / outfeed (conveying) height: ~800-930 mm - Continuously adjustable conveyor speed - Metric input of strapping position - Type of sealing: heat-weld sealing - Strapping material: Polypropylen (PP) - No of strap coil dispenser: single - Strap coil dispenser - core diameter: 200 mm - Strap coil dispenser - core width: 190 mm - Equipped with back stop (package stop) - Equipped with hold-down device - Equipped with interface to up-/downstream equipment - Over all length equipment: ~736 mm - Over all width equipment: ~1360 mm - Over all height equipment: ~1915 mm - Input Power: 1,5 kVA - Voltage: 400V, 50/60 Hz, 3Ph, N - Air requirement: 330l/min freie Luft 6 bar - Weight: ~550 kg - Equipment at Helmstedt, airports: Hannover (~1 hr), Berlin (~2 hrs) - Condition: cleaned & in working conditions - Machine available: upon request Polhsh Iy Rujccqnogk Description: Automatic single, double or multiple strapping of e.g. bundles behind a press stacker or a bindery stacker. Normally integrated into a complete packaging line for bundles/packages.

Year of construction: 2004, Condition: good (used), Build in 2004 - Type of strapping: single & double - max speed for single strap: 36 bundles/min - max speed for parallel (double) strap: 19 bundles/min - min bundle dimensions (w x l): ~200 x 170 mm - max bundle dimensions (w x l): ~560 x 560 mm - min bundle (package) height: ~10 mm - max bundle (package) height: ~440 mm - max weight bundle/package: 25 kg - Infeed / outfeed (conveying) height: ~800-930 mm - Continuously adjustable conveyor speed - Metric input of strapping position - Type of sealing: heat-weld sealing Pgjlhccoh Iy Skoqnsk - Strapping material: Polypropylen (PP) - No of strap coil dispenser: single - Strap coil dispenser - core diameter: 200 mm - Strap coil dispenser - core width: 190 mm - Equipped with back stop (package stop) - Equipped with hold-down device - Equipped with interface to up-/downstream equipment - Over all length equipment: ~736 mm - Over all width equipment: ~1360 mm - Over all height equipment: ~1915 mm - Input Power: 1,5 kVA - Voltage: 400V, 50/60 Hz, 3Ph, N - Air requirement: 330l/min freie Luft 6 bar - Weight: ~550 kg - Equipment at Helmstedt, airports: Hannover (~1 hr), Berlin (~2 hrs) - Condition: cleaned & in working conditions - Machine available: upon request Description: Automatic single, double or multiple strapping of e.g. bundles behind a press stacker or a bindery stacker. Normally integrated into a complete packaging line for bundles/packages.

Condition: like new (used), Year of construction: 2015, operating hours: 3,000 h, Functionality: fully functional, machine/vehicle number: N1500796, type of input current: three-phase, total height: 1,800 mm, input voltage: 400 V, total width: 1,000 mm, total length: 1,400 mm, overall weight: 200 kg, working height: 1,800 mm, compressed air connection: 8 bar, air demand: 10 m³/h, input current: 16 A, air pressure: 8 bar, working width: 500 mm, infeed height: 500 mm, frequency: 50 Hz, AS GOOD AS NEW CYKLOP BOXCLOSER CLOSES VARIABLE SIZED BOXES WITHOUT ADJUSTMENTS BY HAND. SO ONE BOX CAN BE 300X300MM AND THE NEXT CAN BE 500X500MM AND SO ON. NEEDS 16A 5 POLE AND COMPRESSED AIR. Pgolhccswd Tc Tsqnek TESTED AND SERVICED.

Year of construction: 2008, Condition: good (used), Built in 2008 - Type of strapping: single, double, cross - max speed for single strap: up to 40 bundles/min - min bundle dimensions (w x l): ~100 x 100 mm - max bundle dimensions (w x l): ~600 x 600 mm - min bundle (package) height: ~50 mm - max bundle (package) height: ~400 mm - max weight bundle/package: ~30 kg - Infeed / outfeed (conveying) height: ~760-890 mm - Type of sealing: heat-weld sealing - Strapping material: Polypropylen (PP) - No of strap coil dispenser: single - Strap coil dispenser - core diameter: ~200 mm - Strap coil dispenser - core width: ~190 mm - Equipped with auto. strap feeding - Equipped with auto. strap end detection - Equipped with auto. strap loop ejection (on "no bundle cycle") - Over all length equipment: ~600 mm - Over all width equipment: ~970 - Over all height equipment: ~1600 mm - Input Power: ~1kW - Weight: ~200 kg - Equipment at Helmstedt, airports: Hannover (~1 hr), Berlin (~2 hrs) Pgslhcceh Nxudsqnjk - Mechanical / electrical machine test possible (option) - Condition: cleaned & in working conditions - Machine available: upon request Description: Automatic strapping machine. Stand-alone strapper with manual loading of bundles/packages.Foot pedal for strapping cycle start. Moveable, mounted on wheels.

Condition: like new (used), Year of construction: 2007, Available immediately! Best price now! CYKLOP CI 1110M Wrapper-cover machine, 2007 for sale TECHNICAL DATA MACHINE Nominal speed rotary-arm 10-25 r.p.m. Maximum speed rotary arm 25 r.p.m. Capacity max. 58 pallets/h Operational hours 24 hrs/day, 5 days/week Free headroom min of 5000 mm Total weight (incl. Safety fences) approx. 1000 kg Building height transport system 300 mm Environmental temperature +5 to +35 °C Environment clean, dry ELECTRICAL Power supply 3x600V/50 Hz Control voltage 24 V DC Installed power approx. 9.4 kVA Protection class Control unit IP 55 Pgolji Apkxjhccqnek Motors IP 54 Switching materials IP 65 PNEUMATICS Operating pressure min. 6 Bar Air consumption 1000 l/hr at 6 Bar and 60 pallets/hr PALLET Pallet dimensions Length x width x height Max. 2000 x 800 x 145 mm Min. 1200 x 800 x 145 mm Height with load (including pallet) max. 1200 mm / 1500 kg Min. 500 mm / 200 kg Top of load flat Art of load furniture parts on pallet FILM Film roll cross section max. 300mm Cartridge cross-section 76.2 mm Width max. 600mm Thickness 17 – 23 Film cutting system Pneumatic linear drive, separating knife, film cutting at bottom. Film carriage Frequency-controlled drive for different overflap patterns Film stretching infinitely from 0% to 300% Sound level max 80 dBA , min 70 dBA Sound level during wrapping is dependent on the film which is used. All technical documentation available.

Condition: used, Professional and stable packaging machine from a German manufacturer. -Maximum carton dimensions approx.: width 600 mm x height 600 mm; unlimited length. -Suitable for adhesive tape width up to 50 mm. -Top and bottom closure on both sides. Psljmhfnkohccqnogk -The height and width of different cardboard formats can be set manually. -Transport speed approx. 20 m / min. Output approx. 800 cartons per hour. - Working height of the machine can be adjusted: The scope of delivery includes 4 adjustable feet per machine. -Function test of all conveyor belts as well as width and height adjustment carried out. We currently have 2 of these machines on offer. The machines can be purchased individually or together.

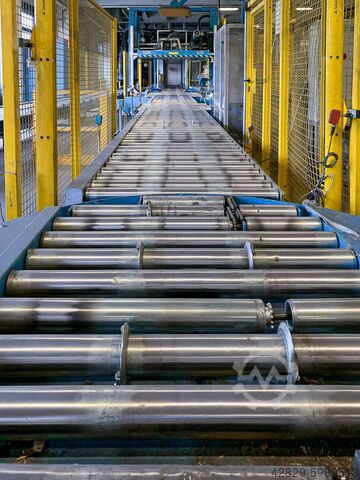

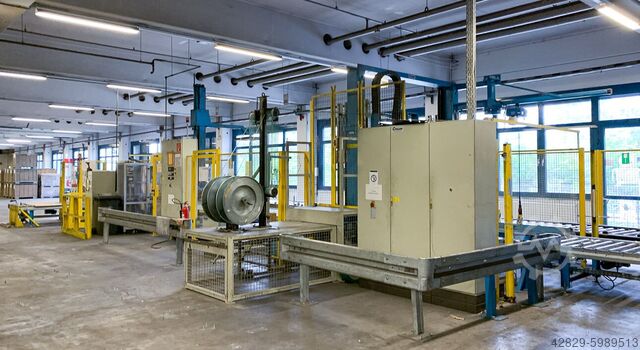

Year of construction: 2000, Condition: good (used), Cyklop Pallet strapping & film wrapping line: Cyklop XZE-311-22 pallet strapping Cyklop GL 1020M - pallet film wrapping Build in 2000 (XZE-M) 2000 (GL 1020M) Pallet strapper Cyklop XZE-311-22: Speed: up to 100 Palles/h Pallet sizes: 800x1200 mm, 1000x1200, 1200x1200 mm Passage height: max 2700 mm (from floor) min height pallet conveyors: 300 mm max palletizing height: ~2500 mm - height conveyors (incl. pallet) max weight pallet: 1.500 kg Height over all: ~4200 mm Elektrical: 400 VAC, 3Ph/N/PE, 50 Hz, ~6 kW Dimensions (L x W x H): appr. 2.000 x 7.000 (incl. strapping reels) x 4.200 mm Weight: ca. 4.000 kg GL 1020M: Speed: up to 50 Pallets/h Pallet sizes: 800x1200 mm, 1000x1200, 1200x1200 mm Passage height: max 2200 mm (from bottom pallet) min height pallet conveyors: 300 mm Working height: 500 - 2000 mm (inkl. Palette) Film, outside (new) reel diameter: max 400 mm Film, reel width: max 500 mm Film thickness: 17/23/35 µm max pallet weight: 1.500 kg Elektrical: 400 VAC, 3Ph/N/PE, 50 Hz, ~3 kW Dimensions (L x W x H) : ca. 1.800 x 3.000 x 3.500 mm Weight: appr. 1.500 kg Equipment: Complete line, "L"-configuration (long leg ~20m, short leg ~5m) for pallet strapping & stretch wrapping, configured as follows: > Infeed position for pallets, motorized > pallet strapper Cyklop XZE with two strapping heads, three strap guides, integrated turntable for cross-strapping of pallets > buffer position for pallets, motorized > pallet film wrapper Cyklop GL 1020, film dispensing through fix lateral arm with pallet rotating on turntable > buffer position for pallets, motorized > turntable for pallets, 90° turn left or right, motorized Pgjljg A Hflohccqnok > ejection of the turned pallet onto pick-up positions, motorized SEE LAYOUT FOR MORE INFO"

Year of construction: 2010, Condition: good (used), Cyklop Pallet strapping & film wrapping line: Cyklop XZE-311-22 pallet strapping Cyklop GL 1020M - pallet film wrapping Build in 2010 (XZE-M) 2006 (GL 1020M) Pallet strapper Cyklop XZE-311-22: Speed: up to 100 Palles/h Pallet sizes: 800x1200 mm, 1000x1200, 1200x1200 mm Passage height: max 2700 mm (from floor) min height pallet conveyors: 300 mm max palletizing height: ~2500 mm - height conveyors (incl. pallet) max weight pallet: 1.500 kg Height over all: ~4200 mm Elektrical: 400 VAC, 3Ph/N/PE, 50 Hz, ~6 kW Dimensions (L x W x H): appr. 2.000 x 7.000 (incl. strapping reels) x 4.200 mm Weight: ca. 4.000 kg GL 1020M: Pgslsg S Twuehccqnsk Speed: up to 50 Pallets/h Pallet sizes: 800x1200 mm, 1000x1200, 1200x1200 mm Passage height: max 2200 mm (from bottom pallet) min height pallet conveyors: 300 mm Working height: 500 - 2000 mm (inkl. Palette) Film, outside (new) reel diameter: max 400 mm Film, reel width: max 500 mm Film thickness: 17/23/35 µm max pallet weight: 1.500 kg Elektrical: 400 VAC, 3Ph/N/PE, 50 Hz, ~3 kW Dimensions (L x W x H) : ca. 1.800 x 3.000 x 3.500 mm Weight: appr. 1.500 kg Equipment: Complete line, "L"-configuration (long leg ~20m, short leg ~5m) for pallet strapping & stretch wrapping, configured as follows: > Infeed position for pallets, motorized > pallet strapper Cyklop XZE with two strapping heads, three strap guides, integrated turntable for cross-strapping of pallets > buffer position for pallets, motorized > pallet film wrapper Cyklop GL 1020, film dispensing through fix lateral arm with pallet rotating on turntable > buffer position for pallets, motorized > turntable for pallets, 90° turn left or right, motorized > ejection of the turned pallet onto pick-up positions, motorized SEE LAYOUT FOR MORE INFO"

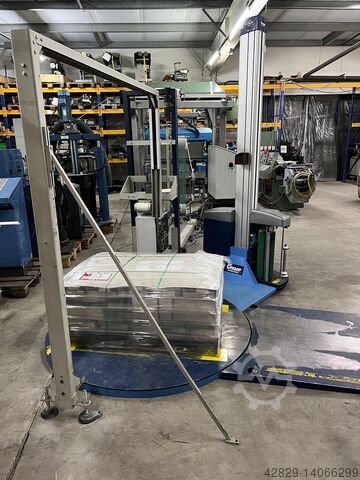

Condition: good (used), Height: max 1,800 mm Pallet format: max 1,000 x 1,200 mm Speed: max 30 pallets/h Electrical system: 380 VAC Electrical system: 50 Hz Electrics: 3 PH Pelhccqeqqkx Nensgk Clamping force: max 5,500 N Equipment - Strapping machine: XP-112 MV - Sealing head CFH-1 - Stretch wrapper: GL-215 - Control system: S7

Year of construction: 1993, Condition: ready for operation (used), Two identical Cyklop stretch trolleys are available. Charger included. The machines have not been used since 2018. On-site inspection is possible. Pelhccqjvwcwzonegk

Condition: excellent (used), Year of construction: 2017, Strapping machine after inspection and ready to work. Basic technical parameters: Year 2017 Electric power supply 230V / 50 Hz Bonding speed up to 65 cycles/min with frame 650x500 mm PP tape width from 5 mm to 9 mm PP tape thickness from 0.35 to 0.65 mm Tape tension force up to 1 to 32 kg Work table height adjustable from 820 to 920 mm Machine weight approx. 157 kg Max. weight of packed load up to 70 kg Minimum load dimensions 70×20 mm Carcass dimensions 200mm/150 optional Pslhevzqk Doccqnjgk Power consumption 0.5 kW Operating temperature from 5 to 40° C
